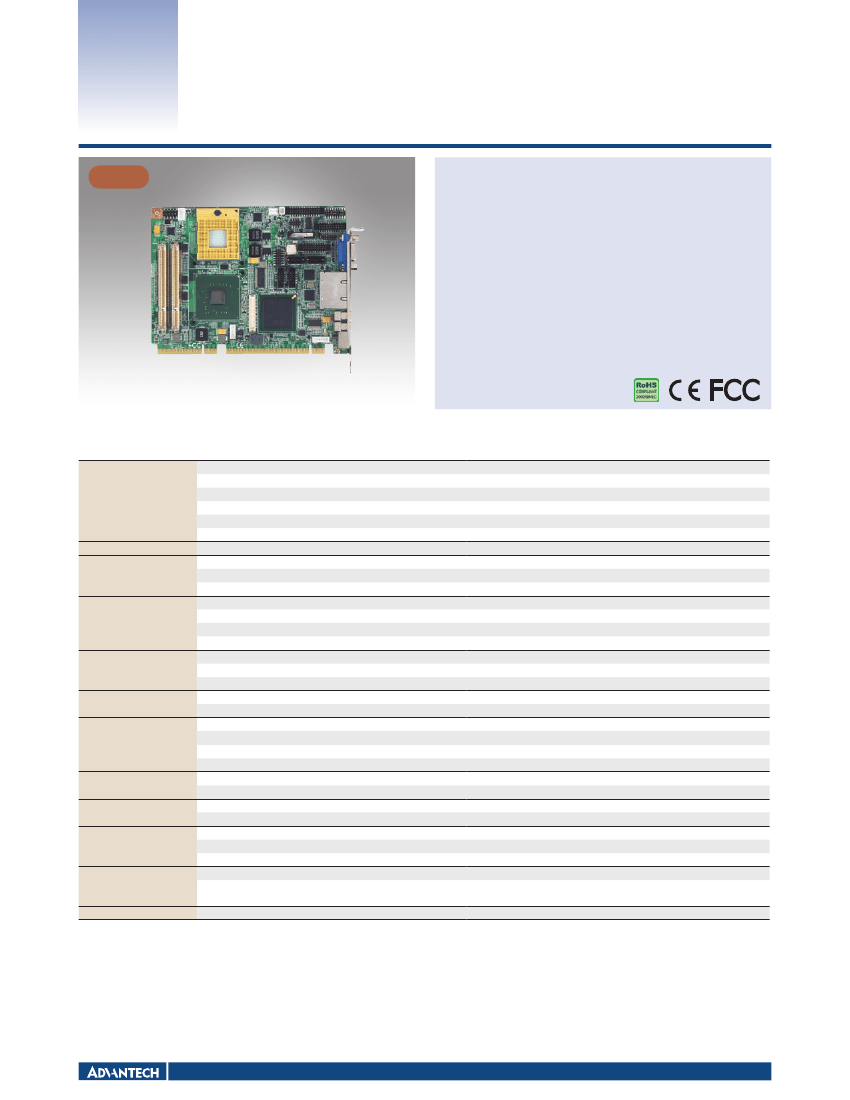

PCE-3132
NEW
Socket M Intel
®
Core™ 2 Duo Half-size SHB
with PCIe/VGA/LVDS/Dual GbE LAN
Features
Complies with PICMG 1.3
Supports Socket-M Intel Core 2 Duo with 533/667 MHz FSB
Intel 945 GME with ICH7M-DH chipset 667 MHz FSB
Supports dual channel SO-DIMM DDR2 400/533/667 SDRAM up to 4 GB
Two SATA ports with software RAID 0,1
Supports dual 10/100/1000 Mbps Ethernet via dedicated PCIe x1 bus
PCIe x16 interface for VGA via backplane
Supports Fanless ULV Celeron M423 and Core™ Duo U2500 CPU (Optional)
Specifications
Processor System
CPU (65nm)
Max. Speed
L2 Cache
Chipset
BIOS
Front Side Bus
PCIe
Technology
Max. Capacity
Socket
Chipset Integrated
LVDS
Video Output
External Card
Interface
Controller
Connector
Max. Data Transfer Rate
Channels
USB
Serial
Parallel
PS/2
Output
Interval
Audio Output
Solid State Disk
Max
Typical
Temperature
Dimensions (W x D)
Intel Core 2 Duo
Intel Core Duo
Intel Celeron M
T7600 (2.33 GHz)
T2700 (2.33 GHz)
530 (1.73GHz)
4 MB
2 MB
1 MB
Intel 945GME + ICH7M-DH
Award 8 Mbit SPI
533/667 MHz
One x16 & four x1 to backplane
Dual channel DDR2 400/533/667 SDRAM
4 GB
200-pin SODIMM x 2
Intel GMA 950 sharing 224 MB system memory
Single channel 18-bit/Dual channel 36-bit LVDS
15-pin CRT connector x 1
PCIe x16 Graphics card
10/100/1000 Mbps
GbE LAN1: Intel 82574L, GbE LAN2: Intel 82574L
RJ-45 x 2
150 MB/s
2, supports software RAID 0, 1
4 USB 2.0 480 Mbps by pin header
4 (RS-232) with pin header (COM2 can be configured to RS-232/422/485)
1 (EPP/ECP)
1 (Y-cable for mouse and keyboard included)
System reset
Programmable 1 ~ 255 sec/min
AC97 audio interface (requires an audio extension module P/N: PCA-AUDIO-00A1E)
CompactFlash socket (Type I/II)
Intel Core 2 Duo T7400 2.16 GHz (667FSB) DDR2 667 2 GB SDRAM x 2
+3.3 V (5.19 A)
+12 V (4.5 A)
+3.3 V (2.12 A)
+12 V (1.36 A)
Operating
Non-Operating (Storage)
0 ~ 60° C (32 ~ 140° F),(operation humidity: 40° C @ 85% RH
-40° C - 85° C and 60° C @ 95%
Non-Condensing)
RH Non-Condensing
167.64 mm x 126.39 mm (6.6" x 4.98")
Bus
Memory
Graphics
Ethernet
SATA
I/O Interface
Watchdog Timer
Miscellaneous
Power Requirement
Environment
Physical Characteristics
Slot Single Board Computers
All product specifications are subject to change without notice
Last updated : 24-Mar-2009
PCE-3132
Board Diagram
Socket M Intel Core 2
Duo/ Core Duo/
Celeron M
MHz FSB
533/667
CRT
PCIe x16
(Connector A & B)
LVDS Connector
VGA
Channel A
PCIe x16 SDVO
LVDS
2GB/s bandwidth
Direct Media
Interface
Intel 945GME
GMCH
Channel B
DDR2 SDRAM
SODIMM 400/533/667
DDR2 SDRAM
SODIMM 400/533/667
PCIe x1
G-LAN1:
Intel 82574L
G-LAN1:
Intel 82574L
CF Card
2 SATA ports
4 USB Ports
Audio Conn.
BIOS
PATA
PCIe x1
150MB/s
USB 2.0/1.1
HD Audio
PCIe x1
SPI
PCIe x1
PCIe x1
LPC Bus
PCI Express
ICH7M-DH
PCIe x1
Connector A
Super IO
Winbond W83627UHG
PS2
3 RS-232
1 RS232/422/485
Ordering Information
Part Number
PCE-3132VG-00A1E
PCE-3132G2-00A1E
VGA
Yes
Yes
GbE LAN
Single
Dual
USB
4
4
Packing List
Part Number
1700008887
1700002223
1700003194
1703150102
1700008762
9689000002
1700060202
-
-
1750000348
Description
USB cable with 4 ports (2.0 mm pitch)
Parallel port cable (2.0 mm) with bracket
Serial ATA HDD data cable
Serial ATA HDD power cable
Dual-COM port cable kit (2.0mm pitch)
with bracket
Jumper pack
Y cable for PS/2 Keyboard&Mouse
Startup manual
Utility CD
CPU cooler
Quantity
x1
x1
x2
x1
x2
x1
x1
x1
x1
x1
Accessories
Part Number
IPC-644BP-15ZE
IPC-6806SB-15ZBE
PCA-AUDIO-HDA1E
PCA-SATAP2-00A1E
Description
4-slot chassis w/150W power supply
6-slot chassis w/150W power supply
HD Audio-card
IDE/SATA Adapter for CPU cards
Online Download
www.advantech.com/products
