“LAN-MATE”SERIES
SINGLE RJ45 CONNECTOR MODULE WITH INTEGRATED
10/100 BASE-TX MAGNETICS & XLEDs
J-45 connector integrated with X’FMR/Impedance
Resistor/High voltage capacitor.
Size same as RJ-45 connector to save PCB board space.
Reduce EMI radiation, improve EMI performance.
Design for 100 Base transmission over UTP-5 cable.
Operating temperature range: 0℃to +70℃.
Storage temperature range: -40℃to +85℃.
BOTHHAND
USA.
Electrical specifications @ 25℃
OCL(100KHz, 0.1Vrms with 8mA/DC Bias) : 350 uH Min.
Part
Number
NU1S041-XXX
NU1S041A- XXX
NU1S041B- XXX
NU1S041C- XXX
NU1S041D- XXX
NU1S112- XXX
NU1S114- XXX
NU1S114A- XXX
NU1S214A- XXX
NU1S515- XXX
NU1S516- XXX
NU1S516 A- XXX
NU1S517- XXX
Insertion
Loss
(dB Max)
-1.15
-1.15
-1.15
-1.15
-1.15
-1.15
-1.15
-1.15
-1.15
-1.15
-1.15
-1.15
-1.1
-16
-16
-16
-16
-16
-16
-16
-16
-16
-16
-16
-16
-16
-14
-14
-14
-14
-14
-14
-14
-14
-14
-14
-14
-14
-14
Return Loss
(dB Min)
Cross talk
(dB Min)
0.3-60MHz
60-100MHz
0.3~100MHz 30MHz 40MHz 50MHz 60MHz 80MHz 0.3-80MHz
-13.5
-13.5
-13.5
-13.5
-13.5
-13.5
-13.5
-13.5
-13.5
-13.5
-13.5
-13.5
-13.5
-13
-13
-13
-13
-13
-13
-13
-13
-13
-13
-13
-13
-13
-10
-10
-10
-10
-10
-10
-10
-10
-10
-10
-10
-10
-10
-35
-
-
-
-
-
-35
-35
30MHz
-55
-35
-35
30MHz
-55
-
Rise time
(10-90%)
(nS Typ)
2.5
-
-
-
-
-
2.5
2.5
2.5
2.5
2.5
2.5
2.5
Differential to
Common
Mode Rejection
(dB Min)
0.3-100MHz
-30
-
-
-
-
-30
-
-
-30
-30
-
-
-40
-40
-40
-40
-40
-
-
50MHz
-45
-
-
50MHz
-45
-40
-38
-38
-38
-38
-38
-
-
100MHz
-35
-
-
100MHz
-35
-38
Part
Number
NU1S041-XXX
NU1S041A- XXX
NU1S041B- XXX
NU1S041C- XXX
NU1S041D- XXX
NU1S112- XXX
NU1S114- XXX
NU1S114A- XXX
NU1S214A- XXX
NU1S515- XXX
NU1S516- XXX
NU1S516 A- XXX
NU1S517- XXX
CW/W
(pF Max)
28
28
28
28
28
30
28
28
28
28
28
28
28
L.L
TX/RX (uH Min)
0.5
0.5
0.3
0.4
0.4
1.3/0.5
0.8/0.5
0.8/0.5
0.4
0.4
0.4
0.4
0.4
HI-POT
(Vrms)
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
CMRR
TX/RX (dB Min)
0.3-60MHz 60-100MHz
1CT:1CT
-
-
1CT:1CT
-45/-40
-40/-35
1CT:1CT
-45/-40
-40/-35
1CT:1CT
-45/-40
-40/-35
1CT:1CT
-45/-40
-40/-35
1CT:2CT/1CT:1CT
-45/-40
-40/-35
1CT:1.414CT/1CT:1CT
-
-
1CT:1.414CT/1CT:1CT
-30
1CT:1.414/1CT:1CT
-
-
1CT:1CT
-
-
1CT:1/1CT:1CT
-
-
1CT:1/1CT:1CT
-
-
1CT:1/1CT:1CT
-45/-40
-40/-35
Turn Ratios
(TX/RX) ±5%
Code
LED Color
1
Red
3
Yellow
4
Green
Empty
No LED
Bothhand USA
. e-mail: sales@bothhandusa.com http://www.bothhand.com
462 Boston St - Topsfield, MA 01983 - Phone: 978-887-8050 - Fax: 978-887-5434
“LAN-MATE”SERIES
SINGLE RJ45 CONNECTOR MODULE WITH INTEGRATED
10/100 BASE-TX MAGNETICS & XLEDs

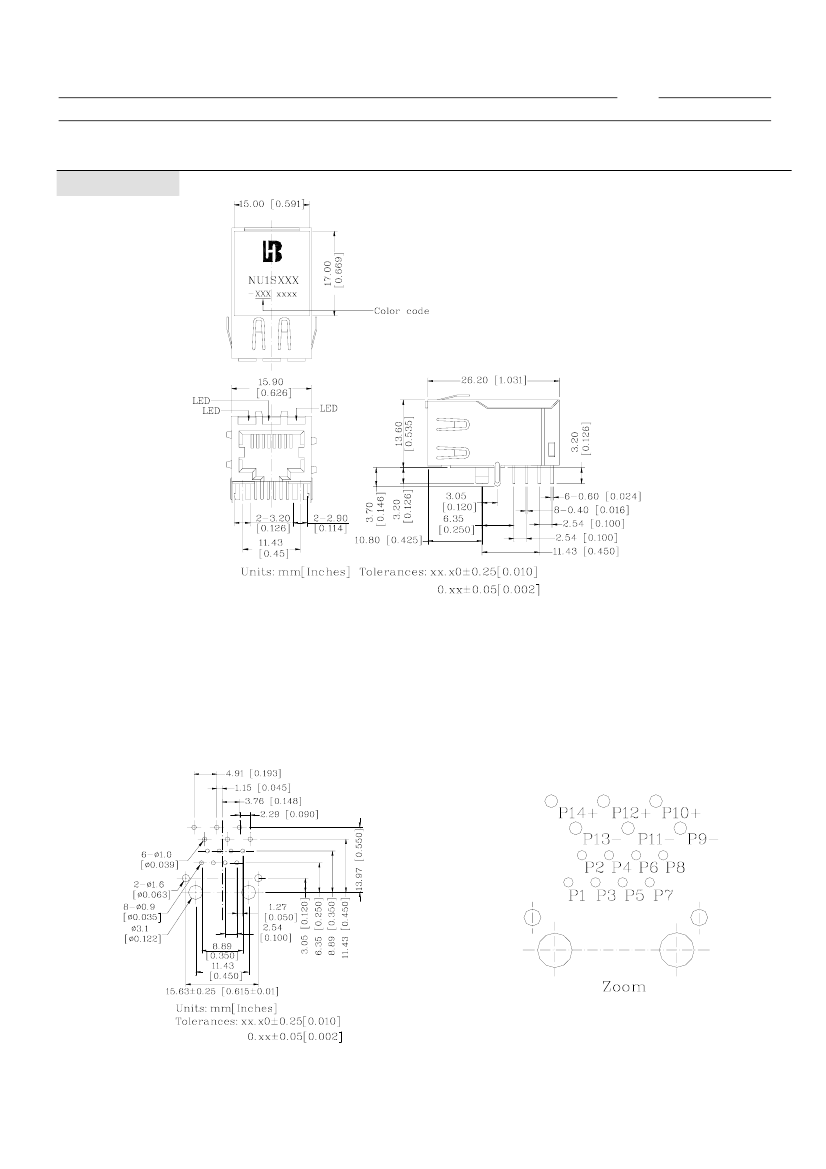

Mechanicals
NU1SXXX-XXX
BOTHHAND
USA.
Physical char : 1. Plastic Material : PBT 15% Glass Filled( UL 94V-0 ), Black Housing.
2. Metal Shield
: Brass C2680-H, 20u Nickel Plated, t=0.25mm.
3. Spring Wire
: 0.45mm Dia. Phosphor bronze over with 6u gold plated.
4. Solder Pin
: 0.4x0.4mm, Phosphor bronze with solder Solder plated.
5. Durability
: 300 Mating cycles Min.
PCB Layout Mounting Hole (Top view)
Bothhand USA
. e-mail: sales@bothhandusa.com http://www.bothhand.com
462 Boston St - Topsfield, MA 01983 - Phone: 978-887-8050 - Fax: 978-887-5434
“LAN-MATE”SERIES
SINGLE RJ45 CONNECTOR MODULE WITH INTEGRATED
10/100 BASE-TX MAGNETICS & XLEDs

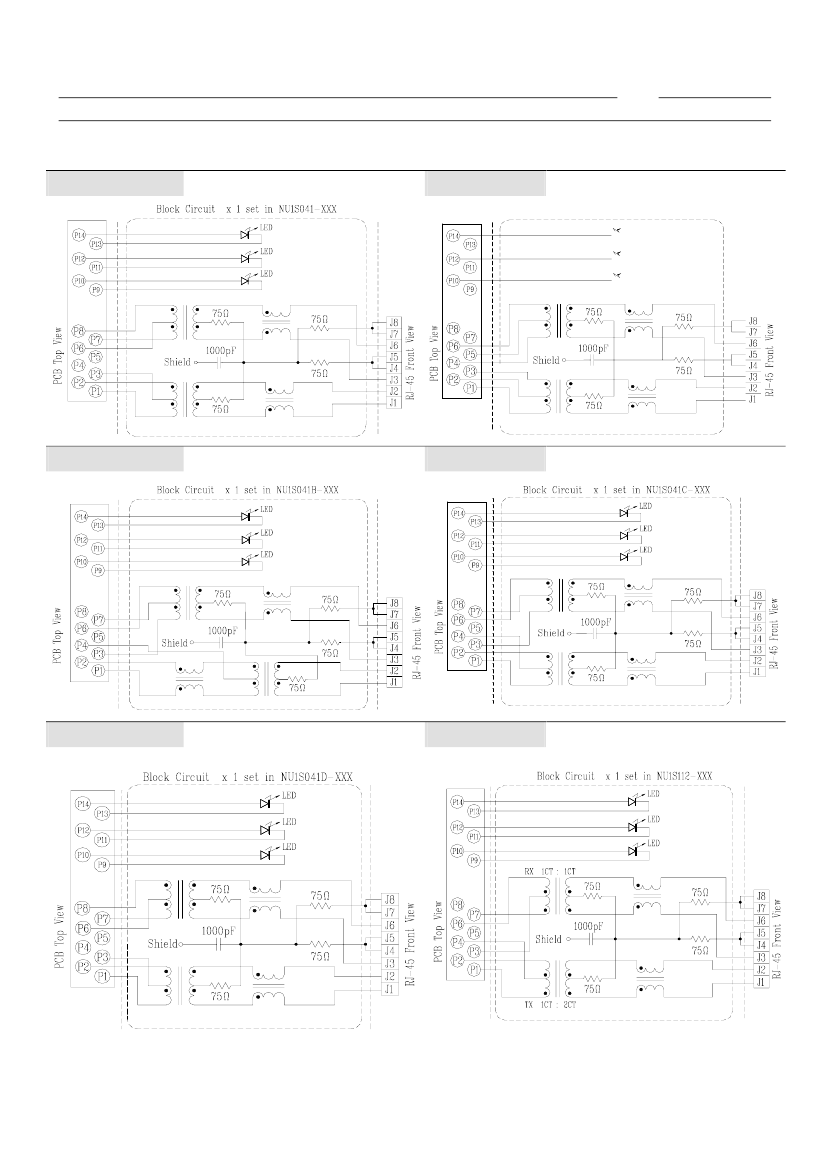

Schematics
NU1S041-XXX
NU1S041A-XXX
BOTHHAND
USA.
NU1S041B-XXX
NU1S041C-XXX
NU1S041D-XXX
NU1S112-XXX
Bothhand USA
. e-mail: sales@bothhandusa.com http://www.bothhand.com
462 Boston St - Topsfield, MA 01983 - Phone: 978-887-8050 - Fax: 978-887-5434

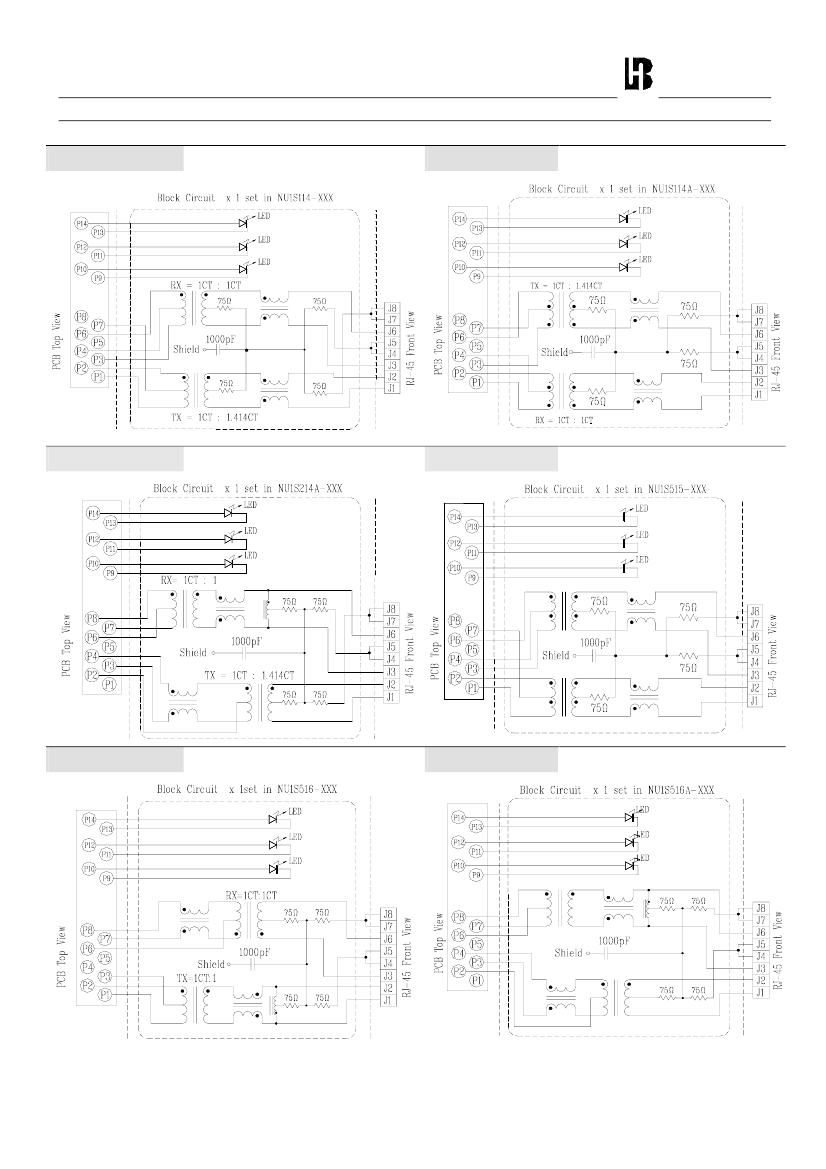

“LAN-MATE”SERIES
