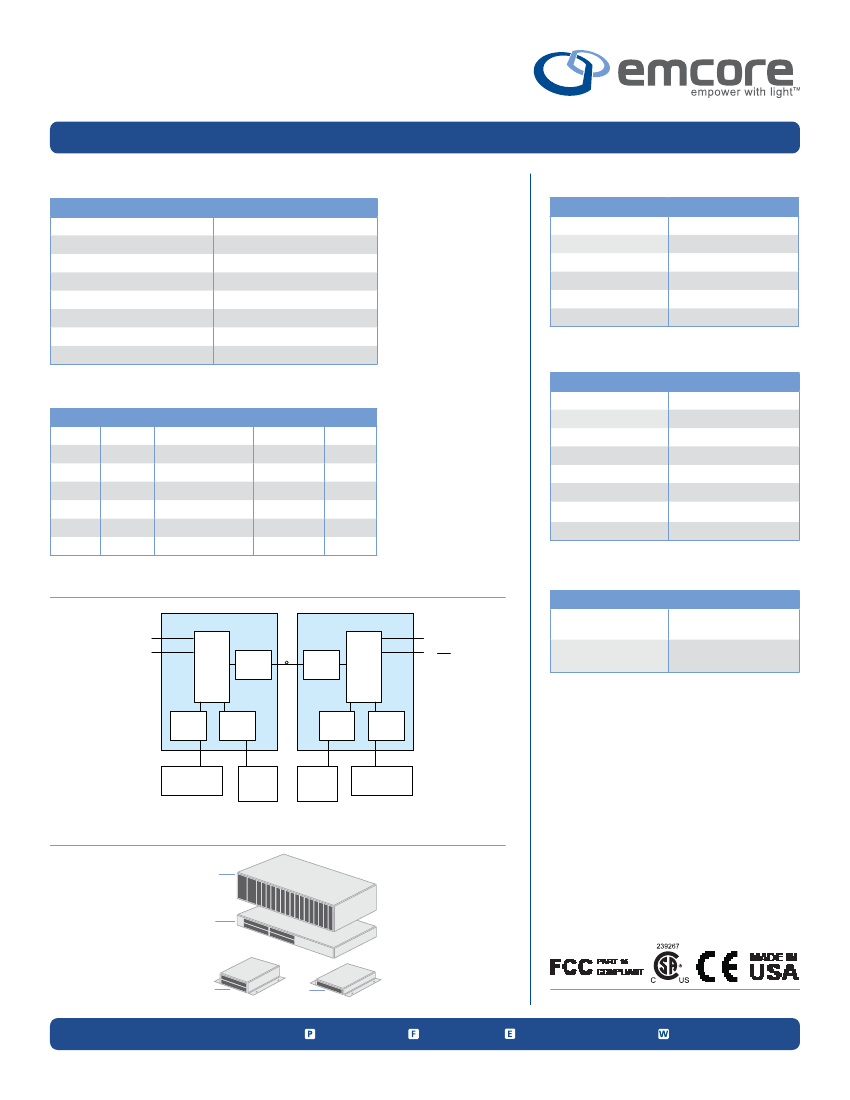

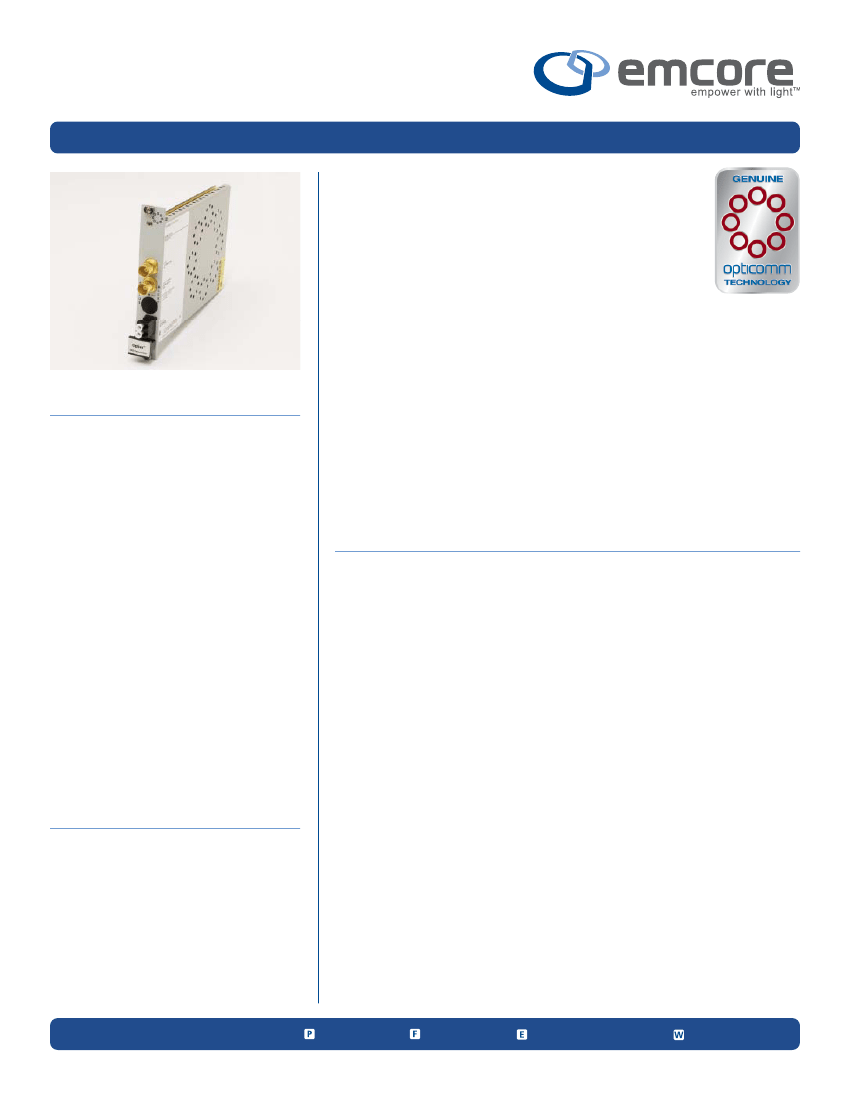

OTP-1HD
HD-SDI & SD-SDI Video
Optiva
®
SERIES Professional Media Transport
The OTP-1HD is an excellent choice for transporting SMPTE
292M or 259M compliant video signals over long or short
distances with a single optical wavelength. The system offers
the complete flexibility needed for transporting full
uncompressed 1.485 Gb/s HD-SDI over optical fiber.
Additionally, the OTP-1HD is part of the innovative Optiva
®
Series Video, Audio and Data Media Transport System. New signals may be
added or fully redundant optical transport solutions may be developed.
Switching and multicasting HD- SDI signals over optical fiber is quick and
simple, by routing OTP-1HD links through the Optilinx
®
Switching Platform,
Features
SMPTE 292M, 259M Compliant
Singlemode options (up to 60 km)
Uses all-digital processing for crystal clear
picture with no compression
Real-time video transmission for exceptional
quality and resolution
Receiver contains cable driver and reclocker
per SMPTE 292M
Transmitter contains cable driver, adaptive
cable equalizer, and reclocker per SMPTE 292M
TDM - Single wavelength
No EMI, RFI, or ground loops
Compatible with MDM-7000 Series for CWDM
Multiplexing
making this the perfect solution for Broadcast Studio HD Routing and Switch-
ing. The combination of Optiva
®
and Optilinx
®
facilitates flexibility for choice of
video, audio, and data transport. With Optilinx
®
, cabling is done once to create
a completely optical transport network. Combined with Optiva
®
, the system is
flexible to transmit, switch or convert signals on custom optical mesh networks.
System Design
Optiva
®
insert cards support both 19” rack mount and compact table top or
wall mountable enclosures. The 3RU 19” rack mount enclosure (Model: OT-
CC-16-100) can support up to 16 insert cards. It also supports dual-redundant
hot-swappable power supplies (Model: OT-CC-16-100-RPS) utilizing two PS-100
power supplies or two PS-200 power supplies (Model: OT-CC-16-200-RPS).
Also available in the rackmount form factor is the 4-slot (Model: OT-CC-4-1U)
which houses 4 insert cards in 1RU of rack space. The compact one slot (Model:
OT-DTCR-1) and two slot (Model: OT-DTCR-2) enclosures both use an external
power supply (Model: PS-9012).
Applications
Remote OB Van/Truck Video Feeds
Broadcast Studio Camera Feeds
HD Routing (requires Optilinx Optical Switch)
Long-haul Signal Transport
Lecture Hall Projector Connectivity
Medical / Surgical Room Broadcast
Copyright© 2008 Emcore Corporation
858 450 0143
858 450 0155
video-sales@emcore.com
www.emcore.com
OTP-1HD
HD-SDI & SD-SDI Video
Optiva
®
SERIES Professional Media Transport
Models
Transmitter
OTP-1HDT-B0-XX-IC
OTP-1HDT-B1-XX-IC
OTP-1HDT-B2-XX-IC
OTP-1HDT-B2D-XX-IC
OTP-1HDT-B3-XX-IC
OTP-1HDT-B3D-XX-IC
OTP-1HDT-L5-XX-IC
OTP-1HDT-NOC-IC
Receiver
OTP-1HDR-B0-XX-IC
OTP-1HDR-B1-XX-IC
OTP-1HDR-B2-XX-IC
OTP-1HDR-B2D-XX-IC
OTP-1HDR-B3-XX-IC
OTP-1HDR-B3D-XX-IC
OTP-1HDR-L5-XX-IC
OTP-1HDR-NOC-IC
For ordering, please substitute
“XX” in the model for one of
the following optical
connectors: ST, FC, SC, or LC.
Video
Specifications
Standards
Data Rates
Connector
Video Modes
Max Resolution
Pathological Test Code
Values
SMPTE 292M, 259M
1.485 Gbps; 270 Mbps
BNC (IEC 60169-8-Gold Plated)
480i/480p, 720p, 1080i
1920 x 1080 @ 50/60 Hz
RP-178
General
Specifications
Dimensions (Insert Card)
Chromatic dispersion as well
as other losses should also be
taken into account
Stated distances are the
maximum range, shorter
distance may require
attentuation
Optical Specifications
Code
B0
B1
B2
B2D
B3
B3D
L5
Fiber Type
Multimode
Multimode
Singlemode
Singlemode
Singlemode
Singlemode
Singlemode
Wavelength
850 nm
1310 nm
1310 nm
1310 nm
1550 nm
1550 nm
CWDM
Optical Budget
7 dB
10 dB
7 dB
12 dB
17 dB
25 dB
Varies
Distance
0.2 Km
1.5 Km
10 Km
20 Km
40 Km
60 Km
20-70 Km
Values
6.3”D x 0.8”W x 4.0”H
11 oz.
-20˚C to +55˚C
-40˚C to +85˚C
0 to 95% non-condensing
6 Watts
10
-14
< 1 ms
Weight
Operating Temperature
Storage Temperature
Humidity
Power Consumption
BER
System Latency
Functional Diagram
OTP-1 HDT
SMPTE 292M, 259M
Video Input
Local Loopback Video Output
Monitoring & Control
Specifications
OTP-1 HDR
SMPTE 292M, 259M
Video Output
Values
Front panel LED status and alert
indicators
OptivaView
®
SNMP
Management Suite
Local
Remote
Opti va
®
Core
Cable
Equalization
Reclocker
Optical
Transmitter
Optical
Recei ver
Opti va
®
Core
Cable
Equalization
Reclocker
SMPTE 292M, 259M
Video Output
Opti va
®
Daisy-Chain
®
Processing
Opti va
®
SNMP
Opti va
®
SNMP
Opti va
®
Daisy-Chain
®
Processing
Daisy-Chained
Vi deo/ Audi o/Data
Opti va
®
Insert Cards
Opti vaView
®
SNMP
Management
Suite
Opti vaView
®
SNMP
Management
Suite
Daisy-Chained
Vi deo/ Audi o/Data
Opti va
®
Insert Cards
Enclosure Options
16-Slot
3RU RACK
4-Slot
1RU RACK
2-Slot
DESKTOP
1-Slot
DESKTOP
Document Revision 08/4/2008
Copyright© 2008 Emcore Corporation
858 450 0143
858 450 0155
video-sales@emcore.com
www.emcore.com
