LIGITEK ELECTRONICS CO.,LTD.
Property of Ligitek Only
AXIAL TYPE LED LAMPS
Pb
Lead-Free Parts
LUG9253-1
DATA SHEET
DOC. NO :
REV.
DATE
QW0905-LUG9253-1
: A
: 19 - Jun. - 2007
LIGITEK ELECTRONICS CO.,LTD.
Property of Ligitek Only
PART NO. LUG9253-1
Page 1/6

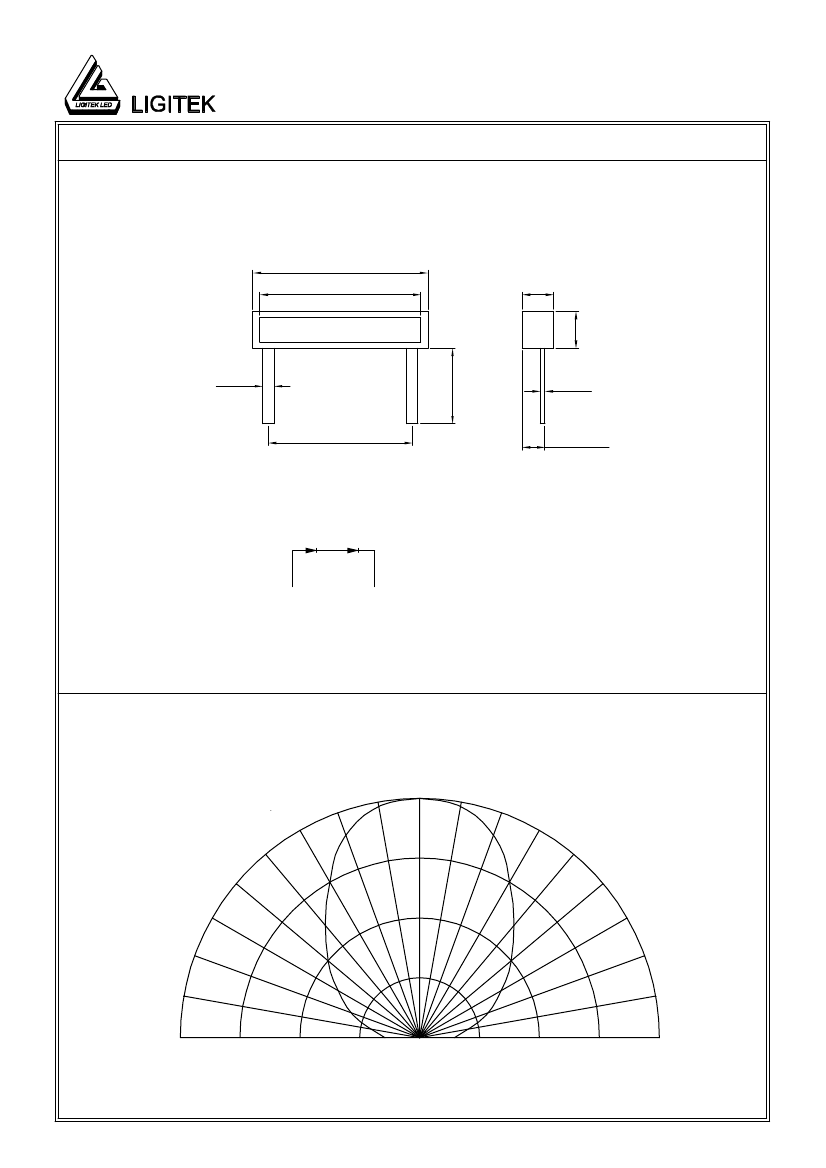

Package Dimensions
9.25
8.5
1.65
1.95
0.6
TYP
7.62
+
-
4.0MIN
0.25
TYP
1.2
±
0.15
+
-
Note : 1.All dimension are in millimeter tolerance is
±
0.25mm unless otherwise noted.
2.Specifications are subject to change without notice.
Directivity Radiation
0
°
-30
°
30
°
-60
°
60
°
100% 75% 50%
25%
0
25% 50% 75% 100%
LIGITEK ELECTRONICS CO.,LTD.
Property of Ligitek Only
PART NO. LUG9253-1
Page 2/6
Absolute Maximum Ratings at Ta=25
℃
Ratings
Parameter
Symbol
UG
Forward Current
Peak Forward Current
Duty 1/10@10KHz
Power Dissipation
Reverse Current @5V
Electrostatic Discharge( * )
Operating Temperature
Storage Temperature
I
F
I
FP
PD
Ir
ESD
T
opr
Tstg
30
120
100
10
2000
-40 ~ +85
-40 ~ +100
mA
mA
mW
UNIT
μ
A
V
℃
℃
*
Static Electricity or power surge will damage the LED. Use of a conductive wrist band or anti-electrosatic
glove is recommended when handing these LED. All devices, equipment and machinery must be properly
grounded.
Typical Electrical & Optical Characteristics (Ta=25
℃
)
PART NO
MATERIAL
Emitted
COLOR
Dominant
Spectral
Forward
voltage
wave
halfwidth
length
△λ
nm
@ 20mA(V)
λ
Dnm
Luminous
intensity
@20mA(mcd)
Viewing
angle
2
θ
1/2
(deg)
Lens
574
20
Min. Max. Min. Typ.
3.4
5.2
80
125
100
LUG9253-1
AlGaInP
Green Water Clear
Note : 1.The forward voltage data did not including
±
0.1V testing tolerance.
2. The luminous intensity data did not including
±
15% testing tolerance.
LIGITEK ELECTRONICS CO.,LTD.
Property of Ligitek Only
PART NO. LUG9253-1
Page3/6
Typical Electro-Optical Characteristics Curve
UG CHIP
Fig.1 Forward current vs. Forward Voltage
Fig.2 Relative Intensity vs. Forward Current
1000
3.0
Forward Current(mA)
100
10
Relative Intensity
Normalize @20mA
1.0
2.0
3.0
4.0
5.0
2.5
2.0
1.5
1.0
0.5
0.0
1.0
10
100
1000
1.0
0.1
Forward Voltage(V)
Fig.3 Forward Voltage vs. Temperature
1.2
Forward Current(mA)
Fig.4 Relative Intensity vs. Temperature
3.0
Forward Voltage@20mA
Normalize @25
℃
Relative Intensity@20mA
Normalize @25
℃
-40
-20
0
20
40
60
80
100
2.5
2.0
1.5
1.0
0.5
0.0
-40
-20
0
20
40
60
80
100
1.1
1.0
0.9
0.8
Ambient Temperature(
℃
)
Ambient Temperature(
℃
)
Fig.5 Relative Intensity vs. Wavelength
1.0
Relative Intensity@20mA
0.5
0.0
500
550
600
650
Wavelength (nm)
LIGITEK ELECTRONICS CO.,LTD.
Property of Ligitek Only
PART NO. LUG9253-1
Recommended Soldering Conditions
1. Hand Solder
Basic spec is
≦
280
℃
3 sec one time only.
Page 4/6
2. Wave Solder
Soldering heat Max. 260
℃
245
±
5
℃
within 5 sec
120 ~ 150
℃
Preheat
120 ~ 180 sec
3. LEAD Reflow Solder
Temp.
(
℃
)
240
Rising
+5
℃
/sec
Cooling
-5
℃
/sec
150
120
Preheat
60 ~ 120 sec
5sec
Time
4. PB-Free Reflow Solder
1~5°C/sec
260° C MaX.
10sec.Max
Preheat
180~200
°
C
1~5° C/sec
Above 220
°
C
60 sec.Max.
120 sec.Max.
Note: 1.Wave solder and reflow soldering should not be made more than one time.
2.You can just only select one of the soldering conditions as above.
