LU1S517 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LU1S517

Preview

LU1S517: DescriptionSINGLE RJ45 CONNECTOR MODULE WITH INTEGRATED 10/100 BASE-TX MAGNETICS; File Size230KB，2 Pages; ManufacturerBOTHHAND; Websitehttp://www.bothhandusa.com/

Download Datasheet View All

LU1S517 Overview

SINGLE RJ45 CONNECTOR MODULE WITH INTEGRATED 10/100 BASE-TX MAGNETICS

Preview

Download Datasheet

View All

Bothhand USA.

e-mail: sales@bothhandusa.com http://www.bothhandusa.com

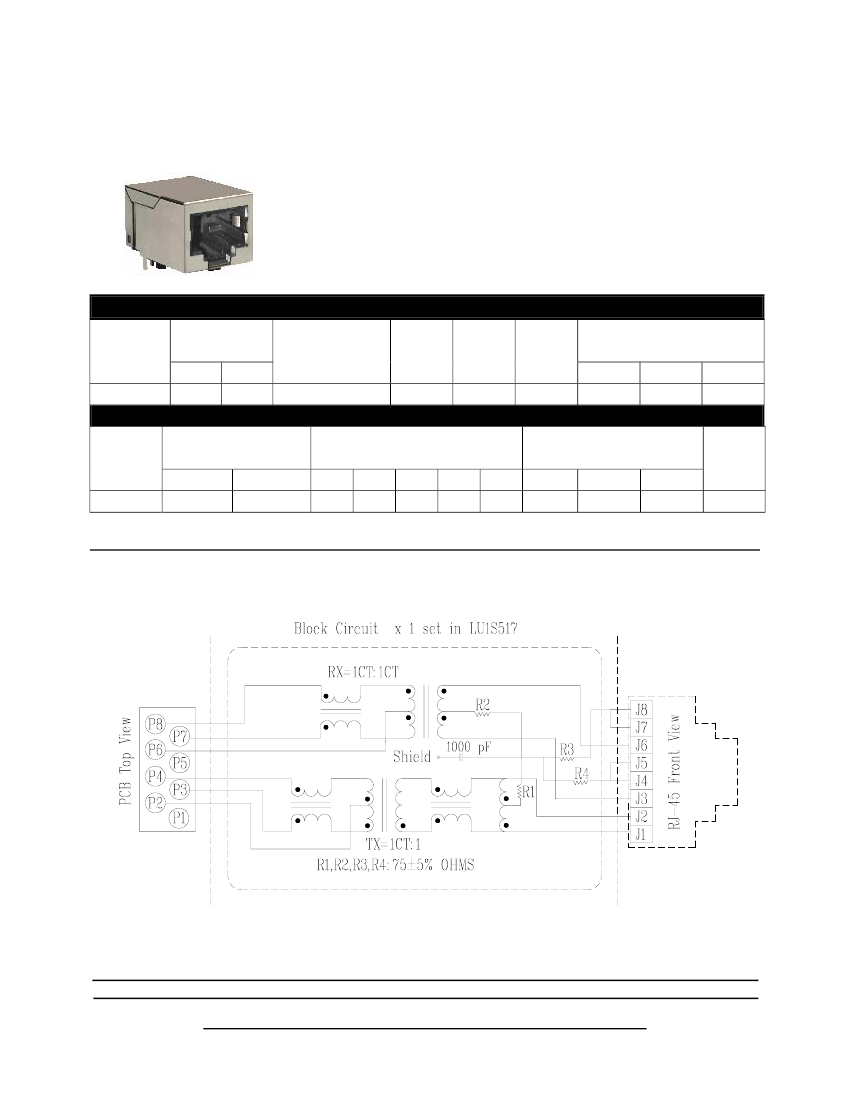

SINGLE RJ45 CONNECTOR MODULE WITH INTEGRATED 10/100 BASE-TX MAGNETICS

P/N: LU1S517

Feature

Page : 1/2

Complies with requirement of IEEE802.3u standards.

RJ 45 connector with 10/100 BASE-TX magnetic.

Rating temperature range: 0°C to +70°C.

Storage temperature range: -25°C to +125°C.

Electrical Specifications @ 25°C

Part

Number

LU1S517

Turns Ratio

(±5%)

1CT:1

1CT:1CT

OCL (uH Min)

@ 100 KHz/0.1V

with 8mA DC Bias

350

L.L

(uH Max)

0.4

W/W

(pF Max)

Rise Time

10-90%

(nS TYP)

2.5

Cross talk

(dB Min)

0.3-30MHz 30-60MHz 60-100MHz

-40

-35

-30

Continue

Part

Number

LU1S517

Insertion Loss

(dB Max)

0.3-100MHz

-1.1

Return Loss

(dB Min)

CMR

(dB Min) TX/RX

HI-POT

(Vrms)

-20

1500

100-125MHz 30MHz 40MHz 50MHz 60MHz 80MHz 1-30MHz 30-60MHz 60-125MHz

-1.5

-16

-14

-13.5

-13

-10

-30

-25

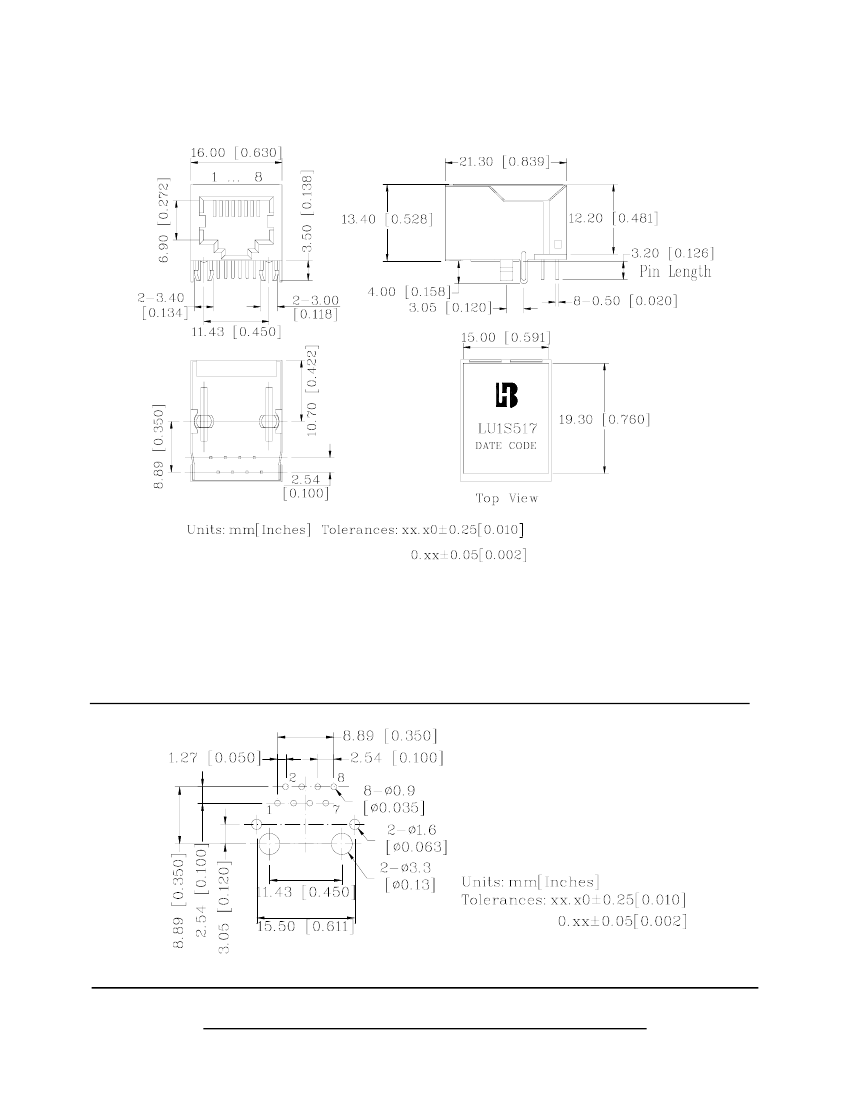

Schematic

462 Boston St - Topsfield, MA 01983 - Phone: 978-887-8050 - Fax: 978-887-5434

A6(02/10)
