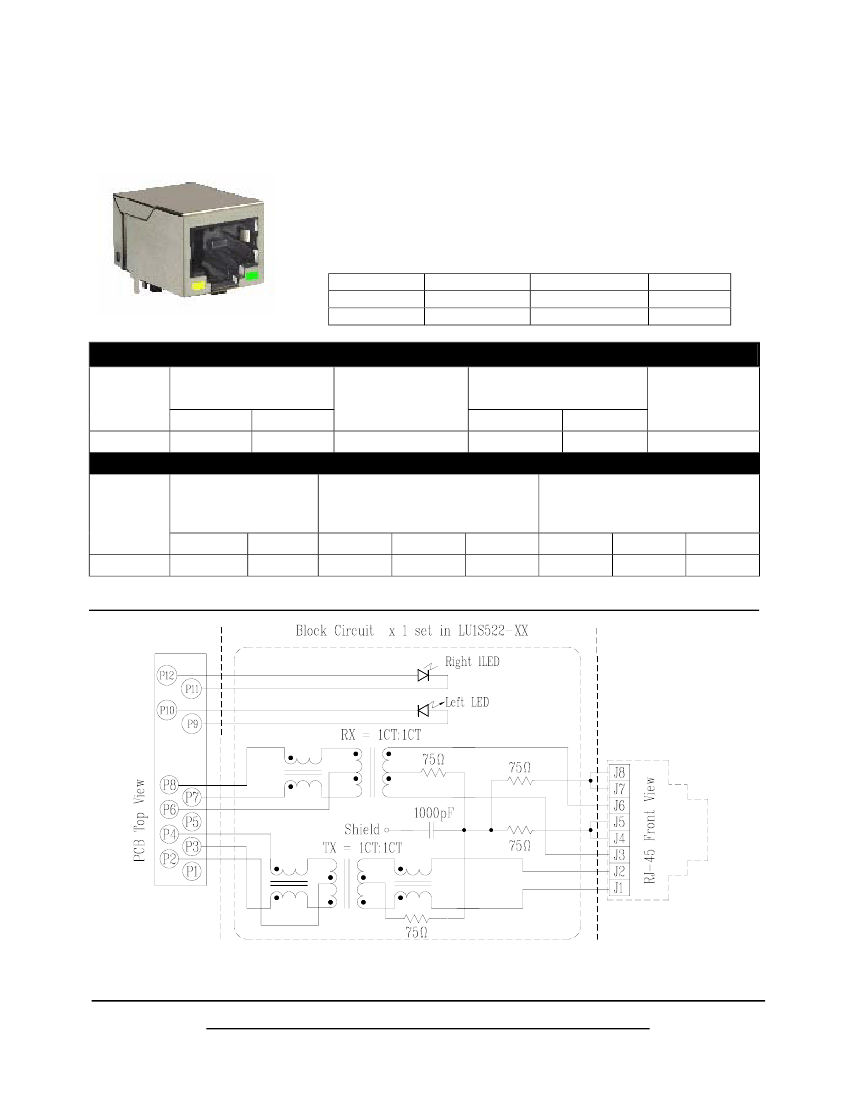

SINGLE RJ45 CONNECTOR MODULE WITH INTEGRATED 10/100 BASE-TX MAGNETICS AND LEDS

P/N: LU1S522-XX

Page : 1/2

Feature

RJ-45 connector integrated with X’FMR /impedance resistor.

Size same as RJ-45 connector to save PCB board space.

Reduce EMI radiation, improve EMI performance.

Design for 100 BASE transmission over UTP-5 cable.

Operating temperature range: 0°C to +70°C.

Storage temperature range: -25°C to +85°C.

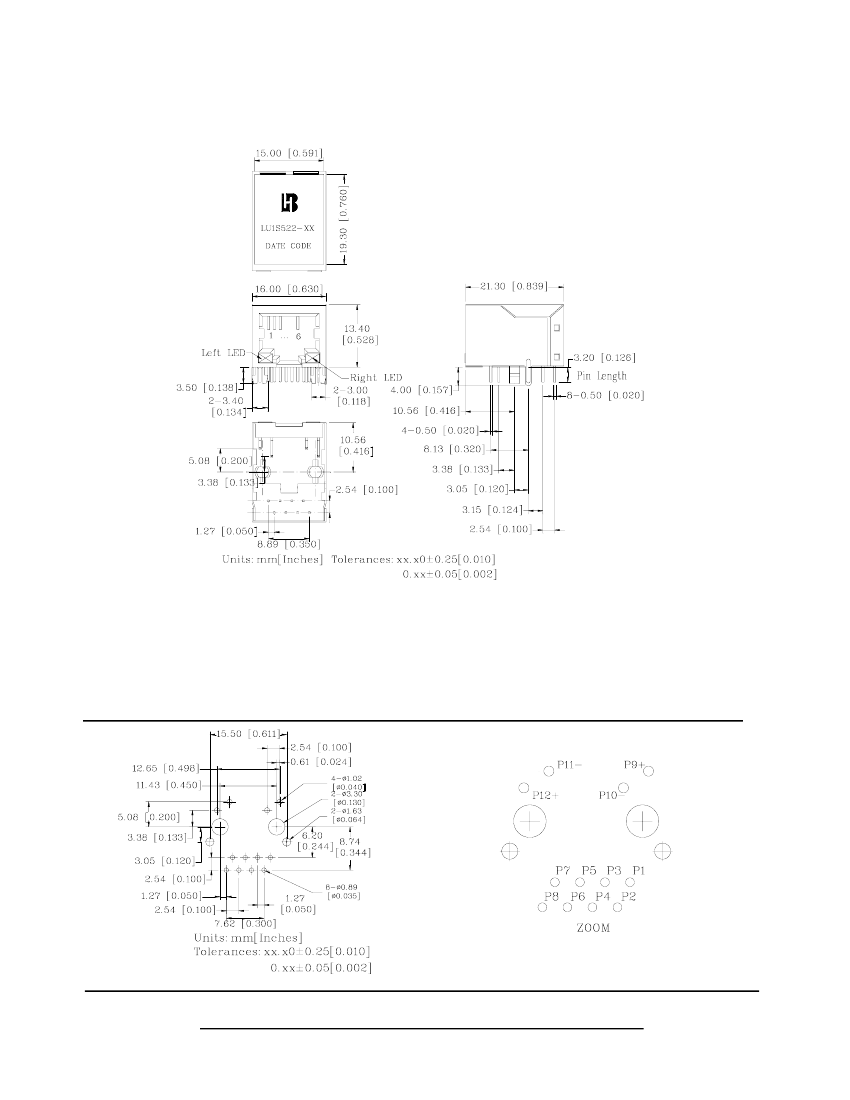

Recommended panel

Part Number Standard LED Forward*V(Max)

YELLOW

2.6V

GREEN

2.6V

*With a forward current 20mA

Electrical Specifications @ 25°C

Part

Number

LU1S522-XX

1CT:1CT

Turns Ratio

(±5%)

1CT:1CT

OCL (uH Min)

@ 100 KHz/0.1V with

8mA DC Bias

350

Insertion Loss

(dB Max)

0.3-100MHz

-1.1

100-125MHz

-1.5

HI-POT

(Vrms)

1500

(TYP)

2.1V

2.2V

Continue

Part

Number

LU1S522-XX

-18

Return Loss

(dB Min)

30MHz

80MHz

-12

Cross talk

(dB Min)

0.3-30MHz

-40

30-60MHz

-35

60-100MHz

-30

1-30MHz

-30

CMR

(dB Min) TX/RX

30-60MHz

-25

60-125MHz

-20

Schematic

462 Boston St - Topsfield, MA 01983 - Phone: 978-887-8050 - Fax: 978-887-5434

A0(02/10)
