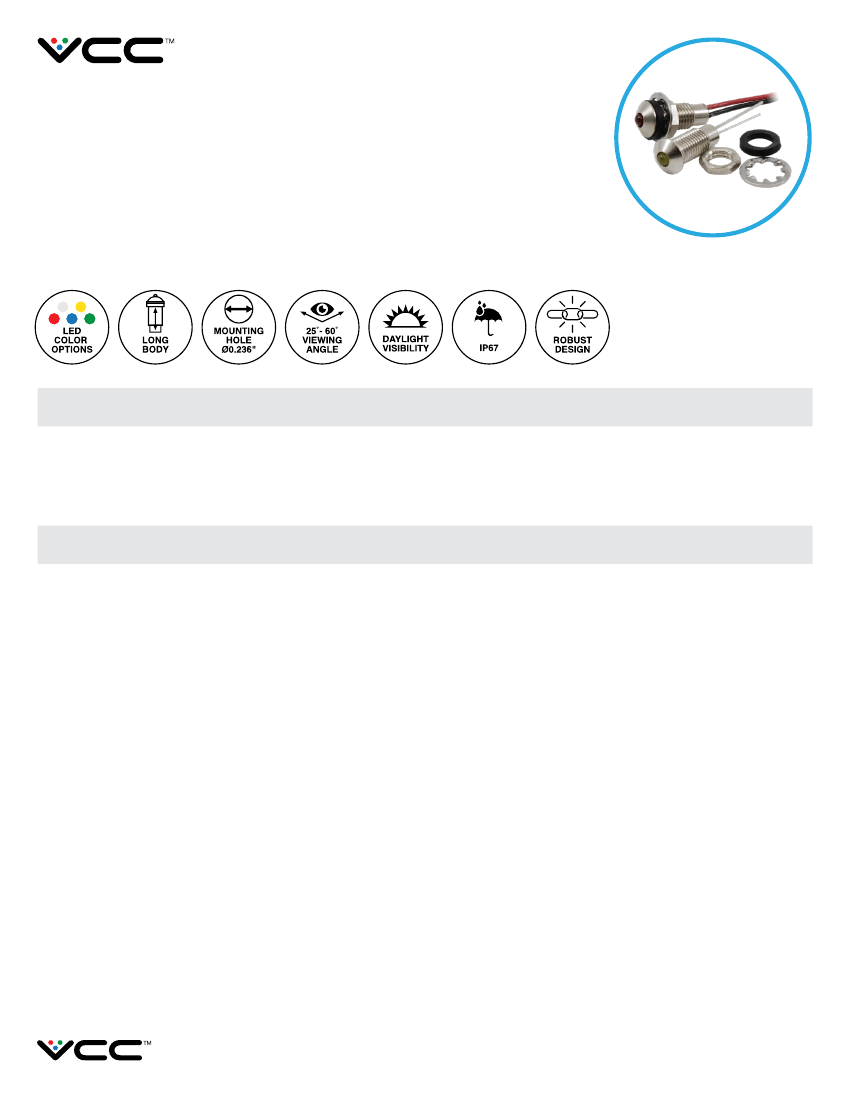

CDLB Series
.236″ (6.0mm) LED Indicator,
IP67 sealed and Vandal Resistant
Long-body LED indicator fits thick panels, Prominent bezel style
for increased visibility - IP67 rated
Application
•
Main Power Indication
•
Machine Tools
•
Civil Engineering Vehicles
• Maritime, Oil and Gas Industry
• Automation and Control
• Status indication
•
Professional Electrical Appliance
• Instrumentation
• Aircraft/Military Instrumentation
Key Features
• For panel hole diameter: 0.236″ (6.0mm)
• Prominent bezel style LED indicator for increased visibility (3mm LED T-1)
• Long-body indicator (longer threads) which fit thicker panels up to .256″ (6.5mm)
• Available in nickel-plated brass housing
• Available with ultra bright daylight viewing LEDs.
• Designed for the extreme, harsh and outdoor environment
• Sealed against moisture and dust (IP67)
• Optional resistor for 5V-28VDC and 120VAC
• Offered with 6″ 24 AWG wire leads or bi-pins
• Available in five single illumination colors: red, green, yellow, blue, and white
• Viewing angle: 25˚-60˚ (depending on model)
• Mounting hardware provided: lock washer, hex nut and gasket seal
• Thread size: M6*0.75mm
• Mounting torque: 20 ± 2 in-lb ( 2.26 ± 0.23 N-mm )
• Resistant to vandal, shock and vibration
• Life Expectancy: 50,000 hours average
• For custom cable length, voltage, connectors, finish or colors, contact VCC
•
RoHS and REACH Compliant
vcclite.com | 1.800.522.5546
CDLB Series | 11/19 | Page 1 of 4
Ordering Data
Series
CDLB
CDLB
*BDLB
Long nickel finish
Long black finish
0
1
Terminal
1
Bi-Pins
Leads
LED Specifications
2702
See Chart for
LED Part Number
Resistor Code
9908
See Chart for
Resistor Value Code
Sealing
I
I
IP67
*Contact VCC for black matte finish
Example:
CDLB-1-2702-9908-I
CDLB Nickle Finish, Wire Leads, Super Ultra Bright Red LED 12 Volt, IP67
LED Specification Chart
LED Part
Numbers
Color
Luminous
Intensity (mcd)
Typ. @ IF (mA)
Electrical and Optical Characteristics (TA = 25°C)
Resistor Chart
Resistor
Value Code
Voltage
Operating Specification
VF Typ.
@ IF (mA)
Viewing
Angle
(2θ
1/2
)
Peak
Wavelength
(nm)
Current
(mA)
Resistor Value (Ohms)
Green,Yellow Red,
Bicolor LED
Resistor Value (Ohms)
Blue, White LED
ULTRA BRIGHT - DAYLIGHT READABLE
2702
2700
2701
8711
8712
Red
Green
Yellow
Blue
White
299.0
199.0
219.0
2300.0
250.0
20
20
20
20
20
1.85
2.1
2.0
3.5
3.6
20
20
20
20
20
60˚
60˚
60˚
25˚
30˚
660
574
590
470
N/A
9907
9922
9908
9909
9910
9911
9923
9933
9920
5
5
12
12
24
24
28
28
120VAC
20
20
20
20
20
20
20
20
8
150
65
511
357
1100
953
1500
1300
6490
Contact VCC
vcclite.com | 1.800.522.5546
CDLB Series | 11/19 | Page 2 of 4

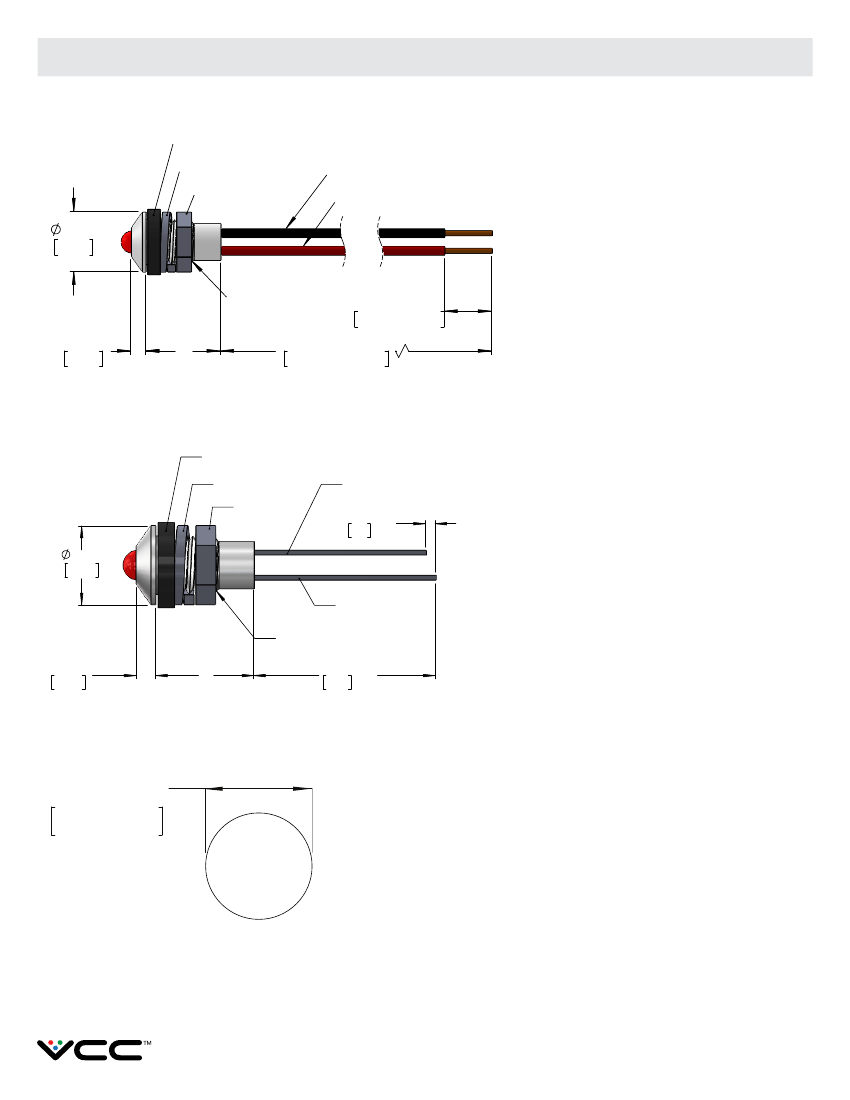

Product Dimensions
CDLB Series
Wire Leads
GASKET
WASHER
M6 HEX NUT
.315in
8mm
M6X0.75 THREAD
.079in
2mm
24AWG, BLACK, CATHODE
24AWG, RED, ANODE
.250in±.125
6.35mm±3.18
L
6.00in±.25
152.40mm±6.35
CDLB Series
Bi-Pins
GASKET
WASHER
M6 HEX NUT
CATHODE(-)
.06 TYP.
1.5
.315in
8mm
ANODE(+)
M6X0.75 THREAD
.079in
2mm
L
.69 REF.
17.5
Recommended Mounting Hole
Ø
0.236in
Ø
6.10mm
+0.004
0.000
+0.10
0
Notes:
1. All dimensions are in inches [millimeters]
2. Tolerance is ±[0.25] 0.01 unless otherwise noted.
3. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.
vcclite.com | 1.800.522.5546
CDLB Series | 11/19 | Page 3 of 4
Product Dimensions
Materials
Housing
Wire Leads
Washer
Gasket
(for W and I option)
Hex Nut
Nickel-plated brass housing
24 awg, 6″ length,
red anode, black cathode
Stainless steel
70 BUNA
Brass Alloy 360 - 1/2 Hard
Mounting
Hole
Panel
Thickness
(max.)
Wire
Leads
Wire Leads
AC Version
Mounting
Torque
Installation Specifications
0.236″ +.004/-.000″
(6.0mm +0.10/-0.00mm)
0.256″ (6.5mm)
24AWG UL1061 6.0″ (152.4mm)
red (anode) and black (cathode),
leads stripped .250″ (6.35mm)
Black (hot)
White (neutral) with external diode
on black wire
20 ± 2in-lb (2.26 ± 0.23 N-mm)
Electrical Specifications
Operating Voltage
Operating Current
Refer to table
Refer to table
Temperature Specifications
Operating Temperature
Red, Green and Yellow
-40
o
C to +85
o
C
Blue and White
-40
o
C to +80
o
C
Red, Green and Yellow
-40
o
C to +85
o
C
Blue and White
-40
o
C to +100
o
C
Storage Temperature

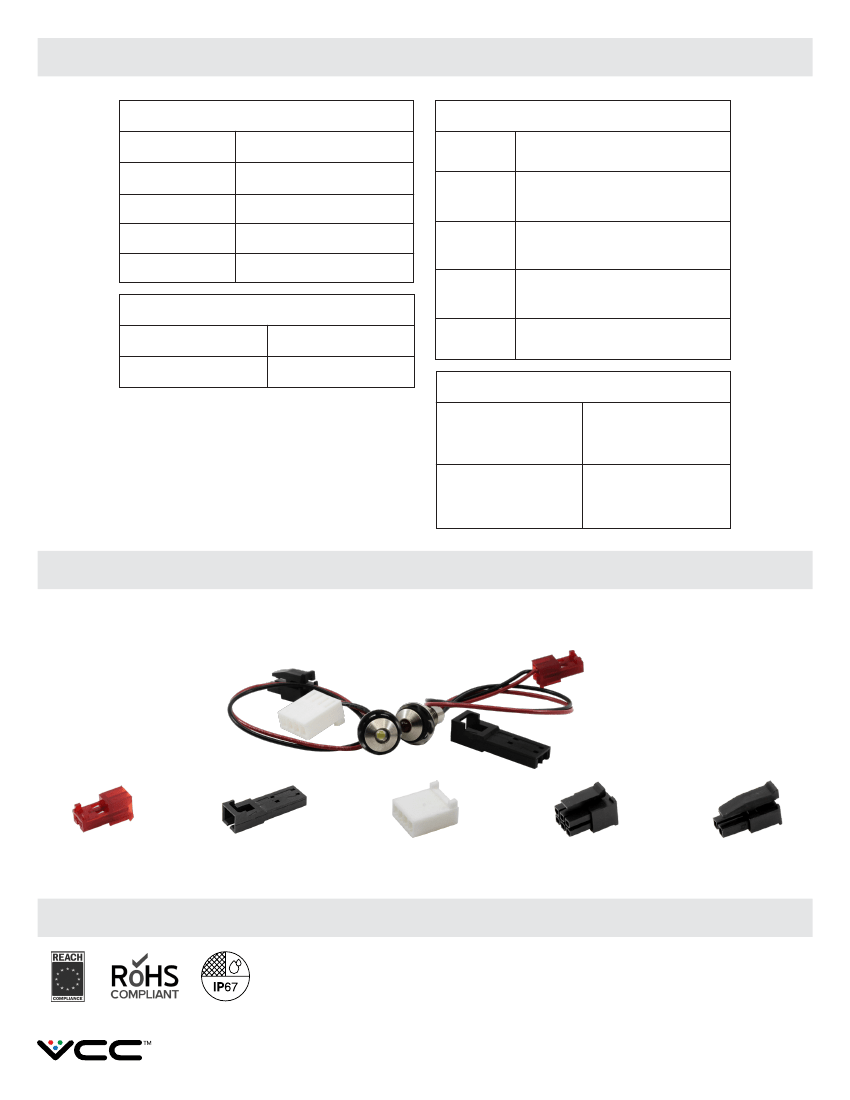

Custom Connector
VCC can add crimped connections to your panel mount indicators (PMIs) and combine two final steps into
one seamless transaction. We offer a range of connector options, including:
2 Position
Connector
Wire-to-Wire Crimp
Housing
Crimp Housing
Connector
Micro-Fit Connector
- Dual Row
Micro Rectangular
Power Connector
Compliances and Approvals
vcclite.com | 1.800.522.5546
CDLB Series | 11/19 | Page 4 of 4
