Data sheet
OMNIMATE Signal - series BL/SL 5.00
BLZP 5.00HC/05/180 SN GN BX
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Female plug with clamping-yoke screw system for
connecting wires with straight (180°) outlet direction.
The female connectors provide space for labelling and
can be coded. Fastened by means of a flange or release
latch. The also provide an integrated plus/minus screw,
protection against faulty insertion of the wire, and they
are delivered with open clamping yokes. HC = High
Current.
General ordering data
Type
Order No.
Version
GTIN (EAN)
Qty.
Product data
Packaging
BLZP 5.00HC/05/180 SN GN BX
1204990000
PCB plug-in connector, female plug, 5.00 mm,
No. of poles: 5, 180°, Clamping yoke connection,
Clamping range, max. : 4 mm², Box
4032248987207
72 pc(s).
IEC: 400 V / 23 A / 0.2 - 4 mm²
UL: 300 V / 20 A / AWG 26 - AWG 12
Box
Creation date May 14, 2019 6:48:46 AM CEST
Catalogue status 01.05.2019 / We reserve the right to make technical changes.
1
Data sheet
OMNIMATE Signal - series BL/SL 5.00
BLZP 5.00HC/05/180 SN GN BX
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
25 mm
16 mm
20.1 mm
8.73 g
Width (inches)
Height (inches)
Depth (inches)
Dimensions and weights
Width
Height
Depth
Net weight
0.984 inch
0.63 inch
0.791 inch
system parameters
Product family
OMNIMATE Signal - series
BL/SL 5.00
Clamping yoke connection
0.197 inch
5
0.788 inch
4 mm²
5.00 mΩ
7 mm
0.5 Nm
0.6 x 3.5, PH 1, PZ 1
25
9N
Type of connection
Pitch in mm (P)
Conductor outlet direction
L1 in mm
Pin series quantity
Touch-safe protection acc. to DIN VDE
57 106
Can be coded
Tightening torque, min.
Clamping screw
Screwdriver blade standard
Plugging force/pole, max.
Field connection
5 mm
180°
20 mm
1
Safe from finger touch
Yes
0.4 Nm
M 2.5
DIN 5264, ISO 8764/2-
PH, ISO 8764/2-PZ
10 N
Wire connection method
Pitch in inches (P)
No. of poles
L1 in inches
Rated cross-section
Volume resistance
Stripping length
Tightening torque, max.
Screwdriver blade
Plugging cycles
Pulling force/pole, max.
Material data
Insulating material
Colour chart (similar)
CTI
PBT
RAL 6021
UL 94 flammability rating
Contact material
Layer structure of plug contact
Storage temperature, max.
Operating temperature, min.
Temperature range, installation, min.
≥ 200
V-0
Copper alloy
4-8 µm Sn hot-dip tinned
55 °C
-50 °C
-25 °C
Colour
Insulating material group
Insulation strength
Pale green
IIIa
≥ 10
8
Ω
960 °C
tinned
-25 °C
80 %
100 °C
100 °C
GWFI
Contact surface
Storage temperature, min.
Max. relative humidity during storage
Operating temperature, max.
Temperature range, installation, max.
Conductors suitable for connection
Clamping range, min.
0.13 mm²
Clamping range, max.
4 mm²
Wire connection cross section AWG,
AWG 30
min.
Wire connection cross section AWG,
AWG 12
max.
Solid, min. H05(07) V-U
0.2 mm²
Solid, max. H05(07) V-U
4 mm²
Flexible, min. H05(07) V-K
0.2 mm²
Flexible, max. H05(07) V-K
4 mm²
w. plastic collar ferrule, DIN 46228 pt 4, 0.2 mm²
min.
w. plastic collar ferrule, DIN 46228 pt 4, 2.5 mm²
max.
w. wire end ferrule, DIN 46228 pt 1, min0.2 mm²
w. wire end ferrule, DIN 46228 pt 1,
4 mm²
max.
Plug gauge in accordance with EN
2.8 mm x 2.4 mm
60999 a x b; ø
Creation date May 14, 2019 6:48:46 AM CEST
Catalogue status 01.05.2019 / We reserve the right to make technical changes.
2
Data sheet
OMNIMATE Signal - series BL/SL 5.00
BLZP 5.00HC/05/180 SN GN BX
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
Cross-section for conductor connection
Clampable conductor
Reference text
Max. clamping range
fine-wired
Type
0.5 mm²
nominal
Stripping length
nominal
AEH
fine-wired
Type
Cross-section for conductor connection
1 mm²
nominal
Stripping length
nominal
AEH
fine-wired
Type
Cross-section for conductor connection
1.5 mm²
nominal
Stripping length
nominal
AEH
fine-wired
Type
Cross-section for conductor connection
2.5 mm²
nominal
Stripping length
nominal
AEH
fine-wired
Type
Cross-section for conductor connection
0.75 mm²
nominal
Stripping length
nominal
AEH
The outside diameter of the plastic collar should not be larger than the pitch (P).
4 mm²
6 mm
6 mm
7 mm
7 mm
6 mm
Rated data acc. to IEC
tested acc. to standard
IEC 60664-1, IEC 61984
18 A
16 A
320 V
4 kV
4 kV
Rated current, min. no. of poles
(Tu=20°C)
Rated current, min. no. of poles
(Tu=40°C)
Rated voltage for surge voltage class /
pollution degree II/2
Rated voltage for surge voltage class /
pollution degree III/3
Rated impulse voltage for surge voltage
class/ pollution degree III/2
Short-time withstand current resistance
23 A
21 A
400 V
250 V
4 kV
3 x 1s with 120 A
Rated current, max. no. of poles
(Tu=20°C)
Rated current, max. no. of poles
(Tu=40°C)
Rated voltage for surge voltage class /
pollution degree III/2
Rated impulse voltage for surge voltage
class/ pollution degree II/2
Rated impulse voltage for surge voltage
class/ contamination degree III/3
Rated data acc. to CSA
Rated voltage (Use group B / CSA)
Rated voltage (Use group D / CSA)
Rated current (Use group D / CSA)
Wire cross-section, AWG, max.
300 V
300 V
20 A
AWG 12
Rated voltage (Use group C / CSA)
Rated current (Use group B / CSA)
Wire cross-section, AWG, min.
50 V
20 A
AWG 30
Rated data acc. to UL 1059
Institute (cURus)
Certificate No. (cURus)
E60693
Rated voltage (Use group D / UL 1059) 300 V
Rated current (Use group D / UL 1059) 10 A
Wire cross-section, AWG, max.
AWG 12
Rated voltage (Use group B / UL 1059)
Rated current (Use group B / UL 1059)
Wire cross-section, AWG, min.
Reference to approval values
300 V
20 A
AWG 26
Specifications are
maximum values, details -
see approval certificate.
Packing
Packaging
VPE width
Box
175 mm
VPE length
VPE height
23 mm
185 mm
Creation date May 14, 2019 6:48:46 AM CEST
Catalogue status 01.05.2019 / We reserve the right to make technical changes.
3
Data sheet
OMNIMATE Signal - series BL/SL 5.00
BLZP 5.00HC/05/180 SN GN BX
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
EC002637
EC002638
27-44-04-02
27-44-03-09
ETIM 5.0
eClass 6.2
eClass 8.1
eClass 9.1
Classifications
ETIM 4.0
ETIM 6.0
eClass 7.1
eClass 9.0
EC002637
27-26-07-04
27-44-04-02
27-44-03-09
Notes
Notes
• Additional colours on request
• Gold-plated contact surfaces on request
• Rated current related to rated cross-section & min. No. of poles.
• Wire end ferrule without plastic collar to DIN 46228/1
• Wire end ferrule with plastic collar to DIN 46228/4
• P on drawing = pitch
• Rated data refer only to the component itself. Clearance and creepage distances to other components are to
be designed in accordance with the relevant application standards.
Conformity: The products are developed, manufactured and delivered according international recognized
standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties
in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
IPC conformity
Approvals
Approvals
ROHS
Conform
Downloads
Brochure/Catalogue
Engineering Data
FL DRIVES EN
FL DRIVES DE
STEP
Creation date May 14, 2019 6:48:46 AM CEST
Catalogue status 01.05.2019 / We reserve the right to make technical changes.
4
Data sheet
OMNIMATE Signal - series BL/SL 5.00
BLZP 5.00HC/05/180 SN GN BX
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com

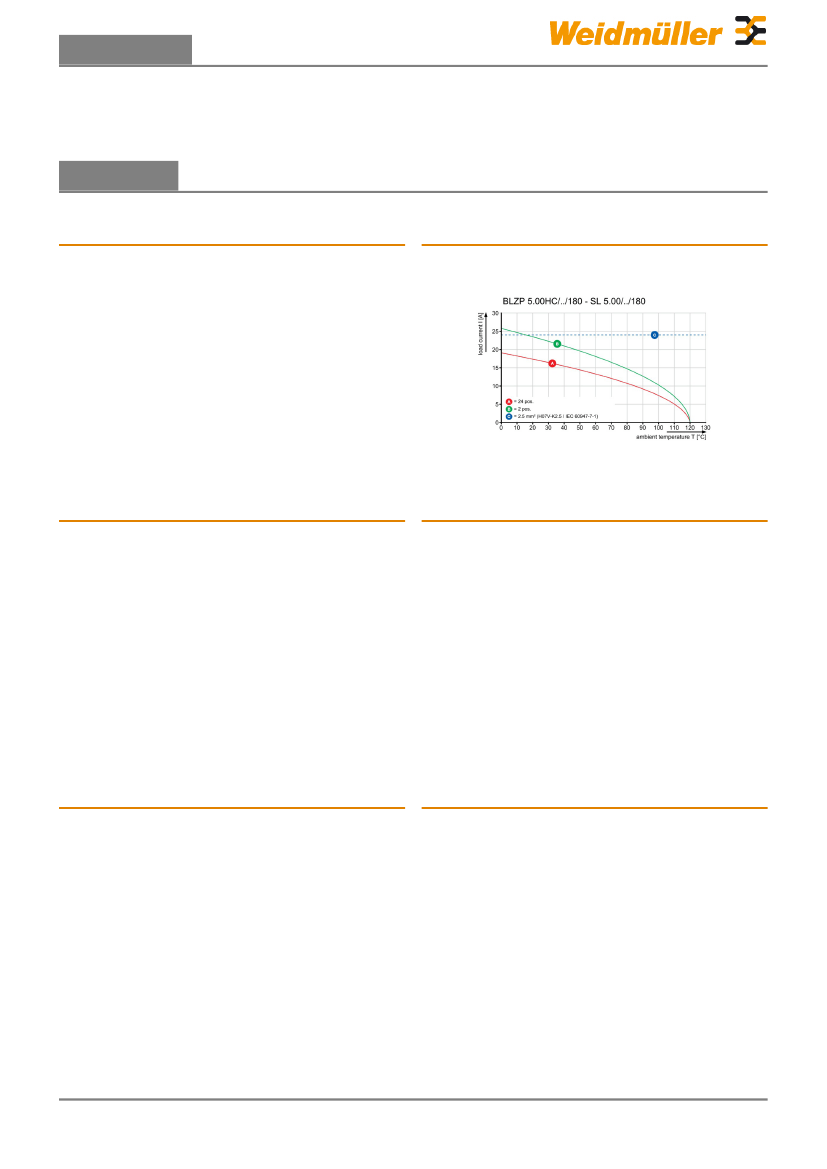

Drawings
Graph
Creation date May 14, 2019 6:48:46 AM CEST
Catalogue status 01.05.2019 / We reserve the right to make technical changes.
5
