Data sheet
OMNIMATE Signal - series LMF
LMF 5.08/20/90 3.5SN OR BX
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com

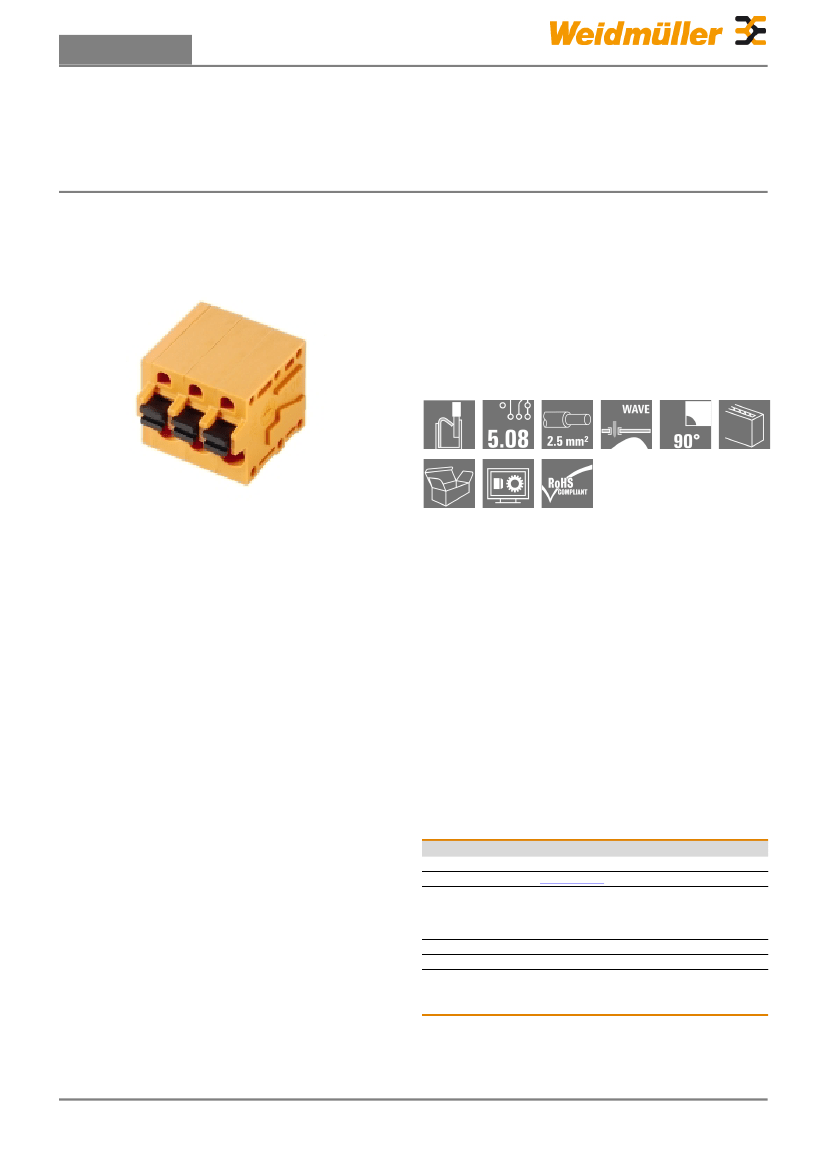

Product image
Similar to illustration
The new LMF allows us to meet the current market
requirements for a PCB terminal with PUSH IN connection
system for wire cross-sections up to 2.5 mm
2
• PUSH IN connection system
• LMF with pusher for opening the terminal point
• LMFS without pusher, the terminal point is opened with
a screwdriver
• Integrated test point
• 90° and 180° wire outlet direction
General ordering data
Type
Order No.
Version
GTIN (EAN)
Qty.
Product data
Packaging
LMF 5.08/20/90 3.5SN OR BX
1330910000
Printed circuit board terminals, 5.08 mm, No.
of poles: 20, 90°, Solder pin length (l): 3.5 mm,
tinned, orange, PUSH IN, Clamping range, max. :
2.5 mm², Box
4050118134759
15 pc(s).
IEC: 400 V / 24 A / 0.5 - 2.5 mm²
UL: 300 V / 20 A / AWG 24 - AWG 12
Box
Creation date May 22, 2019 2:17:30 PM CEST
Catalogue status 01.05.2019 / We reserve the right to make technical changes.
1
Data sheet
OMNIMATE Signal - series LMF
LMF 5.08/20/90 3.5SN OR BX
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
104.22 mm
18.3 mm
14.8 mm
0.756 inch
Width (inches)
Height (inches)
Depth
Net weight
Dimensions and weights
Width
Height
Height of lowest version
Depth (inches)
4.103 inch
0.72 inch
19.2 mm
30.187 g
System parameters
Product family
OMNIMATE Signal - series
LMF
Mounting onto the PCB
THT solder connection
Pitch in mm (P)
5.08 mm
No. of poles
20
Max. adjacent poles per row
24
Solder pin dimensions
d = 0.8 mm
Solder eyelet hole diameter tolerance (D)+ 0,1 mm
Screwdriver blade
0.6 x 3.5
Stripping length
10 mm
L1 in inches
3.8 inch
Touch-safe protection acc. to DIN VDE
57 106
Safe from finger touch
Wire connection method
Conductor outlet direction
Pitch in inches (P)
Fitted by customer
Solder pin length (l)
Solder eyelet hole diameter (D)
Number of solder pins per pole
Screwdriver blade standard
L1 in mm
Touch-safe protection acc. to DIN VDE
0470
PUSH IN
90°
0.2 inch
No
3.5 mm
1.1 mm
2
DIN 5264
96.52 mm
IP 20
Material data
Insulating material
Colour of operational elements
Colour chart (similar)
Insulation strength
Wemid (PA)
black
RAL 2000
Contact material
Coating
Layer structure of solder connection
Storage temperature, max.
Operating temperature, min.
Temperature range, installation, min.
≥ 10
8
Ω
CuSn
4-6 μm SN
4-6 µm Sn matt
55 °C
-50 °C
-25 °C
Colour
Material of operational elements
CTI
UL 94 flammability rating
orange
PBT
≥ 600
Contact surface
Tinning type
Storage temperature, min.
Max. relative humidity during storage
Operating temperature, max.
Temperature range, installation, max.
V-0
tinned
matt
-25 °C
80 %
120 °C
120 °C
Conductors suitable for connection
Clamping range, min.
0.12 mm²
Clamping range, max.
2.5 mm²
Wire connection cross section AWG,
AWG 24
min.
Wire connection cross section AWG,
AWG 12
max.
Solid, min. H05(07) V-U
0.5 mm²
Solid, max. H05(07) V-U
2.5 mm²
Flexible, min. H05(07) V-K
0.25 mm²
Flexible, max. H05(07) V-K
2.5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, 0.25 mm²
min.
w. plastic collar ferrule, DIN 46228 pt 4, 2.5 mm²
max.
w. wire end ferrule, DIN 46228 pt 1, min0.25 mm²
w. wire end ferrule, DIN 46228 pt 1,
2.5 mm²
max.
Plug gauge in accordance with EN
2.4 mm x 1.5 mm
60999 a x b; ø
Creation date May 22, 2019 2:17:30 PM CEST
Catalogue status 01.05.2019 / We reserve the right to make technical changes.
2
Data sheet
OMNIMATE Signal - series LMF
LMF 5.08/20/90 3.5SN OR BX
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Type
nominal
Stripping length
Stripping length
Type
nominal
Stripping length
Stripping length
Type
nominal
Stripping length
Stripping length
Type
nominal
Stripping length
Stripping length
Type
nominal
Stripping length
fine-wired
0.5 mm²
nominal
nominal
fine-wired
0.75 mm²
nominal
nominal
fine-wired
1 mm²
nominal
nominal
fine-wired
1.5 mm²
nominal
nominal
fine-wired
2.5 mm²
nominal
Technical data
Cross-section for conductor connection
AEH
Cross-section for conductor connection
AEH
Cross-section for conductor connection
AEH
Cross-section for conductor connection
AEH
Cross-section for conductor connection
Clampable conductor
12 mm
10 mm
12 mm
10 mm
12 mm
10 mm
10 mm
12 mm
10 mm
Max. clamping range
AEH
2.5 mm²
Rated data acc. to IEC
tested acc. to standard
IEC 60664-1, IEC 61984
24 A
24 A
320 V
4 kV
4 kV
Rated current, min. no. of poles
(Tu=20°C)
Rated current, min. no. of poles
(Tu=40°C)
Rated voltage for surge voltage class /
pollution degree II/2
Rated voltage for surge voltage class /
pollution degree III/3
Rated impulse voltage for surge voltage
class/ pollution degree III/2
Short-time withstand current resistance
24 A
24 A
400 V
250 V
4 kV
3 x 1s with 120 A
Rated current, max. no. of poles
(Tu=20°C)
Rated current, max. no. of poles
(Tu=40°C)
Rated voltage for surge voltage class /
pollution degree III/2
Rated impulse voltage for surge voltage
class/ pollution degree II/2
Rated impulse voltage for surge voltage
class/ contamination degree III/3
Rated data acc. to CSA
Institute (CSA)
Certificate No. (CSA)
20039-1815154
300 V
10 A
AWG 12
Rated voltage (Use group B / CSA)
Rated current (Use group B / CSA)
Wire cross-section, AWG, min.
Reference to approval values
300 V
20 A
AWG 24
Specifications are
maximum values, details -
see approval certificate.
Rated voltage (Use group D / CSA)
Rated current (Use group D / CSA)
Wire cross-section, AWG, max.
Creation date May 22, 2019 2:17:30 PM CEST
Catalogue status 01.05.2019 / We reserve the right to make technical changes.
3
Data sheet
OMNIMATE Signal - series LMF
LMF 5.08/20/90 3.5SN OR BX
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
Certificate No. (cURus)
Rated data acc. to UL 1059
Institute (cURus)
Rated voltage (Use group B / UL 1059)
Rated current (Use group B / UL 1059)
Wire cross-section, AWG, min.
Reference to approval values
300 V
20 A
AWG 24
Specifications are
maximum values, details -
see approval certificate.
E60693
Rated voltage (Use group D / UL 1059) 300 V
Rated current (Use group D / UL 1059) 10 A
Wire cross-section, AWG, max.
AWG 12
Packing
Packaging
VPE width
Box
135 mm
VPE length
VPE height
348 mm
30 mm
Classifications
ETIM 3.0
ETIM 5.0
eClass 6.2
eClass 8.1
eClass 9.1
EC001284
EC002643
27-26-11-01
27-44-04-01
27-44-04-01
ETIM 4.0
ETIM 6.0
eClass 7.1
eClass 9.0
EC002643
EC002643
27-44-04-01
27-44-04-01
Notes
Notes
• Additional colours on request
• Rated current related to rated cross-section & min. No. of poles.
• Wire end ferrule without plastic collar to DIN 46228/1
• Wire end ferrule with plastic collar to DIN 46228/4
• P on drawing = pitch
• Rated data refer only to the component itself. Clearance and creepage distances to other components are to
be designed in accordance with the relevant application standards.
• The test point can only be used as potential-pickup point.
Conformity: The products are developed, manufactured and delivered according international recognized
standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties
in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
IPC conformity
Approvals
Approvals
ROHS
Conform
Creation date May 22, 2019 2:17:30 PM CEST
Catalogue status 01.05.2019 / We reserve the right to make technical changes.
4
Data sheet
OMNIMATE Signal - series LMF
LMF 5.08/20/90 3.5SN OR BX
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
Downloads
Approval/Certificate/Document of
Conformity
Brochure/Catalogue
Engineering Data
Declaration of the Manufacturer
FL DRIVES EN
FL ANALO.SIGN.CONV. EN
MB DEVICE MANUF. EN
FL DRIVES DE
CAT 2 PORTFOLIOGUIDE EN
FL BUILDING SAFETY EN
FL APPL LED LIGHTING EN
FL INDUSTR.CONTROLS EN
FL MACHINE SAFETY EN
FL HEATING ELECTR EN
FL APPL_INVERTER EN
FL_BASE_STATION_EN
FL ELEVATOR EN
FL POWER SUPPLY EN
FL 72H SAMPLE SER EN
PO OMNIMATE EN
EPLAN, WSCAD
