WIMA DC-LINK HC
Metallized Polypropylene (PP) -
Capacitors for DC-Link Applications
D
Special Features
˜
Very high volume/capacitance ratio
˜
Self-healing, internal safety
disconnector
˜
Versatile and safe contact
configurations by screwable plates
˜
Dry construction without electrolyte
or oil
˜
Very low disipation factor
˜
Negative capacitance change versus
temperature
˜
Very low dielectric absorption
˜
According to RoHS 2011/65/EC
˜
Customer-specific capacitances or
voltages on request
Electrical Data
Capacitance range:
85
mF
to 4500
mF
Rated voltages:
400 VDC, 800 VDC, 1600 VDC
Capacitance tolerances:
±20%, ±10%, (±5% available subject to
special enquiry)
Operating temperature:
–55+ C to +85° C
Insulation resistance
at +20+ C:
30 000 sec (M¸ x
mF)
(mean value: 100 000 sec)
Measuring voltage: 100 V/1 min.
Dissipation factors
at +20° C:
See General Data.
Test voltage:
1.1 U
r
, 2 sec
Dielectric absorption:
0.05 %
Voltage derating:
A voltage derating factor of 1.35 % per
K must be applied from +75° C for AC
voltages.
Reliability:
Operational life
100 000 hours at 40° C
Failure rate
36 fit (0.75 x U
r
and 40) C)
Specific dissipation:
See General Data.
Typical Applications
As intermediate circuit capacitor e. g.
in high power converter technology
Construction
Dielectric:
Polypropylene (PP) film
Capacitor electrodes:
Vacuum-deposited
Internal construction:
Mounting Recommendation
Excessive mechanical strain, e. g. pressure
or shock onto the capacitor body, is to be
avoided during mounting and usage of the
capacitors. When fixing the capacitor the
screw torque is to be limited to max. 5 Nm.
Packing
Transportation-safe packing in
cardboard boxes.
For further details and graphs please refer
to Technical Information.
Encapsulation:
Solvent resistant, flame-retardant plastic
case with resin seal (optional screw fixing)
or moulded version (without screw fixing),
UL 94 V-0.
Terminations:
Tinned plates, customized plate
configurations are possible.
Marking:
Colour: Black. Marking: Gold.
11.12
121
WIMA DC-LINK HC
Continuation
D

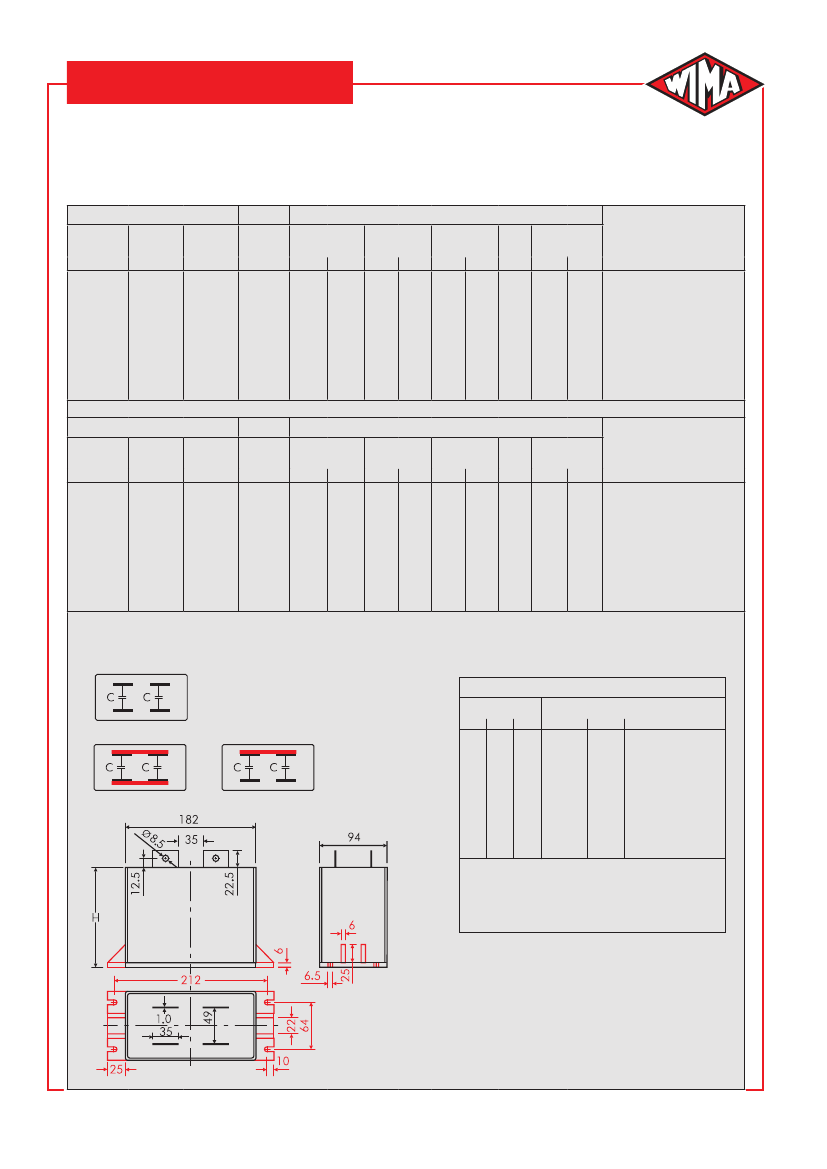

General Data
Capacitance
400 VDC/ 400 VDC/
180 VAC* 180 VAC*
V1
2 x 250
mF
500
mF
2 x 500 „
1000 „
2 x 750 „
1500 „
2 x 1000 „
2000 „
2 x 1250 „
2500 „
2 x 1500 „
3000 „
2 x 1750 „
3500 „
2 x 2000 „
4000 „
2 x 2250 „
4500 „
Capacitance
800 VDC/ 800 VDC/
240 VAC* 240 VAC*
V1
2 x 170
mF
340
mF
2 x 340 „
680 „
2 x 510 „
1020 „
2 x 680 „
1360 „
2 x 850 „
1700 „
2 x 1020 „
2040 „
2 x 1190 „
2380 „
2 x 1360 „
2720 „
2 x 1530 „
3060 „
Size
800 VDC/ 182 x 94 x
360 VAC*
H
V2
in mm
49
125
mF
77
250 „
105
375 „
133
500 „
161
625 „
189
750 „
217
875 „
245
1000 „
285
1125 „
Size
1600 VDC/ 182 x 94 x
480 VAC*
H
V2
in mm
49
85
mF
77
170 „
105
255 „
133
340 „
161
425 „
189
510 „
217
595 „
245
680 „
285
765 „
I
max.
A
I
max.
A
Electrical parameters
I
rms
(1 kHz)** ESR (1 kHz)**
A
m¸
V1
V2
V1
V2
65.4 32.7 1.43 5.73
103.5 51.7 0.72 2.87
139.0 69.5 0.48 1.91
173.3 86.7 0.36 1.43
196.7 98.3 0.32 1.27
228.5 114.3 0.27 1.06
248.1 124.1 0.25 1.00
278.3 139.2 0.22 0.88
298.7 157.4 0.21 0.76
Electrical parameters
I
rms
(1 kHz)** ESR (1 kHz)**
A
m¸
V1
V2
V1
V2
61.2 30.6 1.64 6.55
96.8 48.4 0.82 3.28
129.9 65.0 0.55 2.18
162.1 81.0 0.41 1.64
181.3 90.7 0.37 1.50
210.7 105.3 0.31 1.25
226.2 113.1 0.30 1.20
253.7 126.9 0.26 1.05
269.8 134.9 0.26 1.04
k
t
W/K
0.613
0.767
0.922
1.076
1.231
1.385
1.540
1.695
1.893
tan
d
**
[ x 10
-4
]
100 Hz 1 kHz
7
35
7
35
7
35
7
35
10
40
10
40
10
45
12
45
12
50
Part number
DCH4L06170_ _00_ _ _ _
DCH4L06340_ _00_ _ _ _
DCH4L06510_ _00_ _ _ _
DCH4L06680_ _00_ _ _ _
DCH4L06850_ _00_ _ _ _
DCH4L07102_ _00_ _ _ _
DCH4L07119_ _00_ _ _ _
DCH4L07136_ _00_ _ _ _
DCH4L07153_ _00_ _ _ _
k
t
W/K
0.613
0.767
0.922
1.076
1.231
1.385
1.540
1.695
1.893
tan
d
**
[ x 10
-4
]
100 Hz 1 kHz
8
45
8
45
8
45
8
45
11
50
11
50
11
55
14
55
14
60
Part number
DCH3G06250_ _00_ _ _ _
DCH3G06500_ _00_ _ _ _
DCH3G06750_ _00_ _ _ _
DCH3G07100_ _00_ _ _ _
DCH3G07125_ _00_ _ _ _
DCH3G07150_ _00_ _ _ _
DCH3G07175_ _00_ _ _ _
DCH3G07200_ _00_ _ _ _
DCH3G07225 _ _00_ _ _ _
V1
V2
5000 1250
10 000 2500
15 000 3750
20 000 5000
25 000 6250
30 000 7500
35 000 8750
40 000 10 000
45 000 11 250
V1
3740
7480
11 220
14 960
18 700
22 440
26 180
29 920
33 660
V2
935
1870
2805
3740
4675
5610
6545
7480
8415
* AC voltages: f < 50 Hz
** General guide
The capacitors will be delivered without interconnection.
Insulated in the sense of a breakdown voltage
of 2 x U
r
between the individual capacitors.
External wiring versions (to be implemented by user):
V1
V2
Customized solutions can be realized on request
Part number completion:
Size
Part number code for digit 11-12
W H
L moulded boxed box with screw fixing
94
49 182
H0
I0
J0
94
77 182
H1
I1
J1
94 105 182
H2
I2
J2
94 133 182
H3
I3
J3
94 161 182
H4
I4
J4
94 189 182
H5
I5
J5
94 217 182
H6
I6
J6
94 245 182
H7
I7
J7
94 285 182
H8
I8
J8
Tolerance: 20 % = M
10 % = K
5%=J
Packing:
bulk = S
Pin length: none = 00
-
Optional screw fixing
Rights reserved to amend design data without prior notification.
122
11.12
D
WIMA Part Number System
A WIMA part number consists of 18 digits and is composed as follows:
Field
Field
Field
Field
Field
Field
Field
Field
1
M
1 - 4: Type description
5 - 6: Rated voltage
7 - 10: Capacitance
11 - 12: Size and PCM
13 - 14: Version code (e.g. Snubber versions)
15:
Capacitance tolerance
16:
Packing
17 - 18: Pin length (untaped)
2
K
3
S
4
2
5
C
6
0
7
2
8
1
9
0
10
0
11
1
12
A
13
0
-
14
0
15
M
20
%
16
S
bulk
17
S
6 -2
18
D
MKS 2
63 VDC
0.01
mF
2.5 6.5 7.2
x x
Type description:
SMD-PET
=
SMD-PPS
=
FKP 02
=
MKS 02
=
FKS 2
=
FKP 2
=
MKS 2
=
MKP 2
=
FKS 3
=
FKP 3
=
MKS 4
=
MKP 4
=
MKP 10
=
FKP 4
=
FKP 1
=
MKP-X2
=
MKP-X2 R
=
MKP-Y2
=
MP 3-X2
=
MP 3-X1
=
MP 3-Y2
=
MP 3R-Y2
=
Snubber MKP =
Snubber FKP
=
GTO MKP
=
DC-LINK MKP 3 =
DC-LINK MKP 4 =
DC-LINK MKP 4S =
DC-LINK MKP 5 =
DC-LINK MKP 6 =
DC-LINK HC
=
DC-LINK HY
=
SuperCap C
=
SuperCap MC =
SuperCap C60 =
SuperCap R
=
SuperCap MR =
Rated voltage:
SMDT 2.5 VDC = A1
SMDI
4 VDC
= A2
FKP0
14 VDC = A3
MKS0 28 VDC = A4
FKS2
40 VDC = A5
FKP2
5 VDC
= A6
MKS2 50 VDC = B0
MKP2 63 VDC = C0
FKS3
100 VDC = D0
FKP3
160 VDC = E0
MKS4 250 VDC = F0
MKP4 400 VDC = G0
MKP1 450 VDC = H0
FKP4
600 VDC = I0
FKP1
630 VDC = J0
MKX2 700 VDC = K0
MKXR 800 VDC = L0
MKY2 850 VDC = M0
MPX2
900 VDC = N0
MPX1
1000 VDC = O1
MPY2
1100 VDC = P0
MPRY
1200 VDC = Q0
SNMP 1250 VDC = R0
SNFP
1500 VDC = S0
GTOM 1600 VDC = T0
DCP3
2000 VDC = U0
DCP4
2500 VDC = V0
DCPS
3000 VDC = W0
DCP5
4000 VDC = X0
DCP6
6000 VDC = Y0
DCH_ 250 VAC = 0W
DCHY 275 VAC = 1W
SCSC 300 VAC = 2W
MC_ _ 400 VAC = 3W
SCSC 440 VAC = 4W
SCSR
500 VAC = 5W
MRPP
...
Capacitance:
22 pF
= 0022
47 pF
= 0047
100 pF = 0100
150 pF = 0150
220 pF = 0220
330 pF = 0330
470 pF = 0470
680 pF = 0680
1000 pF = 1100
1500 pF = 1150
2200 pF = 1220
3300 pF = 1330
4700 pF = 1470
6800 pF = 1680
0.01
mF
= 2100
0.022
mF
= 2220
0.047
mF
= 2470
0.1
mF
= 3100
0.22
mF
= 3220
0.47
mF
= 3470
= 4100
1
mF
2.2
mF
= 4220
4.7
mF
= 4470
= 5100
10
mF
= 5220
22
mF
= 5470
47
mF
100
mF
= 6100
220
mF
= 6220
1F
= A010
2.5 F
= A025
50 F
= A500
100 F
= B100
110 F
= B110
600 F
= B600
1200 F = C120
...
Size:
4.8 x 3.3 x 3 Size 1812
4.8 x 3.3 x 4 Size 1812
5.7 x 5.1 x 3.5 Size 2220
5.7 x 5.1 x 4.5 Size 2220
7.2 x 6.1 x 3 Size 2824
7.2 x 6.1 x 5 Size 2824
10.2 x 7.6 x 5 Size 4030
12.7 x 10.2 x 6 Size 5040
15.3 x 13.7 x 7 Size 6054
2.5 x 7 x 4.6 PCM 2.5
3 x 7.5 x 4.6 PCM 2.5
2.5 x 6.5 x 7.2 PCM 5
3 x 7.5 x 7.2 PCM 5
2.5 x 7 x 10 PCM 7.5
3 x 8.5 x 10 PCM 7.5
3 x 9 x 13 PCM 10
4 x 9 x 13 PCM 10
5 x 11 x 18 PCM 15
6 x 12.5 x 18 PCM 15
5 x 14 x 26.5 PCM 22.5
6 x 15 x 26.5 PCM 22.5
9 x 19 x 31.5 PCM 27.5
11 x21 x 31.5 PCM 27.5
9 x 19 x 41.5 PCM 37.5
11 x 22 x 41.5 PCM 37.5
94 x 49 x 182 DCH_
94 x 77 x 182 DCH_
...
Version code:
Standard
=
Version A1
=
Version A1.1.1 =
Version A2
=
...
=
=
=
=
=
=
=
=
=
=
=
=
=
=
=
=
=
=
=
=
=
=
=
=
=
=
=
KA
KB
QA
QB
TA
TB
VA
XA
YA
0B
0C
1A
1B
2A
2B
3A
3C
4B
4C
5A
5B
6A
6B
7A
7B
H0
H1
Tolerance:
20 %
=
10 %
=
5%
=
2.5 %
=
1%
=
...
M
K
J
H
E
Packing:
AMMO H16.5 340 x 340
AMMO H16.5 490 x 370
AMMO H18.5 340 x 340
AMMO H18.5 490 x 370
REEL H16.5 360
REEL H16.5 500
REEL H18.5 360
REEL H18.5 500
ROLL H16.5
ROLL H18.5
BLISTER W12 180
BLISTER W12 330
BLISTER W16 330
BLISTER W24 330
Bulk/TPS Standard
...
=
=
=
=
=
=
=
=
=
=
=
=
=
=
=
A
B
C
D
F
H
I
J
N
O
P
Q
R
T
S
00
1A
1B
2A
Pin length (untaped)
3.5 ±0.5 = C9
6 -2
= SD
16 ±1
= P1
...
146
11.12
The data on this page is not complete and serves only to explain the part number system. Part number information is listed on the
pages of the respective WIMA range.
