DTE0624S24 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> DTE0624S24

DTE0624S24: DescriptionPower Supply Module,; CategoryPower/power management The power supply circuit; File Size463KB，4 Pages; ManufacturerXP Power; Websitehttps://www.xppower.com/

Download Datasheet Parametric Compare View All

DTE0624S24 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DTE0624S24	-	-	View	Buy Now

DTE0624S24 Overview

Power Supply Module,

DTE0624S24 Parametric

Parameter Name	Attribute value
Maker	XP Power
package instruction	,
Reach Compliance Code	compliant
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE

Preview

Download Datasheet

View All

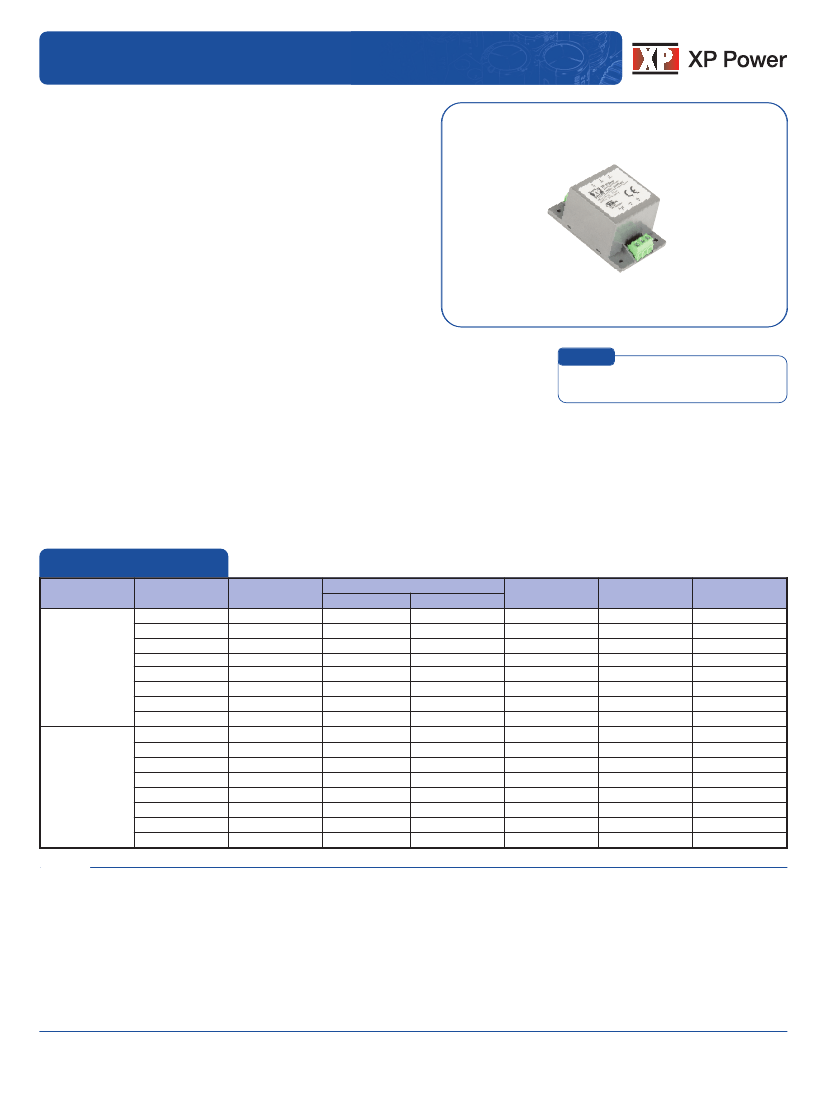

DTE06 Series

6 Watts

• Regulated single & dual outputs from 5VDC to 48VDC

• Wide 4:1 input range

DC-DC Converter

xxx Series

• Fully encapsulated chassis mount

• Optional DIN rail version

• IEC/UL/cUL62368-1 safety approvals

• EN55032 class A with no external components

• Remote on/off

• 3kVDC isolation

• -40°C to +105°C operating temperature

• Full power to 80°C

• MTBF >4Mhrs (MIL-DHBK-27F, +25°C GB)

• 3 year warranty

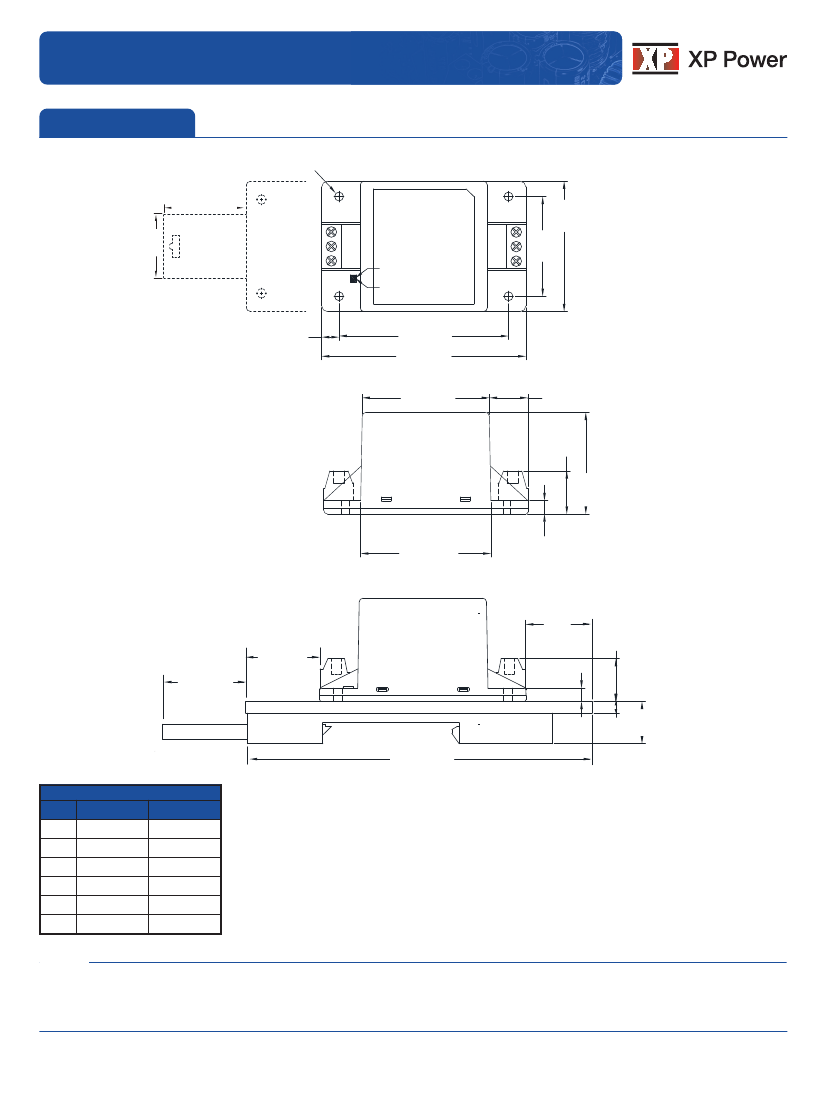

Dimensions:

DTE06:

2.09 x 1.34 x 1.04” (53.0 x 34.0 x 26.5 mm)

Available in two wide (4:1) input ranges for nominal 12/24VDC and 24/48VDC, the DTE06 series of encapsulated 6W DC-DC converters are

chassis mount as standard or can be ordered with a DIN rail mount. They have screw terminals for ease of connection and an LED provides clear

‘power good’ indication. Remote On/Off is standard and when inhibited the standby current is just 2.5mA. Isolation is 3kVDC input/output

providing excellent separation between supply and load. The modules are fully protected against input undervoltage, short circuit and overload

conditions. These features, along with a rugged design and wide operating temperature range make the DTE06 series suitable for a variety of

commercial and industrial applications.

Models & Ratings

Input Voltage

Output Voltage

5.1V

12.0 V

15.0 V

24 V

(9-36 V)

24.0 V

48.0 V

±12.0 V

±15.0 V

±24.0 V

5.1V

12.0 V

15.0 V

48 V

(18-75 V)

24.0 V

48.0 V

±12.0 V

±15.0 V

±24.0 V

Output Current

1.20 A

0.50 A

0.40 A

0.25 A

0.125 A

±0.25 A

±0.20 A

±0.125 A

1.20 A

0.50 A

0.40 A

0.25 A

0.125 A

±0.25 A

±0.20 A

±0.125 A

Input Current

(1,4)

Max Load

No Load

315 mA

298 mA

294 mA

301 mA

298 mA

294 mA

298 mA

159 mA

149 mA

147 mA

151 mA

147 mA

149 mA

10 mA

8 mA

Maximum

Capacitive Load

(5)

680 µF

330 µF

150 µF

68 µF

150 µF

68 µF

680 µF

330 µF

150 µF

68 µF

150 µF

68 µF

Efficiency

(2)

81%

84%

85%

83%

84%

85%

84%

80%

84%

85%

83%

85%

84%

Model Number

(3)

DTE0624S051

DTE0624S12

DTE0624S15

DTE0624S24

DTE0624S48

DTE062DS12

DTE0624D15

DTE0624D24

DTE0648S051

DTE0648S12

DTE0648S15

DTE0648S24

DTE0648S48

DTE0648DS12

DTE0648D15

DTE0648D24

Notes

1. Input current measured at nominal input voltage.

4. Input current is typically 2.5mA at nominal input voltage when output is remotely

2. Typical values.

turned off.

3. For optional version fitted with DIN Clip add suffix ‘-D’ e.g. DTE0624S24-D.

5. Per output.

DIN Rail mounting clip is available as a separate item, order code DTE06 DIN CLIP.

www.xppower.com
