N74F19AN datasheet, PDF - EEWORLD Datasheet

N74F19AN: DescriptionStandard SRAM, 16X4, 8ns, CMOS, PDIP16; Categorystorage storage; File Size141KB，6 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

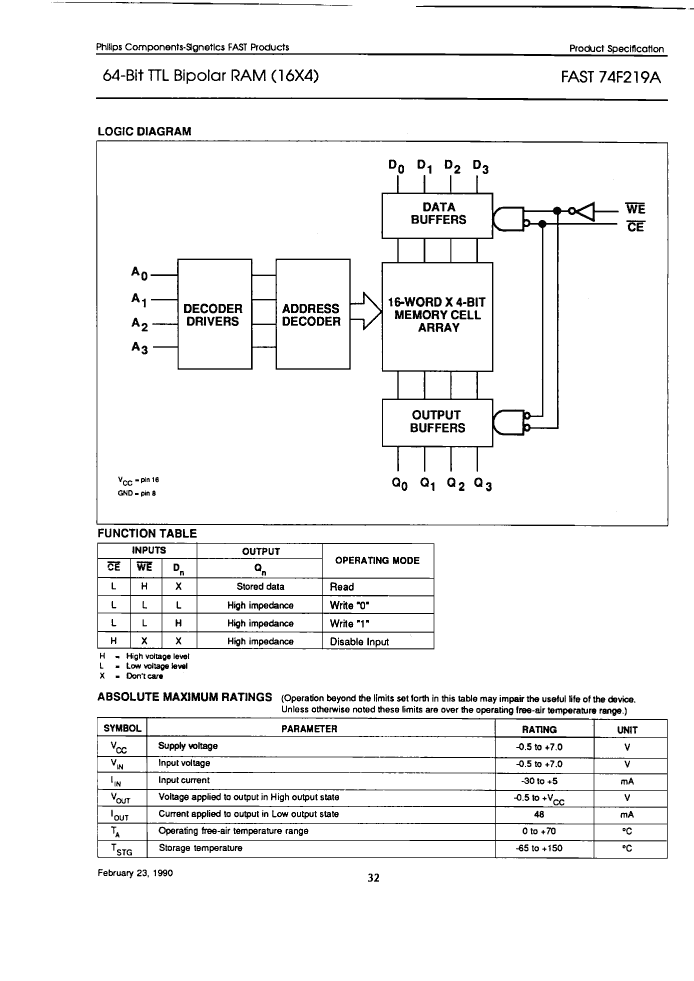

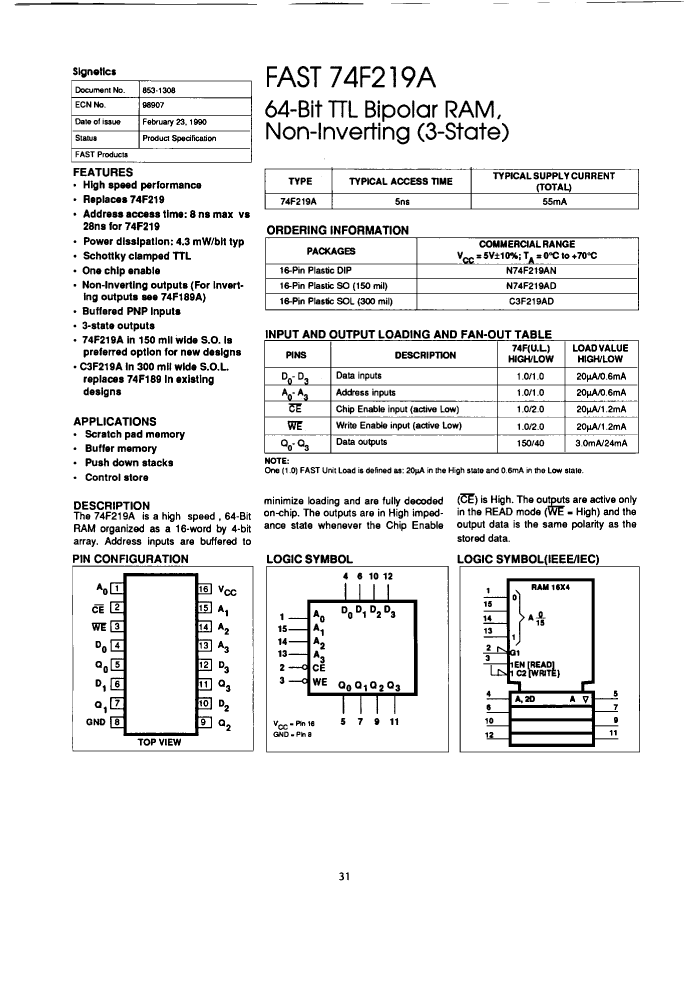

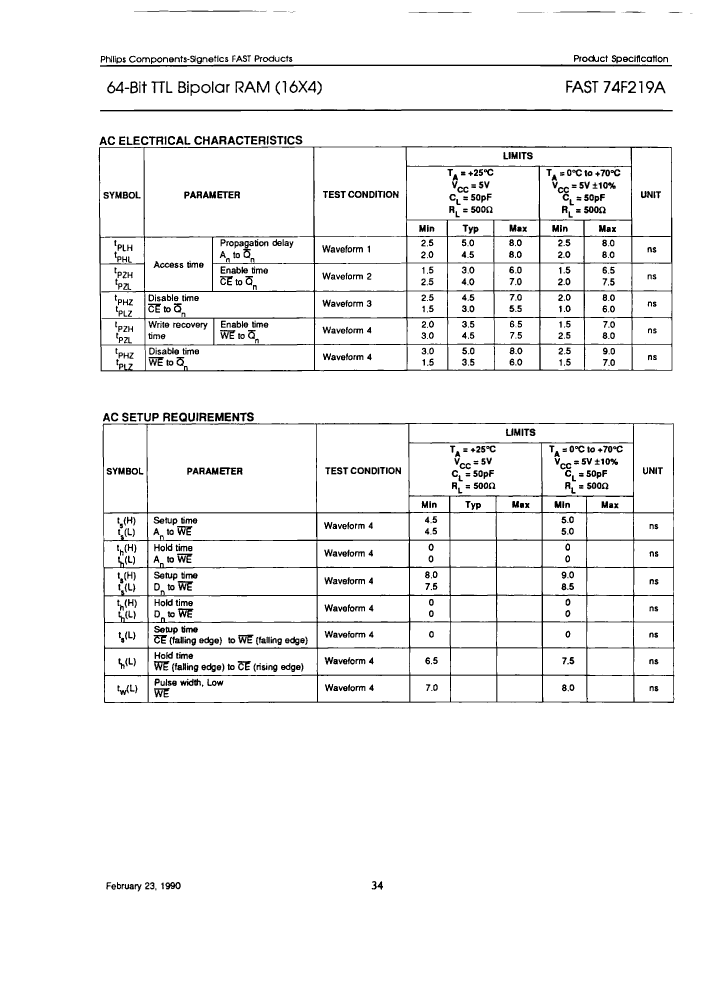

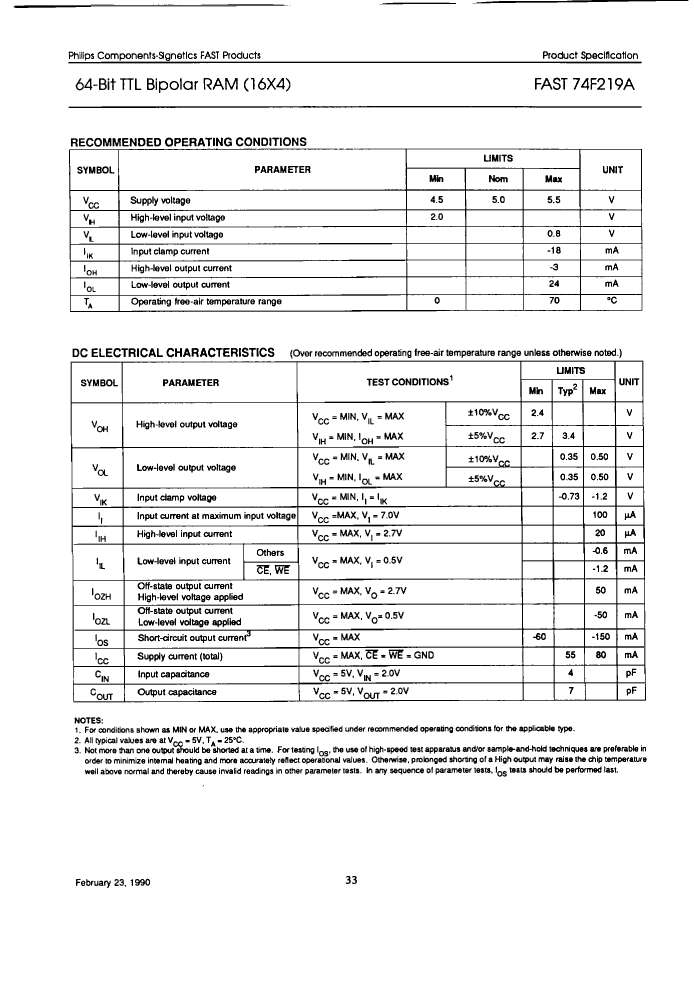

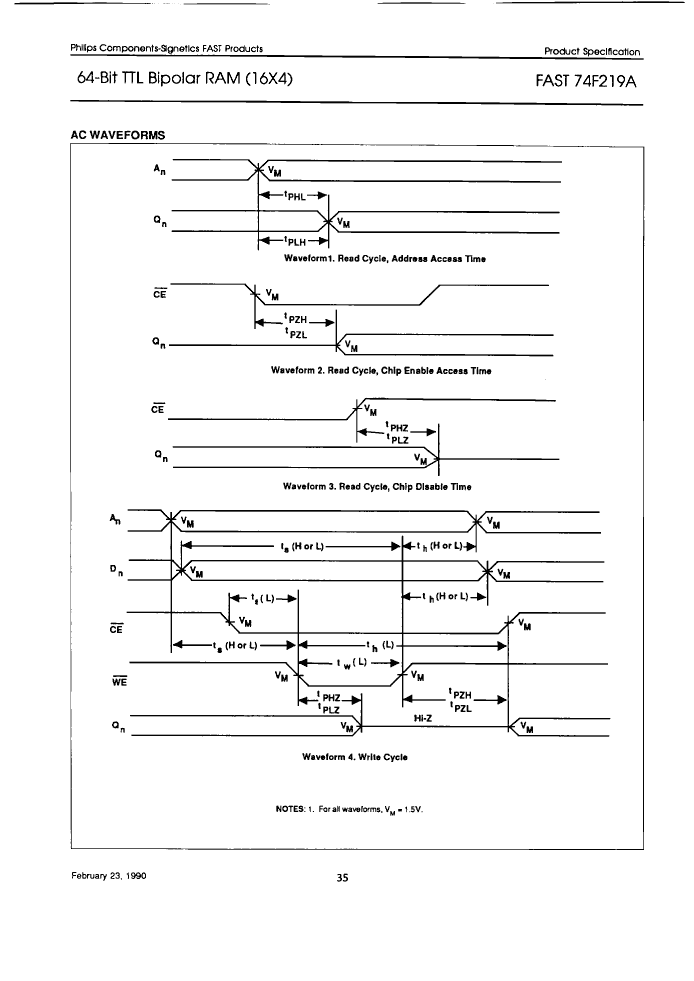

N74F19AN Overview

Standard SRAM, 16X4, 8ns, CMOS, PDIP16

Parameter Name	Attribute value
Maker	YAGEO
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	8 ns
JESD-30 code	R-PDIP-T16
memory density	64 bit
Memory IC Type	STANDARD SRAM
memory width	4
Number of functions	1
Number of terminals	16
word count	16 words
character code	16
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	16X4
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal location	DUAL

	N74F19AN	C3F219AD-T	N74F19AD-T	N74F19AD
Description	Standard SRAM, 16X4, 8ns, CMOS, PDIP16	Standard SRAM, 16X4, 8ns, CMOS, PDSO16	Standard SRAM, 16X4, 8ns, CMOS, PDSO16	Standard SRAM, 16X4, 8ns, CMOS, PDSO16
Maker	YAGEO	YAGEO	YAGEO	YAGEO
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Maximum access time	8 ns	8 ns	8 ns	8 ns
JESD-30 code	R-PDIP-T16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16
memory density	64 bit	64 bit	64 bit	64 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	4	4	4	4
Number of functions	1	1	1	1
Number of terminals	16	16	16	16
word count	16 words	16 words	16 words	16 words
character code	16	16	16	16
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
organize	16X4	16X4	16X4	16X4
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL
