DATA SHEET
THIN FILM CHIP RESISTORS
High precision - high stability
RT series
0.05%
TO
1%, TC 10
TO
50
sizes 0402/0603/0805/1206/
1210/2010/2512
RoHS compliant
Product specification – Oct 21, 2009 V.4
Product specification
2
10
Chip Resistor Surface Mount
RT
SERIES
0402 to 2512 (RoHS Compliant)
SCOPE
This specification describes
RT0402 to RT2512 high precision -
high stability chip resistors with
lead-free terminations made by
thin film process.
APPLICATIONS
Converters
Printer
Server
ORDERING INFORMATION - GLOBAL PART NUMBER & 12NC
Both part numbers are identified by the series, size, tolerance, packing
type, temperature coefficient, taping reel and resistance value.
YAGEO BRAND ordering code
GLOBAL PART NUMBER (
PREFERRED
)
RT XXXX F X X XX XXXX L
(1)
(2) (3) (4)
(5)
(6)
(7)
(1) SIZE
0402 / 0603 / 0805 / 1206 / 1210 / 2010 / 2512
equipment
board
Telecom
Consumer
(2) TOLERANCE
W = ±0.05%
B = ±0.1%
C = ±0.25%
D = ±0.5%
F = ±1%
FEATURES
Halogen Free Epoxy
RoHS
-
compliant
Products with lead free
terminations meet RoHS
requirements
Pb-glass contained in electrodes,
resistor element and glass are
exempted by RoHS
(3) PACKAGING TYPE
R = Paper/PE taping reel
K = Embossed taping reel
-
(4) TEMPERATURE COEFFICIENT OF RESISTANCE
B = 10 ppm/°C
C = 15 ppm/°C
D = 25 ppm/°C
E = 50 ppm/°C
Reducing
High
environmentally
hazardous wastes
component and equipment
reliability
of PCB space
forbidden-materials used
in products/production
(5) TAPING REEL
07 = 7 inch dia. Reel
10 = 10 inch dia. Reel
13 = 13 inch dia. Reel
(6) RESISTANCE VALUE
There are 2~4 digits indicated the resistor value. Letter R/K/M is decimal point, no need
to mention the last zero after R/K/M, e.g.1K2, not 1K20.
Detailed resistance rules show in table of “Resistance rule of global part number”.
Saving
None
(7) DEFAULT CODE
Letter L is system default code for order only
(Note)
Resistance rule of global part
number
Resistance code rule
Example
XRXX
(1 to 9.76
Ω)
XXRX
(10 to 97.6
Ω)
XXXR
(100 to 976
Ω)
XKXX
(1 to 9.76 KΩ)
XMXX
(1 to 9.76 MΩ)
1R = 1
Ω
1R5 = 1.5
Ω
9R76 = 9.76
Ω
10R = 10
Ω
97R6 = 97.6
Ω
100R = 100
Ω
1K = 1,000
Ω
9K76 = 9760
Ω
1M = 1,000,000
Ω
9M76= 9,760,000
Ω
O
RDERING EXAMPLE
The ordering code of a RT0603
chip resistor, TC 50 value 56
X
with ±0.5% tolerance, supplied in
7-inch tape reel is:
RT0603DRE0756RL.
NOTE
1. All our RSMD products meet RoHS
compliant and Halogen Free. "LFP" of
the internal 2D reel label mentions
"Lead Free Process"
2. On customized label, "LFP" or
specific symbol can be printed
www.yageo.com
Oct 21, 2009 V.4
Product specification
3
10
Chip Resistor Surface Mount
RT
SERIES
0402 to 2512 (RoHS Compliant)
PHYCOMP BRAND ordering codes
Both GLOBAL PART NUMBER (preferred) and 12NC (traditional) codes are acceptable to order Phycomp
brand products. For matching traditional types with size codes, please refer to “Comparison table of traditional
types and sizes”.
GLOBAL PART NUMBER
(
PREFERRED
)
For detailed information of GLOBAL PART NUMBER and ordering example, please refer to page 2.
12NC
2390
(1)
CODE
X
(2)
(2)
XX
(3)
(4)
X
XXXX
(5)
(6)
L
START TCR
PACKING CODE
(1)
WITH (ppm/°C) BY SIZE (inch)
(3)
(%)
2390
8 = ±10 0402: 07 = 7'' reel
TOL.
(4)
RESISTANCE
RANGE
(NOTE)
DEFAULT
CODE
Letter L is
system
default
code for
order only
(Note)
Comparison table of traditional
types and sizes
X
X
X
TF
(1)
(2)
(3)
(4)
The remaining 4 digits
7 = ±15
27 = 10'' reel 6 = ±0.5 represent the resistance
value with the last digit
6 = ±25
47 = 13'' reel 5 = ±0.25
indicating the multiplier
4 = ±50 0603: 04 = 7'' reel 4 = ±0.1 as shown in the table of
24 = 10'' reel 3 = ±0.05 “Last digit of 12NC”.
7 = ±1
44 = 13'' reel
0805: 01 = 7'' reel
21 = 10'' reel
41 = 13'' reel
1206: 11 = 7'' reel
31 = 10'' reel
51 = 13'' reel
1210: 12 = 7'' reel
32 = 10'' reel
52 = 13'' reel
2010: 15 = 7'' reel
2512: 18 = 7'' reel
0402: 10Ω
≤
R < 121KΩ
0603: 5.1
Ω
≤
R
≤
681
KΩ
0805: 5.1Ω
≤
R
≤
1.5 MΩ
1206: 5.1Ω
≤
R
≤
1.5 MΩ
1210: 5.1Ω
≤
R
≤
1.5 MΩ
2010: 10Ω
≤
R
≤
1 MΩ
2512: 10Ω
≤
R
≤
1 MΩ
START SIZE
WITH CODE
TF
TCR
TOL.
(ppm/°C) (%)
3 = 0402 4 = ±10 0 = ±1
2 = 0603 3 = ±15 1 = ±0.5
1 = 0805 1 = ±25 2 = ±0.25
0 = 1206 2 = ±50 3 = ±0.1
5 = 1210
7 = 2010
6 = 2512
4 = ±0.05
Example:
TF321 = RT0402, TC50, ±0.5% tolerance
Resistance decade
(3)
1 to 9.76
X
10 to 97.6
X
100 to 976
X
1 to 9.76 k
X
10 to 97.6 k
X
100 to 976 k
X
1 to 9.76 M
X
10 to 97.6 M
X
Example:
1
X
33 k
X
10 M
X
=
=
=
Last digit
8
9
1
2
3
4
5
6
1008 or 108
3303 or 333
1006 or 106
Exceptions to above packing code definitions:
0805 TC50 with 1%, supplied in 13" reel, the packing code is 02.
0603 TC50 with 1%, supplied in 13" reel, the packing code is 03.
2512 TC15, in 7" reel, the packing code is 35.
2010 TC15, in 7" reel, the packing code is 31.
O
RDERING EXAMPLE
The ordering code of a TF221 resistor, TC50, value 56
X,
with ±0.5%
tolerance, supplied in tape of 5,000 units per reel is: 239040465609L or
RT0603DRE0756RL.
NOTE
1. All our RSMD products meet RoHS compliant and Halogen Free. "LFP" of the internal 2D reel label mentions "Lead Free Process"
2. On customized label, "LFP" or specific symbol can be printed
www.yageo.com
Oct 21, 2009 V.4
Product specification
4
10
Chip Resistor Surface Mount
RT
SERIES
0402 to 2512 (RoHS Compliant)

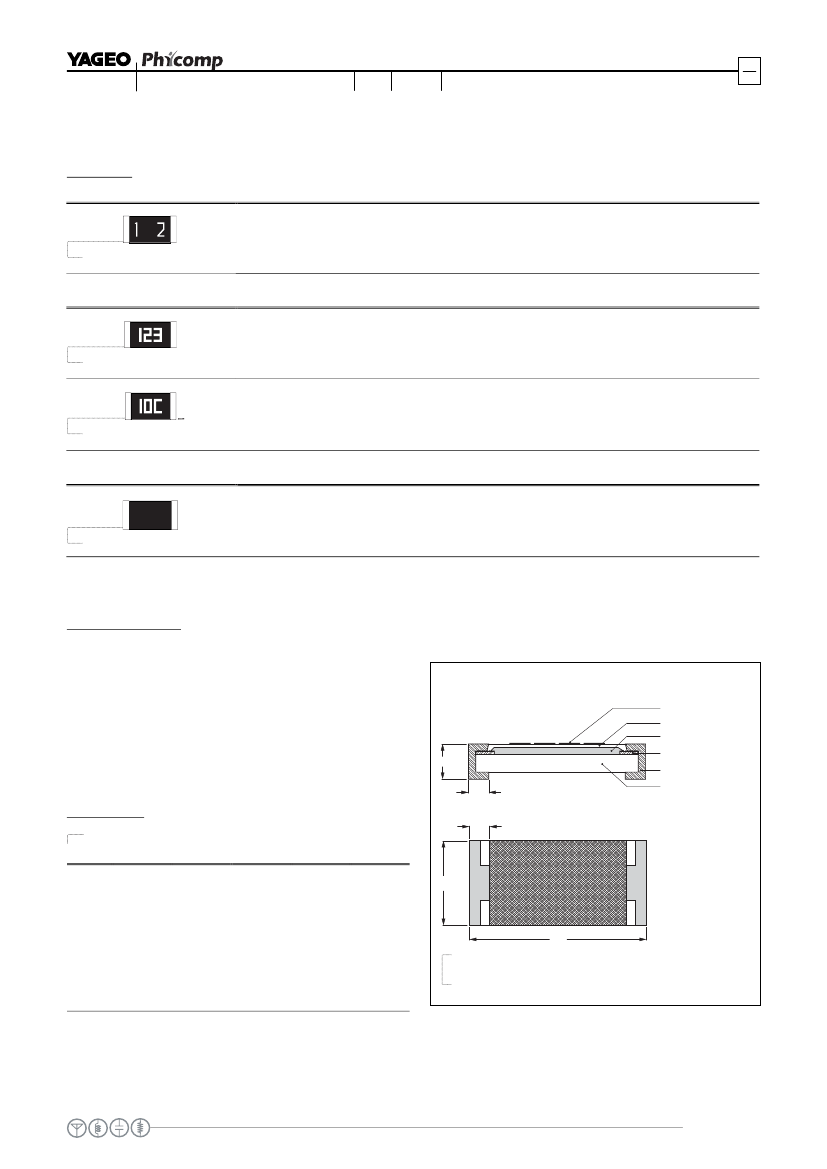

MARKING
RT0805 / RT1206 / RT1210 / RT2010 / RT2512
00
YNSC004
Either resistance in E-24 or E-96: 4 digits
First three digits for significant figure and 4th digit for number of zeros
Fig. 1
Value = 10 kΩ
RT0603
E-24 series: 3 digits
ynsc015
Fig. 2
Value = 12 kΩ
First two digits for significant figure and 3rd digit for number of zeros
E-96 series: 3 digits for 0603±1% EIA-96 marking method
Fig. 3
Value = 12.4 kΩ
RT0402 / RESISTANCE VALUE IS NOT IN E-24 / E96 SERIES
ynsc007
No marking
Fig. 4
For further marking information, please see special data sheet “Chip resistors marking”.
CONSTRUCTION
The resistors are constructed out of a high-grade ceramic
body. Internal metal electrodes are added at each end and
connected by a resistive layer. The resistive layer is adjusted
to give the approximate required resistance and laser cutting
of this resistive layer that achieves tolerance trims the value.
The resistive layer is covered with a protective coat and
printed with the resistance value. Finally, the two external
terminations (matte tin) are added. See fig. 5.
DIMENSION
Table 1
For outlines see fig. 5
TYPE
L (mm)
W (mm)
H (mm)
I
1
(mm)
I
2
(mm)
0.25 ±0.10
0.25 ±0.15
0.35 ±0.20
0.40 ±0.20
L
YNSC064
OUTLINES
For dimension see Table 1
marking layer
protective coat
resistive layer
inner electrode
H
termination (Ni / matte tin)
I2
ceramic substrate
I
1
RT0402
1.00 ±0.10 0.50 ±0.05 0.30 ±0.05 0.20 ±0.10
RT0603
1.60 ±0.10 0.80 ±0.10 0.45 ±0.10 0.25 ±0.15
RT0805
2.00 ±0.10 1.25 ±0.10 0.50 ±0.10 0.35 ±0.20
RT1206
3.10 ±0.10 1.60 ±0.10 0.55 ±0.10 0.45 ±0.20
W
RT1210
3.10 ±0.10 2.60 ±0.15 0.55 ±0.10 0.50 ±0.20 0.50 ±0.20
RT2010
5.00 ±0.10 2.50 ±0.15 0.55 ±0.10 0.60 ±0.20 0.50 ±0.20
RT2512
6.35 ±0.10 3.20 ±0.15 0.55 ±0.10 0.60 ±0.20 0.50 ±0.20
Fig. 5
Chip resistor outlines
www.yageo.com
Oct 21, 2009 V.4
Product specification
5
10
Chip Resistor Surface Mount
RT
SERIES
0402 to 2512 (RoHS Compliant)
ELECTRICAL CHARACTERISTICS
Table 2
TYPE
Operating
Temperature
Range
Power
Rating
Max. Max.
Dielectric
T.C.R.
Work Overload Withstand
(ppm/°C)
Vol.
(1)
Vol.
Vol.
±50
Resistance Range (E-24/E-96 series)
(2)
& Tolerance
±0.05%
---
---
---
---
---
1k~47k
1k~47k
1k~47k
±0.1%
10~121k
10~121k
10~100k
10~100k
10~681k
10~100k
10~100k
±0.25%
10~121k
10~121k
10~100k
10~100k
10~681k
10~100k
10~100k
±0.5%
10~121k
10~121k
---
---
10~681k
---
---
±1.0%
10~121k
---
---
---
---
---
---
---
---
---
---
---
---
5.1~1M
---
---
---
10~1M
---
---
---
10~1M
---
---
---
RT0402
–55 °C to +125 °C 1/16W
50V
100V
75V
±25
±15
±10
±50
±25
±15
±10
±50
±25
±15
±10
±50
±25
±15
±10
±50
±25
±15
±10
±50
±25
±15
±10
±50
±25
±15
±10
10~681k 5.1~681k 5.1~681k 5.1~681k
RT0603
–55 °C to +125 °C 1/10W 75V
150V
100V
--- 10~1.5M 5.1~1.5M 5.1~1.5M 5.1~1.5M
100~100k 10~1.5M 10~1.5M 10~1.5M
100~100k
100~100k
10~100k
10~100k
10~100k
10~100k
---
---
RT0805
–55 °C to +125 °C 1/8W
150V
300V
200V
--- 10~1.5M 5.1~1.5M 5.1~1.5M 5.1~1.5M
100~100k 10~1.5M 10~1.5M 10~1.5M
100~100k
100~100k
---
100~100k
100~100k
100~100k
---
100~100k
100~100k
100~100k
---
100~100k
100~100k
100~100k
10~100k
10~100k
10~1M
10~1M
10~100k
10~100k
10~1M
10~1M
10~100k
10~100k
10~1M
10~1M
10~100k
10~100k
10~100k
10~100k
5.1~1M
10~1M
10~100k
10~100k
10~1M
10~1M
10~100k
10~100k
10~1M
10~1M
10~100k
10~100k
---
---
5.1~1M
10~1M
---
---
10~1M
10~1M
---
---
10~1M
10~1M
---
---
RT1206
–55 °C to +125 °C 1/4W
200V
400V
300V
RT1210
–55 °C to +125 °C 1/4W
200V
400V
400V
RT2010
–55 °C to +125 °C 1/2W
200V
400V
400V
RT2512
–55 °C to +125 °C 3/4W
200V
400V
400V
NOTE
1. The maximum working voltage that may be continuously applied to the resistor element, see “IEC publication 60115-8”
2. Value of E-192 series is on request
