SY54017AR
Low Voltage 1.2V/1.8V CML 2:1 MUX
3.2Gbps, 2.5GHz
General Description
The SY54017AR is a fully differential, low voltage
1.2V/1.8V CML 2:1 MUX. The SY54017AR can process
clock signals as fast as 3.2GHz or data patterns up to
3.2Gbps.
The differential input includes Micrel’s unique, 3-pin
input termination architecture that interfaces to LVPECL,
LVDS or CML differential signals, (AC- or DC-coupled
from a 2.5V driver) as small as 100mV (200mV
PP
)
without any level-shifting or termination resistor
networks in the signal path. For AC-coupled input
interface applications, an internal voltage reference is
provided to bias the V
T
pin. The outputs are CML, with
extremely fast rise/fall times guaranteed to be less than
95ps.
The SY54017AR operates from a 2.5V ±5% core supply
and a 1.8V or 1.2V ±5% output supply and is
guaranteed over the full industrial temperature range
(–40°C to +85°C). The SY54017AR is part of Micrel’s
®
high-speed, Precision Edge product line.
Datasheets and support documentation can be found on
Micrel’s web site at:
www.micrel.com.
Precision Edge
®
Features
∑
1.2V/1.8V CML 2:1 MUX
∑
Guaranteed AC performance over temperature and
voltage:
– DC-to- > 3.2Gbps throughput
– <310ps propagation delay (IN-to-Q)
– <20ps input-to-input skew
– <95ps rise/fall times
∑
Ultra-low jitter design
– <1ps
RMS
cycle-to-cycle jitter
– <10ps
PP
total jitter
– <1ps
RMS
random jitter
– <10ps
PP
deterministic jitter
∑
High-speed CML outputs
∑
2.5V ±5% , 1.8/1.2V ±5% power supply operation
∑
Industrial temperature range: –40°C to +85°C
®
∑
Available in 16-pin (3mm x 3mm) MLF package

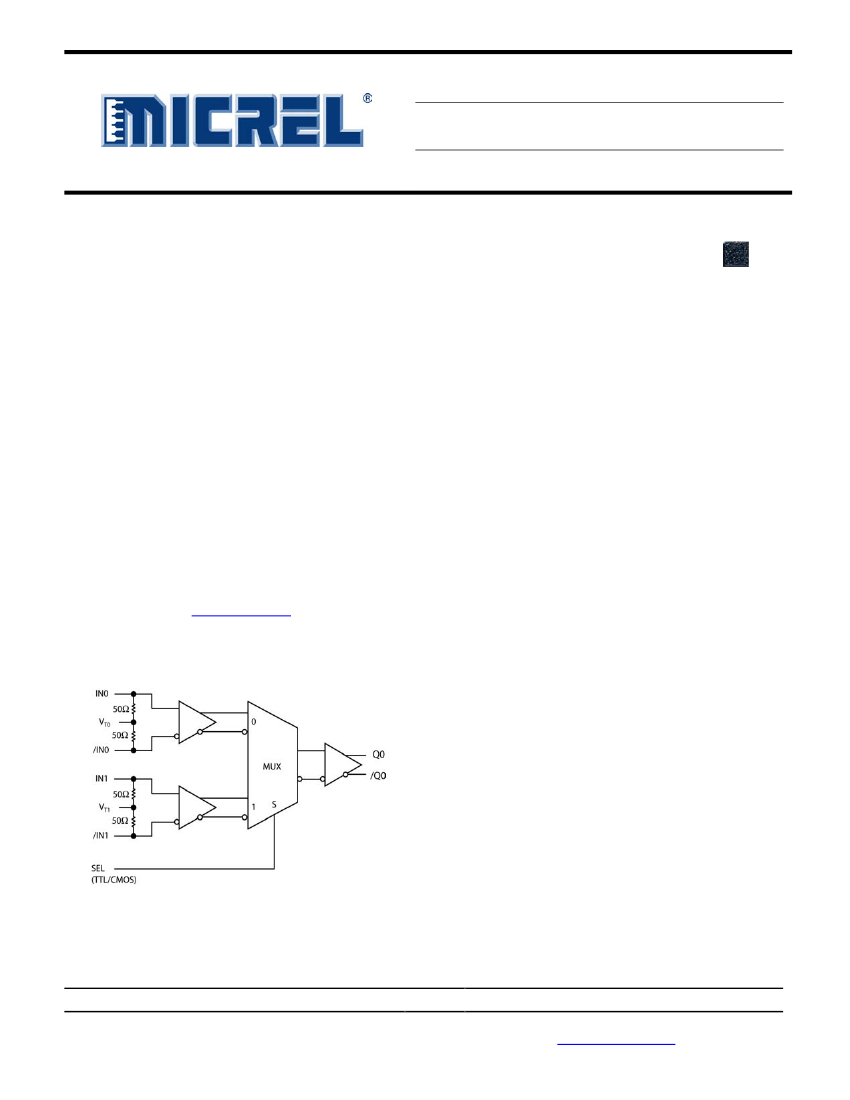

Functional Block Diagram
Applications
∑
∑
∑
∑
∑
∑
∑
∑
∑
∑
∑
Data Distribution: OC-48, OC-48+FEC
SONET clock and data distribution
Fibre Channel clock and data distribution
Gigabit Ethernet clock and data distribution
Markets
Storage
ATE
Test and measurement
Enterprise networking equipment
High-end servers
Access
Metro area network equipment
Precision Edge is a registered trademark of Micrel, Inc.
MLF and
MicroLeadFrame
are registered trademarks of Amkor Technology.
Micrel Inc. • 2180 Fortune Drive • San Jose, CA 95131 • USA • tel +1 (408) 944-0800 • fax + 1 (408) 474-1000 • http://www.micrel.com
May 2008
M9999-053008-B
hbwhelp@micrel.com
or (408) 955-1690
Micrel, Inc.
SY54017AR
Ordering Information
(1)
Part Number
SY54017ARMG
SY54017ARMGTR
Notes:
1. Contact factory for die availability. Dice are guaranteed at T
A
= 25°C, DC Electricals only.
2. Tape and Reel.
(2)
Package
Type
MLF-16
MLF-16
Operating
Range
Industrial
Industrial
Package Marking
017A
with Pb-Free
bar-line indicator
017A
with Pb-Free
bar-line indicator
Lead
Finish
NiPdAu
Pb-Free
NiPdAu
Pb-Free

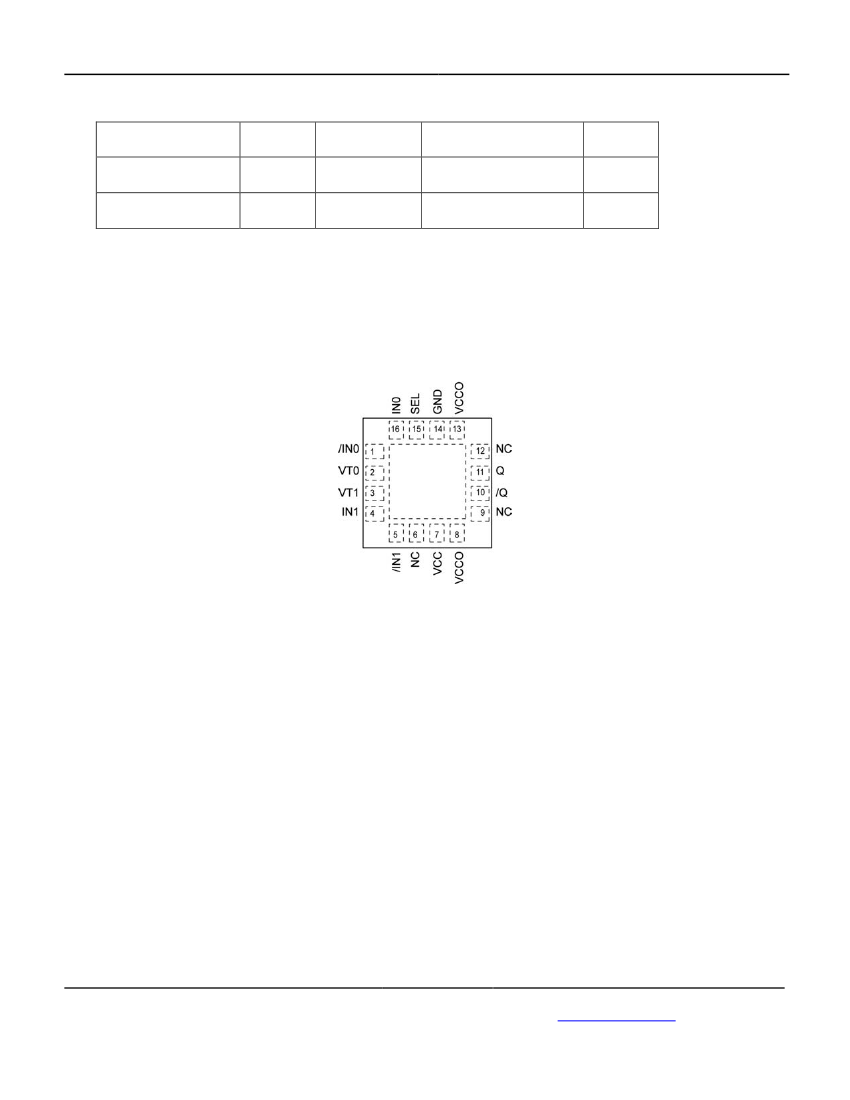

Pin Configuration
16-Pin MLF (MLF-16)
®
May 2008
2
M9999-053008-B
hbwhelp@micrel.com
or (408) 955-1690
Micrel, Inc.
SY54017AR
Pin Description
Pin Number
16,1
4,5
2
3
Pin Name
IN0, /IN0
IN1,/IN1
VT0
VT1
Pin Function
Differential Inputs: These input pairs are the differential signal inputs to the device.
They accept differential signals as small as 100mV (200mV
PP
). Each input pin
internally terminates with 50Ω to the VT pin.
Input Termination Center-Tap: Each side of the differential input pair terminates to a
VT pin. This pin provides a center-tap to a termination network for maximum
interface flexibility. An internal high impedance resistor divider biases VT to allow
input AC-coupling. For AC-coupling, bypass VT with a 0.1µF low ESR capacitor to
VCC. See “Interface Applications” subsection and Figure 2a.
This single-ended TTL/CMOS-compatible input selects the inputs to the multiplexer.
Note that this input is internally connected to a 25k ohm pull-up resistor and will
default to a logic HIGH state if left open.
Positive Power Supply: Bypass with 0.1uF//0.01uF low ESR capacitors as close to
the V
CC
pin as possible. Supplies input and core circuitry.
Output Supply: Bypass with 0.1uF//0.01uF low ESR capacitors as close to the V
CCO
pins as possible. Supplies the output buffer.
Ground: Exposed pad must be connected to a ground plane that is the same
potential as the ground pin.
CML Differential Output Pair: Differential buffered copy of the input signal. The
output swing is typically 390mV. See “Interface Applications” subsection for
termination information.
15
SEL
7
8,13
14
11,10
VCC
VCCO
GND,
Exposed pad
Q, /Q
Truth Table
SEL
0
1
OUTPUT
IN0 Input Selected
IN1 Input Selected
May 2008
3
M9999-053008-B
hbwhelp@micrel.com
or (408) 955-1690
Micrel, Inc.
SY54017AR
Absolute Maximum Ratings
(1)
Supply Voltage (V
CC
) ................................. –0.5V to +3.0V
Supply Voltage (V
CCO
) ............................... –0.5V to +2.7V
V
CC
- V
CCO
.................................................................. <1.8V
V
CCO
- V
CC
.................................................................. <0.5V
Input Voltage (V
IN
) ......................................... –0.5V to V
CC
CML Output Voltage (V
OUT
)..................0.6V to V
CCO
+0.5V
Current (V
T
)
Source or sink current on VT pin .................. ±100mA
Input Current
Source or sink current on (IN, /IN) .................. ±50mA
Maximum operating Junction Temperature.............125°C
Lead Temperature (soldering, 20sec.) ....................260°C
Storage Temperature (T
s
) ...................... –65°C to +150°C
Operating Ratings
(2)
Supply Voltage (V
CC
) ........................... 2.375V to 2.625V
(V
CCO
)………………….….1.14V to 1.9V
Ambient Temperature (T
A
) ..................... –40°C to +85°C
(3)
Package Thermal Resistance
®
MLF
Still-air (q
JA
) .............................................. 75°C/W
Junction-to-board (y
JB
) ........................... 33°C/W
DC Electrical Characteristics
(4)
T
A
= –40°C to +85°C, unless otherwise stated.
Symbol
V
CC
Parameter
Power Supply Voltage Range
Condition
V
CC
V
CCO
V
CCO
Max.
V
CC
No Load. V
CCO
45
90
IN, /IN
V
IL
with V
IH
= 1.2V
IN, /IN
V
IL
with V
IH
= 1.14V, (1.2V-5%)
see Figure 3a
see Figure 3b
1.2
0.2
1.14
0.66
0.1
0.2
Min
2.375
1.14
1.7
Typ
2.5
1.2
1.8
20
16
50
100
Max
2.625
1.26
1.9
29
21
55
110
V
CC
V
IH
–0.1
V
CC
V
IH
–0.1
1.0
2.0
1.28
Units
V
V
V
mA
mA
Ω
Ω
V
V
V
V
V
V
V
I
CC
I
CCO
R
IN
R
DIFF_IN
V
IH
V
IL
V
IH
V
IL
V
IN
V
DIFF_IN
V
T_IN
Notes:
Power Supply Current
Power Supply Current
Input Resistance
(IN-to-V
T
, /IN-to-V
T
)
Differential Input Resistance
(IN-to-/IN)
Input HIGH Voltage
(IN, /IN)
Input LOW Voltage
(IN, /IN)
Input HIGH Voltage
(IN, /IN)
Input LOW Voltage
(IN, /IN)
Input Voltage Swing
(IN, /IN)
Differential Input Voltage Swing
(|IN - /IN|)
Voltage from Input to V
T
1. Permanent device damage may occur if absolute maximum ratings are exceeded. This is a stress rating only and functional operation is not
implied at conditions other than those detailed in the operational sections of this data sheet. Exposure to absolute maximum ratings conditions
for extended periods may affect device reliability.
2. The data sheet limits are not guaranteed if the device is operated beyond the operating ratings.
3. Package thermal resistance assumes exposed pad is soldered (or equivalent) to the device's most negative potential on the PCB.
y
JB
and
q
JA
values are determined for a 4-layer board in still-air number, unless otherwise stated.
4. The circuit is designed to meet the DC specifications shown in the above table after thermal equilibrium has been established.
May 2008
4
M9999-053008-B
hbwhelp@micrel.com
or (408) 955-1690
Micrel, Inc.
SY54017AR
CML Outputs DC Electrical Characteristics
(5)
V
CCO
= 1.14V to 1.26V R
L
= 50Ω to V
CCO,
V
CCO
= 1.7V to 1.9V, R
L
= 50Ω to V
CCO
or 100Ω across the outputs,
V
CC
= 2.375V to 2.625V. T
A
= –40°C to +85°C, unless otherwise stated.
Symbol
V
OH
V
OUT
V
DIFF_OUT
R
OUT
Parameter
Output HIGH Voltage
Output Voltage Swing
Differential Output Voltage Swing
Output Source Impedance
Condition
R
L
= 50Ω to V
CCO
See Figure 3a
See Figure 3b
Min
V
CCO
-0.020
300
600
45
Typ
V
CCO
-0.010
390
780
50
Max
V
CCO
475
950
55
Units
V
mV
mV
Ω
LVTTL/CMOS DC Electrical Characteristics
(5)
V
CC
= 2.5V ±5%; V
CCO
= +1.14V to +1.26V or +1.7V to +1.9V; T
A
= –40°C to +85°C, unless otherwise stated.
Symbol
V
IH
V
IL
I
IH
I
IL
Note:
5. The circuit is designed to meet the DC specifications shown in the above table after thermal equilibrium has been established.
Parameter
Input HIGH Voltage
Input LOW Voltage
Input HIGH Current
Input LOW Current
Condition
Min
2.0
-125
-300
Typ
Max
V
CC
0.8
30
Units
V
V
µA
µA
May 2008
5
M9999-053008-B
hbwhelp@micrel.com
or (408) 955-1690
