Radial Lead Fuses
TE5
®
> Time-Lag > 369 Series
369 Series,
TE5
®
, Time-Lag Fuse

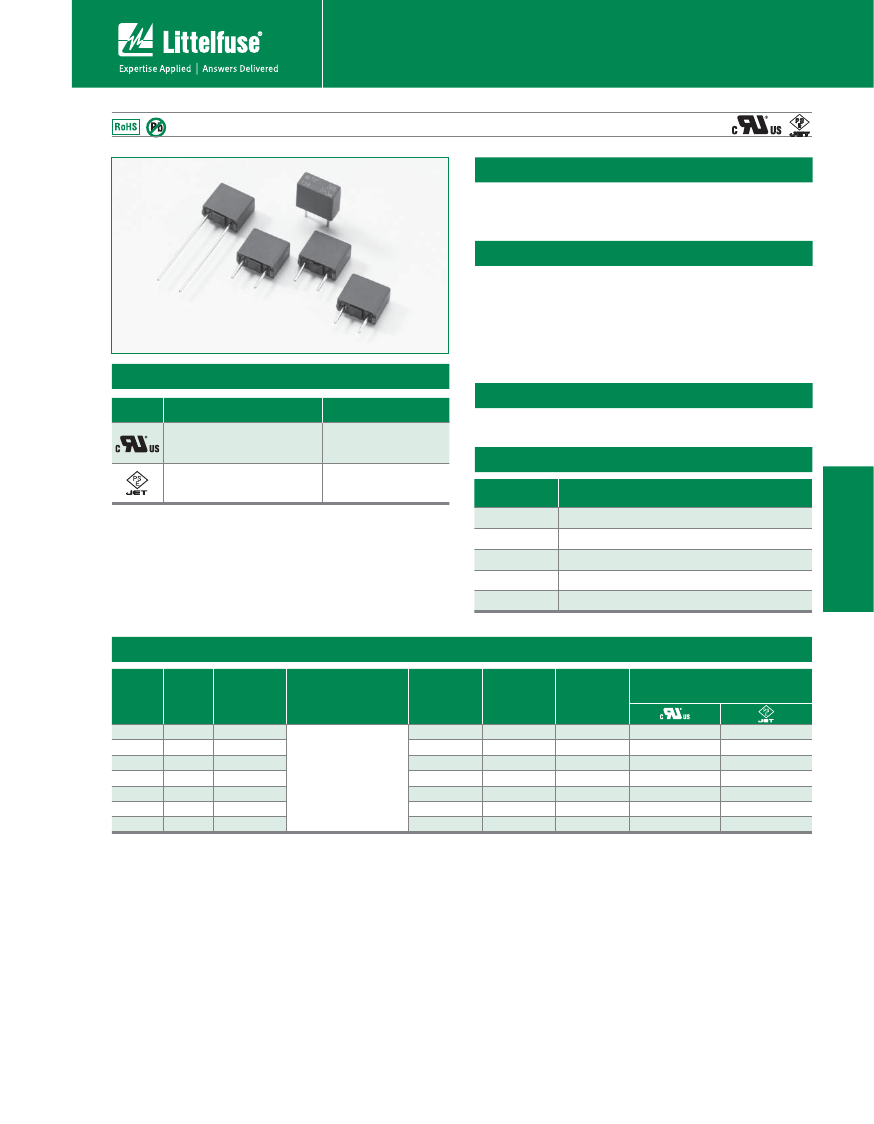

Description
TE5
®
Features
Lead-free
Agency Approvals
Applications
Agency
Agency File Number
Ampere Range
Electrical Characteristics for Series
%
%
%
%
Electrical Characteristics Specifications by Item
Amp
Code
1100
1160
1200
1315
1400
1500
1630
Amp
Rating
(A)
1.00
1.60
2.00
3.15
4.00
5.00
6.30
Voltage
Rating
(V)
300
300
300
300
300
300
300
50A@300VAC
50-60Hz/cos =1
Voltage
Drop
1.0 x I
N
max. (mV)
115
95
90
80
75
70
65
Power
Dissipation
1.5 x I
N
max. (mW)
400
600
700
1100
1200
1000
1200
Melting
Integral
10 x I
N
min. (A
2
s)
5.80
13.50
21.00
55.00
100.00
90.00
126.00
Agency Approvals
Breaking Capacity
X
X
X
X
X
X
X
X
X
X
X
X
X
© 2009 Littelfuse, Inc.
Specifications are subject to change without notice.
Please refer to www.littelfuse.com/series/369.html for current information.
163
Revised: May 5, 2009
369 Series
369 Series
% of Ampere
Rating
Opening Time
Radial Lead Fuses
Introduction to Circuit Protection
Transientology
TE5
®
> Time-Lag > 369 Series

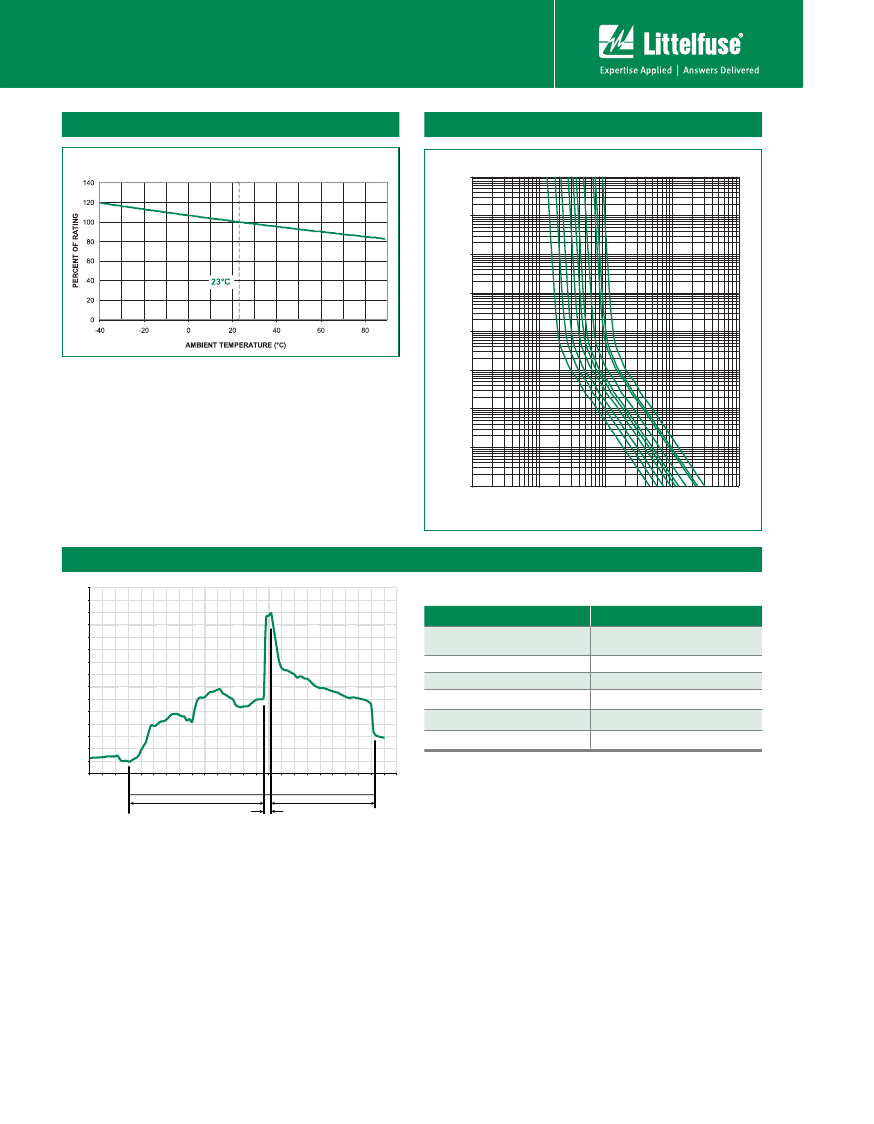

Temperature Rerating Curve
Average Time Current Curves
6.3A
5A
4A
3.15A
2.5A
2A
1.6A
1.25A
1A
.800A
100000
10000
1000
100
TIME IN SECONDS
10
1
0.1
0.01
0.001
0.1
1
10
CURRENT IN AMPERES
100
1000
Soldering Parameters - Wave Soldering
300
Recommended Process Parameters:
Wave Parameter
Preheat:
(Depends on Flux Activation
Temperature)
(Typical Industry Recommendation)
Temperature (°C) - Measured on bottom side of board
280
260
240
220
200
180
160
140
120
100
80
60
40
20
100
110
120
130
140
150
160
170
180
190
200
210
220
230
240
10
20
30
40
50
60
70
80
90
0
0
Lead-Free Recommendation
Temperature
Minimum:
Temperature
Maximum:
Preheat
Time:
Solder Pot Temperature:
Solder Dwell Time:
100
°
C
150
°
C
60-180 seconds
260
°
C Maximum
2-5 seconds
Recommended Hand-Solder Parameters:
Solder Iron
Temperature:
350° C +/-
5°C
Heating
Time: 5
seconds max.
Note: These devices are not recommended for IR or
Convection Reflow process.
Time (Seconds)
Preheat Time
Dwell Time
Cooling Time
369 Series
164
Revised: May 5, 2009
© 2009 Littelfuse, Inc.
Specifications are subject to change without notice.
Please refer to www.littelfuse.com/series/369.html for current information.
Radial Lead Fuses
TE5
®
> Time-Lag > 369 Series
Product Characteristics
Base/Cap: Brown Thermoplastic
Polyamide PA6.6, UL 94 V0
Round Pins: Tin-plated Copper
10 N (IEC 60068-2-21)
260°C, ≤ 3s (Wave)
350°C, ≤ 1s (Soldering Iron)
260°C, 10s (IEC60068-2-20)
350°C, 3s (Soldering Iron)
Stock Condition
Operating Temperature
Climatic Category
-40°C to +85°C (considerde-rating)
-40°C / +85°C / 21days
(EN60068-1,-2-1,-2-2,-2-78)
+10°C to +60°C
relative humidity 75% yearly average,
without dew, maximum value for 30 days-95%
24 cycles at 15min. Each (EN60068-2-6)
10 - 60 Hz at 0.75 mm amplitude
60 - 2000 Hz at 10g acceleration
Materials
Lead Pull Strength
Solderability
Soldering Heat
Resistance
Vibration Resistance
Dimensions
8.5
max.4
Part Numbering System
369 xxxx 0000
Series
Amp Code
Refer to Amp Code column of
Electrical Characteristics Table
max. 8
0.5 min
0.6
1.5
Packaging Code
5.08
Holes in PCB
Long Leads (L=18.8mm)
Short Leads (L=4.3mm)
Packaging
369 Series
Tape & Ammopack
Short Leads
N/A
N/A
1,400
1,400
0000
0440
N/A
N/A
© 2009 Littelfuse, Inc.
Specifications are subject to change without notice.
Please refer to www.littelfuse.com/series/369.html for current information.
165
Revised: May 5, 2009
369 Series
369 Series
0000 Tape/Ammopack (1,400pcs.)
0440 Short Leads - Bulk (1,400pcs.)
1 + 0.1
