AUTO-RANGING AC INPUT AC-DC 19" COMPATIBLE EUROCARD

SINGLE OUTPUT 160 WATTS SWITCHING MODE

POWER SUPPLIES HSU160 SERIES

FEATURES:

AUTO-RANGING AC INPUT

19" COMPATIBLE EUROCARD FORMAT

MEET THE SAFETY STANDARDS

EMI MEET CISPR PUB. 22 & FCC CLASS B

CE MARKING COMPLIANCE

3U X 14HP X 160MM VMEbus STANDARD

SPECIFICATION

INPUT SPECIFICATION

Input Voltage:

Auto-ranging 115Vac(90-132Vac)

and 230Vac(180-264Vac).

Transient threshold typ. 150Vac.

Input Connector:

DIN 41612 at rear.

Input Frequency:

47-63Hz.

Inrush Current:

Typ. 40.0A @ 230Vac.

Input Current:

Typ. 2.2A/115Vac & 1.1A/230Vac.

Dielectric Withstand:

Meet IEC 60950-1.

EMI:

Meet CISPR PUB. 22 & FCC Class B.

Hold-up Time:

Typ. 45mS @115Vac/50mS @230Vac.

Earth leakage:

Typ. 0.45mA @230Vac.

OUTPUT SPECIFICATION

Output Voltage:

See Ratings Chart.

Output Current:

See Ratings Chart.

Output Wattage:

Typ. 160 Watts.

Output Connector:

DIN 41612 at rear.

Line Regulation:

Typ. 0.1%.

Load Regulation:

Main VO1 typ. ±0.5%.

Noise & Ripple:

Typ. 1% peak to peak.

OVP:

Built-in at main VO1 (crowbar).

Adjustability:

Available at main output VO1.

Remote Sense:

Installed in main VO1.

Overload Protection (OLP):

Fully protected against

output overload and short circuit.

Consult the factory for OLP setting.

Operating Temperature:

0 to +50°C at full load.

Derates linearly to +70°C at half load.

Storage Temperature:

-20 to +85°C.

Temperature Coefficient:

Typ. 0.04%/°C.

Cooling:

Free air convection.

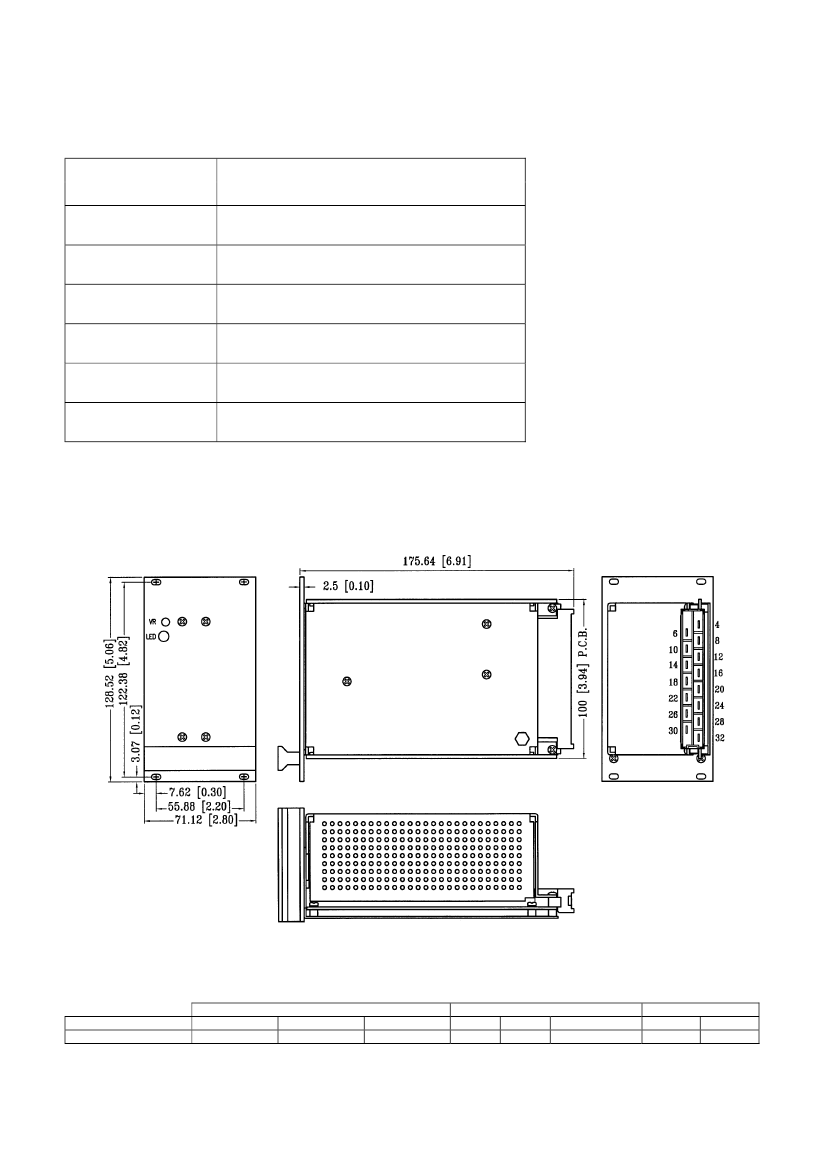

Construction format:

14HP(TE) x 3U compatible

Eurocard VMEbus standard.

GENERAL SPECIFICATION

Efficiency:

Typ. 80.0-85.0%.

Switching Frequency:

Typ. 77K Hz.

Circuit Topology:

Forward circuit.

Transient Response:

Output voltage returns in less than

1.5mS following a 25% load change.

Safety Standard:

IEC 60950-1/UL 60950-1 Class I.

Power Density:

2.20 Watts / Cubic Inch.

Note: Due to requests in market and advances in technology, specifications subject to change without notification.

In application

-53-
