5962-01-412-1602 datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> converter> 5962-01-412-1602

5962-01-412-1602: DescriptionIC IC,D/A CONVERTER,SINGLE,16-BIT,BICMOS,DIP,28PIN, Digital to Analog Converter; CategoryAnalog mixed-signal IC converter; File Size1008KB，12 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

5962-01-412-1602 Overview

IC IC,D/A CONVERTER,SINGLE,16-BIT,BICMOS,DIP,28PIN, Digital to Analog Converter

5962-01-412-1602 Parametric

Parameter Name	Attribute value
Maker	ADI
Parts packaging code	DIP
package instruction	DIP, DIP28,.6
Contacts	28
Reach Compliance Code	unknown
Converter type	D/A CONVERTER
Enter bit code	BINARY, OFFSET BINARY
JESD-30 code	R-XDIP-T28
Maximum linear error (EL)	0.024%
Nominal negative supply voltage	-12 V
Number of digits	16
Number of functions	1
Number of terminals	28
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	+-12 V
Certification status	Not Qualified
Maximum stabilization time	6 µs
Maximum slew rate	26 mA
Nominal supply voltage	12 V
surface mount	NO
technology	BICMOS
Temperature level	OTHER
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

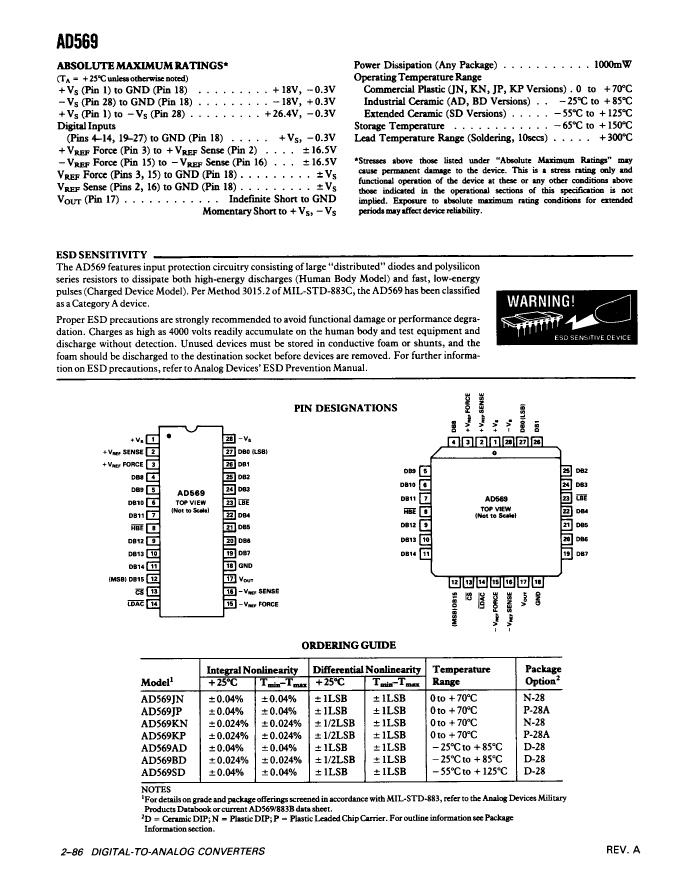

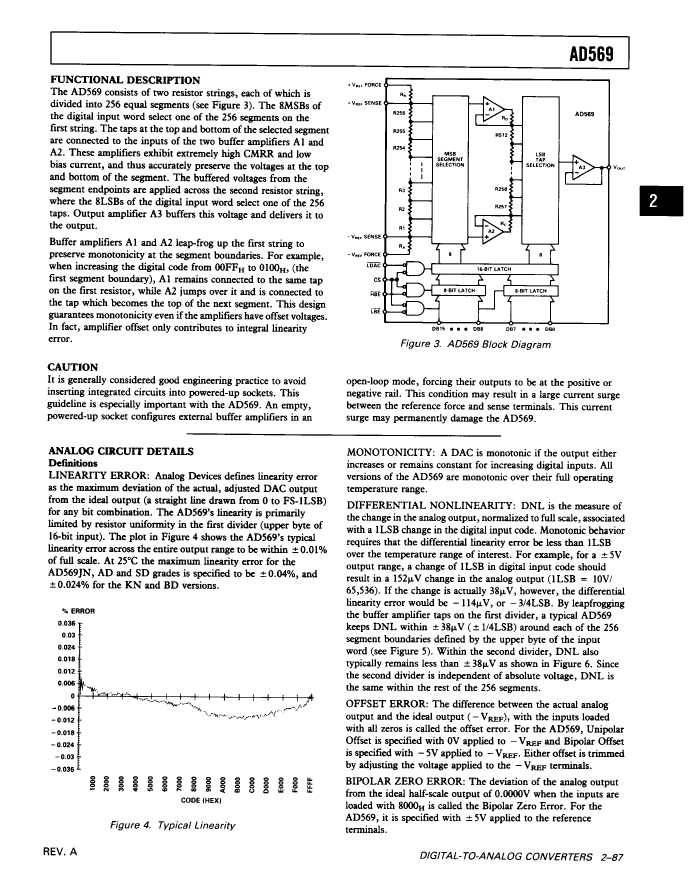

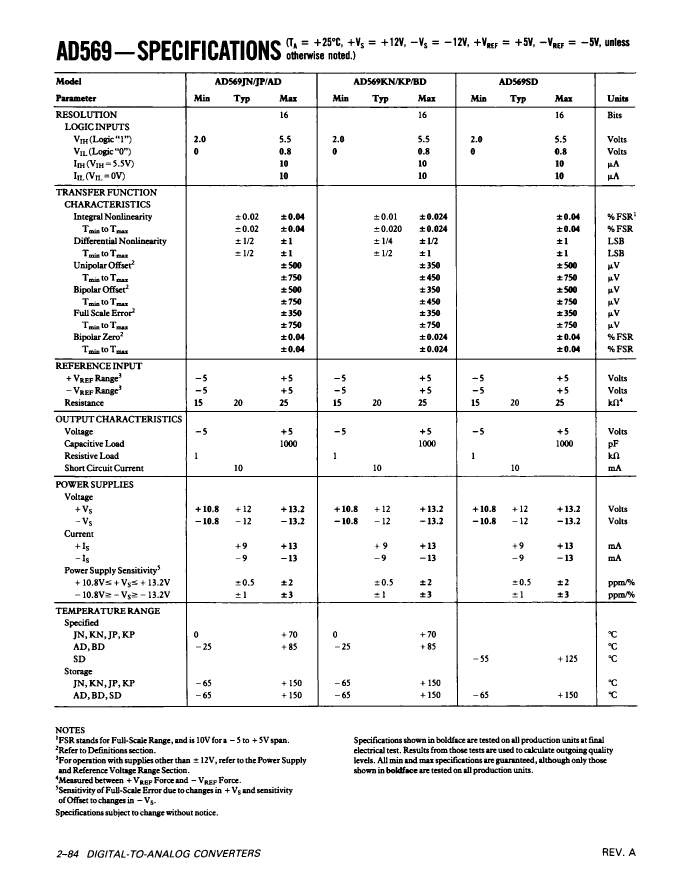

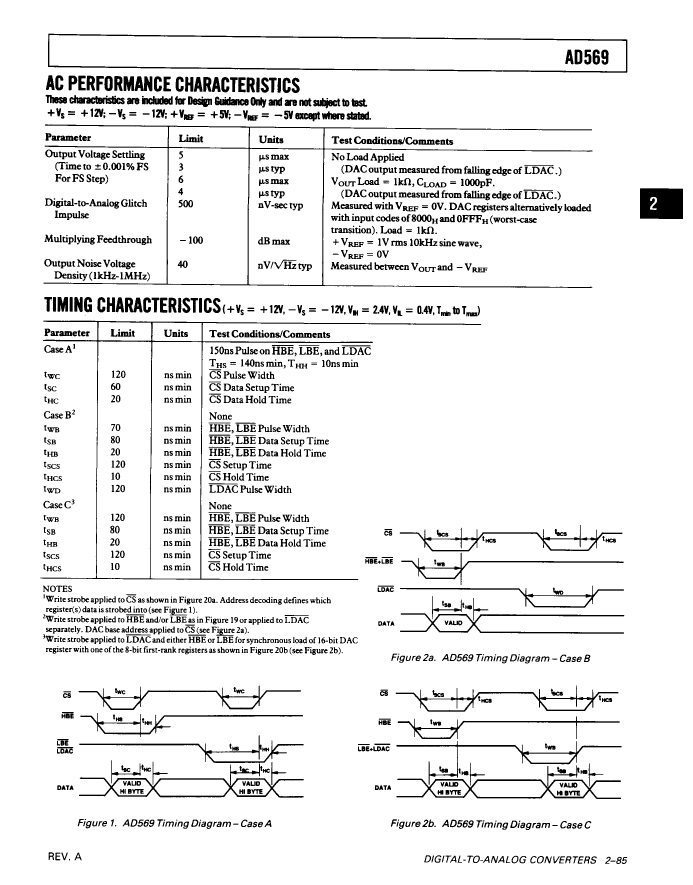

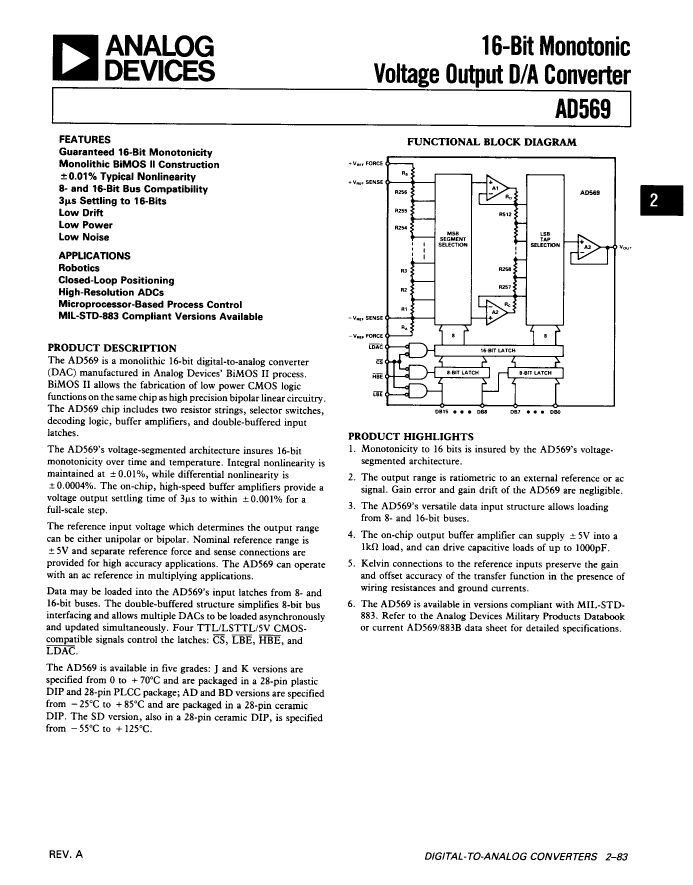

Preview

Download Datasheet

View All

5962-01-412-1602 Related Products

	5962-01-412-1602	AM3406E3R	AD569JN/+	AD569KN/+	5962-01-342-6539
Description	IC IC,D/A CONVERTER,SINGLE,16-BIT,BICMOS,DIP,28PIN, Digital to Analog Converter	N-CHANNEL ENHANCEMENT MODE	IC IC,D/A CONVERTER,SINGLE,16-BIT,BICMOS,DIP,28PIN, Digital to Analog Converter	IC IC,D/A CONVERTER,SINGLE,16-BIT,BICMOS,DIP,28PIN, Digital to Analog Converter	IC IC,D/A CONVERTER,SINGLE,16-BIT,BICMOS,DIP,28PIN, Digital to Analog Converter
Reach Compliance Code	unknown	-	not_compliant	not_compliant	unknown
Converter type	D/A CONVERTER	-	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
Enter bit code	BINARY, OFFSET BINARY	-	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY
JESD-30 code	R-XDIP-T28	-	R-PDIP-T28	R-PDIP-T28	R-PDIP-T28
Maximum linear error (EL)	0.024%	-	0.04%	0.024%	0.024%
Nominal negative supply voltage	-12 V	-	-12 V	-12 V	-12 V
Number of digits	16	-	16	16	16
Number of functions	1	-	1	1	1
Number of terminals	28	-	28	28	28
Maximum operating temperature	85 °C	-	70 °C	70 °C	70 °C
Package body material	CERAMIC	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	-	DIP	DIP	DIP
Encapsulate equivalent code	DIP28,.6	-	DIP28,.6	DIP28,.6	DIP28,.6
Package shape	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	-	IN-LINE	IN-LINE	IN-LINE
power supply	+-12 V	-	+-12 V	+-12 V	+-12 V
Maximum stabilization time	6 µs	-	6 µs	6 µs	6 µs
Maximum slew rate	26 mA	-	26 mA	26 mA	26 mA
Nominal supply voltage	12 V	-	12 V	12 V	12 V
surface mount	NO	-	NO	NO	NO
technology	BICMOS	-	BICMOS	BICMOS	BICMOS
Temperature level	OTHER	-	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	-	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	-	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	-	DUAL	DUAL	DUAL
ECCN code	-	-	EAR99	EAR99	3A001.A.2.C
