0805CC112MAX1A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 0805CC112MAX1A

0805CC112MAX1A: DescriptionCeramic Capacitor, Multilayer, Ceramic, 600V, 20% +Tol, 20% -Tol, X7R, 15% TC, 0.0011uF, Surface Mount, 0805, CHIP; CategoryPassive components capacitor; File Size92KB，2 Pages; ManufacturerAVX

Download Datasheet Parametric View All

0805CC112MAX1A Overview

Ceramic Capacitor, Multilayer, Ceramic, 600V, 20% +Tol, 20% -Tol, X7R, 15% TC, 0.0011uF, Surface Mount, 0805, CHIP

0805CC112MAX1A Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	AVX
package instruction	, 0805
Reach Compliance Code	not_compliant
ECCN code	EAR99
capacitance	0.0011 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	1.3 mm
JESD-609 code	e0
length	2.01 mm
Manufacturer's serial number	0805
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, 7 INCH
positive tolerance	20%
Rated (DC) voltage (URdc)	600 V
series	0805(600V,X7R)FLEX
size code	0805
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	WRAPAROUND
width	1.25 mm

Preview

Download Datasheet

View All

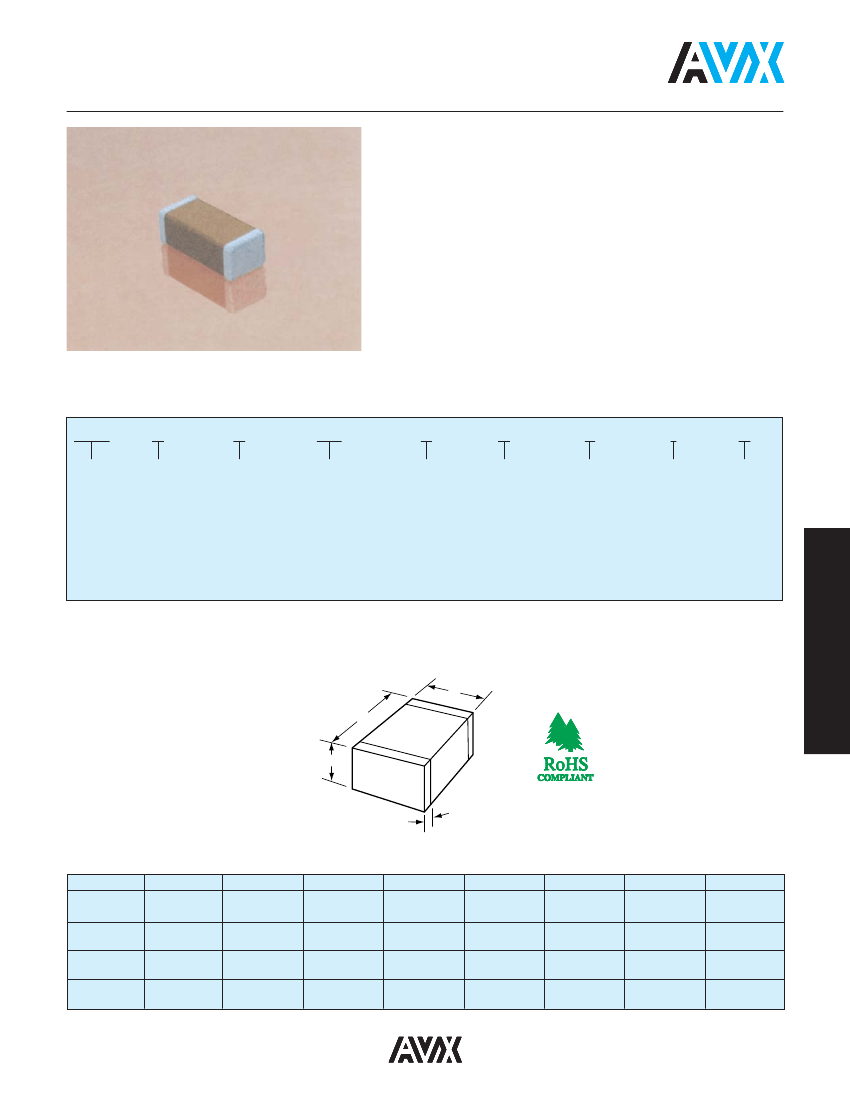

High Voltage MLC Chips FLEXITERM

For 600V to 5000V Applications

High value, low leakage and small size are difficult parameters to obtain

in capacitors for high voltage systems. AVX special high voltage MLC

chips capacitors meet these performance characteristics and are

designed for applications such as snubbers in high frequency power

converters, resonators in SMPS, and high voltage coupling/DC blocking.

These high voltage chip designs exhibit low ESRs at high frequencies.

To make high voltage chips, larger physical sizes than are normally

encountered are necessary. These larger sizes require that special pre-

cautions be taken in applying these chips in surface mount assemblies.

In response to this, and to follow from the success of the FLEXITERM

range of low voltage parts, AVX is delighted to offer a FLEXITERM

high

voltage range of capacitors, FLEXITERM

The FLEXITERM

layer is designed to enhance the mechanical flexure

and temperature cycling performance of a standard ceramic capacitor,

giving customers a solution where board flexure or temperature cycle

damage are concerns.

HOW TO ORDER

1808

AVX

Style

0805

1206

1210

1808

1812

1825

2220

2225

***

Voltage

600V/630V =

1000V =

1500V =

2000V =

2500V =

3000V =

4000V =

5000V =

272

Temperature Capacitance Code Capacitance

Test Level

Termination*

Coefficient

(2 significant digits

Tolerance

A = Standard Z = FLEXITERM

C0G: J = ±5%

100% Tin

C0G = A

+ no. of zeros)

(RoHS Compliant)

K = ±10%

X7R = C

Examples:

X = FLEXITERM

M = ±20%

10 pF = 100

5% min. Pb

100 pF = 101 X7R: K = ±10%

M = ±20%

1,000 pF = 102

Z = +80%,

22,000 pF = 223

-20%

220,000 pF = 224

1 µF = 105

Packaging

Special

1 = 7" Reel

Code

3 = 13" Reel A = Standard

9 = Bulk

Notes: Capacitors with X7R dielectrics are not intended for applications across AC supply mains or AC line filtering with polarity reversal. Contact plant for recommendations.

Contact factory for availability of Termination and Tolerance options for Specific Part Numbers.

***

AVX offers nonstandard chip sizes. Contact factory for details.

DIMENSIONS

SIZE

(L) Length

0805

1206

3.20 ± 0.20

(0.126 ± 0.008)

1.60 ± 0.20

(0.063 ± 0.008)

1.52

(0.060)

0.25 (0.010)

0.75 (0.030)

1210*

3.20 ± 0.20

(0.126 ± 0.008)

2.50 ± 0.20

(0.098 ± 0.008)

1.70

(0.067)

0.25 (0.010)

0.75 (0.030)

1808*

4.57 ± 0.25

(0.180 ± 0.010)

2.03 ± 0.25

(0.080 ± 0.010)

2.03

(0.080)

0.25 (0.010)

1.02 (0.040)

1812*

4.50 ± 0.30

(0.177 ± 0.012)

3.20 ± 0.20

(0.126 ± 0.008)

2.54

(0.100)

0.25 (0.010)

1.02 (0.040)

1825*

4.50 ± 0.30

(0.177 ± 0.012)

6.40 ± 0.30

(0.252 ± 0.012)

2.54

(0.100)

0.25 (0.010)

1.02 (0.040)

2.01 ± 0.20

(0.079 ± 0.008)

(W) Width

1.25 ± 0.20

(0.049 ± 0.008)

(T) Thickness

1.30

Max.

(0.051)

(t) terminal min. 0.50 ± 0.25

max. (0.020 ± 0.010)

millimeters (inches)

2220*

5.7 ± 0.40

(0.224 ± 0.016)

5.0 ± 0.40

(0.197 ± 0.016)

3.30

(0.130)

0.25 (0.010)

1.02 (0.040)

2225*

5.72 ± 0.25

(0.225 ± 0.010)

6.35 ± 0.25

(0.250 ± 0.010)

2.54

(0.100)

0.25 (0.010)

1.02 (0.040)

*Reflow Soldering Only
