PFC200-25: Description200 WATT POWER FACTOR CORRECTED SUPPLIES; File Size109KB，2 Pages; ManufacturerRSG Electronic Components GmbH; Websitehttp://www.rsg-electronic.de/de/

Download Datasheet View All

PFC200-25 Overview

200 WATT POWER FACTOR CORRECTED SUPPLIES

Preview

Download Datasheet

View All

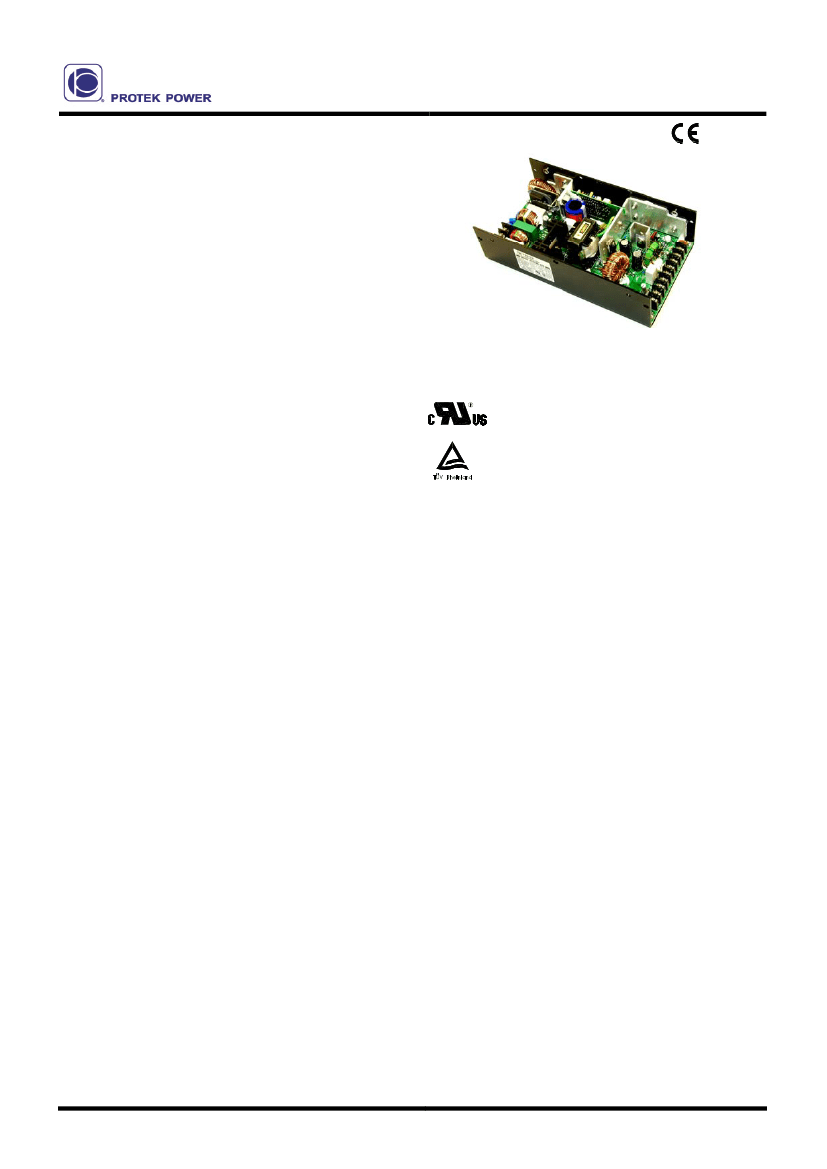

200 WATT POWER FACTOR CORRECTED SUPPLIES

D E SCR I PTI ON

The PFC200 series comprises single and multiple output

models for 200 watts of continuous output power. All models

have a power factor better than 0.95, and have the same

mechanical dimensions and output pinning as their

corresponding PU200 series models. All auxiliary outputs

are with magnetic amplifier to keep regulation. The units are

constructed on a printed circuit board with a U-bracket for

mechanical support and heat sinking. Both “B” and “C”

versions are with UL, CSA and TÜV approvals.

PFC200 SERIES

( LV D )

RoHS

F EATU R E S

‧

Pow er factor 0.98 typical

‧

9 0 VA C t o 2 6 4 VA C u n i v e r s a l i n p u t

‧

In compliance with EN 55024, EN 61000-3-2 and

EN 61000-3-3

‧

O v e r v o l ta g e p r o t e c t i o n

‧

Short-circuit protection

‧

Pow er Fail Detect

（

PFD

）

signal

‧

100

﹪

burn-in at full rated load

‧

Remote sense on single output models

‧

C o m p l i a n t w i t h R o H S r e q u i r e m e n ts

Saf et y Sta n da rd A ppr o va ls：

UL 60950-1, CSA C22.2 NO. 60950-1

File No. E137410

TÜV EN60950-1

Certificate No. R9955628

ENVIR ONMENTA L SPEC IF ICATIONS

IN PUT SPEC IF ICAT ION S

I n p u t v o l ta g e

：

Input frequency

：

Input current

：

To u c h c u r r e n t

：

9 0 t o 2 6 4 VA C

47 to 63Hz

3 . 6 A

（

r m s

）

f o r 11 5 VA C

1 . 8 A

（

r m s

）

f o r 2 3 0 VA C

0 . 4 m A m a x . @ 11 5 VA C , 6 0 H z

0 . 8 m A m a x . @ 2 3 0 VA C , 5 0 H z

Operating temperature:

Storage temperature:

Relative humidity:

Derating:

Cooling:

0℃ to +70℃

-40℃ to +85℃

5% to 95% non-condensing

Derate from 100% at +50℃

linearly to 50% at +70℃

25 CFM forced air, provided on

“C” version, to be provided for

“B” version by user

GENERAL SPECIFICATIONS

94KHz ±10KHz

0.98 typical

70﹪ minimum on all models

12 msec minimum at 110VAC

±0.5﹪ maximum at full load

20 amps @ 115VAC or 40 amps

@ 230VAC, at 25

℃

cold start

Withstand voltage:

3000VAC from input to output

1500VAC from input to ground

500VAC from output to ground

MTBF:

300,000 hours at full load at

25℃ ambient , calculated per

MIL-HDBK-217F

EMC Performance (EN55024)

EN55022:

Class B conducted, Class B radiated

FCC:

Class B conducted, Class B radiated

VCCI:

Class B conducted, Class B radiated

EN61000-3-2:

Harmonic distortion, Class A and D

EN61000-3-3:

Line flicker

EN61000-4-2:

ESD, ± 8KV air and ± 4KV contact

EN61000-4-3:

Radiated immunity, 3V/m

EN61000-4-4:

Fast transient/burst, ± 1KV

EN61000-4-5:

Surge, ± 1KV diff., ± 2KV com.

EN61000-4-6:

Conducted immunity, 3Vrms

EN61000-4-8:

Magnetic field immunity, 1A/m

Voltage dips, 30﹪ reduction for

E N 6 1 0 0 0 - 4 - 11 :

500ms and >95﹪ reduction for 10ms

Switching frequency:

Power factor:

Efficiency:

Hold-up time：

Line regulation:

Inrush current:

OUTPUT SPECIFICATIONS

Output voltage/current:

Total output power:

See rating chart

200 watts maximum

Ripple and noise:

2﹪ peak to peak maximum

Overvoltage protection:

Provided on output #1 only;

set at 112-132﹪ of its nominal

output voltage

Overcurrent protection:

All outputs protected to short

circuit conditions

Temperature coefficient:

All outputs ±0.04/

℃

maximum

Transient response:

Maximum excursion of 4﹪ or

better on all models, recovering

to 1﹪ of final value within 500us

after a 25﹪ step load change

PFD signal:

TTL logic high for normal

operation and TTL logic low

upon loss of input power. This

signal appears at least 1ms prior

to +5V output dropping 5%

below its nominal value. This

signal also provides a minimum

delay of 100ms after +5V is

within regulation.

1-27
