LD052C561KAB2A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> LD052C561KAB2A

LD052C561KAB2A: DescriptionCeramic Capacitor, Multilayer, Ceramic, 200V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.00056uF, Surface Mount, 0805, CHIP; CategoryPassive components capacitor; File Size97KB，7 Pages; ManufacturerAVX

Download Datasheet Parametric View All

LD052C561KAB2A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LD052C561KAB2A	-	-	View	Buy Now

LD052C561KAB2A Overview

Ceramic Capacitor, Multilayer, Ceramic, 200V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.00056uF, Surface Mount, 0805, CHIP

LD052C561KAB2A Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	AVX
package instruction	, 0805
Reach Compliance Code	not_compliant
ECCN code	EAR99
Factory Lead Time	20 weeks
capacitance	0.00056 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.71 mm
JESD-609 code	e0
length	2.01 mm
Manufacturer's serial number	LD05
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, PAPER, 7 INCH
positive tolerance	10%
Rated (DC) voltage (URdc)	200 V
series	LD05(200V,C,EJ)
size code	0805
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	WRAPAROUND
width	1.25 mm

Preview

Download Datasheet

View All

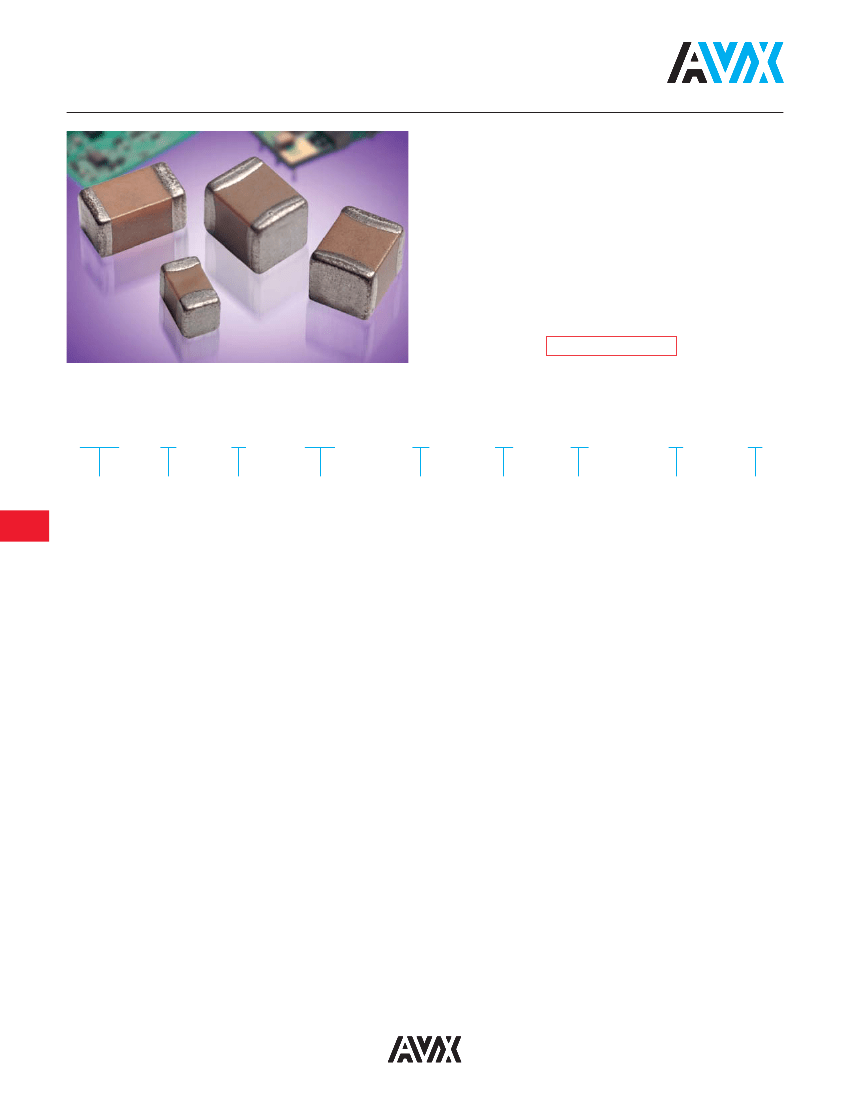

MLCC Tin/Lead Termination “B”

General Specifications

AVX Corporation will support those customers for

commercial and military Multilayer Ceramic Capacitors with

a termination consisting of 5% minimum lead. This

termination is indicated by the use of a “B” in the 12th

position of the AVX Catalog Part Number. This fulfills AVX’s

commitment to providing a full range of products to our

customers. AVX has provided in the following pages a full

range of values that we are currently offering in this special

“B” termination. Please contact the factory if you require

additional information on our MLCC Tin/Lead Termination

“B” products.

Not RoHS Compliant

PART NUMBER (see page 2 for complete part number explanation)

LD05

Size

LD02 - 0402

LD03 - 0603

LD04 - 0504*

LD05 - 0805

LD06 - 1206

LD10 - 1210

LD12 - 1812

LD13 - 1825

LD14 - 2225

LD20 - 2220

Voltage

6.3V = 6

10V = Z

16V = Y

25V = 3

35V = D

50V = 5

100V = 1

200V = 2

500V = 7

Dielectric

C0G (NP0) = A

X7R = C

X5R = D

X8R = F

101

Capacitance

Code (In pF)

2 Sig. Digits +

Number of

Zeros

Special

Code

A = Std.

Product

Capacitance

Failure

Terminations

Packaging

Tolerance

Rate

2 = 7" Reel

B = 5% min lead

= ±.10 pF (<10pF) A = Not X = FLEXITERM

4 = 13" Reel

= ±.25 pF (<10pF) Applicable

with 5% min

= ±.50 pF (<10pF)

Contact Factory

lead**

= ±1% (≥ 10 pF)

For

= ±2% (≥ 10 pF)

Multiples

**X7R only

= ±5%

= ±10%

= ±20%

*LD04 has the same CV ranges as LD03.

NOTE: Contact factory for availability of Tolerance Options for Specific Part Numbers.

Contact factory for non-specified capacitance values.

See FLEXITERM

section

for CV options

NP0

X7R

X7S

X5R

Y5V

Refer to page 4 for Electrical Graphs

Refer to page 19 for Electrical Graphs

Refer to page 23 for Electrical Graphs

Refer to page 26 for Electrical Graphs

Refer to page 30 for Electrical Graphs
