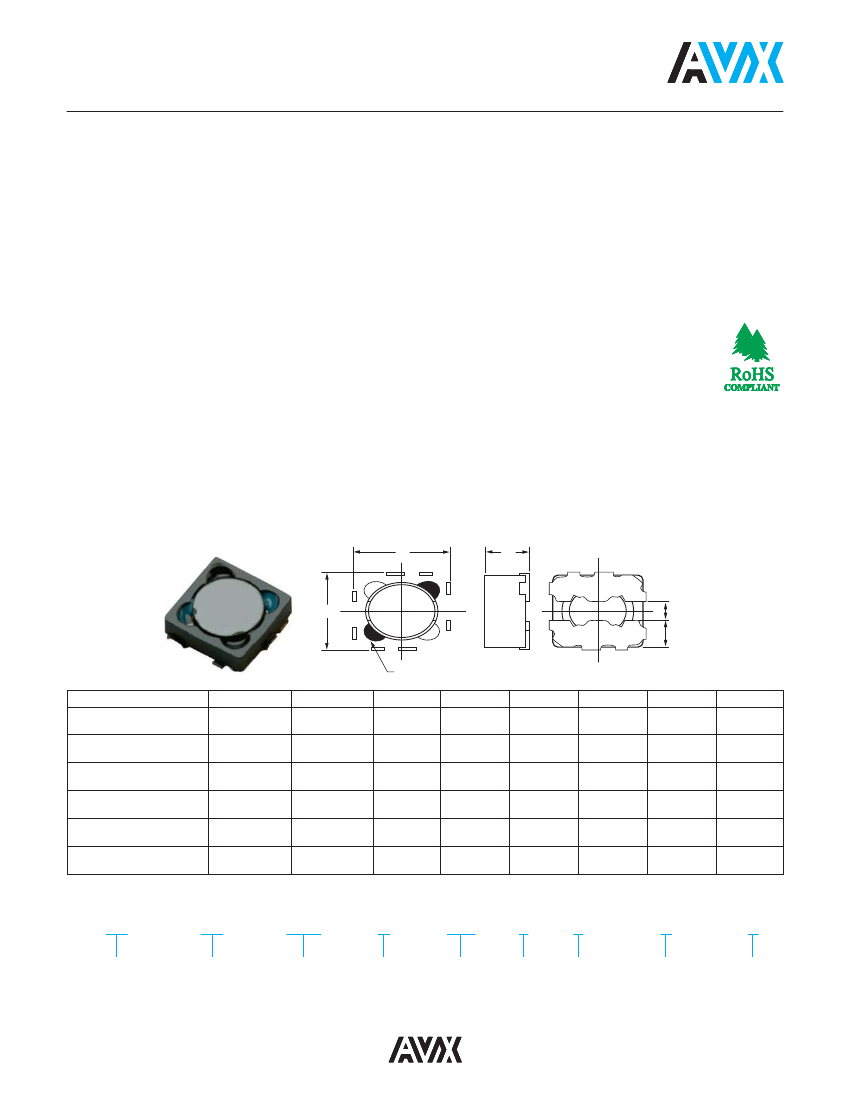

LMax Low Profile Power Inductor

LMLP Series – Style R

FEATURES

• Low profile, low RDC, lower resistance and high current

handling capacities

• Flat bottom surface ensures secure, reliable surface

mounting

• Magnetically shielded structureallows high-density mounting

configurations

INDUCTANCE AND RATED

CURRENT RANGES

• 0303

1.2 ~ 47μH

1.40 ~ 0.18A

1.40 ~ 0.30A

• 03A3 (R) 1.0 ~ 18μH

3.40 ~ 0.24A

• 03A3 (H) 0.47 ~ 100μH

1.36 ~ 0.22A

• 03B3 (R) 1.0 ~ 27μH

3.00 ~ 0.47A

• O3B3 (H) 1.0 ~ 33μH

3.00 ~ 0.42A

• 0404

1.0 ~ 33μH

3.90 ~ 0.34A

• 04A4

0.5 ~ 47μH

3.20 ~ 0.26A

• 04B4

1.0 ~ 100μH

• Test equipment:

L: HP4284A Precision LCR meter

DCR: Milli-ohm meter

• Electrical specifications at 25°C

APPLICATIONS

• PDA, DSC, PDA and Other Electronic Equipments

• Hard Disk Drives

• Low Profile/ Low Resistance Specifically Suitable For

Portable Telephones

CHARACTERISTICS

• Saturation Rated Current(IDC): The current when the

inductance becomes 10% or 35% lower than its initial value.

• Temperature Rise Current(Irms): For a 25% rise above 25ºC

ambient.

• Operating temperature range: -25 ~ 105°C

DIMENSIONS

Color Coding

mm (inches)

Type

0303

03A3 / 03A3 (R) / 03A3 (H)

03B3 (R) / 03B3 (H)

0404

04A4

04B4

3.20 ± 0.20

(0.126 ± 0.008)

3.20 ± 0.20

(0.126 ± 0.008)

3.20 ± 0.20

(0.126 ± 0.008)

4.20 ± 0.20

(0.165 ± 0.008)

4.20 ± 0.20

(0.165 ± 0.008)

4.20 ± 0.20

(0.165 ± 0.008)

3.20 ±0.20

(0.126 ± 0.008)

3.20 ±0.20

(0.126 ± 0.008)

3.20 ±0.20

(0.126 ± 0.008)

4.20 ±0.20

(0.165 ± 0.008)

4.20 ±0.20

(0.165 ± 0.008)

4.20 ±0.20

(0.165 ± 0.008)

C max

1.05

(0.041)

1.60

(0.063)

1.80

(0.071)

1.25

(0.049)

1.60

(0.063)

1.80

(0.071)

1.10

(0.043)

1.10

(0.043))

1.10

(0.043))

1.30

(0.051)

1.30

(0.051)

1.30

(0.051)

0.80

(0.031)

0.80

(0.031)

0.80

(0.031)

1.40

(0.055)

1.40

(0.055)

1.40

(0.055)

3.60

(0.142)

3.60

(0.142)

3.60

(0.142)

4.60

(0.181)

4.60

(0.181)

4.60

(0.181)

1.40

(0.055)

1.40

(0.055)

1.40

(0.055)

1.60

(0.063)

1.60

(0.063)

1.60

(0.063)

0.80

(0.031)

0.80

(0.031)

0.80

(0.031)

1.40

(0.055)

1.40

(0.055)

1.40

(0.055)

HOW TO ORDER

Family

LM = Power Inductor

Series

LP = Low Profile

0303

Size

0303 = 3x3xh

03A3 = 3x3xA(h)

(h = see catalog)

Tolerance

M = 20%

N = 30%

R04

Inductance

3R9 = 3.900μH

390 = 39.00μH

391 = 390.0μH

Style

Termination

T = Sn Plate

Special

A = Standard

R = Low Resistance

H = High Current

Packaging

R = 7" Reel
