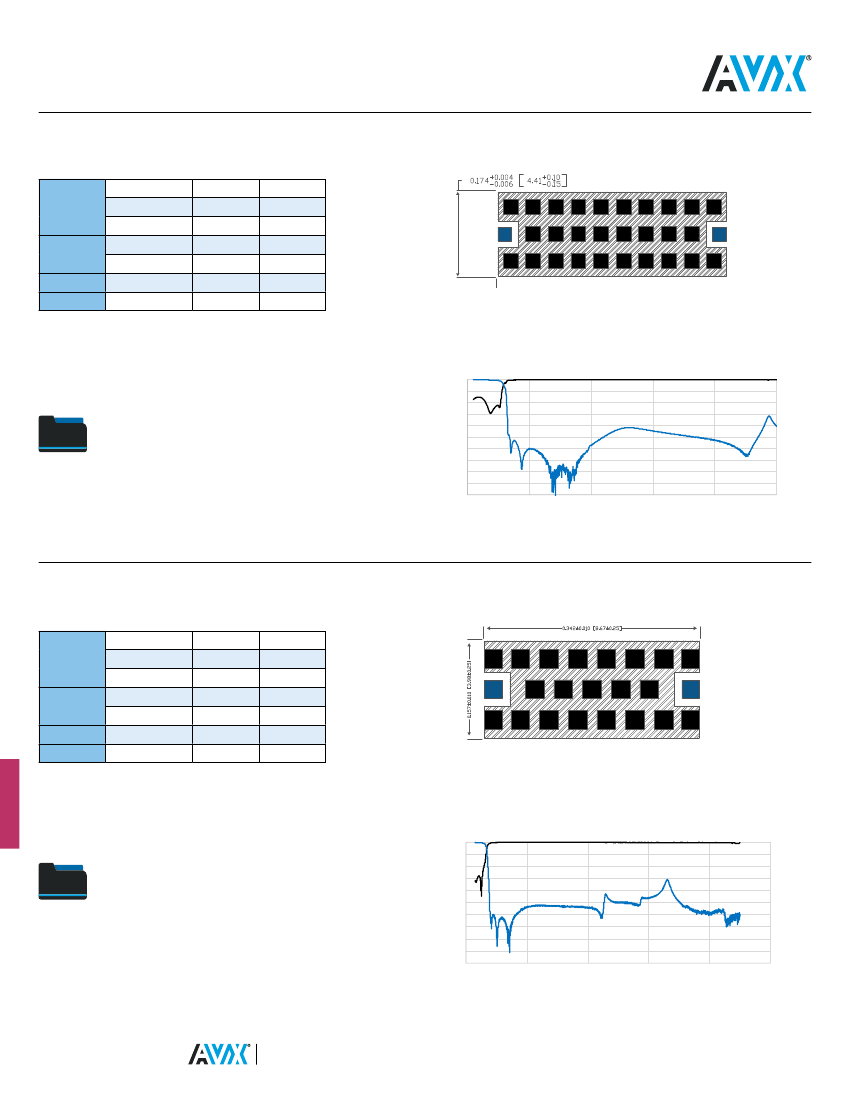

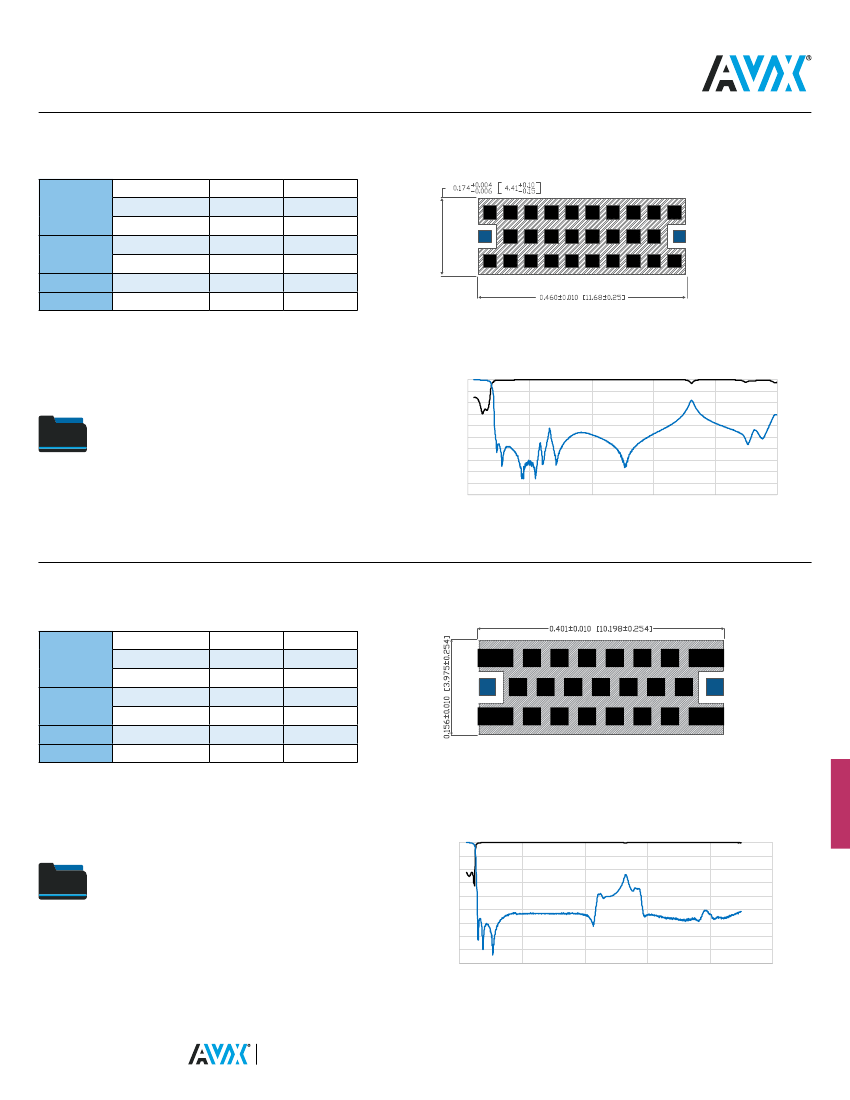

Multilayer Organic (MLO
®
)
MLO
®
Low Pass Filters
General Information
The MLO
®
Low Pass Filters are low profile passive devices with best in class performance based on AVX’s patented
multilayer organic high density interconnect technology. The MLO
®
low pass filters utilize high dielectric constant and low
loss materials to realize high Q passive printed elements, such as inductors and capacitors, in a multilayer stack. This results
in a 50Ω Low Pass Filter design. MLO
®
Low Pass Filters can support both a variety of frequency bands and multiple wireless
standards, and are less than 1.0mm in thickness. All filters are expansion matched to most organic PCB materials, thereby
resulting in improved reliability over standard Si and ceramic devices.
GENERAL DESCRIPTION
FEATURES
•
•
•
•
•
•
•
Wide Frequency Range
Excellent Isolation
Low Loss
Expansion matched to PCB
50Ω Impedance
Surface Mountable
RoHS Compliant
APPLICATIONS
•
•
•
•
•
•
Mobile Communication
GPS
Vehicle location systems
Wireless LANs
Satellite Receivers
Instrumentation
LAND GRID ARRAY
ADVANTAGES
•
Inherent Low Profile
•
Excellent Solderability
•
Better Heat Dissipation
HOW TO ORDER
LP
Series
0B
Case Size
0A = 2616
0B = 3116
0C = 3416
0D = 4016
1E = 4617
2E = 4614
0E = 4617
0F = 5021
A
Type
1330
Frequency
In MHz
A
Standard
Testing
7
Termination
7 – Gold
00
Package Code
Low Pass
Filters
00 – Standard
TR – 1000 pcs Tape & Reel
TR\250 – 250 pcs Tape & Reel
Finished Parts are 100% electrically tested
QUALITY INSPECTION
All finishes are compatible with automatic soldering
technologies: Pb free reflow, wave soldering, vapor
phase, and manual soldering.
TERMINATION
-55°C to +85°C
OPERATING
TEMPERATURE
LEAD-FREE COMPATIBLE
COMPONENT
For RoHScompliant products,
please select correct termination style
154
The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or
available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order.
030620
Multilayer Organic (MLO
®
)
MLO
®
Low Pass Filters
IL < 1.2dB
Passband
DC - f0
(GHz)
0.054
0.057
0.057
0.076
0.080
0.082
0.102
0.107
0.112
0.141
0.145
0.149
0.153
0.156
0.161
0.171
0.174
0.185
0.194
0.204
0.209
0.279
0.290
0.299
0.316
0.322
0.327
ELECTRICAL SPECIFICATIONS
Part Number
LP0FA0054A7**
LP0FA0056A7**
LP0FA0057A7**
LP0EA0076A7**
LP0EA0080A7**
LP0EA0082A7**
LP0DA0102A7**
LP0DA0107A7**
LP0DA0112A7**
LP0AA0141A7**
LP0AA0145A7**
LP0AA0149A7**
LP0AA0153A7**
LP0AA0156A7**
LP0AA0161A7**
LP0AA0171A7**
LP0AA0174A7**
LP0AA0185A7**
LP0AA0194A7**
LP0AA0204A7**
LP0AA0209A7**
LP0AA0279A7**
LP0AA0290A7**
LP0AA0299A7**
LP0AA0316A7**
LP0AA0322A7**
LP0AA0327A7**
Passband
Typical
(dB)
-0.9
-0.9
-0.9
-0.9
-0.9
-0.8
-0.9
-0.9
-0.9
-0.8
-0.9
-0.8
-0.8
-0.8
-0.8
-0.8
-0.8
-0.8
-0.8
-0.8
-0.8
-0.8
-0.8
-0.8
-0.8
-0.8
-0.8
Typical
3dB
(GHz)
0.071
0.072
0.073
0.096
0.102
0.105
0.132
0.136
0.143
0.172
0.174
0.182
0.189
0.192
0.197
0.207
0.212
0.220
0.241
0.245
0.252
0.339
0.351
0.363
0.378
0.386
0.392
30dB Rejection
Min
(GHz)
0.083
0.089
0.090
0.115
0.121
0.125
0.155
0.160
0.167
0.212
0.224
0.224
0.231
0.236
0.241
0.255
0.260
0.270
0.289
0.293
0.303
0.398
0.415
0.427
0.446
0.454
0.462
Max
(GHz)
0.700
0.700
0.700
0.800
0.800
0.800
0.900
0.900
0.900
2.000
2.000
2.000
2.000
2.000
2.000
2.000
2.000
2.000
2.000
2.000
2.000
2.000
2.000
2.000
2.000
2.000
2.000
Power
(W)
4 Watts
4 Watts
4 Watts
4 Watts
4 Watts
4 Watts
4 Watts
4 Watts
4 Watts
4 Watts
4 Watts
4 Watts
4 Watts
4 Watts
4 Watts
4 Watts
4 Watts
4 Watts
4 Watts
4 Watts
4 Watts
4 Watts
4 Watts
4 Watts
4 Watts
4 Watts
4 Watts
Thickness
Mils
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
Click on part number to see full specifications
The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or
available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order.
030620
155
Multilayer Organic (MLO
®
)
MLO
®
Low Pass Filters
ELECTRICAL SPECIFICATIONS
IL < 1.2dB
Part Number
LP1EA0320A7**
LP0DA0410A7**
LP1EA0500A7**
LP0CA0550A7**
LP0FA0600A7**
LP1EA0720A7**
LP0BA0790A7**
LP0BA0960A7**
LP0BA1010A7**
LP0BA1030A7**
LP2EA1080A7**
LP0BA1220A7**
LP0BA1330A7**
LP0BA1390A7**
LP0AA1590A7**
LP0AA1610A7**
LP0AA1620A7**
LP0AA1630A7**
LP0AA1670A7**
LP2EA1680A7**
LP0AA1680A7**
LP2EA1770A7**
LP0DA1780A7**
LP0DA1800A7**
LP0DA1810A7**
LP0DA1840A7**
LP0DA1880A7**
LP0DA1890A7**
LP0DA1950A7**
LP0DA2100A7**
LP0DA2140A7**
LP0DA2160A7**
LP0DA2190A7**
LP0DA2200A7**
LP0DA2210A7**
LP0DA2260A7**
LP0AA2300A7**
LP0AA2490A7**
LP2EA2530A7**
LP0AA2590A7**
LP2EA2600A7**
LP0AA2640A7**
LP0AA2910A7**
LP0AA2980A7**
LP0AA3100A7**
LP0AA3160A7**
LP0AA4080A7**
LP0AA4150A7**
LP0AA4210A7**
LP0AA4370A7**
LP0AA6160A7**
Passband
DC - f0
(GHz)
0.320
0.410
0.500
0.550
0.600
0.720
0.790
0.960
1.010
1.030
1.080
1.220
1.330
1.390
1.590
1.610
1.620
1.630
1.670
1.680
1.680
1.770
1.780
1.800
1.810
1.840
1.880
1.890
1.950
2.100
2.140
2.160
2.190
2.200
2.210
2.260
2.300
2.490
2.530
2.590
2.600
2.640
2.910
2.980
3.100
3.160
4.080
4.150
4.210
4.370
6.160
Passband
Typical
(dB)
-0.9
-0.9
-0.9
-0.9
-1.0
-0.8
-0.9
-0.9
-0.9
-0.9
-0.8
-0.8
-0.9
-0.9
-0.8
-0.9
-0.7
-0.7
-0.7
-0.8
-0.7
-0.8
-0.9
-0.8
-0.8
-0.7
-0.8
-0.8
-0.8
-0.8
-0.7
-0.8
-0.6
-0.8
-0.8
-0.8
-0.9
-0.7
-0.7
-0.7
-0.7
-0.8
-0.8
-0.7
-0.7
-0.8
-0.7
-0.6
-0.7
-0.8
-0.9
Typical
3dB
(GHz)
0.37
0.49
0.57
0.67
0.77
0.83
0.94
1.15
1.22
1.30
1.21
1.37
1.52
1.57
1.84
1.80
1.87
1.91
2.00
1.86
2.01
1.97
1.97
2.02
2.04
2.04
2.05
2.13
2.20
2.37
2.38
2.41
2.44
2.50
2.60
2.50
2.56
2.80
2.87
2.89
2.95
2.97
3.43
3.52
3.65
3.47
5.03
5.16
5.28
4.84
7.09
30dB Rejection
Min
(GHz)
0.45
0.58
0.67
0.79
0.93
0.97
1.10
1.34
1.42
1.63
1.46
1.55
1.72
1.79
2.11
2.22
2.15
2.18
2.30
2.18
2.32
2.33
2.27
2.30
2.29
2.27
2.28
2.38
2.53
2.68
2.68
2.72
2.79
2.84
2.98
2.86
3.15
3.98
3.28
3.71
3.40
3.82
4.07
4.17
4.32
4.36
5.62
5.75
5.87
6.00
8.59
Max
(GHz)
3.20
5.00
4.50
6.00
9.00
5.00
9.00
4.00
4.00
6.47
5.00
5.50
6.00
6.00
9.00
9.00
7.00
8.00
8.00
9.00
8.00
5.00
5.00
6.00
6.00
5.50
6.00
7.00
8.00
9.00
9.00
5.00
6.50
5.00
8.50
5.00
9.00
9.00
9.00
9.00
9.00
9.00
9.00
9.00
9.00
9.00
9.00
9.00
9.00
9.00
13.00
40dB Rejection
Min
(GHz)
0.46
0.60
0.68
0.81
0.96
0.99
1.12
–
–
1.71
1.48
1.89
–
–
2.15
2.32
2.19
2.22
2.36
2.22
2.38
2.37
2.35
2.40
2.48
2.44
2.42
–
–
2.72
2.72
–
2.93
4.00
3.25
4.00
3.26
3.79
3.32
3.87
3.50
3.98
4.80
4.29
5.00
4.47
5.69
5.82
6.16
6.32
8.82
Max
(GHz)
1.20
4.00
2.25
4.00
9.00
5.00
7.00
–
–
6
3.40
5.00
–
–
7.75
5.00
6.00
3.00
7.00
4.00
7.00
4.50
4.00
4.00
4.00
4.00
4.00
–
–
5.11
5.23
–
4.00
5.00
4.25
5.00
9.00
5.00
6.50
5.20
6.00
5.50
8.00
8.00
8.00
9.00
9.00
9.00
9.00
9.00
11.50
Power
(W)
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
Thickness
Mils
40
22
40
22
22
40
22
22
22
22
40
22
22
22
40
22
40
40
40
40
40
40
40
40
40
40
40
40
40
22
22
22
40
22
40
22
22
40
40
40
40
40
22
22
22
22
22
22
22
22
22
Click on part number to see full specifications
**Packaging: 00 = waffle pack, TR = 1000pcs T&R, TR\250 = 250pcs T&R
156
The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or
available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order.
030620
Multilayer Organic (MLO
®
)
MLO
®
Low Pass Filters
LP1EA0320A7**
ELECTRICAL SPECIFICATIONS
DC - 0.320 GHz
Pass Band
DC - 0.320 GHz
3dB Cutoff
Rejection
Dimension
RF Power
0.45 - 3.20 GHz
0.46 - 1.20 GHz
Thickness
Power
1.2 dB
0.9 dB
0.37 GHz
30dB
40dB
40 Mils
4 Watts
Max
Typ
Typ
Min
Min
Max
Max
DIMENSIONS – CASE SIZE 1E
Bottom View
inches (mm)
Click here to return to main table.
Typical Frequency Response
0
Insertion Loss (dB)
-10
-20
-30
-40
-50
-60
-70
-80
-90
-100
0
1
2
3
4
5
CLICK HERE TO DOWNLOAD
DATA FIILES
*Data files contain DXF and S2P files
Frequency (GHz)
LP0DA0410A7**
ELECTRICAL SPECIFICATIONS
DC - 0.410 GHz
Pass Band
DC - 0.410 GHz
3dB Cutoff
Rejection
Dimension
RF Power
0.58 - 5.00 GHz
0.60 - 4.00 GHz
Thickness
Power
1.2 dB
0.9 dB
0.49 GHz
30dB
40dB
22 Mils
4 Watts
Max
Typ
Typ
Min
Min
Max
Max
DIMENSIONS – CASE SIZE D
Bottom View
inches (mm)
Click here to return to main table.
Typical Frequency Response
0
-10
Insertion Loss (dB)
CLICK HERE TO DOWNLOAD
DATA FIILES
*Data files contain DXF and S2P files
-20
-30
-40
-50
-60
-70
-80
-90
0
2
4
6
8
10
Frequency (GHz)
The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or
available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order.
030620
157
Multilayer Organic (MLO
®
)
MLO
®
Low Pass Filters
LP1EA0500A7**
ELECTRICAL SPECIFICATIONS
DC - 0.500 GHz
Pass Band
DC - 0.500 GHz
3dB Cutoff
Rejection
Dimension
RF Power
0.67 - 4.50 GHz
0.68 - 2.25 GHz
Thickness
Power
1.2 dB
0.9 dB
0.57 GHz
30dB
40dB
40 Mils
4 Watts
Max
Typ
Typ
Min
Min
Max
Max
DIMENSIONS – CASE SIZE 1E
Bottom View
inches (mm)
Click here to return to main table.
Typical Frequency Response
0
Insertion Loss (dB)
-10
-20
-30
-40
-50
-60
-70
-80
-90
-100
0
1
2
3
4
5
CLICK HERE TO DOWNLOAD
DATA FIILES
*Data files contain DXF and S2P files
Frequency (GHz)
LP0CA0550A7**
ELECTRICAL SPECIFICATIONS
DC - 0.550 GHz
Pass Band
DC - 0.550 GHz
3dB Cutoff
Rejection
Dimension
RF Power
0.79 - 6.00 GHz
0.81 - 4.00 GHz
Thickness
Power
1.2 dB
0.9 dB
0.67 GHz
30dB
40dB
22 Mils
4 Watts
Max
Typ
Typ
Min
Min
Max
Max
DIMENSIONS – CASE SIZE C
Bottom View
inches (mm)
Click here to return to main table.
Typical Frequency Response
0
-10
-20
-30
-40
-50
-60
-70
-80
-90
-100
0
2
4
6
8
10
CLICK HERE TO DOWNLOAD
DATA FIILES
*Data files contain DXF and S2P files
Insertion Loss (dB)
Frequency (GHz)
158
The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or
available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order.
030620
京公网安备 11010802033920号
EEWORLD
