MMUL Series – 5 x 3.2 Custom Oscillator
5 X 3.2 SMT Package – 6 Pins
LVPECL Output
Tri-state Function
RoHS Compliant
ELECTRICAL SPECIFICATION:
Tape and Reel Packing Available
Frequency Range
Temperature Stability (Inclusive of Temperature, Load,
Voltage, and Aging)
Operating Temperature Range
Storage Temperature Range
Supply Voltage (V
dd
) ±5%
Supply Current
Output
Logic “0”
Logic “1”
Load
Symmetry (50% of waveform)
Rise/Fall Time (20% to 80%)
RMS Phase Jitter (12kHZ to 20MHZ)
74.250MHZ to 161.1328MHZ
(See Part Number Guide for Options)
(See Part Number Guide for Options)
-55°C to +125°C
+2.50 VDC
75mA max
LVPECL
1.43 VDC typ, 1.60 VDC max
1.10 VDC typ, 0.90 VDC min
50Ω into V
dd
-2.0VDC
(See Part Number Guide for Options)
300p Sec typ, 700pSec max
1pSec max
100 Hz
1 kHz
10 kHz
100 kHz
-95 dBc/Hz
-125 dBc/Hz
-143 dBc/Hz
-146 dBc/Hz
Phase Noise
Start-up Time
Tri-state Operation
10mSec max
Voh = 70% of Vdd min or No Connection to Enable Output
Vol = 30% max or grounded to Disable Output (High Impedance)
PART NUMBER GUIDE:
MMU
5 x 3.2 Ceramic SMD 6 Pads
L
Frequency
Supply Voltage
Output
L=LVPECL
2 = +2.50 VDC
3 = +3.30 VDC
Frequency
Stability
020 = ±20 ppm
025 = ±25 ppm
050 = ±50 ppm
100 = ±100 ppm
Operating
Temperature
Blank = 0°C to +70°C
27 = -20°C to +70°C
48 = -40°C to +85°C
Symmetry
Blank = 40%/60%
A = 45%/55%
Pin 1 Connection
Blank = No Connection
H = Tri-state
Packaging
Blank = Bulk
T = Tape and Reel
Please Consult with MMD Sales Department for any other Parameters or Options

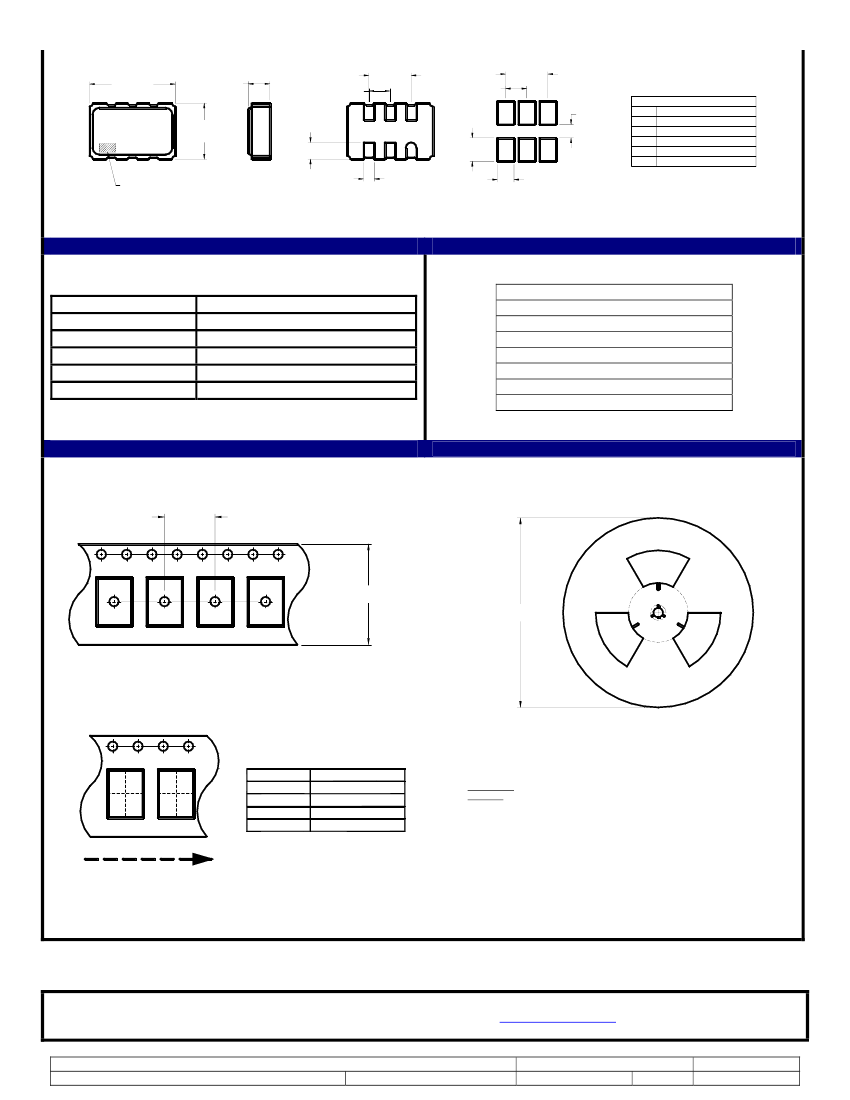

MECHANICAL DIMENSIONS:
MMD Components,
30400 Esperanza, Rancho Santa Margarita, CA, 92688
Phone: (949) 709-5075, Fax: (949) 709-3536,
www.mmdcomp.com
Sales@mmdcomp.com
In the event of conflict, the requirements of this specification shall govern.
Revisions only with customer approval
Page 1 of 2
Revision:
Date:
MMUL092209A
09/30/09
Release: AWV
5.15 [.203]
MAX
2.54 [.100]
1.30 [.051]
1.27 [.050]
4
5
6
1.27 [.050]
2.54 [.100]
0.80 [.031]
MXX.XXX
SYYMML
3.35 [.132]
MAX
1.00 [.039]
3
2
1
1.40 [.055]
PIN 1
PIN 2
PIN 3
PIN 4
PIN 5
PIN 6
PIN CONNECTIONS
TRI-STATE
NO CONNECTION
CASE GROUND
OUTPUT
COMPLEMENTARY OUTPUT
SUPPLY VOLTAGE
PIN 1 DESIGNATOR LOCATED IN THIS AREA.
0.64 [.025]
1.00 [.039]
DIMENSION IN BRACKETS ARE IN INCHES
EXTERNAL BYPASS CAPACITOR IS RECOMMENDED
RECOMMENDED
LAND PATTERN
ENVIRONMENTAL/MECHANICAL SPECIFICATION:
MARKING DETAIL:
Line 1: MXX.XXX
XX.XXX = Frequency in MHz
Line 2: SYMCCL
S = Internal Code
YM = Date Code (Year/Month)
CC = Crystal Parameters Code
L = Denotes RoHS Compliant
Shock
Solderability
Vibration
Gross Leak Test
Fine Leak Test
Reflow Solder
MIL-STD-883, Meth 2002, Cond
MIL-STD-883, Meth 2003
MIL-STD-883, Meth 2007, Cond
MIL-STD-883, Meth 1014, Cond
MIL-STD-883, Meth 1014, Cond
+260ºC for 10 sec max
B
A
C
A
TAPE AND REEL DIMENSIONS:
PITCH
TAPE WIDTH
REEL DIA
Q1 Q2
Q3 Q4
Q1 Q2
Q3 Q4
PITCH
TAPE WIDTH
REEL DIA
QTY PER REEL
PIN 1 ORIENT.
8.0 [.315]
16.0 [.630]
330 [13 IN]
1000
Q1
NOTES: UNLESS OTHERWISE SPECIFIED
1. Applicable Standards / Specifications
ANSI Y14.5M, Dimensions and Tolerances
EIA-481-B, 8 mm through 200mm Embossed Carrier Taping and 8 mm and 12 mm
Punched Carrier Taping of Surface Mount Components for Automatic Handling.
2. Dimensions are in millimeters [inches].
3. Tolerances are ±0.1 [.004] unless otherwise specified.
4. Do not scale drawing.
DIRECTION OF FEED
MMD Components,
30400 Esperanza, Rancho Santa Margarita, CA, 92688
Phone: (949) 709-5075, Fax: (949) 709-3536,
www.mmdcomp.com
Sales@mmdcomp.com
`
In the event of conflict, the requirements of this specification shall govern.
Revisions only with customer approval
Page 2 of 2
Release: AWB
Revision:
Date:
MMUL092209A
09/30/09
