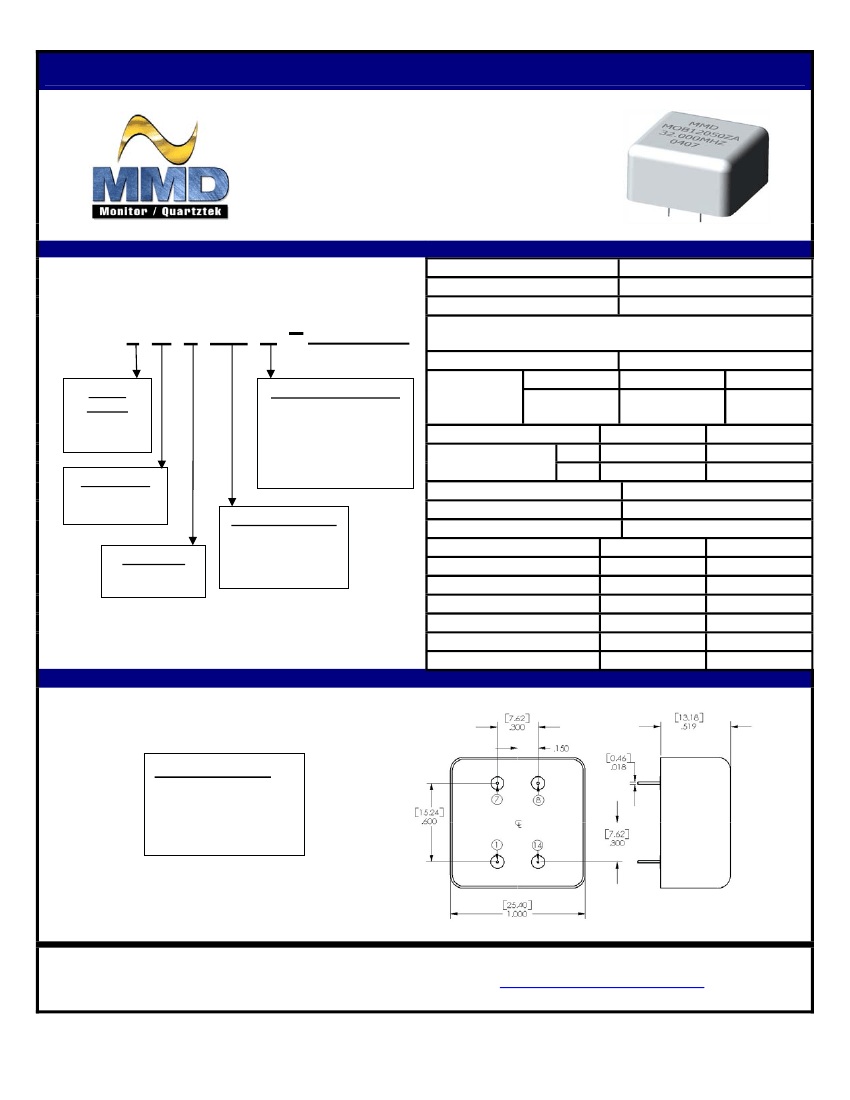

MOBH and MOBZ Series / 1” Square, 14 pin DIP Compatible OCXO
Oven Controlled Oscillator
1.0 MHz to 150.0 MHz Available
SC Crystal Option
-40°C to 85° Available
±10ppb to ±500ppb
PART NUMBERING GUIDE:
ELECTRICAL SPECIFICATIONS:
Frequency Range
1.0 MHz to 150.0MHz
Frequency Stability
±10ppb
to
±500ppb
Operating Temperature
-40°C to 85°C max*
* All stabilities not available, please consult MMD for
availablity.
Storage Temperature
-40°C to 95°C
50Ω
Sinewave
±3 dBm
Output
10% Vdd max
HCMOS
30pF
90% Vdd min
Supply Voltage (Vdd)
5.0V
12.0V
typ
300mA
120mA
Supply Current
max
500mA
250mA
Warm-up Time
4min. @ 25°C
Input Impedance
100K Ohms typical
Crystal
AT or SC Cut options
Phase Noise @ 10MHZ
SC
AT
10 Hz Offset
-105dBc
-91dBc
100 Hz Offset
-125dBc
-120dBc
1000 Hz Offset
-140dBc
-135dBc
10K Hz Offset
-145dBc
-138dBc
Voltage Control 0 to VCC
±3ppm typ.
±10ppm typ.
Aging (after 30 days)
±0.1ppm/yr.
±1.0ppm/yr.
MOB 5 H S 100 B
Supply
Voltage
5 = 5 Volt
12 = 12 Volt
Frequency
Output Type
H = HCMOS
Z = Sinewave
Operating Temperature
A = 0ºC to 50ºC
B = -10ºC to 60ºC
C = -20ºC to 70ºC
D = -30ºC to 70ºC
E = -30ºC to 80ºC
F = -40ºC to 85ºC
Frequency Stability
010 = ±10ppb
050 = ±50ppb
100 = ±100ppb
500 = ±500ppb
Crystal Cut
Blank = AT Cut
S = SC Cut
MECHANICAL DETAILS:
Pin Connections
Pin 1 = Vc
Pin 7 = Ground
Pin 8 = Output
Pin 14 = Supply Voltage
MMD Components,
30400 Esperanza, Rancho Santa Margarita, CA, 92688
Phone: (949) 709-5075, Fax: (949) 709-3536,
www.mmdcomponents.com
Sales@mmdcomp.com
Specifications subject to change without notice
Revision: 02/23/07 C
