1N4148WS / BAV16WS
SURFACE MOUNT FAST SWITCHING DIODE
Features
Fast Switching Speed
Small Surface Mount Package
For General Purpose Switching Applications
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
Mechanical Data
Case: SOD323
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish Annealed Over Alloy 42 Leadframe
(Lead-Free Plating). Solderable per MIL-STD-202, Method 208
Polarity: Cathode Band
Weight: 0.006 grams (Approximate)
SOD323
Top View
Device Schematic
Ordering Information
(Notes 4 & 5)
Part Number
1N4148WS-7-F
1N4148WSQ-7-F
1N4148WS-13-F
1N4148WSQ-13-F
BAV16WS-7-F
Notes:
Compliance
Standard
Automotive
Standard
Automotive
Standard
Case
SOD323
SOD323
SOD323
SOD323
SOD323
Packaging
3,000/Tape & Reel
3,000/Tape & Reel
10,000/Tape & Reel
10,000/Tape & Reel
3,000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-Free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the
same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
XX = Product Type Marking Code, T4
1N4148WS / BAV16WS
Document number: DS30097 Rev. 25- 2
1of 5
www.diodes.com
March 2016
© Diodes Incorporated
1N4148WS / BAV16WS
Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Non-Repetitive Peak Reverse Voltage (Note 6)
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Forward Continuous Current
Average Rectified Output Current
Non-Repetitive Peak Forward Surge Current
@ t = 1.0µs
@ t = 1.0s
Symbol
V
RM
V
RRM
V
RWM
V
R
V
R(RMS)
I
FM
I
O
I
FSM
Value
100
75
53
300
150
2.0
1.0
Unit
V
V
V
mA
mA
A
Thermal Characteristics
Characteristic
Power Dissipation (Note 7)
Thermal Resistance Junction to Ambient Air (Note 7)
Operating and Storage Temperature Range
Symbol
P
D
R
θJA
T
J
, T
STG
Value
200
625
-65 to +150
Unit
mW
°C/W
°C
Electrical Characteristics
Reverse Breakdown Voltage (Note 6)
(@T
A
= +25°C, unless otherwise specified.)
Symbol
V
(BR)R
Min
75
Max
0.715
0.855
1.0
1.25
1.0
50
30
25
2.0
4.0
Unit
V
Test Condition
I
R
= 1.0µA
I
F
= 1.0mA
I
F
= 10mA
I
F
= 50mA
I
F
= 150mA
V
R
= 75V
V
R
= 75V, T
J
= +150°C
V
R
= 25V, T
J
= +150°C
V
R
= 20V
V
R
= 0, f = 1.0MHz
I
F
= I
R
= 10mA,
I
RR
= 0.1 x I
R
, R
L
= 100Ω
Characteristic
Forward Voltage
V
FM
V
Peak Reverse Current (Note 6)
I
RM
µA
µA
µA
nA
pF
ns
Total Capacitance
Reverse Recovery Time
Notes:
C
T
t
RR
6. Short duration pulse test used to minimize self-heating effect.
7. Part mounted on FR-4 PC board with recommended pad layout, which can be found on our website http://www.diodes.com/package-outlines.html.
1N4148WS / BAV16WS
Document number: DS30097 Rev. 25- 2
2of 5
www.diodes.com
March 2016
© Diodes Incorporated
1N4148WS / BAV16WS
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
300
Note 7
1
P
D
, POWER DISSIPATION (mW)
250
200
0.1
150
100
0.01
50
0
0
25
50
75
100
125
T
A
, AMBIENT TEMPERATURE (
C)

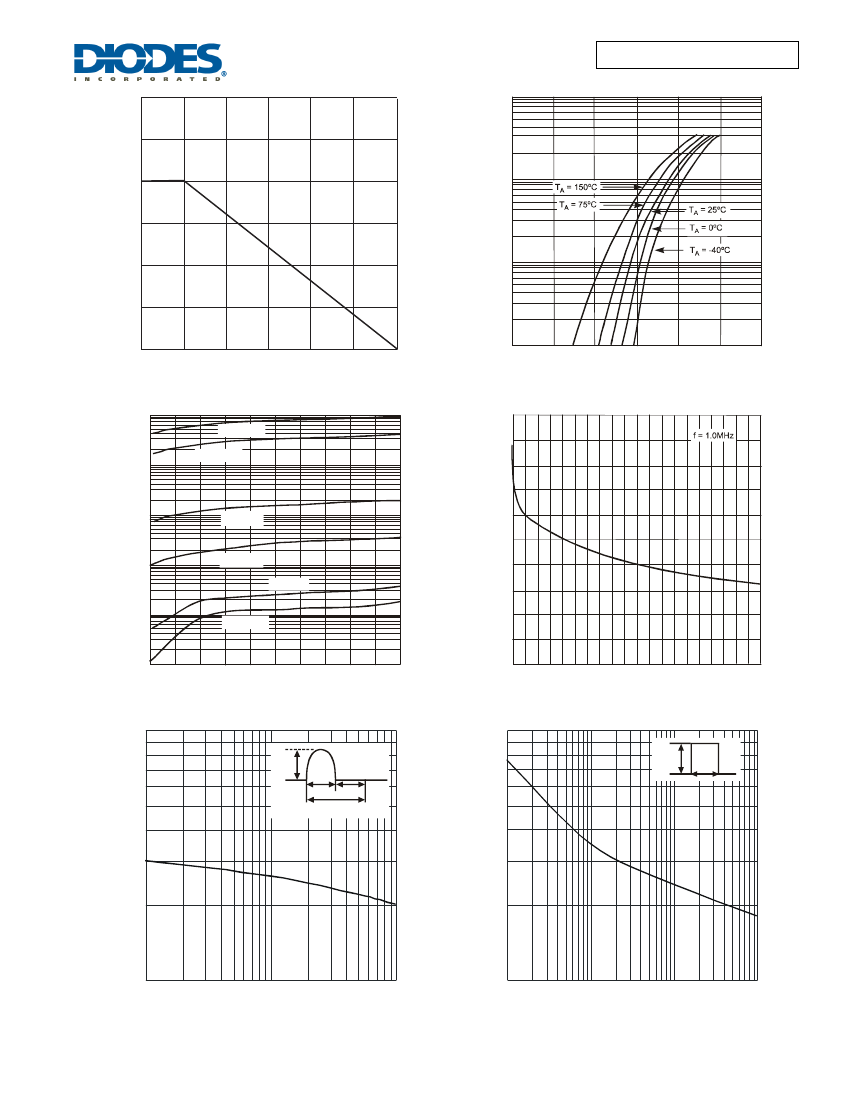

Fig. 1 Power Derating Curve
150
0.001
0.5
1.0
0
1.5
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 2 Typical Forward Characteristics
2.0
I
R
, INSTANTANEOUS REVERSE CURRENT (nA)
10,000
T
A
= 150ºC
T
A
= 125ºC
1.8
C
T
, TOTAL CAPACITANCE (pF)
1,000
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
100
T
A
= 75ºC
10
T
A
= 25ºC
T
A
= 0ºC
1
T
A
= -40ºC
0.1
0
0
20
40
60
80
100
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Fig. 3 Typical Reverse Characteristics
0
10
30
40
20
V
R
, DC REVERSE VOLTAGE (V)
Fig. 4 Typical Total Capacitance vs. Reverse Voltage
10
10
I
FSM
, FORWARD SURGE CURRENT (A)
I
FSM
, FORWARD SURGE CURRENT (A)
I
FSM
8.3ms 8.3ms
1 cyc
I
FSM
t
1
1
10
100
NUMBER OF CYCLES
Fig. 5 Maximum Non-Repetitive Surge Current
1
0.1
1
10
100
PULSE WIDTH (ms)
Fig. 6 Maximum Non-Repetitive Surge Current
1N4148WS / BAV16WS
Document number: DS30097 Rev. 25- 2
3of 5
www.diodes.com
March 2016
© Diodes Incorporated
1N4148WS / BAV16WS
Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version.
SOD323
A2
A1
a
c
He
E
L
b
D
SOD323
Dim Min Max Typ
A1
–
0.10 0.05
A2
1.00 1.10 1.05
b
0.25 0.35 0.30
c
0.10 0.15 0.11
D
1.20 1.40 1.30
E
1.60 1.80 1.70
He
2.30 2.70 2.50
L
0.20 0.40 0.30
a
0°
8°
–
All Dimensions in mm
Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version.
SOD323
X1
Y
X
Dimensions Value (in mm)
X
0.590
X1
2.700
Y
0.450
1N4148WS / BAV16WS
Document number: DS30097 Rev. 25- 2
4of 5
www.diodes.com
March 2016
© Diodes Incorporated
1N4148WS / BAV16WS
