D26V0H1U2LP16
1 CHANNEL HIGH SURGE TVS DIODE
Product Summary
V
BR
(Min)
28V
I
PP
(Max)
50A
I
R
(Max)
100nA
Features
Provides ESD Protection per IEC 61000-4-2 Standard:
Air ±30kV, Contact ±30kV
One Channels of ESD Protection
Low Channel Input Capacitance
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Description
This new generation TVS is designed to protect sensitive electronics
from the damage due to ESD. The combination of small size and high
ESD surge capability makes it ideal for use in portable applications
such as cellular phones, digital cameras, and MP3 players.
Applications
Cellular Handsets
Portable Electronics
Computers and Peripheral
Mechanical Data
Case: U-DFN1616-2
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: NiPdAu over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
e4
Weight: 0.004 grams (Approximate)
Pin 2
Pin 1
Device Schematic
Ordering Information
(Note 4)
Product
D26V0H1U2LP16-7
Notes:
Compliance
Standard
Marking
DC
Reel Size (inches)
7
Tape Width (mm)
8
Quantity per Reel
3,000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and
Antimony-free, "Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total
Br + Cl) and <1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
DC
DC = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: D = 2016)
M = Month (ex: 9 = September)
Date Code Key
Year
Code
Month
Code
2014
B
Jan
1
Feb
2
2015
C
Mar
3
Apr
4
2016
D
May
5
2017
E
Jun
6
Jul
7
2018
F
Aug
8
Sep
9
2019
G
Oct
O
Nov
N
2020
H
Dec
D
D26V0H1U2LP16
Document number: DS38361 Rev. 2 - 2
1 of 5
www.diodes.com
July 2017
© Diodes Incorporated
D26V0H1U2LP16
Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Peak Pulse Power Dissipation
Peak Pulse Current
ESD Protection – Contact Discharge
ESD Protection – Air Discharge
Symbol
P
PP
I
PP
Value
2,200
50
±30
±30
Unit
W
A
kV
kV
Conditions
8/20µs (Note 7)
8/20µs (Note 7)
Standard IEC 61000-4-2
Standard IEC 61000-4-2
V
ESD_CONTACT
V
ESD_AIR
Thermal Characteristics
Characteristic
Power Dissipation (Note 5)
Thermal Resistance, Junction to Ambient T
A
= +25°C
Operating and Storage Temperature Range
Symbol
P
D
R
θJA
T
J
, T
STG
Value
300
417
-55 to +150
Unit
mW
°C/W
°C
Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Reverse Standoff Voltage
Channel Leakage Current (Note 6)
Forward Voltage
Reverse Breakdown Voltage
Clamping Voltage, Positive Transients (Note 7)
Channel Input Capacitance (Note 8)
Notes:
Symbol
V
RWM
I
R
V
F
V
BR
V
C
C
T
Min
—
—
0.6
28
—
—
—
—
Typ
—
—
0.8
—
—
—
—
400
Max
26
100
1.2
31.9
32
34
44
—
Unit
V
nA
V
V
V
V
V
pF
Test Conditions
—
V
R
= 26V
I
R
= 10mA
I
R
= 1mA
I
PP
= 1A, t
P
= 8/20μs
I
PP
= 10A, t
P
= 8/20μs
I
PP
= 50A, t
P
= 8/20μs
V
R
= 0V, f = 1MHz
5. Device mounted on FR-4 PCB pad layout (2oz copper) as shown on Diodes, Inc. suggested pad layout, which can be found on our website at
http://www.diodes.com/package-outlines.html.
6. Short duration pulse test used to minimize self-heating effect.
7. Clamping voltage value is based on an 8x20µs peak pulse current (I
PP
) waveform.
8. Measured from any I/O to GND.
D26V0H1U2LP16
Document number: DS38361 Rev. 2 - 2
2 of 5
www.diodes.com
July 2017
© Diodes Incorporated
D26V0H1U2LP16
400
350
Note 5
100
P
D
, POWER DISSIPATION (mW)
PEAK PULSE DERATING % OF
PEAK POWER OR CURRENT
0
25
50
75
100
125
150
T
A
, AMBIENT TEMPERATURE (°C)

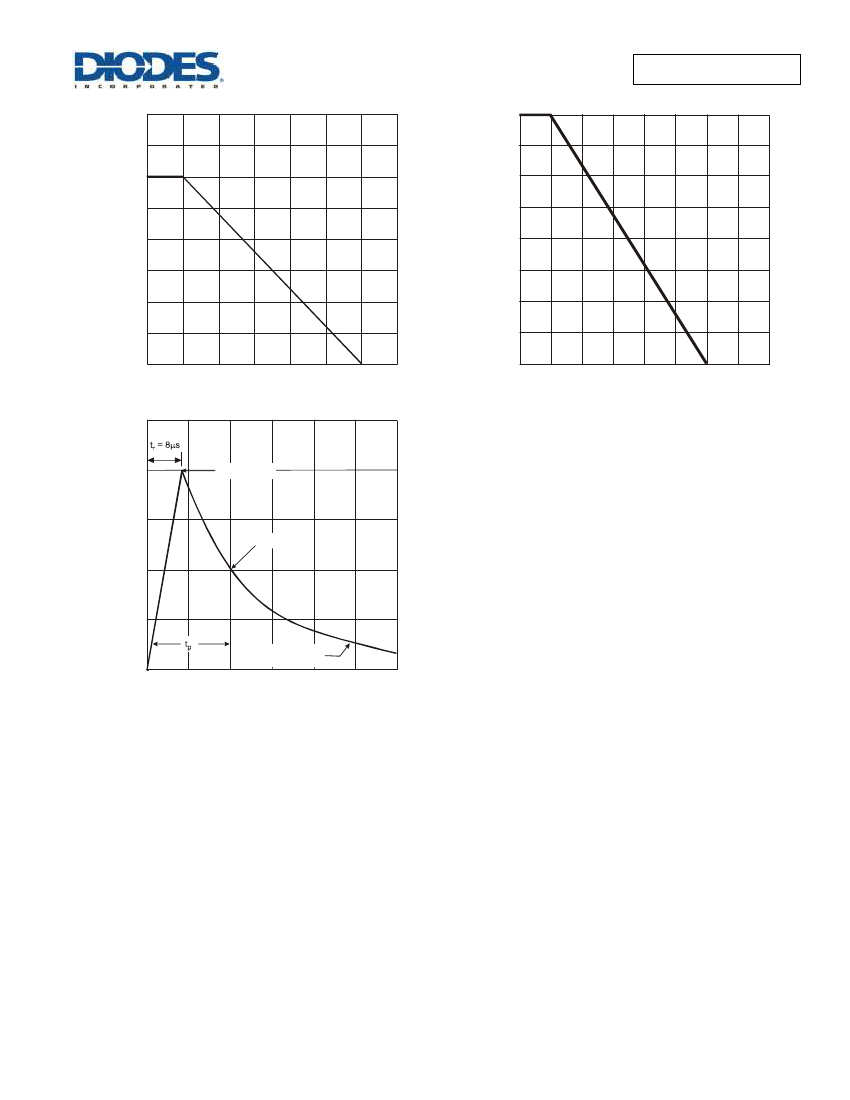

Figure 1 Power Derating Curve
175
300
250
200
150
100
50
0
75
50
25
0
0
25
50
75 100 125 150 175 200
T
A
, AMBIENT TEMPERATURE (°C)
Figure 2 Pulse Derating Curve
I
PP
, PEAK PULSE CURRENT (%I
pp
)
100
Peak Value I
pp
Half Value I
pp
/2
50
0
0
20
8x20 Waveform
as defined by R.E.A.
40
t, TIME (
s)
Figure 3 Pulse Waveform
60
D26V0H1U2LP16
Document number: DS38361 Rev. 2 - 2
3 of 5
www.diodes.com
July 2017
© Diodes Incorporated
D26V0H1U2LP16
Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version.
U-DFN1616-2
A
A1
Seating Plane
D
D2
k1
E
E2
k
L
z
b
U-DFN1616-2
Dim
Min
Max Typ
A
0.47 0.53 0.50
A1
0.00 0.05 0.02
b
1.25 1.35 1.30
D
1.55 1.65 1.60
D2
1.20 1.40 1.30
E
1.55 1.65 1.60
E2
0.95 1.15 1.05
k
0.20 BSC
k1
0.075 BSC
L
0.15 0.25 0.20
z
0.15 BSC
All Dimensions in mm
Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version.
U-DFN1616-2
X1
Y
Dimensions
G
Y1
Y2
G
X
X1
Y
Y1
Y2
Value
(in mm)
0.150
1.400
1.400
0.375
1.225
1.750
X
D26V0H1U2LP16
Document number: DS38361 Rev. 2 - 2
4 of 5
www.diodes.com
July 2017
© Diodes Incorporated
D26V0H1U2LP16
IMPORTANT NOTICE
DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDING TO THIS DOCUMENT,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the
application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or
trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume
all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated
website, harmless against all damages.
Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.
Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and
hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or
indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.
Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings
noted herein may also be covered by one or more United States, international or foreign trademarks.
This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the
final and determinative format released by Diodes Incorporated.
LIFE SUPPORT
Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express
written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:
A. Life support devices or systems are devices or systems which:
1. are intended to implant into the body, or
2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the
labeling can be reasonably expected to result in significant injury to the user.
B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the
failure of the life support device or to affect its safety or effectiveness.
Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any
use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related
information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its
representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.
Copyright © 2017, Diodes Incorporated
www.diodes.com
D26V0H1U2LP16
Document number: DS38361 Rev. 2 - 2
5 of 5
www.diodes.com
July 2017
© Diodes Incorporated
