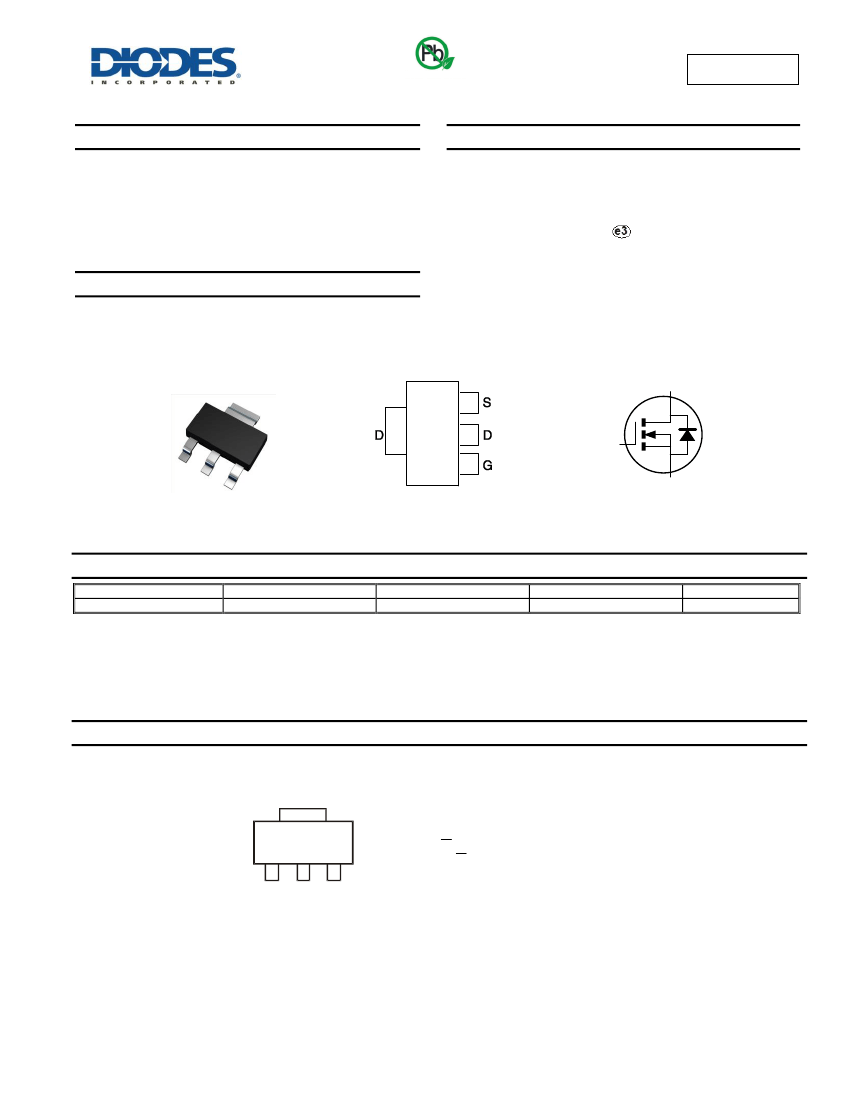

ZVN2120G

200V N-CHANNEL ENHANCEMENT MODE VERTICAL MOSFET IN SOT223

Features and Benefits



(BR)DSS

> 200V

DS(ON)

≤ 10 Ω @ V

= 10V

Maximum Continuous Drain Current I

= 0.32A

Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

Mechanical Data



Case: SOT223

Case Material: Molded Plastic, “Green” Molding Compound;

UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Matte Tin Finish

Weight: 0.112 grams (Approximate)

Applications



DC-DC Converters

Solenoids / Relay Driver for Automotive

SOT223

Top View

Pin Out - Top

View

Equivalent Circuit

Ordering Information

(Note 4)

Part Number

ZVN2120GTA

Notes:

Marking

ZVN2120

Reel size (inches)

Tape width (mm)

Quantity per reel

1,000

1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information

SOT223

ZVN

2120

ZVN2120 = Product Type Marking Code

YWW = Date Code Marking

Y or Y = Last Digit of Year (ex: 5= 2015)

WW or WW = Week Code (01~53)

YWW

ZVN2120G

Document number: DS33354 Rev. 3 - 2

1 of 6

www.diodes.com

February 2015
