ZXTN4004KTC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> ZXTN4004KTC

ZXTN4004KTC: DescriptionPower Bipolar Transistor, 1A I(C), 150V V(BR)CEO, 1-Element, NPN, Silicon, TO-252, Plastic/Epoxy, 2 Pin, GREEN, PLASTIC PACKAGE-3/2; CategoryDiscrete semiconductor The transistor; File Size496KB，7 Pages; ManufacturerDiodes Incorporated; Environmental Compliance

Download Datasheet Parametric Compare View All

ZXTN4004KTC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ZXTN4004KTC	-	-	View	Buy Now

ZXTN4004KTC Overview

Power Bipolar Transistor, 1A I(C), 150V V(BR)CEO, 1-Element, NPN, Silicon, TO-252, Plastic/Epoxy, 2 Pin, GREEN, PLASTIC PACKAGE-3/2

ZXTN4004KTC Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	conform to
Maker	Diodes Incorporated
package instruction	GREEN, PLASTIC PACKAGE-3/2
Reach Compliance Code	not_compliant
ECCN code	EAR99
Factory Lead Time	12 weeks
Samacsys Description	Trans,NPN,Transistor,GP,150V 1A TO252 Diodes Inc ZXTN4004KTC NPN Bipolar Transistor, 1 A, 150 V, 3-Pin TO-252
Other features	HIGH RELIABILITY
Shell connection	COLLECTOR
Maximum collector current (IC)	1 A
Collector-emitter maximum voltage	150 V
Configuration	SINGLE
Minimum DC current gain (hFE)	100
JEDEC-95 code	TO-252
JESD-30 code	R-PSSO-G2
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Polarity/channel type	NPN
Maximum power dissipation(Abs)	3.8 W
Guideline	AEC-Q101
surface mount	YES
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal location	SINGLE
Maximum time at peak reflow temperature	40
transistor applications	AMPLIFIER
Transistor component materials	SILICON

Preview

Download Datasheet

View All

Green

A Product Line of

Diodes Incorporated

ZXTN4004K

150V NPN LED DRIVING TRANSISTOR IN TO252

Features



CEO

> 150V

> 100 for I

= 150mA, V

= 0.25V

C (cont)

= 1A

Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

PPAP Capable (Note 4)

Mechanical Data



Case: TO252 (DPAK)

Case Material: Molded Plastic, “Green” Molding Compound;

UL Flammability Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Finish - Matte Tin Plated Leads. Solderable per

MIL-STD-202, Method 208

Weight: 0.34 grams (Approximate)

Applications



LED TV Backlight

TO252

Top View

Device symbol

Top View

Pin Out

Ordering Information

(Notes 4 & 5)

Product

ZXTN4004KTC

ZXTN4004KQTC

Notes:

Compliance

AEC-Q101

Automotive

Marking

ZXTN4004

Reel size (inches)

Tape width (mm)

Quantity per reel

2,500

1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally

the same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.

5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information

ZXTN

4004

YYWW

ZXTN4004 = Product Marking Code

YYWW = Date Code Marking

YY = Last Digit of Year (ex: 10 = 2010)

WW = Week Code (01 – 53)

ZXTN4004K

Document Number: DS35458 Rev: 4 - 2

1 of 7

www.diodes.com

December 2014

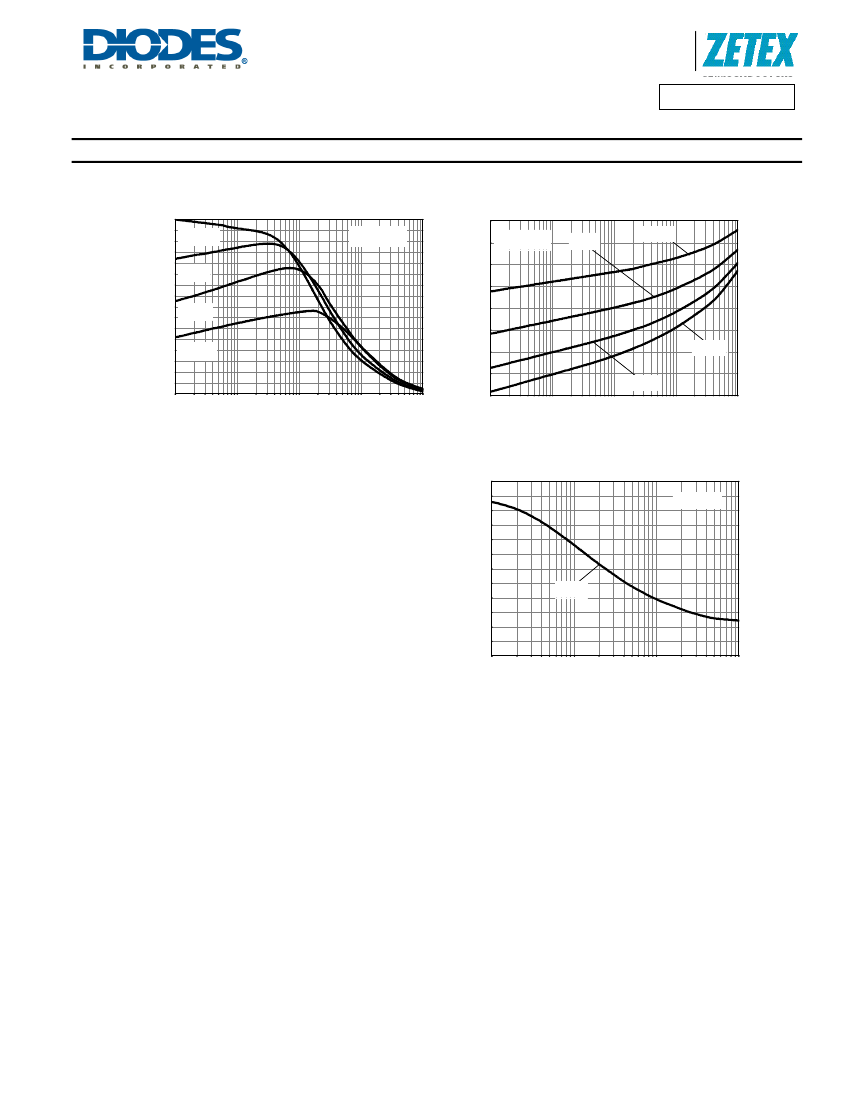

ZXTN4004KTC Related Products

	ZXTN4004KTC	ZXTN4004KQTC
Description	Power Bipolar Transistor, 1A I(C), 150V V(BR)CEO, 1-Element, NPN, Silicon, TO-252, Plastic/Epoxy, 2 Pin, GREEN, PLASTIC PACKAGE-3/2	Power Bipolar Transistor, 1A I(C), 150V V(BR)CEO, 1-Element, NPN, Silicon, TO-252, Plastic/Epoxy, 2 Pin, GREEN, PLASTIC PACKAGE-3/2
Is it Rohs certified?	conform to	conform to
Maker	Diodes Incorporated	Diodes Incorporated
package instruction	GREEN, PLASTIC PACKAGE-3/2	GREEN, PLASTIC PACKAGE-3/2
Reach Compliance Code	not_compliant	_compli
ECCN code	EAR99	EAR99
Factory Lead Time	12 weeks	13 weeks
Other features	HIGH RELIABILITY	HIGH RELIABILITY
Shell connection	COLLECTOR	COLLECTOR
Maximum collector current (IC)	1 A	1 A
Collector-emitter maximum voltage	150 V	150 V
Configuration	SINGLE	SINGLE
Minimum DC current gain (hFE)	100	100
JEDEC-95 code	TO-252	TO-252
JESD-30 code	R-PSSO-G2	R-PSSO-G2
JESD-609 code	e3	e3
Number of components	1	1
Number of terminals	2	2
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	NOT SPECIFIED
Polarity/channel type	NPN	NPN
Guideline	AEC-Q101	AEC-Q101
surface mount	YES	YES
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	GULL WING	GULL WING
Terminal location	SINGLE	SINGLE
Maximum time at peak reflow temperature	40	NOT SPECIFIED
transistor applications	AMPLIFIER	AMPLIFIER
Transistor component materials	SILICON	SILICON
