5962-01-317-5930 datasheet, PDF

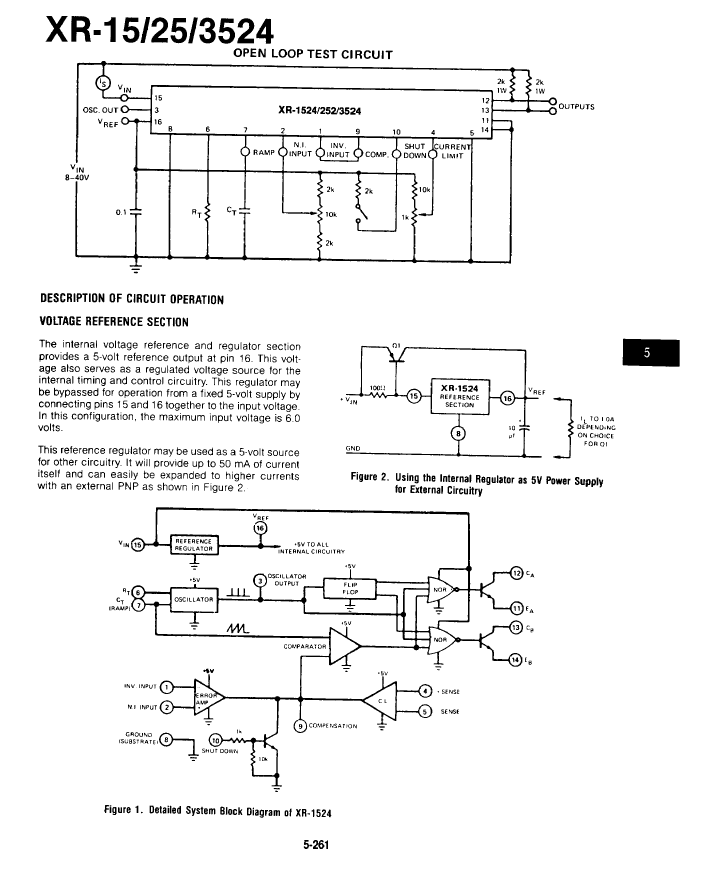

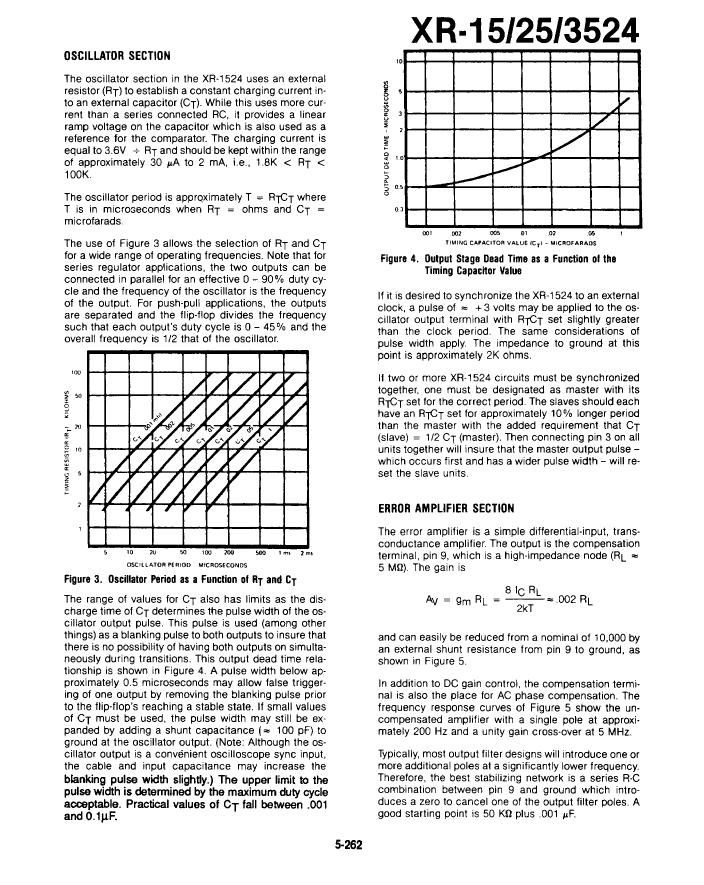

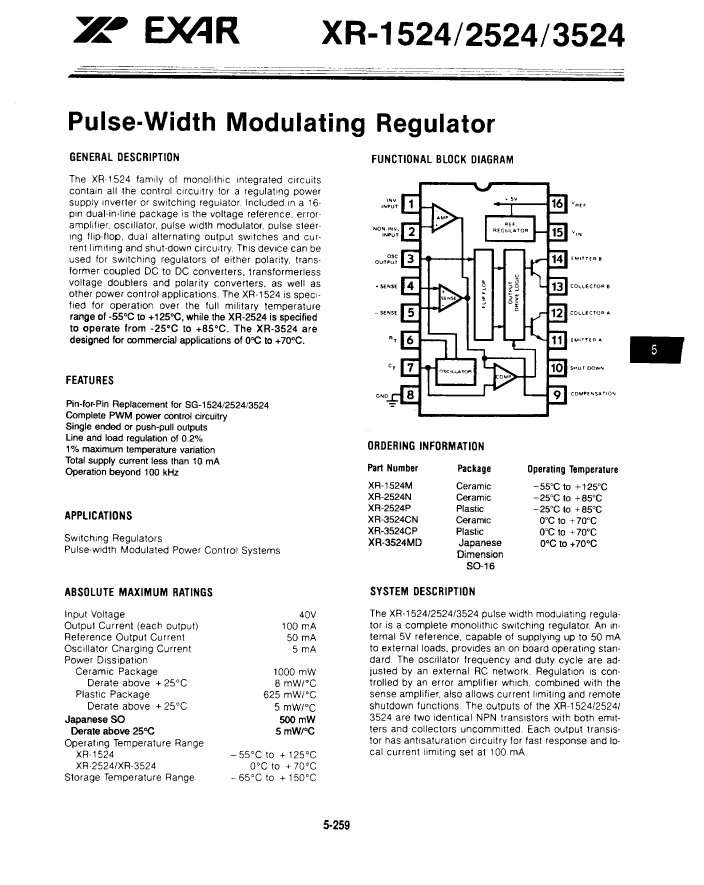

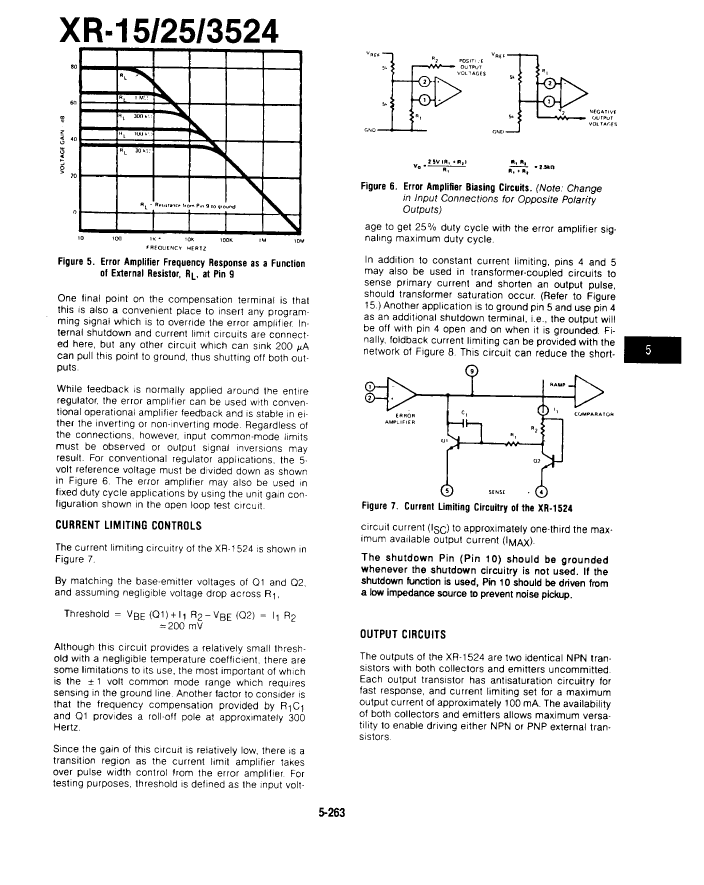

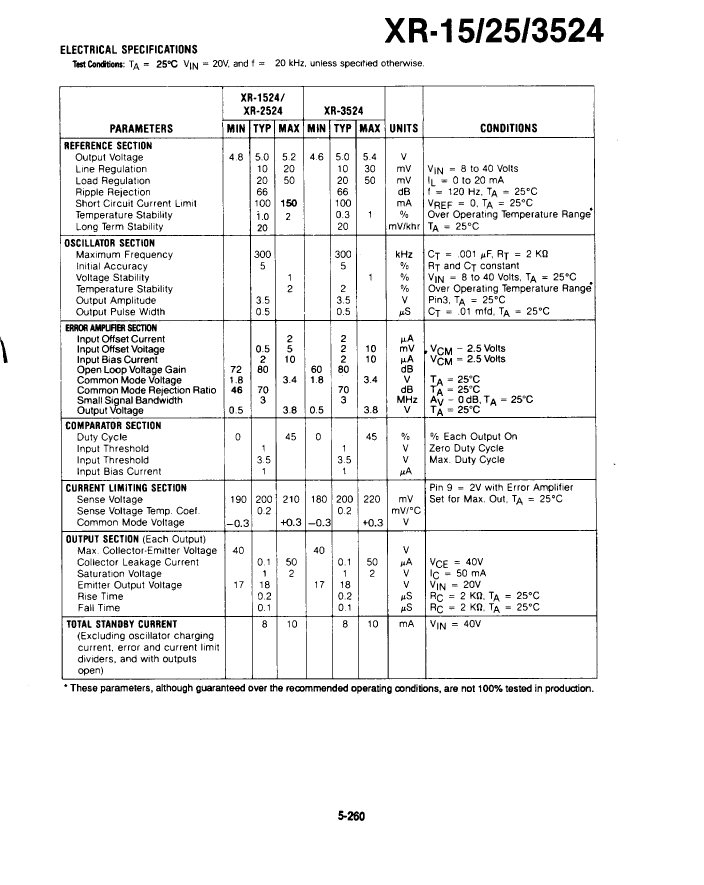

5962-01-317-5930: DescriptionSwitching Regulator/Controller, Voltage-mode, 0.05A, 300kHz Switching Freq-Max, BIPolar, PDIP16,; CategoryPower/power management The power supply circuit; File Size788KB，11 Pages; ManufacturerExar

Download Datasheet Parametric Compare View All

5962-01-317-5930 Overview

Switching Regulator/Controller, Voltage-mode, 0.05A, 300kHz Switching Freq-Max, BIPolar, PDIP16,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Exar
package instruction	DIP, DIP16,.3
Reach Compliance Code	compliant
ECCN code	EAR99
control mode	VOLTAGE-MODE
JESD-30 code	R-PDIP-T16
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum output current	0.05 A
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
surface mount	NO
Maximum switching frequency	300 kHz
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

	5962-01-317-5930	XR1524EA883C	5962-01-129-3847
Description	Switching Regulator/Controller, Voltage-mode, 0.05A, 300kHz Switching Freq-Max, BIPolar, PDIP16,	Switching Regulator/Controller, Voltage-mode, 0.05A, BIPolar, CDIP16	Switching Regulator/Controller, Voltage-mode, 0.05A, BIPolar, CDIP16,
Is it Rohs certified?	incompatible	incompatible	incompatible
package instruction	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3
Reach Compliance Code	compliant	unknown	compli
control mode	VOLTAGE-MODE	VOLTAGE-MODE	VOLTAGE-MODE
JESD-30 code	R-PDIP-T16	R-XDIP-T16	R-XDIP-T16
Number of terminals	16	16	16
Maximum operating temperature	70 °C	125 °C	70 °C
Maximum output current	0.05 A	0.05 A	0.05 A
Package body material	PLASTIC/EPOXY	CERAMIC	CERAMIC
encapsulated code	DIP	DIP	DIP
Encapsulate equivalent code	DIP16,.3	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	MILITARY	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
Maker	Exar	-	Exar
ECCN code	EAR99	-	EAR99
