HUBER+SUHNER

DATA SHEET

4-way power splitter: 5502.19.0006

reactive Splitter

Description

4-Way Reactive Power Splitter for WIFI 2.4 GHz and LTE 2.3 GHz Applications

Rev.: G

Product Configuration

Technical Data

Electrical Data

Frequency (GHz)

Return Loss input port

Return Loss output port

Splitter Loss

Insertion Loss

Isolation betw. output ports

Ampl. tra. betw. outp. ports

Connector Type

Gender

Char. impedance

Dimensions (mm)

Weight

Signal Band 1

2.1 - 2.5

16.54 dB

6.02059991327962 dB

2 dB

0.1 dB

Output 1

SMA

jack (female)

Ω

Output 2

SMA

jack (female)

Output 3

SMA

jack (female)

Output 4

SMA

jack (female)

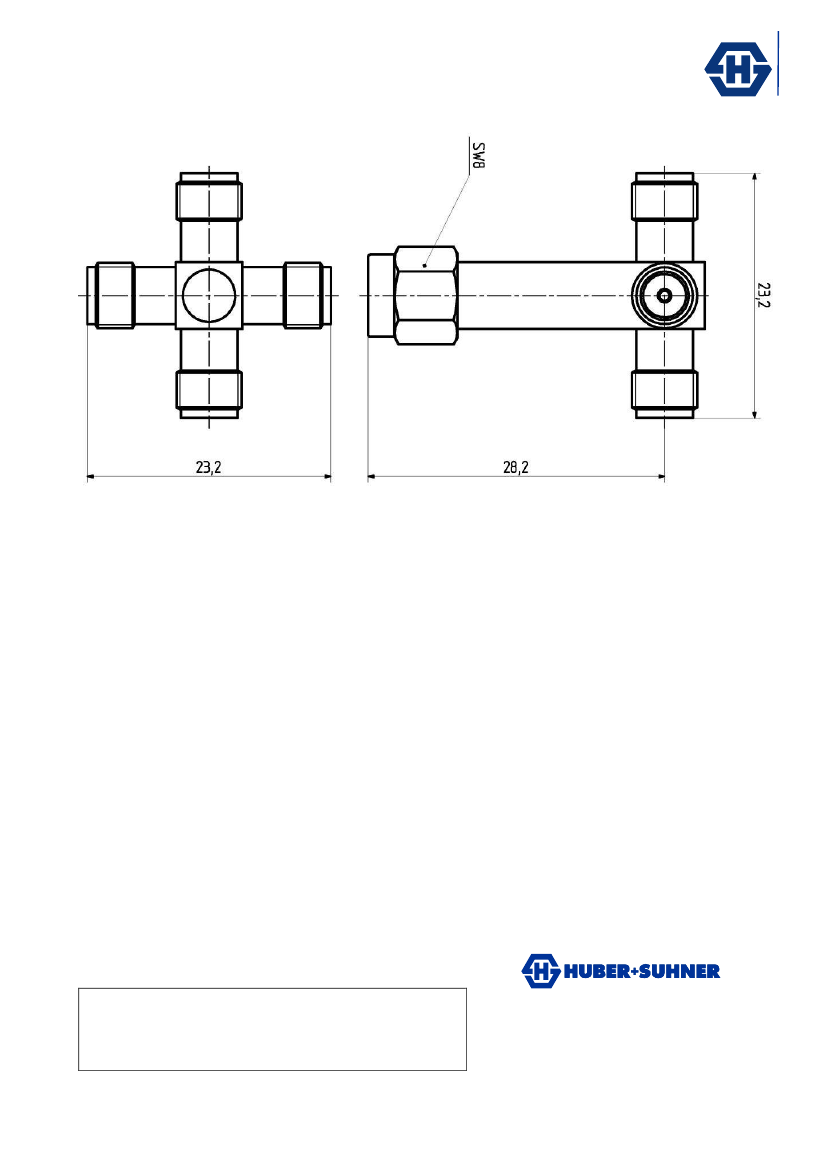

Mechanical Data

Environmental Data

32 x 23.2 x 23.2 (Height x Width x Depth)

0.015 kg

indoor/outdoor

-40 to 85

IP 20

Environmental conditions

Operation temperature (°C)

Storage temperature (°C)

IP rating
