LFSPXO009586REEL datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> LFSPXO009586REEL

Preview

LFSPXO009586REEL: DescriptionCMOS Output Clock Oscillator, 14.7456MHz Nom; CategoryPassive components oscillator; File Size387KB，2 Pages; ManufacturerIQD Frequency Products; Environmental Compliance

Download Datasheet Parametric View All

LFSPXO009586REEL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LFSPXO009586REEL	-	-	View	Buy Now

LFSPXO009586REEL Overview

CMOS Output Clock Oscillator, 14.7456MHz Nom

LFSPXO009586REEL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	IQD Frequency Products
Reach Compliance Code	compliant
Other features	STANDBY; ENABLE/DISABLE FUNCTION; TR
maximum descent time	12 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Installation features	SURFACE MOUNT
Nominal operating frequency	14.7456 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	CMOS
Output load	15 pF
physical size	5.0mm x 3.2mm x 0.95mm
longest rise time	12 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	45/55 %

Preview

Download Datasheet

View All

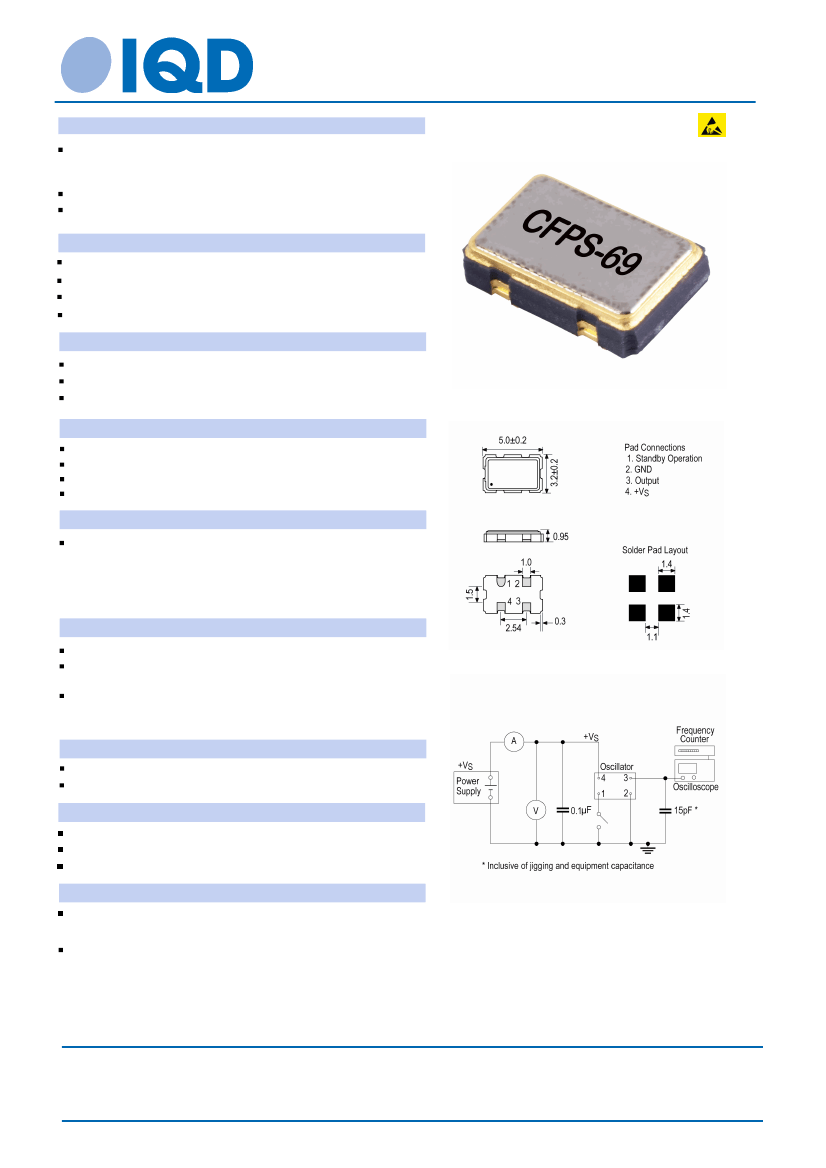

Crystal Clock Oscillator Specification

Part No. + Packaging:

LFSPXO009586Reel

Description

Low supply current crystal oscillators

Ceramic package with a seam sealed metal lid, hermetically

sealed

Model

CFPS-69

Model Issue number

5

Frequency Parameters

Frequency

Frequency Stability

Operating Temperature Range

Ageing

Electrical Parameters

14.74560MHz

±

50.00ppm

-40.00 to 85.00°C

±3ppm max per year

Supply Voltage

Current Draw

Standby Current: 1μA max

Output Details

3.3V ±5%

4.500mA

Outline (mm)

Output Compatibility

Drive Capability

Rise and Fall Time

Duty Cycle

Output Control

CMOS

15pF max

12.0ns max

45/55%

Standby Operation:

Logic ‘1’ (>70% VS) to pad 1 enables oscillator output

Logic ‘0’ (<30% VS) to pad 1 disables oscillator output; when

the oscillator output goes to the high impedance state

No connection to pad 1 enables oscillator output

Environmental Parameters

Storage Temperature Range: –55 to 125°C

Shock: MIL-STD-202F, Method 213B: 1000G, 0.5ms, 1/2 sine

wave

Vibration: MIL-STD-202F, Method 204D, Test Condition D:

20G (10Hz-2000Hz), 4hrs in 3 mutually perpendicular planes

(total 12hrs)

Manufacturing Details

Test Circuit

RoHS Terminations

RoHS Reflow Temp

Compliance

NiAu

260degC 10s

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Reel

Pack Size: 1,000

Tape & reel in accordance with EIA-481-D

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 2

Printed on 18 Apr 18 9:28 using Part Data Sheet V1.00015
