LFSPXO013635REEL datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> LFSPXO013635REEL

Preview

LFSPXO013635REEL: DescriptionHCMOS Output Clock Oscillator, 4MHz Nom; CategoryPassive components oscillator; File Size661KB，2 Pages; ManufacturerIQD Frequency Products; Environmental Compliance

Download Datasheet Parametric View All

LFSPXO013635REEL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LFSPXO013635REEL	-	-	View	Buy Now

LFSPXO013635REEL Overview

HCMOS Output Clock Oscillator, 4MHz Nom

LFSPXO013635REEL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	IQD Frequency Products
Reach Compliance Code	compliant
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; TR
maximum descent time	7 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Installation features	SURFACE MOUNT
Nominal operating frequency	4 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	HCMOS
Output load	50 pF
physical size	7.5mm x 5.0mm x 1.3mm
longest rise time	7 ns
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	45/55 %

Preview

Download Datasheet

View All

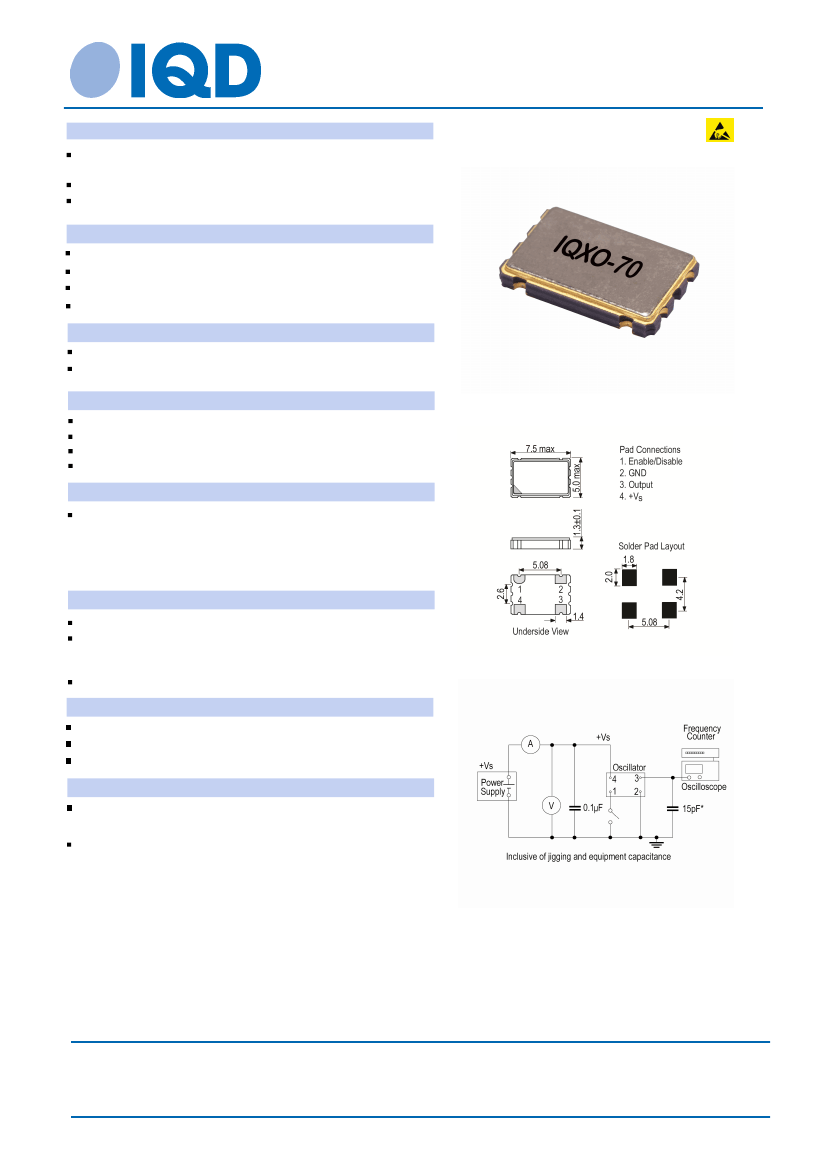

Crystal Clock Oscillator Specification

Part No. + Packaging:

LFSPXO013635Reel

Description

Surface mount oscillator in a ceramic package with a

hermetically sealed metal lid

Model

IQXO-70

Model Issue number

11

Frequency Parameters

Frequency

Frequency Stability

Operating Temperature Range

Ageing

Electrical Parameters

4.0MHz

±50.00ppm

-10.00 to 70.00°C

±5ppm max in 1st year

Supply Voltage

Current Draw

Output Details

5.0V ±0.5V

27.00mA

Output Compatability

Drive Capability

Rise and Fall Time

Duty Cycle

Output Control

HCMOS

50pF max

7.0ns max

45/55%

Outline (mm)

Tri-state Operation:

Logic ‘1’ (2.2V min) to pad 1 enables oscillator output

Logic ‘0’ (0.8V max) to pad 1 disables oscillator output; when

disabled the oscillator output goes to the high impedance state

No connection to pad 1 enables oscillator output

Environmental Parameters

Shock: MIL-STD-202F, Method 213B: 1000G, 0.5ms, 1/2 sine

Vibration: MIL-STD-202F, Method 204D, Test Condition D:

20G, frequency range 10-2000Hz 2hrs in 3 mutually

perpendicular planes (total 6hrs)

Storage Temperature Range: –55 to 125°C

Compliance

Test Circuit

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Reel

Pack Size: 1,000

Tape & reel in accordance with EIA-481-D

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 2
