LFSPXO018039R250 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> LFSPXO018039R250

LFSPXO018039R250: DescriptionModel CFPS-73 SMD Clock Oscillator (Commercial) SPXO, 20.0MHz, R250; CategoryPassive components oscillator; File Size993KB，2 Pages; ManufacturerIQD Frequency Products; Environmental Compliance

Download Datasheet Parametric Compare View All

LFSPXO018039R250 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LFSPXO018039R250	-	-	View	Buy Now

LFSPXO018039R250 Overview

Model CFPS-73 SMD Clock Oscillator (Commercial) SPXO, 20.0MHz, R250

LFSPXO018039R250 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	IQD Frequency Products
package instruction	ROHS AND REACH COMPLIANT, HERMETIC SEALED, CERAMIC PACKAGE-4
Reach Compliance Code	compliant
Other features	STANDBY; ENABLE/DISABLE FUNCTION; TAPE AND REEL
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Nominal operating frequency	20 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	HCMOS
Output load	50 pF
physical size	7.2mm x 5.2mm x 1.4mm
longest rise time	10 ns
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	45/55 %
Terminal surface	Gold (Au) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

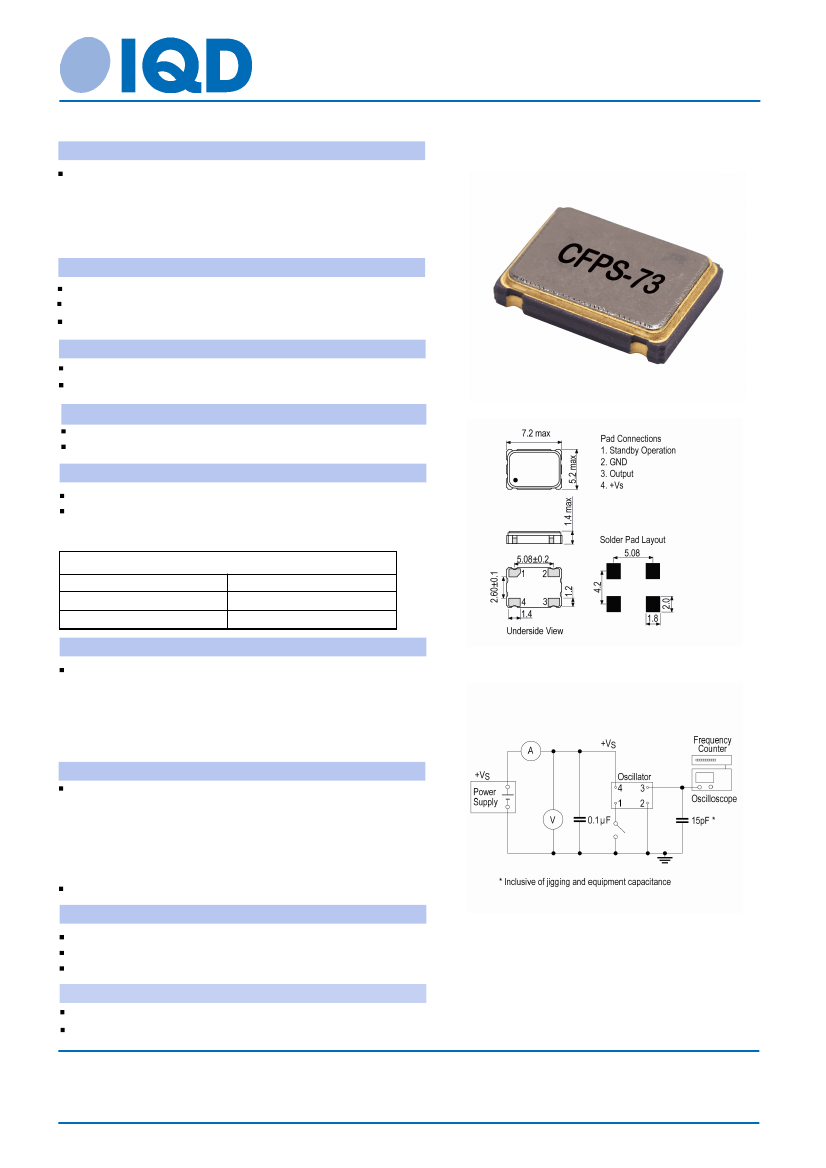

Crystal Clock Oscillator Specification

CFPS-73

ISSUE 14; September 2019

Description

Standard 7 x 5mm crystal oscillator in a ceramic package with

a seam sealed metal lid, hermetically sealed.

Stock parts are available.

Fast Make capability: CFPP-73 series programmable

oscillators are the nearest equivalent fast make model.

Frequency Parameters

Frequency

Frequency Stability

Ageing

Electrical Parameters

500.0kHz to 157.0MHz

±20.00ppm to ±100.00ppm

±3ppm per year max

3.3V ±10%

Supply Voltage

Note: parameters are referenced to 15pF load

Operating Temperature Ranges

Outline (mm)

0 to 70°C

-40 to 85°C

Output Details

Output Compatibility

HCMOS

Start up time: 10ms max.

0.9ms typ to 90% of final amplitude ( under ideal conditions @

25°C)

Drive Capability

0.5MHz to 50.0MHz

50.0MHz to 80.0MHz

80.0MHz to 157.0MHz

Output Control

15pF std, 50pF max

15pF std, 30pF max

15pF max

Standby Operation:

Logic ‘1’ (>70% VS) to pad 1 enables oscillator output

Logic ‘0’ (<30% VS) to pad 1 disables oscillator output; the

oscillator output goes to the high impedance state

No connection to pad 1 enables oscillator output

Standby Current: 10µA max, 0.9µA typ @ 25°C

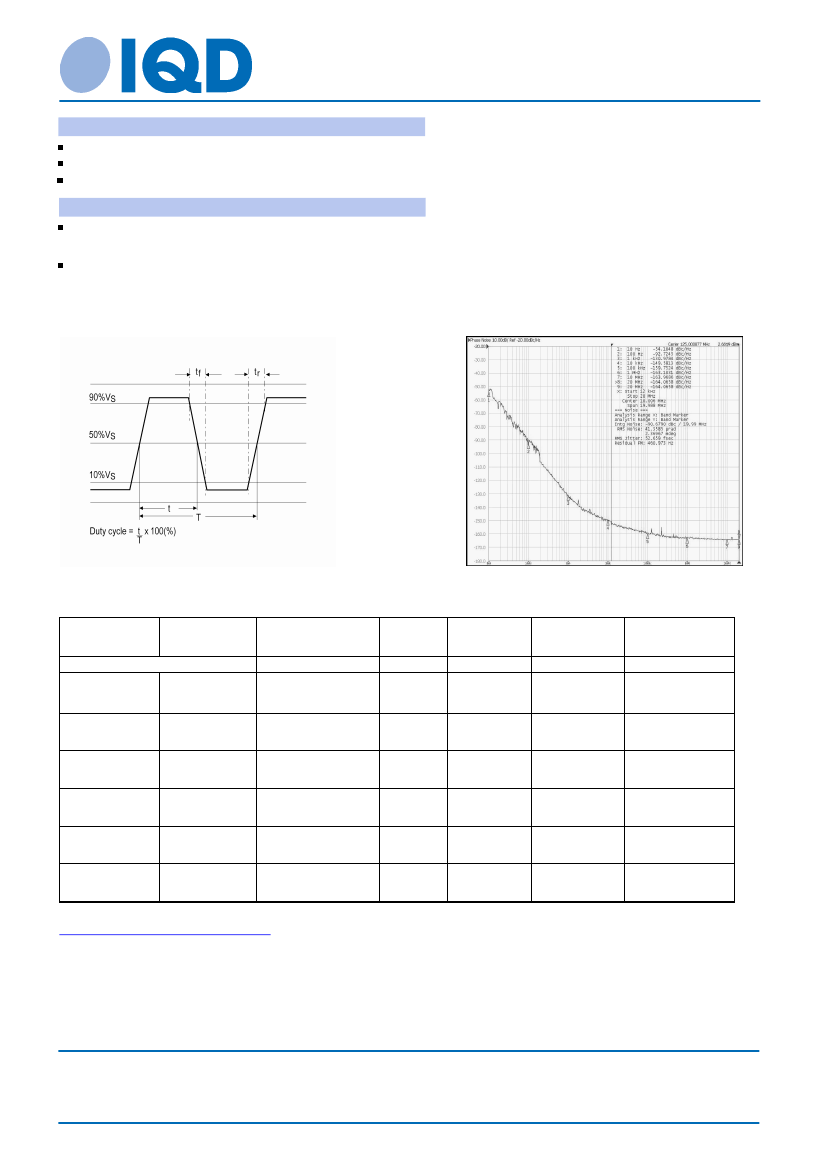

Noise Parameters

Test Circuit

Phase Noise @125MHz (typical):

10Hz

-54dBc

100Hz -92dBc

1kHz

-130dBc

10kHz -149dBc

100kHz -159dBc

1MHz -163dBc

RMS Phase Jitter @125MHz: 52fs typical

Environmental Parameters

Shock: MIL-STD-202, Method 213, Condition E

Vibration: MIL-STD-883, Method 2007, Condition A

Storage Temperature Range: -55 to 125°C

Manufacturing Details

RoHS Terminations

RoHS Reflow

Sales Office Contact Details:

NiAu

260degC 10s

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 2

Printed on 25 Sep 19 17:11 using Model Data Sheet V1.2550

LFSPXO018039R250 Related Products

	LFSPXO018039R250	LFSPXO022731BULK	LFSPXO020392BULK	LFSPXO019992BULK	LFSPXO020467BULK	LFSPXO017885REEL	LFSPXO021270BULK	LFSPXO021890BULK	LFSPXO021890REEL
Description	Model CFPS-73 SMD Clock Oscillator (Commercial) SPXO, 20.0MHz, R250	HCMOS Output Clock Oscillator, 100MHz Nom	HCMOS Output Clock Oscillator	CRYSTAL OSCILLATOR, CLOCK, 20MHz, HCMOS OUTPUT	HCMOS Output Clock Oscillator, 64MHz Nom	HCMOS Output Clock Oscillator	HCMOS Output Clock Oscillator, 24MHz Nom	HCMOS Output Clock Oscillator, 8MHz Nom	HCMOS Output Clock Oscillator, 8MHz Nom
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	unknow	compli	compliant	compliant	compliant	compliant	compliant	compliant
Other features	STANDBY; ENABLE/DISABLE FUNCTION; TAPE AND REEL	STANDBY; ENABLE/DISABLE FUNCTION; BULK	STANDBY; ENABLE/DISABLE FUNCTION; BULK	STAND-BY; ENABLE/DISABLE FUNCTION; BULK	STANDBY; ENABLE/DISABLE FUNCTION; BULK	STANDBY; ENABLE/DISABLE FUNCTION; TR	STANDBY; ENABLE/DISABLE FUNCTION; BULK	STANDBY; ENABLE/DISABLE FUNCTION; BULK	STANDBY; ENABLE/DISABLE FUNCTION; TR
maximum descent time	10 ns	4 ns	10 ns	10 ns	8 ns	10 ns	10 ns	10 ns	10 ns
Frequency Adjustment - Mechanical	NO	NO	NO	NO	NO	NO	NO	NO	NO
frequency stability	50%	50%	50%	50%	50%	50%	50%	50%	50%
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Nominal operating frequency	20 MHz	100 MHz	18.432 MHz	20 MHz	64 MHz	40 MHz	24 MHz	8 MHz	8 MHz
Maximum operating temperature	70 °C	85 °C	85 °C	85 °C	70 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-	-40 °C	-40 °C	-40 °C	-	-40 °C	-40 °C	-40 °C	-40 °C
Oscillator type	HCMOS	HCMOS	HCMOS	HCMOS	HCMOS	HCMOS	HCMOS	HCMOS	HCMOS
Output load	50 pF	15 pF	50 pF	50 pF	30 pF	50 pF	50 pF	50 pF	50 pF
physical size	7.2mm x 5.2mm x 1.4mm	7.2mm x 5.2mm x 1.4mm	7.2mm x 5.2mm x 1.4mm	7.2mm x 5.2mm x 1.4mm	7.2mm x 5.2mm x 1.4mm	7.2mm x 5.2mm x 1.4mm	7.2mm x 5.2mm x 1.4mm	7.2mm x 5.2mm x 1.4mm	7.2mm x 5.2mm x 1.4mm
longest rise time	10 ns	4 ns	10 ns	10 ns	8 ns	10 ns	10 ns	10 ns	10 ns
Maximum supply voltage	3.63 V	3.63 V	3.63 V	3.63 V	3.63 V	3.63 V	3.63 V	3.63 V	3.63 V
Minimum supply voltage	2.97 V	2.97 V	2.97 V	2.97 V	2.97 V	2.97 V	2.97 V	2.97 V	2.97 V
Nominal supply voltage	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
maximum symmetry	45/55 %	45/55 %	45/55 %	45/55 %	45/55 %	45/55 %	45/55 %	45/55 %	45/55 %
Maker	IQD Frequency Products	-	-	-	IQD Frequency Products	IQD Frequency Products	IQD Frequency Products	IQD Frequency Products	IQD Frequency Products
