LFSPXO018287CUTT datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> LFSPXO018287CUTT

Preview

LFSPXO018287CUTT: DescriptionHCMOS Output Clock Oscillator, 48MHz Nom; CategoryPassive components oscillator; File Size1017KB，2 Pages; ManufacturerIQD Frequency Products; Environmental Compliance

Download Datasheet Parametric View All

LFSPXO018287CUTT Overview

HCMOS Output Clock Oscillator, 48MHz Nom

LFSPXO018287CUTT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	IQD Frequency Products
Reach Compliance Code	compliant
Other features	STANDBY; ENABLE/DISABLE FUNCTION; TAPE
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
Installation features	SURFACE MOUNT
Nominal operating frequency	48 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	HCMOS
Output load	50 pF
physical size	7.2mm x 5.2mm x 1.4mm
longest rise time	10 ns
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	45/55 %

Preview

Download Datasheet

View All

Crystal Clock Oscillator Specification

Part No. + Packaging:

LFSPXO018287Cutt

Description

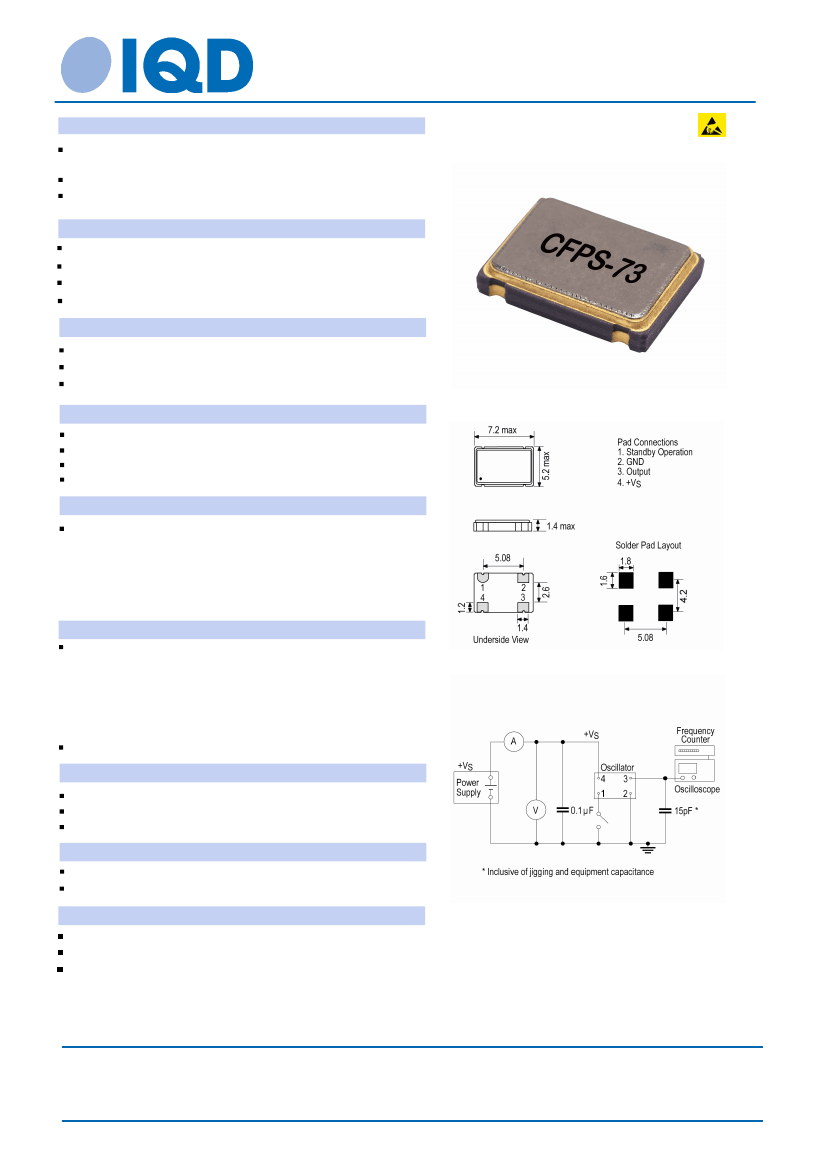

Standard 7 x 5mm crystal oscillator in a ceramic package with a

seam sealed metal lid, hermetically sealed.

Model

CFPS-73

Model Issue number

13

Frequency Parameters

Frequency

Frequency Stability

Operating Temperature Range

Ageing

Electrical Parameters

48.0MHz

±

100.00ppm

-40.00 to 85.00°C

±3ppm per year max

3.3V ±10%

Supply Voltage

Current Draw

20.000mA

Note: parameters are referenced to 15pF load

Output Details

Outline (mm)

Output Compatibility

Drive Capability

Rise and Fall Time

Duty Cycle

Output Control

HCMOS

15pF std, 50pF max

10.0ns max

45/55

Standby Operation:

Logic ‘1’ (>70% VS) to pad 1 enables oscillator output

Logic ‘0’ (<30% VS) to pad 1 disables oscillator output; the

oscillator output goes to the high impedance state

No connection to pad 1 enables oscillator output

Standby Current: 10µA max

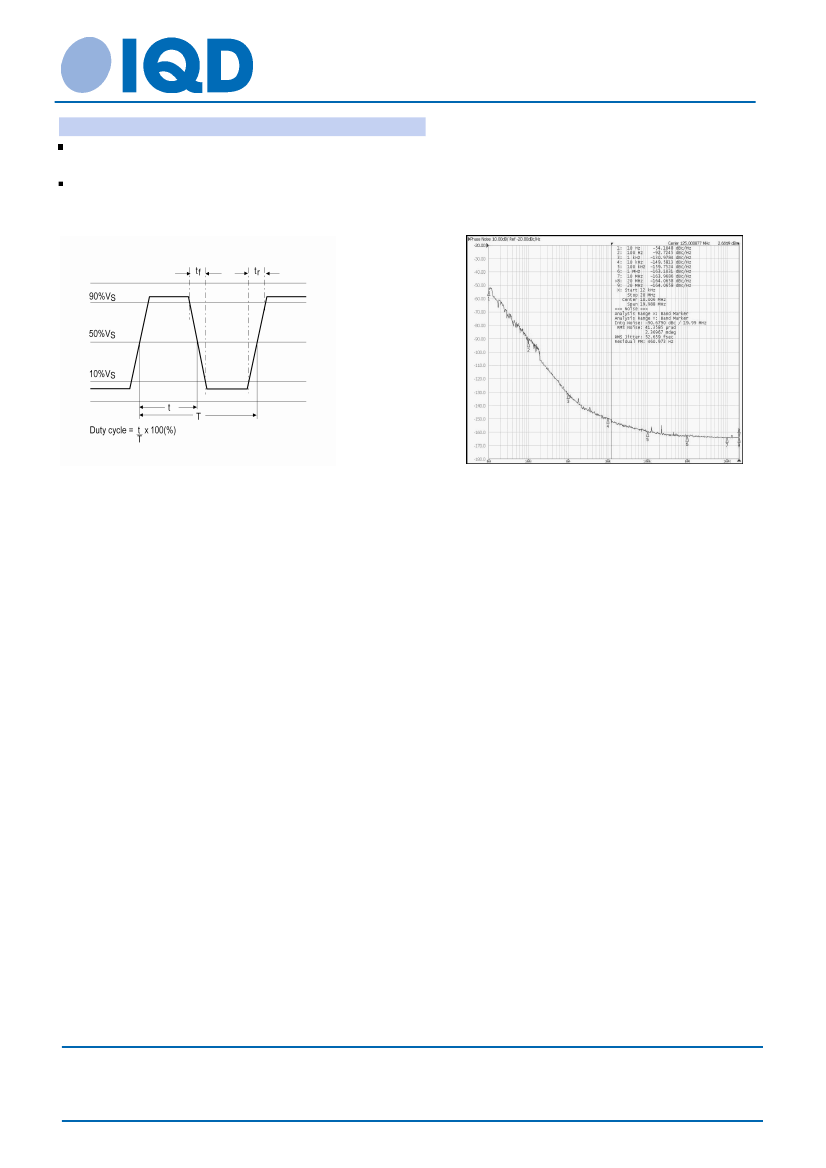

Noise Parameters

Phase Noise @125MHz (typical):

10Hz

-54dBc

100Hz -92dBc

1kHz

-130dBc

10kHz -149dBc

100kHz -159dBc

1MHz -163dBc

RMS Phase Jitter @125MHz: 52fs typical

Environmental Parameters

Test Circuit

Shock: MIL-STD-202, Method 213, Condition E

Vibration: MIL-STD-883, Method 2007, Condition A

Storage Temperature Range: -55 to 125°C

Manufacturing Details

RoHS Terminations

RoHS Reflow Temp

Compliance

NiAu

260degC 10s

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Compliant

Not Applicable

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 2

Printed on 10 Jan 19 10:44 using Part Data Sheet V1.00015
