LFSPXO018514BULK: DescriptionCRYSTAL OSCILLATOR, CLOCK, 4MHz, HCMOS/TTL OUTPUT; CategoryPassive components oscillator; File Size970KB，2 Pages; ManufacturerIQD Frequency Products; Environmental Compliance

Download Datasheet Parametric View All

LFSPXO018514BULK Overview

CRYSTAL OSCILLATOR, CLOCK, 4MHz, HCMOS/TTL OUTPUT

LFSPXO018514BULK Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	IQD Frequency Products
package instruction	ROHS AND REACH COMPLIANT, HERMETIC SEALED, METAL, DIL-8/4
Reach Compliance Code	compliant
Other features	BULK
maximum descent time	15 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
JESD-609 code	e2
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	4 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	HCMOS/TTL
Output load	10 TTL, 50 pF
physical size	13.2mm x 13.2mm x 6.6mm
longest rise time	15 ns
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
maximum symmetry	45/55 %
Terminal surface	Tin/Copper (Sn/Cu)

Preview

Download Datasheet

View All

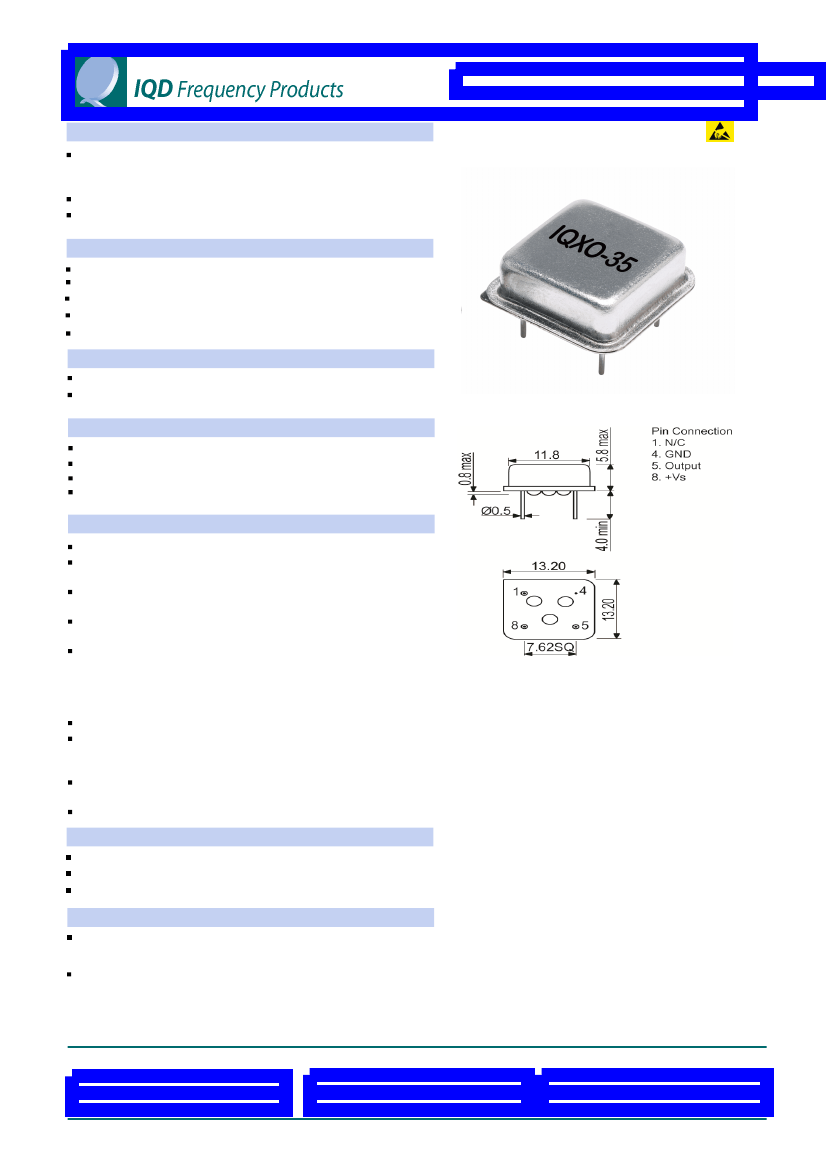

Crystal Clock Oscillator Specification

Part No. + Packaging:

LFSPXO018514Bulk

Description

A 5.0V supply, 8-pin DIL crystal oscillator in a hermetically

sealed metal package designed to meet tough environmental

specifications

Model

IQXO-35

Model Issue number

Frequency Parameters

Frequency

Frequency Tolerance

Frequency Stability

Operating Temperature Range

Ageing

Electrical Parameters

4.0MHz

±25.00ppm

±50.00ppm

-40.00 to 85.00°C

±5ppm max per year

Supply Voltage

Current Draw

Output Details

5.0V ±0.25V

20.00mA

Outline (mm)

Output Compatability

Drive Capability

Rise and Fall Time

Duty Cycle

Environmental Parameters

HCMOS/TTL

50pF max or 10TTL

15.0ns max

45/55%

Acceleration: 490m/s² for 1min in the ‘Y1’ plane

Bump: 4000 bumps at 391m/s² in each of 3 mutually

perpendicular planes

Shock: 981m/s², 6ms, 3 times in each of 3 mutually

perpendicular planes

Vibration: 10Hz-60Hz, 0.75mm amplitude, 60Hz-2000Hz,

98.1m/s², 30mins in each of 3 mutually perpendicular planes

Humidity:

Steady State: In accordance with Test Ca of IEC 60068-2-3,

for 56 days at 40°C at a relative humidity of 93%

Cyclic: In accordance with Test Db (variant 1) of IEC

60068-2-30, at severity b, 55°C for 6 cycles

Solderability: In accordance with Test Ta of IEC 60068

Rapid Change of Temperature over Operating Temperature

Range:

10 cycles

Hermetic Seal: Not to exceed 1 x 10-8 mBar litres of Helium

leakage

Storage Temperature Range: –55 to 125°C

Compliance

Test Circuit

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Bulk

Pack Size: 1

Loose in bulk pack

Alternative packing option available

This document is correct at the time of printing; please

contact your local office for the latest version.

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: +49 (0) 30 408 192 300

France: +33 (0)5 34 50 91 18

USA: +1 408.273.4530

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 2

Printed on 24 Apr 15 13:04 using Part Data Sheet V1.00006
