LFSPXO021622REEL datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> LFSPXO021622REEL

LFSPXO021622REEL: DescriptionHCMOS/TTL Output Clock Oscillator, 80MHz Nom; CategoryPassive components oscillator; File Size739KB，2 Pages; ManufacturerIQD Frequency Products; Environmental Compliance

Download Datasheet Parametric View All

LFSPXO021622REEL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LFSPXO021622REEL	-	-	View	Buy Now

LFSPXO021622REEL Overview

HCMOS/TTL Output Clock Oscillator, 80MHz Nom

LFSPXO021622REEL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	IQD Frequency Products
Reach Compliance Code	compliant
Other features	STANDBY; ENABLE/DISABLE FUNCTION; TR
maximum descent time	6 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Installation features	SURFACE MOUNT
Nominal operating frequency	80 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	HCMOS/TTL
Output load	30 pF
physical size	7.2mm x 5.2mm x 1.4mm
longest rise time	6 ns
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	45/55 %

Preview

Download Datasheet

View All

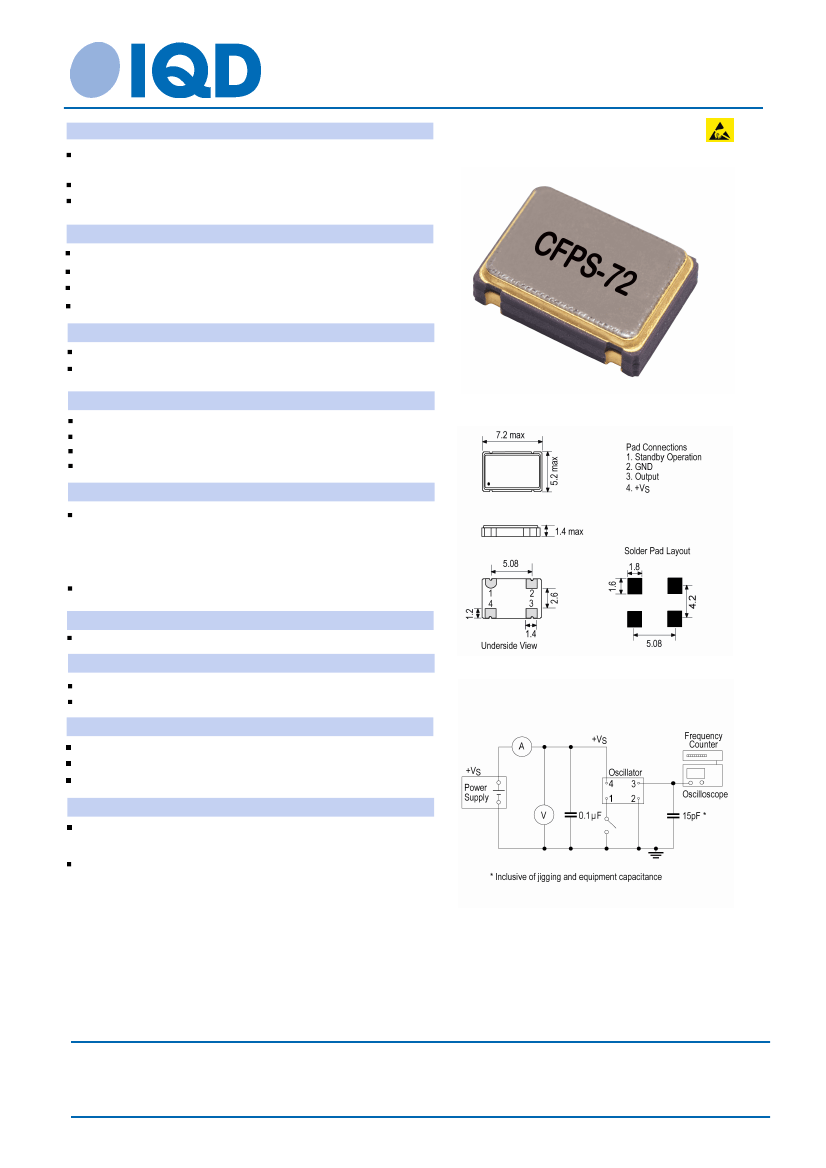

Crystal Clock Oscillator Specification

Part No. + Packaging:

LFSPXO021622Reel

Description

Standard 7 x 5mm crystal oscillator in a ceramic package with a

seam sealed metal lid, hermetically sealed.

Model

CFPS-72

Model Issue number

Frequency Parameters

Frequency

Frequency Stability

Operating Temperature Range

Ageing

Electrical Parameters

80.0MHz

±50.00ppm

-40.00 to 85.00°C

±3ppm per year max

Supply Voltage

Current Draw

Output Details

5.0V ±10%

70.00mA

Output Compatability

Drive Capability

Rise and Fall Time

Duty Cycle

Output Control

HCMOS/TTL

30pF max

6.0ns max

45/55%

Outline (mm)

Standby Operation:

Logic ‘1’ (>70% Vs) to pad 1 enables oscillator output.

Logic ‘0’ (<30% Vs) to pad 1 disables oscillator output; the

oscillator output goes to the high impedance state.

No connection to pad 1 enables oscillator output.

Standby Current: 10μA max

Noise Parameters

Phase Jitter RMS : 350fs typical

Environmental Parameters

Test Circuit

Shock: MIL-STD-202, Method 213, Condition E.

Vibration: MIL-STD-883, Method 2007, Condition A.

Compliance

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Reel

Pack Size: 1,000

Tape & reel in accordance with EIA-481-D

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1 408.273.4530

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 2
