LFSPXO024880BULK

Description
IC,CRYSTAL OSCILLATOR,1-CHANNEL,32MHZ,LLCC,4PIN,CERAMIC
CategoryPassive components    oscillator
File Size354KB,2 Pages
ManufacturerIQD Frequency Products
Environmental Compliance
Download Datasheet Parametric View All

LFSPXO024880BULK Online Shopping

Suppliers Part Number Price MOQ In stock
LFSPXO024880BULK - - View Buy Now

LFSPXO024880BULK Overview

IC,CRYSTAL OSCILLATOR,1-CHANNEL,32MHZ,LLCC,4PIN,CERAMIC

LFSPXO024880BULK Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerIQD Frequency Products
Reach Compliance Codecompliant
Other featuresENABLE/DISABLE FUNCTION; BULK
maximum descent time10 ns
Frequency Adjustment - MechanicalNO
frequency stability50%
Installation featuresSURFACE MOUNT
Number of terminals4
Nominal operating frequency32 MHz
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Oscillator typeCMOS
Output load15 pF
Package body materialCERAMIC
Encapsulate equivalent codeDILCC4,.14
physical size5.2mm x 3.4mm x 1.3mm
power supply3.3 V
Certification statusNot Qualified
longest rise time10 ns
Maximum slew rate20 mA
Maximum supply voltage3.6 V
Minimum supply voltage3 V
Nominal supply voltage3.3 V
surface mountYES
maximum symmetry40/60 %

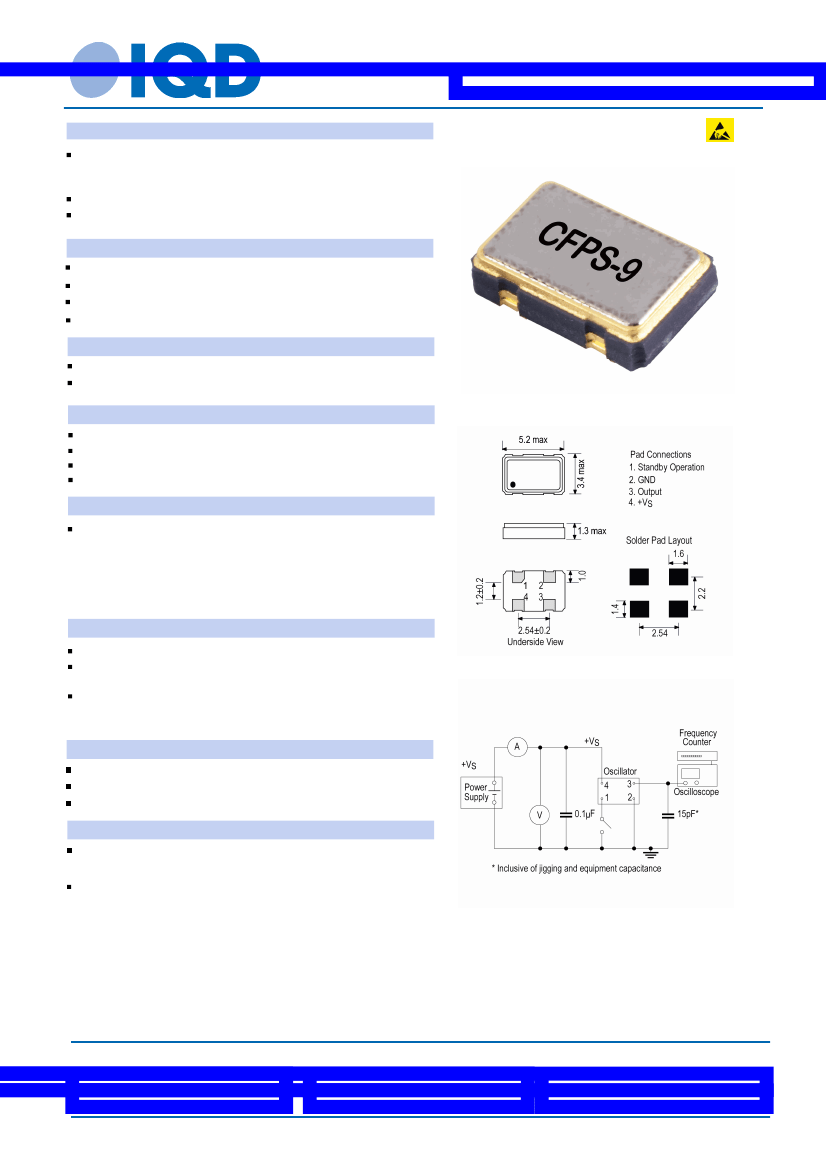

Crystal Clock Oscillator Specification
Part No. + Packaging:
LFSPXO024880Bulk
Description
5 x 3.2mm crystal oscillator
Ceramic package with a seam sealed metal lid, hermetically
sealed
Model
CFPS-9
Model Issue number
6
Frequency Parameters
Frequency
Frequency Stability
Operating Temperature Range
Ageing
Electrical Parameters
32.0MHz
±50.00ppm
-40.00 to 85.00°C
±3ppm max per year @ 25°C
Supply Voltage
Current Draw
Output Details
3.3V ±0.3V
20.00mA
Outline (mm)
Output Compatability
Drive Capability
Rise and Fall Time
Duty Cycle
Output Control
CMOS
15pF max
10.0ns max
40/60%
Standby Operation:
Logic ‘1’ (>70% VS) to pad 1 enables oscillator output
Logic ‘0’ (<30% VS) to pad 1 disables oscillator output; when
disabled the oscillator output goes to the high impedance state
No connection to pad 1 enables oscillator output
Standby Current: 10µA max
Environmental Parameters
Storage Temperature Range: –55 to 125°C
Shock: MIL-STD-202F, Method 213B: 1000G, 0.5ms, 1/2 sine
wave
Vibration: MIL-STD-202F, Method 204D, Test Condition D:
20G (10Hz-2000Hz), 4hrs in 3 mutually perpendicular planes
(total 12hrs)
Compliance
Test Circuit
RoHS Status (2011/65/EU)
REACh Status
MSL Rating (JDEC-STD-033):
Packaging Details
Compliant
Compliant
Not Applicable
Pack Style: Bulk
Pack Size: 100
Loose in bulk pack
Alternative packing option available
Sales Office Contact Details:
UK: +44 (0)1460 270200
Germany: 0800 1808 443
France: 0800 901 383
USA: +1.760.318.2824
Email: info@iqdfrequencyproducts.com
Web: www.iqdfrequencyproducts.com
Page 1 of 2
