LFXTAL018591BULK

Description
Parallel - 5Th Overtone Quartz Crystal, 106.5MHz Nom
CategoryPassive components    Crystal/resonator
File Size763KB,1 Pages
ManufacturerIQD Frequency Products
Environmental Compliance
Download Datasheet Parametric View All

LFXTAL018591BULK Overview

Parallel - 5Th Overtone Quartz Crystal, 106.5MHz Nom

LFXTAL018591BULK Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerIQD Frequency Products
package instructionHC49, 2 PIN
Reach Compliance Codecompliant
Other featuresBULK
Ageing3 PPM/YEAR
Crystal/Resonator TypePARALLEL - 5TH OVERTONE
Drive level1000 µW
frequency stability0.005%
frequency tolerance30 ppm
load capacitance30 pF
Installation featuresTHROUGH HOLE MOUNT
Nominal operating frequency106.5 MHz
Maximum operating temperature60 °C
Minimum operating temperature-10 °C
physical sizeL11.05XB4.65XH13.46 (mm)/L0.435XB0.183XH0.53 (inch)
Series resistance70 Ω
surface mountNO

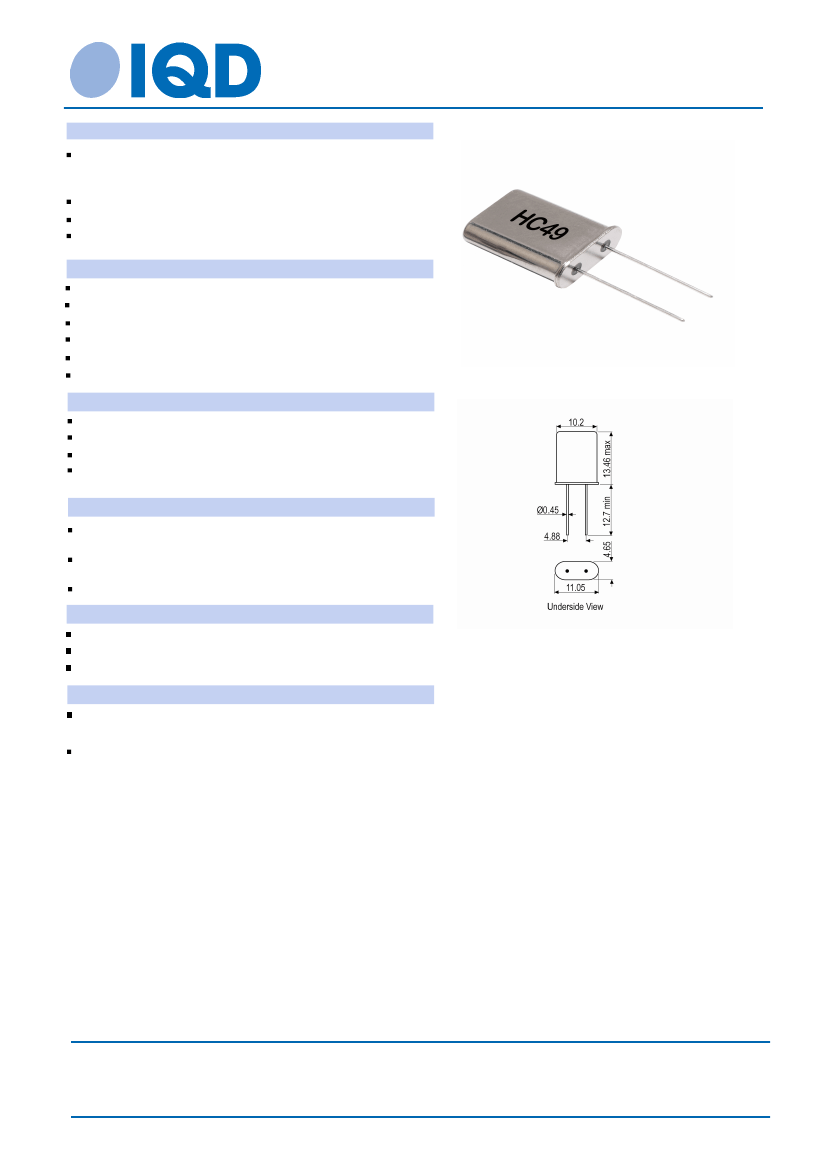

Quartz Crystal Specification
Part No. + Packaging:
LFXTAL018591Bulk
Description
Industry standard leaded package
Resistance welded, hermetically sealed in an inert atmosphere,
glass to metal seals on leads
Standard 2 leg HC49 package
Model
Model Issue number
Frequency Parameters
HC49
15
Frequency
Frequency Tolerance
Frequency Stability
Operating Temperature Range
Overtone Order
Ageing
Electrical Parameters
106.50MHz
±30.00ppm
±50.00ppm
-10.00 to 60.00°C
5TH
±3ppm typical per year
Outline (mm)
Load Capacitance
Shunt Capacitance
Drive Level
ESR
Environmental Parameters
30.00pF
7pF max
1mW max
70.00Ω max
Shock: 981m/s², 6ms, 3 times in each of 3 mutually
perpendicular planes
Vibration: 10Hz-60Hz, 0.75mm amplitude, 60Hz-500Hz,
98.1m/s², 30mins in 3 mutually perpendicular planes
Storage Temperature Range: -55 to 125°C
Compliance
RoHS Status (2011/65/EU)
REACh Status
MSL Rating (JDEC-STD-033):
Packaging Details
Compliant
Compliant
Not Applicable
Pack Style: Bulk
Pack Size: 100
Loose in bulk pack
Alternative packing option available
Sales Office Contact Details:
UK: +44 (0)1460 270200
Germany: 0800 1808 443
France: 0800 901 383
USA: +1.760.318.2824
Email: info@iqdfrequencyproducts.com
Web: www.iqdfrequencyproducts.com
Page 1 of 1
