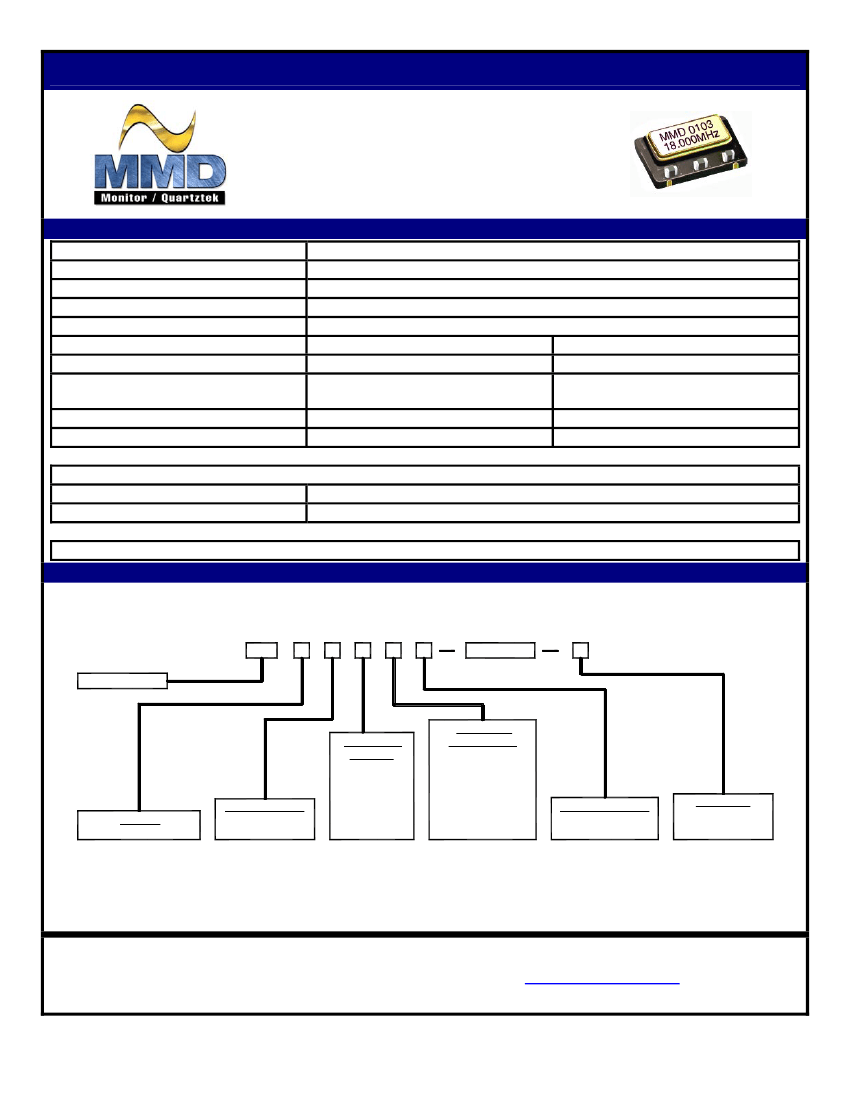

MTDS Series – 5 x 7 Ceramic SMD TCXO
Low Profile SMD TCXO
Clipped Sinewave Output
RoHS Compliant
Low Power Consumption
ELECTRICAL SPECIFICATIONS:
Frequency Range
Frequency Stability vs Temperature *
Operating Temperature Range
Storage Temperature Range
Output Type
Supply Voltage
Supply Current
Control Voltage
Output Level
Output Load
Pin 1
No Connection
Vc Option
* Inclusive of Temperature., Load, Voltage and Aging
9.600MHZ to 27.000MHZ
(See Frequency Stability vs Temperature Table)
(See Frequency Stability vs Temperature Table)
-40°C to =85°C
Clipped Sinewave
+3.30 VDC ±5%
+5.00 VDC ±5%
2.0mA max
2.0mA max
+1.65 VDC ±1.50 VDC
+2.50 VDC ±2.00 VDC
Positive Slope
Positive Slope
0.8 Vp-p min
1.0 Vp-p min
10 kΩ // 10pF
10 kΩ // 10pF
No Connection
±10 ppm min
PART NUMBER GUIDE:
MTD
5 x 7 SMD TCXO
S
Frequency
Output
S = Clipped Sinewave
Supply Voltage
3 = +3.3 VDC
5 = +5.0 VDC
Frequency
Stability
15 = ±1.5 ppm
20 = ±2.0 ppm
25 = ±2.5 ppm
30 = ±3.0 ppm
35 = ±3.5 ppm
50 = ±5.0 ppm
Operating
Temperature
A = 0°C to +50°C
B = -10°C to +60°C
C = -20°C to +70°C
D = -30°C to +70°C
E = -30°C to +80°C
F = -40°C to +85°C
G = 0°C to +70°C
Pin 1 Connection
Blank = No Connect
V = Voltage Control
Packaging
Blank = Bulk
T = Tape and Reel
Please Consult with MMD Sales Department for any other Parameters or Options
MMD Components,
30400 Esperanza, Rancho Santa Margarita, CA, 92688
Phone: (949) 709-5075, Fax: (949) 709-3536,
www.mmdcomp.com
Sales@mmdcomp.com
Specifications subject to change without notice
Revision MTD041907E

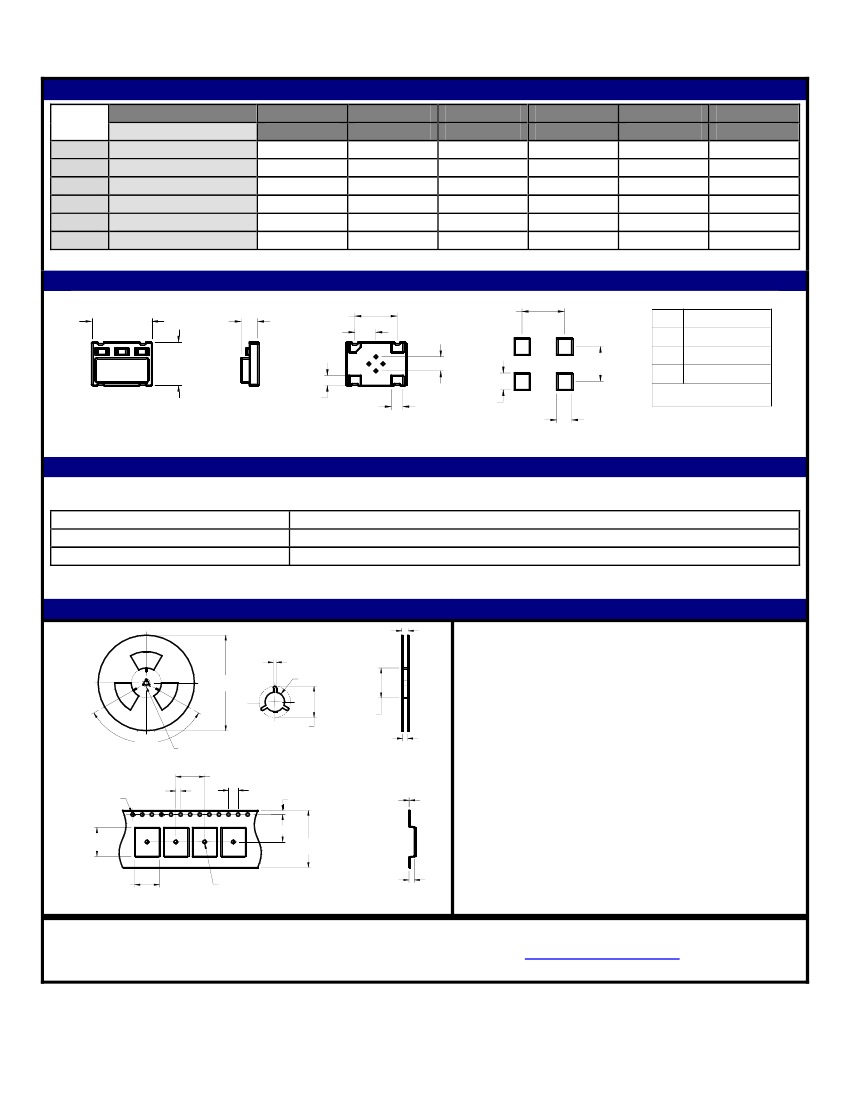

FREQUENCY STABILITY vs TEMPERATURE TABLE:
Code
A
G
C
D
E
F
Stability
15
Temp
±1.5ppm
0°C TO +50°C
●
0°C TO +70°C
-20°C TO +70°C
-30°C TO +70°C
-30°C TO +80°C
-40°C TO +85°C
●
= Available
20
±2.0ppm
●
●
25
±2.5ppm
●
●
●
●
●
30
35
50
±3.0ppm
±3.5ppm
±5.0ppm
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
= Consult with the Manufacturer
MECHANICAL DIMENSIONS:
7.20 [.283]
MAX
2.00 [.079]
MAX
5.08 [.200]
2.54 [.100]
1
5.20 [.205]
MAX
4
1.00 [.039]
1.70 [.069]
8
7
5
6
5.08 [.200]
PIN 1
PIN 2
TRI-STATE OR N/C
GROUND
OUTPUT
SUPPLY VOLTAGE
2
1.70 [.067]
3
2.00 [.079]
1.80 [.071]
RECOMMENDED LAND PATTERN
4.20 [.165]
PIN 3
PIN 4
PIN 5-8 FACTORY TEST
TERMINALS (DO NOT USE)
DIMENSIONS IN BRACKETS ARE IN INCHES
EXTERNAL BYPASS CAPACITOR IS RECOMMENDED
ENVIRONMENT / MECHANICAL:
Shock
Solderability
Vibration
MIL-STD-883, Method 2002, Condition B
MIL-STD-883, Method 2003
MIL-STD-883, Method 2007, Condition A
TAPE and DIMENSIONS:
2.76 [.109]
1.26 [.050]
40.16 [1.581]
Ø8.19 [Ø.322]
MARKING:
12.60 [.496]
13.23 [.521]
DETAIL A
DETAIL A
Line 1 =MXXXXX
M = MMD COMPONENTS
XXXXX = Frequency in MHZ
Line 2 = SYYMML
S = Internal Code
YYMM = 4 Digit Date Code (Year / Month)
L = Denotes RoHS Compliant
Line 3 = XXXXX
Internal use only
May vary with lots
120°
2.13 [.084]
12.00 [.472]
Ø1.50 [Ø.059]
2.00 [.079]
4.00 [.157]
1.75 [.069]
0.30 [.012]
11.50 [.453]
12.10 [.476]
24.00 [.945]
10.20 [.402]
Ø1.50 [Ø.059]
DIMENSION IN BRACKETS ARE IN INCHES
DRAWING NOT TO SCALE
2.20 [.087]
MMD Components,
30400 Esperanza, Rancho Santa Margarita, CA, 92688
Phone: (949) 709-5075, Fax: (949) 709-3536,
www.mmdcomp.com
Sales@mmdcomp.com
Specifications subject to change without notice
Revision MTD041907E
