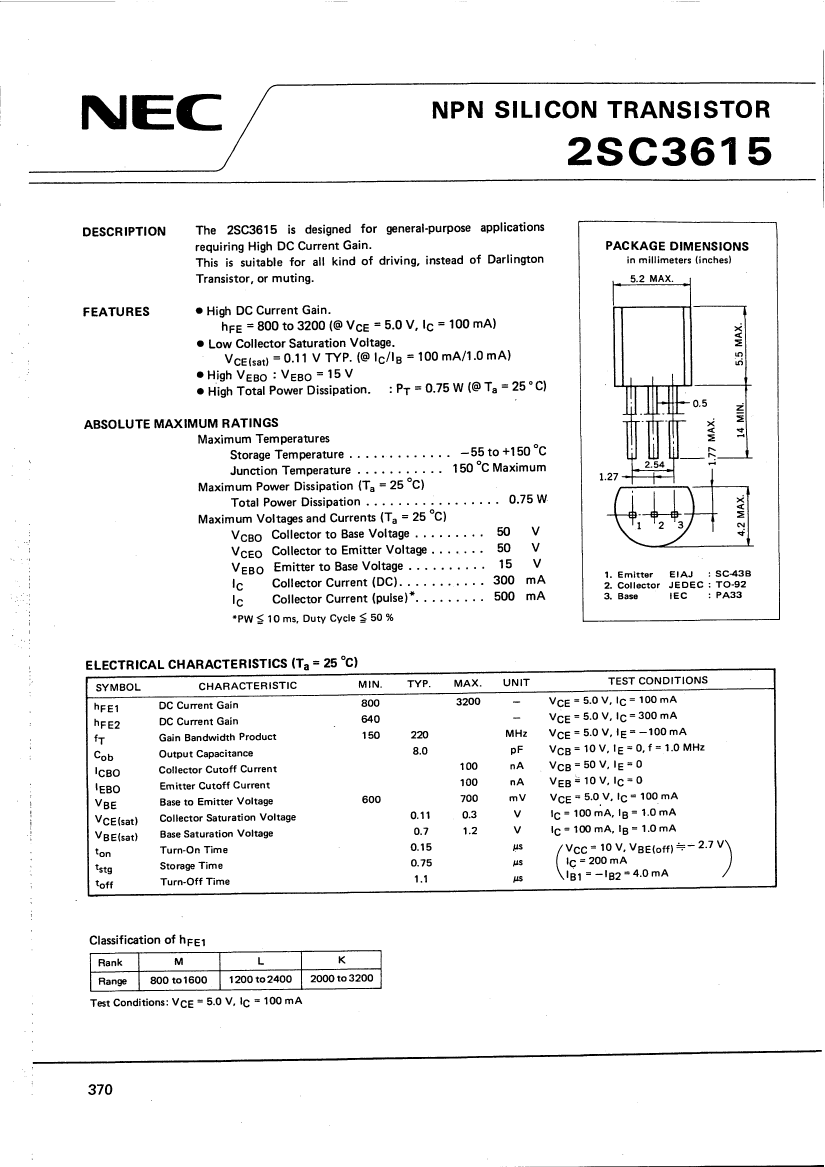

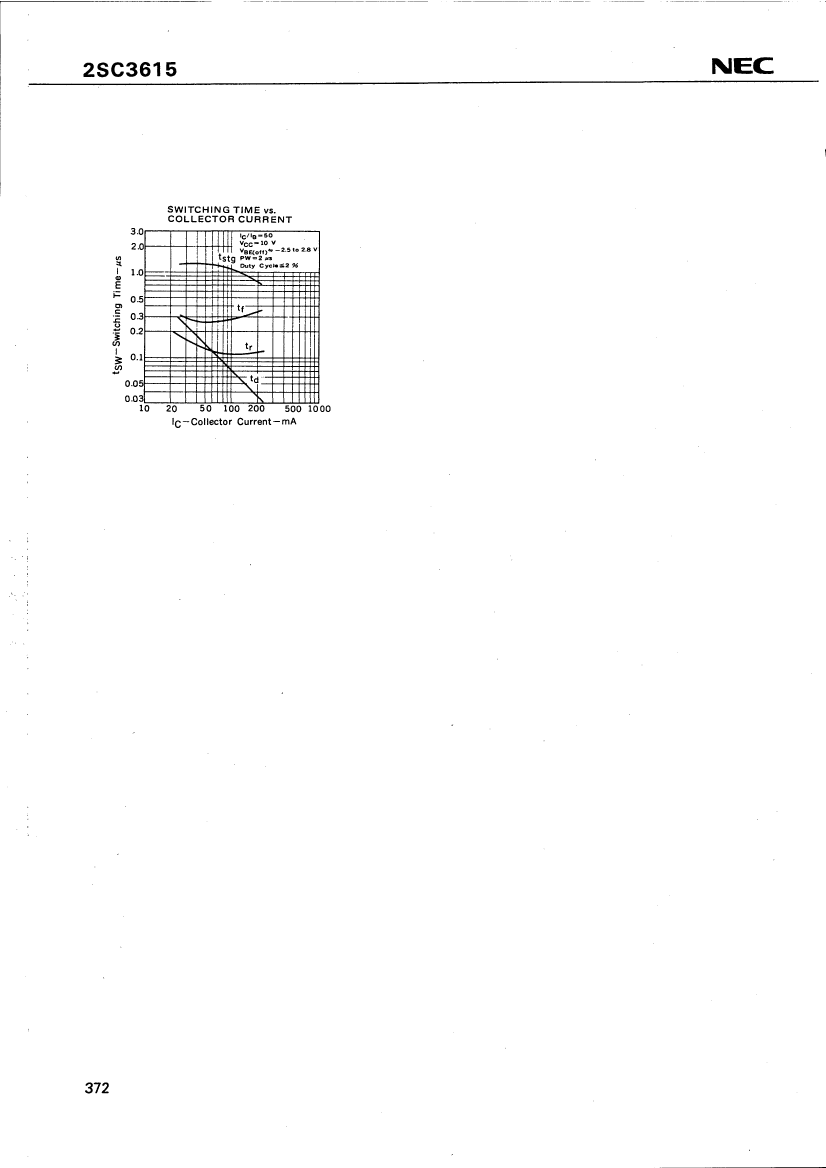

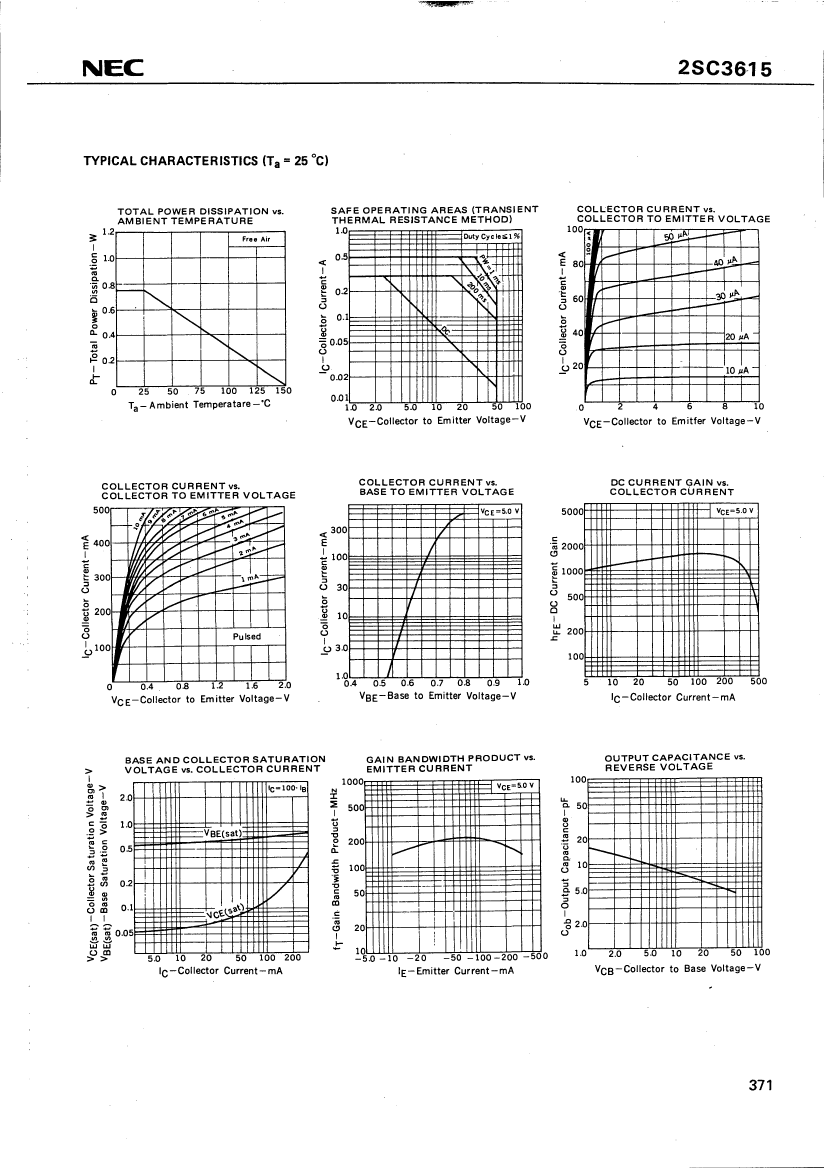

2SC3615

Description
Small Signal Bipolar Transistor, 0.3A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, SC-43B, 3 PIN
CategoryDiscrete semiconductor    The transistor
File Size164KB,3 Pages
ManufacturerNEC Electronics
Download Datasheet Parametric View All

2SC3615 Overview

Small Signal Bipolar Transistor, 0.3A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, SC-43B, 3 PIN

2SC3615 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerNEC Electronics
Parts packaging codeTO-92
package instructionCYLINDRICAL, O-PBCY-T3
Contacts3
Reach Compliance Codecompliant
ECCN codeEAR99
Maximum collector current (IC)0.3 A
Collector-emitter maximum voltage50 V
ConfigurationSINGLE
Minimum DC current gain (hFE)640
JEDEC-95 codeTO-92
JESD-30 codeO-PBCY-T3
JESD-609 codee0
Number of components1
Number of terminals3
Package body materialPLASTIC/EPOXY
Package shapeROUND
Package formCYLINDRICAL
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Polarity/channel typeNPN
Certification statusNot Qualified
surface mountNO
Terminal surfaceTIN LEAD
Terminal formTHROUGH-HOLE
Terminal locationBOTTOM
Maximum time at peak reflow temperatureNOT SPECIFIED
transistor applicationsSWITCHING
Transistor component materialsSILICON
Nominal transition frequency (fT)220 MHz
