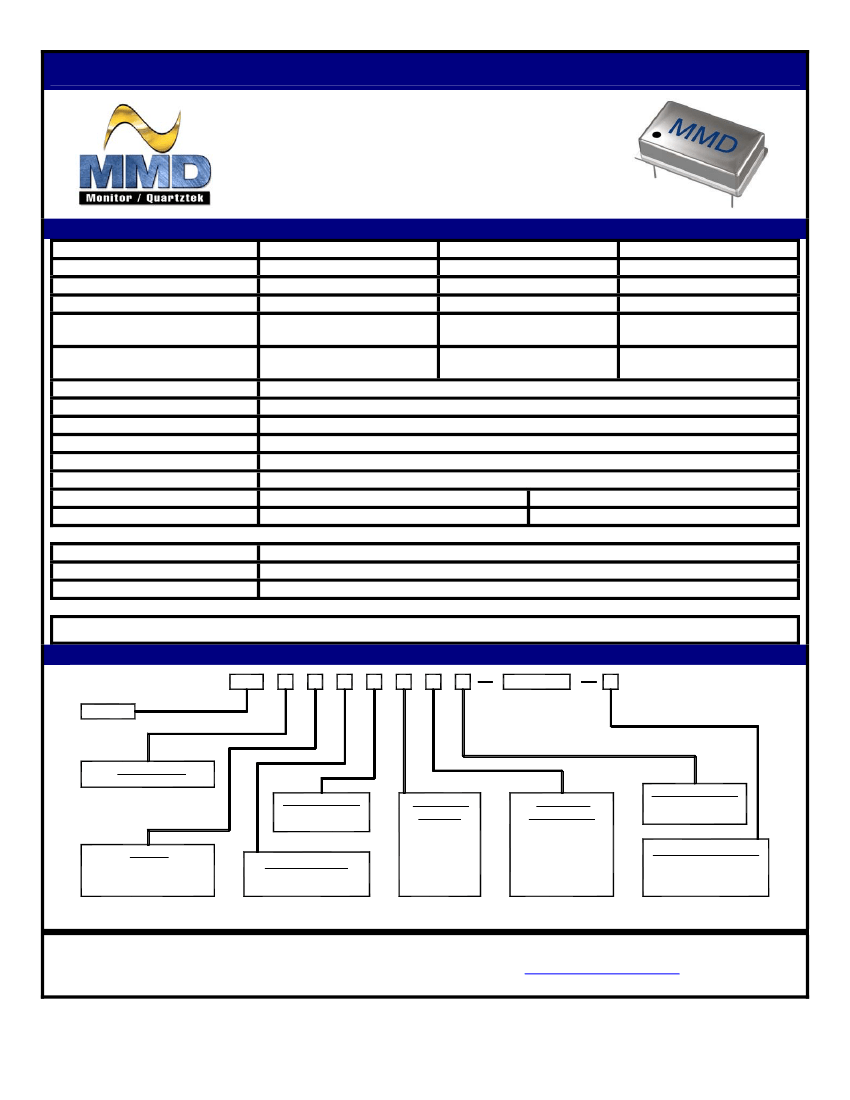

MTFH, MTFS, and MTFZ Series
Standard 14 Dip/4 Package
RoHS Compliant Available
Stability Available to ±1 ppm
Operating Voltage +3.3VDC or +5.0VDC
Wide Frequency Range
ELECTRICAL SPECIFICATIONS:
Output
Frequency Range
Load
Supply Current
Output Level
Symmetry
Freq. Stability vs Temp (Note 1)
Freq. Stability vs Aging
Freq. Stability vs Voltage
Freq. Stability vs Load
Operating Range
Storage Temperature
Supply Voltage (Vdd)
Control Voltage with VC option
Pin 1 Connection
No Connection
VC Option
HCMOS
Clipped Sinewave
Sinewave
1.000MHZ to 160.000MHZ
8.000MHZ to 160.000MHZ
8.000MHZ to 160.000MHZ
10k Ohms // 15pF
10k Ohms // 15pF
50 Ohms
35mA max
3mA max
25mA max
Logic “1” = 90% of Vdd min
1.0V p-p min
7 dBm
Logic “0” = 10% of Vdd max
40%/60% at 50% of
N/A
N/A
Waveform
(See Frequency Stability vs Temperature Table)
±1 ppm per year max
±0.3 ppm with a 5% change in Vdd
±0.3 ppm with a 10% change in Load
(See Frequency Stability vs Temperature Table)
-40°C to +85°C
+3.3VDC ±5%
+5.0VDC ±5%
+1.65VDC ±1.50VDC Positive Slope
+2.50VDC ±2.00VDC Positive Slope
No Connection
±10 ppm min
Note 1: Oscillator frequency shall be ±1 ppm at +25°C ±3°C at time of shipment.
PART NUMBER GUIDE:
MT
14 pin DIP
F
Frequency
Series Option
F = F Series (w/o Trimmer)
Supply Voltage
5 = +5 VDC
3 = +3.3 VDC
Output
H = HCMOS
S = Clipped Sinewave
Z = Sinewave
Frequency
Stability
10 = ±1.0 ppm
15 = ±1.5 ppm
20 = ±2.0 ppm
25 = ±2.5 ppm
30 = ±3.0 ppm
50 = ±5.0 ppm
Operating
Temperature
A = 0°C to +50°C
C = -20°C to +70°C
D = -30°C to +70°C
E = -30°C to +80°C
F = -40°C to +85°C
G = 0°C to +70°C
Pin 1 Connection
Blank = No Connect
V = Voltage Control
Value Added Options
G = Gull-Wing
CLXXX = Cut Leads
XXX = lead length code
RoHS Compliant
Blank = Not Compliant
F = is Compliant
Please Consult with MMD Sales Department for any other Parameters or Options
MMD Components,
30400 Esperanza, Rancho Santa Margarita, CA, 92688
Phone: (949) 709-5075, Fax: (949) 709-3536,
www.mmdcomp.com
Sales@mmdcomp.com
Specifications subject to change without notice
Revision MTFH020907F
FREQUENCY STABILITY vs TEMPERATURE TABLE:
Code
A
G
C
D
F
Stability
10
Temp
±1.0ppm
0°C TO +50°C
●
0°C TO +70°C
-20°C TO +70°C
-30°C TO +70°C
-40°C TO +85°C
●
= Available
15
±1.5ppm
●
●
20
±2.0ppm
●
●
●
25
30
50
±2.5ppm
±3.0ppm
±5.0ppm
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
= Consult with the Manufacturer
MECHANICAL DIMENSIONS:
20.70 [.815]
MAX
7.50 [.295]
15.24 [.600]
.80 [.031]
8
7
14
PIN CONNECTIONS
VOLTAGE CONTROL OR
PIN 1
NO CONNECTION
PIN 7
CASE GROUND
PIN 8
OUTPUT
PIN 14
SUPPLY VOLTAGE
13.10 [.516]
MAX
7.62 [.300]
1
6.35 [.250]
.46 [.018]
DIMENSIONS IN BRACKERS ARE IN INCHES
EXTERNAL BYPASS CAPACITOR IS RECOMMENDED
ENVIRONMENT / MECHANICAL:
Shock
Solderability
Solvent Resistance
Vibration
Gross Leak Test
Fine Leak Test
MIL-STD-883, Method 2002, Condition B
MIL-STD-883, Method 2003
MIL-STD-202, Method 215
MIL-STD-883, Method 2007, Condition A
MIL-STD-883, Meth 1014, Cond C
MIL-STD-883, Meth 1014, Cond A
MARKING:
Line 1 =MXXXXX
M = MMD COMPONENTS
XXXXX = Frequency in MHZ
Line 2 = SYYMML
S = Internal Code
YYMM = 4 Digit Date Code (Year / Month)
L = Denotes RoHS Compliant
Line 3 = XXXXX
Internal use only
May vary with lots
Black dot to denote Pin 1
PHASE NOISE:
PHASE NOISE PLOT
COMING SOON
MMD Components,
30400 Esperanza, Rancho Santa Margarita, CA, 92688
Phone: (949) 709-5075, Fax: (949) 709-3536,
www.mmdcomp.com
Sales@mmdcomp.com
Specifications subject to change without notice
Revision MTFH020907F
