Spec Sheet
CERAMIC CAPACITORS
High Value Multilayer Ceramic Capacitors (High dielectric type)
LMK042B7102KC-W
Features
Item Summary
10V, X7R, 1000pF, ±10%, 01005
Lifecycle Stage
Mass Production
Standard packaging quantity (minimum)
Taping Embossed 40000pcs
Products characteristics table
CaseSize (EIA/JIS)
Rated Voltage (max)
Capacitance
Capacitance Tolerance
Temperature Characteristics (EIA/JIS)
Temperature Range (EIA/JIS)
Capacitance Change (EIA/JIS)
Dielectric Loss Tangent
Resistance
RoHS Compliance
Halogen Free
Soldering Method
01005/0402
10V
1000pF
±10%
X7R/-
-55 to +125℃/-
±15/-%
5%MAX
10,000 MΩ min.
Yes
Yes
Reflow
External Dimensions
L
W
T
e
0.4mm ±0.02
0.2mm ±0.02
0.2mm ±0.02
0.1mm ±0.03
2015.07.09
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the Date at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)
Multi Layer Ceramic Capacitor
○LMK042B7102KC
10V 0402 X7R 1000pF +/- 10% t=0.22mmMAX
10V 01005 X7R 1000pF +/- 10% t=0.009inchMAX

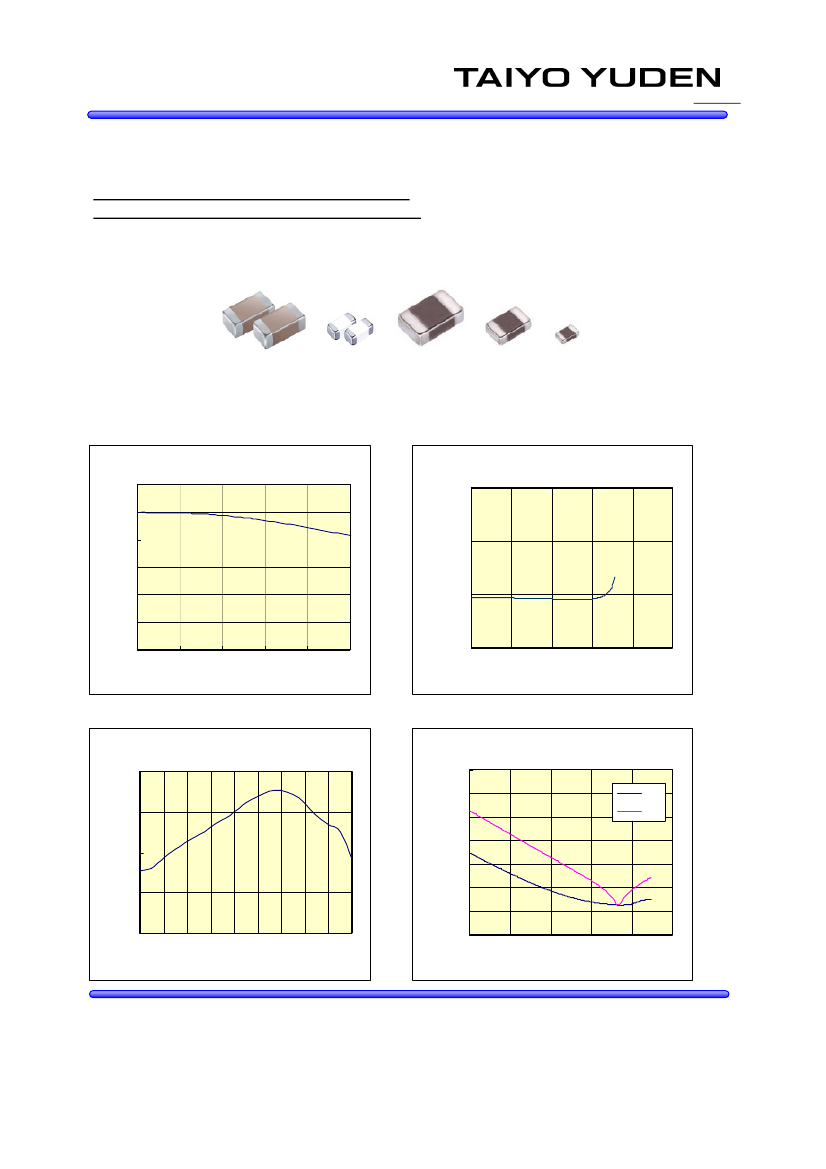

-Electrical Characteristics Data-
13SA05
RoHS compliance product
10
0
LMK042B7102KC
DC Bias Char.
100000
LMK042B7102KC
Capacitance Freq.
Capacitance[pF]
-10
dC/C[%]
-20
-30
-40
-50
0
2
4
6
DC Bias Voltage[V]
8
10
10000
1000
100
0.1
1
10
100
1000
Frequency[MHz]
10000
LMK042B7102KC
Capacitance Temp.
10
100000
10000
LMK042B7102KC
Impedance,ESR Freq.
ESR
Z
0
Z,ESR[OHM]
-55 -35 -15
5 25 45 65 85 105 125
Temperature[degreeC]
dC/C[%]
1000
100
10
1
0.1
-10
-20
-30
0.01
0.1
1
10
100
1000
Frequency[MHz]
10000
部品特性は設½環境、測定条件等により変化する場合があります。本データをご½用される際は実際の½品特性に対する参考
データとしてご活用ください。また、本データは予告無く½加½削除及び変更を行う場合があります。ご注文の際は、納入仕様書の
ご確認をお願いします。
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the Date at any time without notice.
Before making final selection, please check product specification
