High Value Multilayer Ceramic Capacitors (High dielectric type)
LMK107BJ225KK-T
Features
Item Summary
2.2uF±10%, 10V,
X5R, 0603/1608 (EIA/JIS)
Lifecycle Stage
Mass Production
Standard packaging quantity (minimum)
Taping paper 4000pcs
Products characteristics table
Capacitance
Case Size (EIA/JIS)
Rated Voltage
tanδ (max)
Temperature Characteristic (EIA)
Operating Temp. Range (EIA)
High Temperature Loading
(% Rated Voltage)
Insulation Resistance (min)
RoHS2 Compliance (10 subst.)
REACH Compliance (181 subst.)
Halogen Free
Soldering
100 MΩ·μF
Yes
Yes
Yes
Reflow
2.2 uF ± 10 %
0603/1608
10 V
10 %
X5R
-55 to +85 ℃
150 %
External Dimensions
Dimension L
Dimension W
Dimension T
Dimension e
1.6 ±0.10 mm
0.8 ±0.10 mm
0.45 ±0.05 mm
0.35 ±0.25 mm
2018.03.09
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)
Multi Layer Ceramic Capacitor
○LMK107BJ225KK
10V 1608 X5R 2.2uF +/- 10% t=0.5mmMAX
10V 0603 X5R 2.2uF +/- 10% t=0.02inchMAX
1000

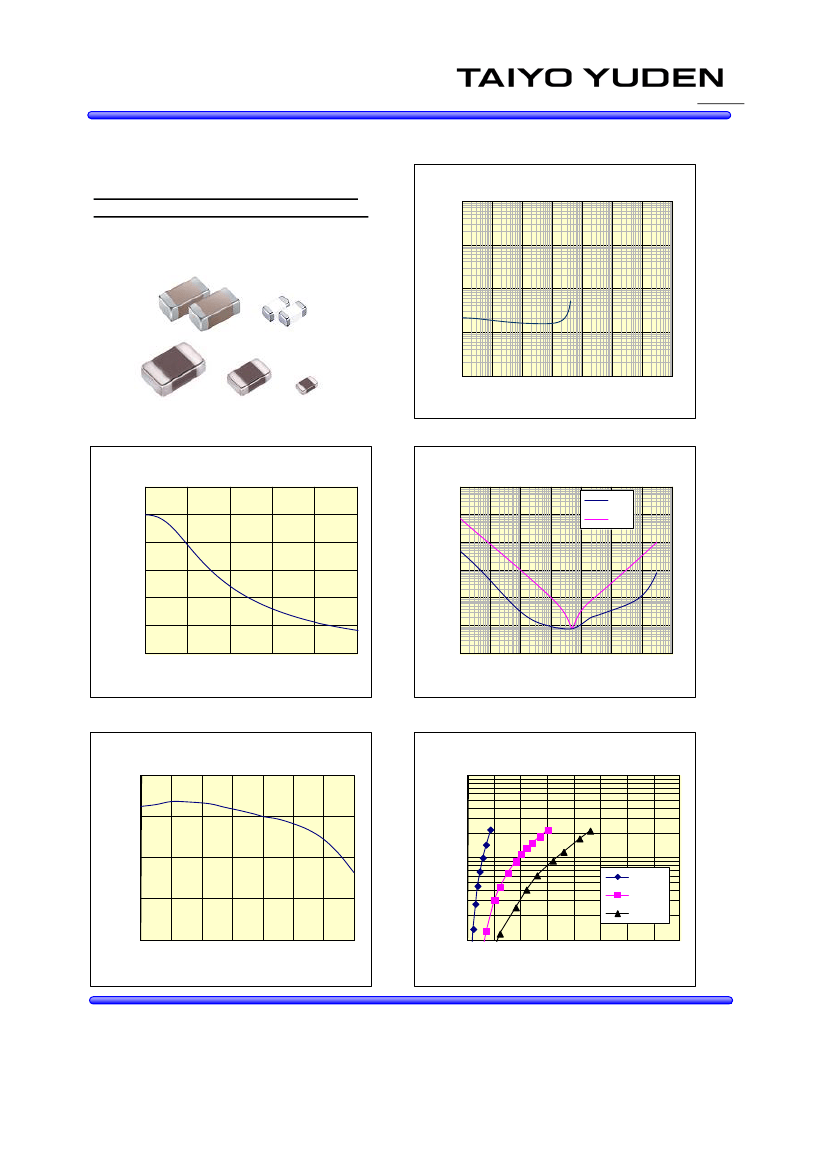

-Electrical Characteristics Data-
16SA03
RoHS compliance product
LMK107BJ225KK
Capacitance Freq.
100
Capacitance[uF]
10
1
0.1
0.001 0.01
0.1
1
10 100 1000 10000
Frequency[MHz]
LMK107BJ225KK
DC Bias Char.
20
1000
LMK107BJ225KK
Impedance,ESR Freq.
ESR
0
-20
100
Z
-40
-60
-80
-100
0
2
4
6
8
DC Bias Voltage[V]
10
Z,ESR[OHM]
10
1
dC/C[%]
0.1
0.01
0.001
0.001 0.01
0.1
1
10 100 1000 10000
Frequency[MHz]
LMK107BJ225KK
Capacitance Temp.
10
100
LMK107BJ225KK
Ripple Current
-10
dTemp.[degreeC]
0
dC/C[%]
10
10kHz
100kHz
1MHz
-20
-30
-55
-35
-15
5
25
45
Temperature[degreeC]
65
85
1
0
0.5
1
1.5 2 2.5 3
Ripple Current[Arms]
3.5
4
