PA2607.301HL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> PA2607.301HL

PA2607.301HL: DescriptionGeneral Purpose Inductor, 0.3uH, 15%, 1 Element, SMD, ROHS COMPLIANT; CategoryPassive components inductor; File Size322KB，2 Pages; ManufacturerPulse Electronics

Download Datasheet Parametric View All

PA2607.301HL Overview

General Purpose Inductor, 0.3uH, 15%, 1 Element, SMD, ROHS COMPLIANT

PA2607.301HL Parametric

Parameter Name	Attribute value
Maker	Pulse Electronics
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
DC Resistance	0.00029 Ω
Nominal inductance(L)	0.3 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	PA2607NL
Number of functions	1
Number of terminals	2
Maximum operating temperature	130 °C
Minimum operating temperature	-40 °C
Maximum rated current	41 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	DCR IS MEASURED AT 7% TOLERANCE
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Tolerance	15%

Preview

Download Datasheet

View All

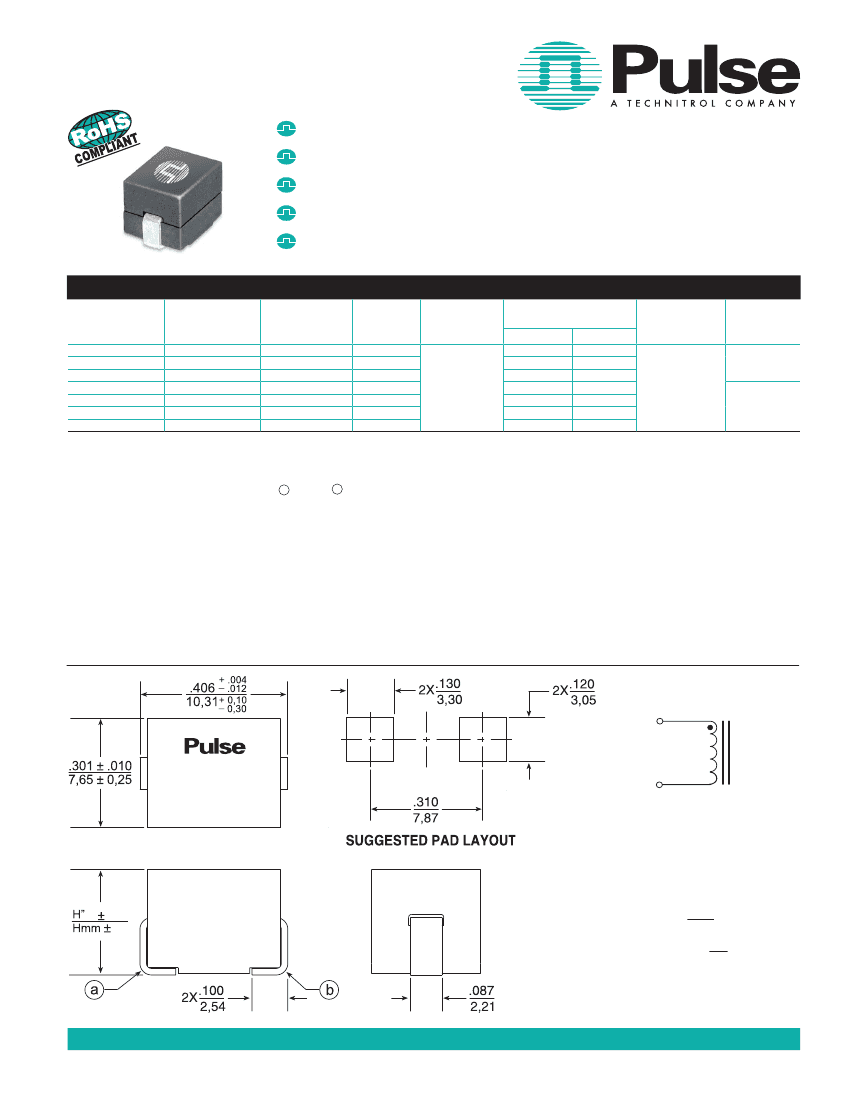

smt POWer inductOrs

Power Beads - PA2607NL Series

Current Rating:

Over 90Apk

Inductance Range:

120nH to 300nH

Height:

7.5mm and 7.6mm Max

Footprint:

10.4mm x 7.9mm Max

Available in Halogen Free

electrical specifications @ 25°c — Operating temperature - 40°c to +130°c

Part

Number

PA2607.121NL

PA2607.151NL

PA2607.181NL

PA2607.211NL

PA2607.231NL

PA2607.271NL

PA2607.301NL

Inductance

@ 0A

(nH +/- 15%)

115

150

175

215

230

270

300

Inductance

@Irated

(nH TYP)

115

150

175

195

208

241

260

Irated

)

DCR

(mW nominal)

Saturation Current

(A TYP)

25°C

100°C

Heating Current

(A TYP)

Height

mm*

(inches)

7.4*

(.291)

0.29 +/- 7%

7.3*

(.287)

NOTES:

1. The rated current as listed is either the saturation current or the heating

current depending on which value is lower.

2. The nominal DCR is measured from point a to point b , as shown below

on the mechanical drawing.

3. The saturation current is the typical current which causes the induc-

tance to drop by 20% at the stated ambient temperatures (25°C and

100°C). This current is determined by placing the component in the

specified ambient environment and applying a short duration pulse current

(to eliminate self-heating effects) to the component.

4. The heating current is the DC current which causes the part temperature

to increase by approximately 40°C.

5. In high volt*time applications, additional heating in the component can

occur due to core losses in the inductor which may neccessitate derat-

ing the current in order to limit the temperature rise of the component. To

determine the approximate total losses (or temperature rise) for a given

application, the coreloss and temperature rise curves can be used.

6. Optional Tape & Reel packaging can be ordered by adding a “T” suf-

fix to the part number (i.e. PA2607.211NL becomes PA2607.211NLT).

Pulse complies to industry standard tape and reel specification EIA481.

The tape and reel for this product has a width (W=24mm), pitch

(Po=16.0mm) and depth (Ko=7.6mm).

7. The temperature of the component (ambient plus temperature rise) must

be within the stated operating temperature range.

8. To order the halogen free version of this part replace the NL (or NLT)

suffix with HL (or HLT).

mechanical

schematic

PA2607.XXXNL

D/C

CTRY

Weight

. . . . . . . . . . . 2.4 grams

Tape & Reel

. . . . . . . . 400/reel

.008

0.2

Dimensions:

Inches

Unless otherwise specified,

all tolerances are ± .010

0,25

USA 858 674 8100 • Germany 49 7032 7806 0 • Singapore 65 6287 8998 • Shanghai 86 21 54643211 / 2 • China 86 755 33966678 • Taiwan 886 3 4643715

www.pulseeng.com

P673.E (10/09)
