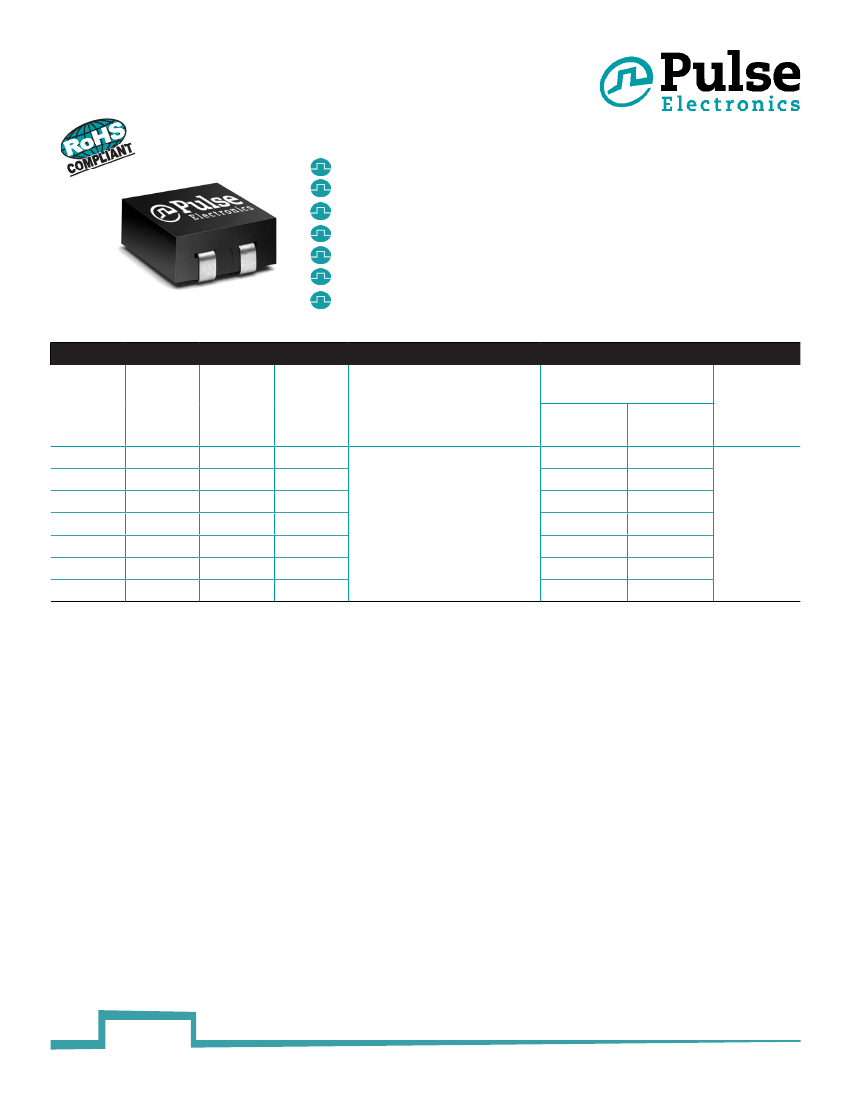

SMT Power Inductors
Power Beads - PA3146.XXXHL Series
Two non-coupled inductors integrated into a single package
Less board space and lower cost than two separate inductors
Current Rating:
Over 94Apk
Inductance Range:
115µH to 300µH
Height:
7.6mm Max
Footprint:
13.7mm x 10.5mm
Halogen Free
Electrical Specifications @ 25°C - Operating Temperature -40°C to +130°C
7
Inductance
@ 0A
DC
(nH
±15%)
115
150
175
215
230
270
300
Inductance
@ Irated
(nH
TYP)
115
150
175
215
230
270
240
Saturation Current
3
(A TYP)
Irated
1
(A
DC
)
30
30
30
30
30
30
28
0.29
±
10%
(per phase)
DCR
2
(mΩ nominal)
25°C
94
72
62
48
43
37
32
100°C
78
60
52
43
39
33
28
30A/phase
Heating Current
(A TYP)
Part
Number
PA3146.121HL
PA3146.151HL
PA3146.181HL
PA3146.211HL
PA3146.231HL
PA3146.271HL
PA3146.301HL
Notes:
1. The rated current as listed is either the saturation current or the heating current depending
on which value is lower.
2. The nominal DCR is measured from point a to point b , as shown below on the mechanical
drawing.
3. The saturation current is the typical current which causes the inductance to drop by 20% at the
stated ambient temperatures (25°C and 100°C). This current is determined by placing the
component in the specified ambient environment and applying a short duration pulse current
(to eliminate self- heating effects) to the component.
4. The heating current is the DC current which causes the part temperature to increase by
approximately 40°C.
5. In high volt*time applications, additional heating in the component can occur due
to core losses in the inductor which may necessitate derating the current in order to
limit the temperature rise of the component. To determine the approximate total
losses (or temperature rise) for a given application, the core loss and temperature
rise curves can be used.
6. Optional Tape & Reel package can be ordered by adding a “T” suffix to the part
number (i.e. PA3146.211HL becomes PA3146.211HLT). Pulse complies to industry
standard tape and reel specification EIA481. The tape and reel for this product has a
width (W=24mm), pitch (Po=16.0mm) and depth (Ko=7.8mm).
7. The temperature of the component (ambient plus temperature rise) must be within
the stated operating temperature range.
USA 858 674 8100
1
Germany 49 7032 7806 0
Singapore 65 6287 8998
Shanghai 86 21 62787060
China 86 755 33966678
Taiwan 886 3 4356768
P709.B (02/16)
pulseelectronics.com
SMT Power Inductors
Power Beads - PA3146.XXXHL Series

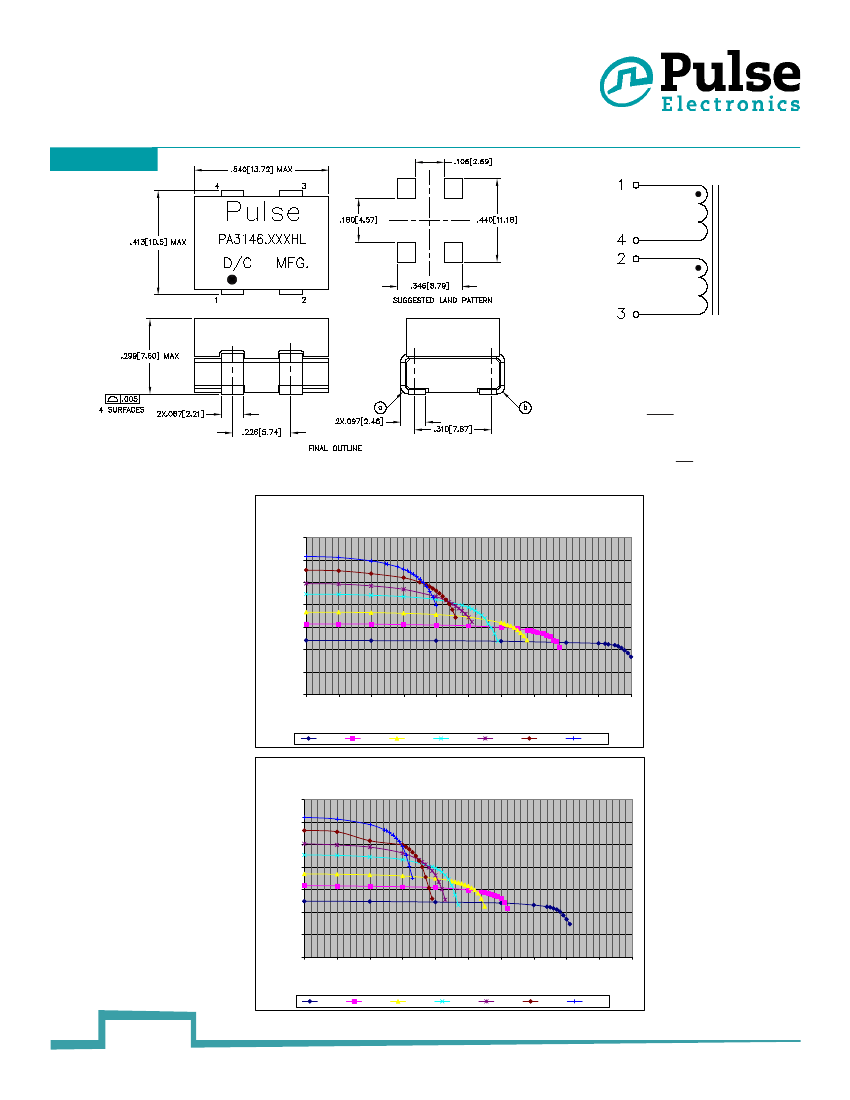

Mechanical
PA3146.XXXHL
Schematics
Typical Inductance vs DC Bias
PA3146.XXXHL L vs I curve at 25C
Weight
.............................4.1grams
Tape & Reel
........................400/reel
Dimensions:
Inches
mm
Unless otherwise specified,
all tolerances are
±
.010
0,25
350
300
Inductance (nH)
250
200
150
100
50
0
0
10
20
30
40
50
Current I (A)
121HL
151HL
181HL
211HL
231HL
271HL
301HL
60
70
80
90
100
PA3146.XXXHL L vs I curve at 100C
350
300
250
200
150
100
50
0
0
10
20
30
40
50
Current I (A)
121HL
151HL
181HL
211HL
231HL
271HL
301HL
Inductance (nH)
60
70
80
90
100
2
pulseelectronics.com
P709.B (02/16)
SMT Power Inductors
Power Beads - PA3146.XXXHL Series

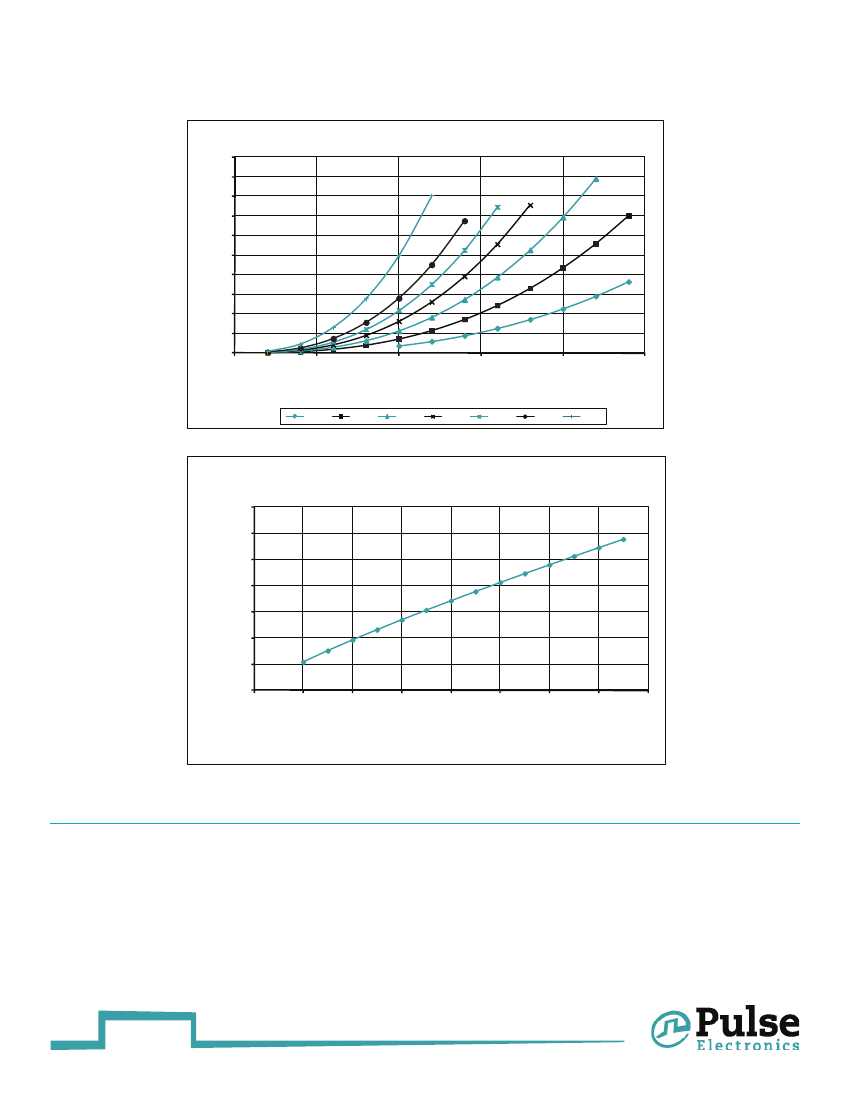

PA3146.XXXNL CoreLoss (W)
1.0
0.9
0.8
0.7
CoreLoss (W)
1.0kHz
700kHz
600kHz
500kHz
400kHz
300kHz
0.6
0.5
0.4
0.3
0.2
0.1
0.0
0
500
1000
1500
2000
2500
200kHz
DeltaB
where DeltaB = .37 * L_per_phase (nH) * DeltaI
200kHz
300kHz
400kHz
500kHz
600kHz
700kHz
1.0MHz
PA3146.xxxNL Temp Rise vs Power Dissipation
70
Temp Rise above Ambient (C)
60
50
40
30
20
10
0
0
0.2
0.4
0.6
0.8
1
1.2
1.4
1.6
Total Power Dissipation (W) = CopperLoss + CoreLoss
CopperLoss = 2*(Irms_per_phase)^2 * (Rdc(mOhms)_per_phase) / 1000
CoreLoss = (from table)
For More Information
Pulse Worldwide
Headquarters
12220 World Trade Drive
San Diego, CA 92128
U.S.A.
Pulse China Headquarters
Pulse North China
Pulse South Asia
Pulse North Asia
B402, Shenzhen Academy of
Room 2704/2705
135 Joo Seng Road
3F, No. 198
Aerospace Technology Bldg.
Super Ocean Finance Ctr.
#03-02
Zhongyuan Road
10th Kejinan Road
2067 Yan An Road West
PM Industrial Bldg.
Zhongli City
High-Tech Zone
Shanghai 200336
Singapore 368363
Taoyuan County 320
Nanshan District
China
Taiwan R. O. C.
Shenzhen, PR China 518057
Tel: 886 3 4356768
Tel: 858 674 8100
Tel: 49 7032 7806 0
Tel: 86 755 33966678
Tel: 86 21 62787060
Tel: 65 6287 8998
Fax: 886 3 4356823 (Pulse)
Fax: 858 674 8262
Fax: 49 7032 7806 135
Fax: 86 755 33966700
Fax: 86 2162786973
Fax: 65 6287 8998
Fax: 886 3 4356820 (FRE)
Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product names mentioned herein may be
trademarks or registered trademarks of their respective owners. © Copyright, 2016. Pulse Electronics, Inc. All rights reserved.
Pulse Europe
Einsteinstrasse 1
D-71083 Herrenberg
Germany
3
pulseelectronics.com
P709.B (02/16)
