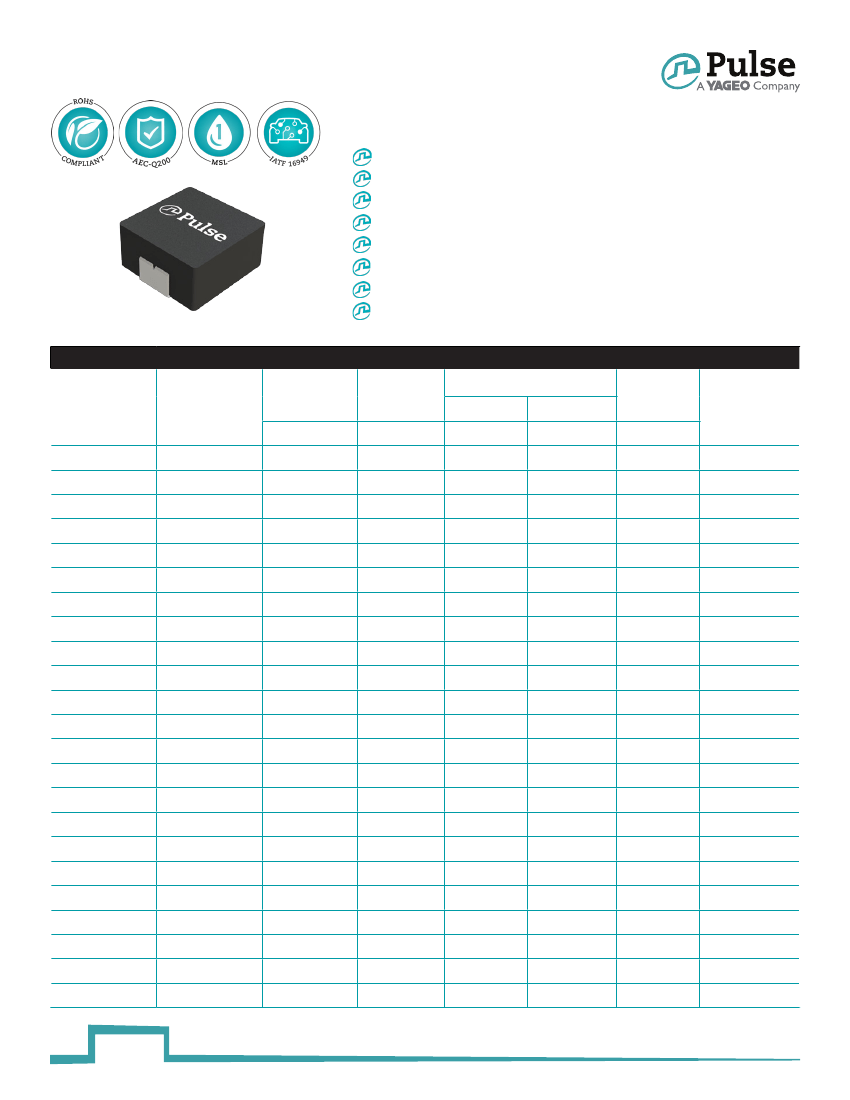

SMT Power Inductors
High Current Molded Power Inductor - PA4343.XXXNLT & PM4343.XXXNLT Series
Height:
6.5mm Max
Footprint:
14.0mm x 12.8mm Max
Current Rating:
up to 55.0A
Inductance Range:
0.15uH to 47.0uH
Shielded construction and compact design
High current, low DCR, and high efficiency
Minimized acoustic noise and minimized leakage flux
200Vdc Isolation between terminal and core
Electrical Specifications @ 25°C - Operating Temperature -40°C to +125°C
Commercial
6,7
PA4343.151NLT
PA4343.221NLT
PA4343.301NLT
PA4343.331NLT
PA4343.361NLT
PA4343.401NLT
PA4343.451NLT
PA4343.471NLT
PA4343.501NLT
PA4343.561NLT
PA4343.681NLT
PA4343.821NLT
PA4343.102NLT
PA4343.142NLT
PA4343.152NLT
PA4343.182NLT
PA4343.222NLT
PA4343.272NLT
PA4343.332NLT
PA4343.472NLT
PA4343.562NLT
PA4343.682NLT
PA4343.822NLT
1
Automotive
6,7
PM4343.151NLT
PM4343.221NLT
PM4343.301NLT
PM4343.331NLT
PM4343.361NLT
PM4343.401NLT
PM4343.451NLT
PM4343.471NLT
PM4343.501NLT
PM4343.561NLT
PM4343.681NLT
PM4343.821NLT
PM4343.102NLT
PM4343.142NLT
PM4343.152NLT
PM4343.182NLT
PM4343.222NLT
PM4343.272NLT
PM4343.332NLT
PM4343.472NLT
PM4343.562NLT
PM4343.682NLT
PM4343.822NLT
Inductance
5
100KHz, 1V
uH±20%
0.15*
0.22
0.3
0.33
0.36
0.4
0.45
0.47
0.5
0.56
0.68
0.82
1
1.4
1.5
1.8
2.2
2.7
3.3
4.7
5.6
6.8
8.2
Rated
Current
A
55
53
48
46
45
44
42
41
40
37
35
33
30
27
27
27
22
20
18
13.5
12.5
11.5
10.5
DC Resistance
TYP.
mΩ
0.49
0.47
0.6
0.65
0.7
0.7
0.9
0.9
0.92
1.05
1.25
1.5
1.7
2.1
2.5
3.6
3.8
4.3
5.7
7
8.5
9.5
12
MAX.
mΩ
0.6
0.6
0.72
0.8
0.9
1
1.2
1.2
1.25
1.2
1.5
1.9
2.3
2.6
3
4
4.2
5.5
6.8
8.4
10
11.5
15.5
Saturation
Current
A
118
112
72
68
66
64
63
63
60
58
55
50
48
46
45
40
37
32
30
28
23
18
15.5
Mechanical
Footprint 1
Footprint 1
Footprint 1
Footprint 1
Footprint 1
Footprint 1
Footprint 1
Footprint 1
Footprint 1
Footprint 1
Footprint 1
Footprint 1
Footprint 1
Footprint 1
Footprint 1
Footprint 2
Footprint 2
Footprint 2
Footprint 2
Footprint 2
Footprint 2
Footprint 2
Footprint 2
power.pulseelectronics.com
P770. I (05/19)
http://www.power.pulseelectronics.com/contact
SMT Power Inductors
High Current Molded Power Inductor - PA4343.XXXNLT & PM4343.XXXNLT Series
Electrical Specifications @ 25°C - Operating Temperature -40°C to +125°C
Commercial
6,7
PA4343.103NLT
PA4343.133NLT
PA4343.153NLT
PA4343.223NLT
PA4343.333NLT
PA4343.473NLT
Automotive
6,7
PM4343.103NLT
PM4343.133NLT
PM4343.153NLT
PM4343.223NLT
PM4343.333NLT
PM4343.473NLT
Inductance
100KHz, 1V
uH±20%
10
13
15
22
33
47
Rated
Current
A
10
9
9
9
8
6.5
DC Resistance
TYP.
mΩ
13.2
21
23.2
32.5
48
76
MAX.
mΩ
16.5
24
28
37
58
90
Saturation
Current
A
15.5
13
12.5
12
11
9.5
Mechanical
Footprint 2
Footprint 2
Footprint 2
Footprint 2
Footprint 2
Footprint 2
Notes:
1. Actual temperature of the component during system operation (ambient plus
temperature rise) must be within the standard operating range.
2. The saturation current is the current at which the initial inductance drops approxi-
mately 30% at the stated ambient temperature. This current is determined by placing
the compnent in the specified ambient environment and applying a short duration
pulse current (to eliminate self-heating effect) to the component.
3. The rated current is the DC current required to raise the component temperature by
approximately 40½C. Take note that the components’ performanc varies depending
on the system condition. It is suggested that the component be tested at the system
level, to verify the temperature rise of the component during system operation.
4. The part temperature (ambient+temp rise) should not exceed 125½C under worst
case operating conditions. Circuit design, PCB trace size and thickness, airflow and
5.
6.
7.
other cooling provisions all affect the part temperature. Part temperature should be
verified in the end application.
Please note that the inductance tolerance of all parts are ±20%, except .151NLT which
is ±30%.
Parts shown in bold are standard catalog parts and are available through sample
stock and distribution. Parts in lighter font are available but are not necessarily held
in sample stock or distribution
and lead times may be longer.
Please contact Pulse
for availablity.
The PA4343.XXXNLT and PM4343.XXXNLT are both AEC-Q200 qualified. The PM4546.
XXXNLT part numbers are also IATF16949 certified. The mechanical dimensions are
100% tested in production but do not necessarily meet a product capability index
(Cpk) 1.33 and therefore the PM4546.XXXNLT may not strictly conform to PPAP.
Mechanical
PA4343/PM4343
Final Layout
Series
PA4343/PM4343
PA4343/PM4343
All Dimensions in mm.
Mechanical
Footprint 1
Footprint 2
A
14.0 Max
14.0 Max
B
12.8 Max
12.8 Max
C
6.5 Max
6.5 Max
D
(4.0)
(4.7)
E
(8.9)
(8.9)
SUGGESTED PAD LAYOUT
F
(4.3)
(5.0)
G
(3.1)
(3.1)
H
(8.0)
(8.0)
2
power.pulseelectronics.com
P770. I (05/19)
http://www.power.pulseelectronics.com/contact
SMT Power Inductors
High Current Molded Power Inductor - PA4343.XXXNLT & PM4343.XXXNLT Series
TAPE & REEL INFO
Marking
Marking
W
A
K
0
P
1
G
Direction of tape
SURFACE MOUNTING TYPE, REEL/TAPE LIST
REEL SIZE (mm)
A
PA4343/PM4343
Ø330
G
24
P
1
16
TAPE SIZE (mm)
W
24
K
0
7.0
QTY
PCS/REEL
500
For More Information
Pulse Worldwide
Pulse Europe
Headquarters
Pulse Electronics GmbH
15255 Innovation Drive Ste 100
Am Rottland 12
San Diego, CA 92128
58540 Meinerzhagen
U.S.A.
Germany
Pulse China Headquarters
Pulse Electronics (ShenZhen) CO., LTD
D708, Shenzhen Academy of
Aerospace Technology,
The 10th Keji South Road,
Nanshan District, Shenzhen,
P.R. China 518057
Tel: 86 755 33966678
Fax: 86 755 33966700
Pulse North China
Room 2704/2705
Super Ocean Finance Ctr.
2067 Yan An Road West
Shanghai 200336
China
Tel: 86 21 62787060
Fax: 86 2162786973
Pulse South Asia
3 Fraser Street
0428 DUO Tower
Singapore 189352
Pulse North Asia
1F., No.111 Xiyuan Rd
Zhongli City
Taoyuan City 32057
Taiwan (R.O.C)
Tel: 858 674 8100
Fax: 858 674 8262
Tel: 49 2354 777 100
Fax: 49 2354 777 168
Tel: 65 6287 8998
Fax: 65 6280 0080
Tel: 886 3 4356768
Fax: 886 3 4356820
