This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
Pressure Sensor Specification:
Properties
Measurement range
Absolute accuracy
Total accuracy
Sensitivity (digital)
Sensitivity (analog)
Repeatability
Nonlinearity
Resolution (ADC)
Resolution (DAC)
Response time
Long term drift
P
RANGE
ACC
P_ABS
ACC
P_TOT
SEN
P
SEN
P_AN
ACC
P_REP
ACC
P_NL
RES
P
RES
P_DAC
t
RESP
ACC
P_DRIFT
per year
-0.3 %FSS
T = 25 °C
T = 0 to 70 °C
Test conditions
Value
min.
-1
-1 %FSS
-1.25 %FSS
±0.5 %FSS
±0.75 %FSS
7.63*10
-5
kPa/digit
0.5 kPa/V
±0.05 %FSS
±0.1 %FSS
15
11
2.2
±0.1 %FSS
0.3 %FSS
bits
bits
ms
typ.
max.
1
1 %FSS
1.25 %FSS
Unit
kPa
Digital input voltage - low-level
Digital output voltage - high-
level
Digital output voltage - low-level
V
IL
V
OH
V
OL
0.9 * V
DD
0.3 * V
DD
0.1 * V
DD
Absolute Maximum Ratings:
Properties
Input voltage VDD pin
Input voltage control pins
1)
Differential over pressure
Differential burst pressure
Common mode pressure
1)
Control pins
Value
min.
V
DD
V
IN_MAX
P
OVER
P
BURST
P
CM
-0.3
-0.3
max.
6.5
5.5
10
10
2500
Unit
V
V
kPa
kPa
kPa
are SDA and SCL
Temperature Sensor Specification:
Properties
Measurement range
Sensitivity
Resolution (ADC)
T
RANGE
SEN
T
RES
T
Value
min.
0
4.272*10
-3
°C/digit
15
bits
typ.
max.
70
Unit
°C
General Information:
Operating Temperature
Storage Conditions (in original
packaging)
Compensated temperature range
Communication interface
Moisture Sensitivity Level (MSL)
Electrostatic discharge
protection (HBM)
max.
5.25
6.5
1
Unit
V
mA
mA
-25 up to +85 °C
< 40 °C ; < 75 % RH
0 to 70 °C
I
2
C, Analog
1
2 kV
Electrical Properties:
Properties
Operating supply voltage
Current consumption
Output current analog pin
Digital input voltage - high-level
V
DD
I
DD
I
OUT_A
V
IH
0.7 * V
DD
Value
min.
4.75
typ.
5
4
Product Specific Pinning:
Pin
SCL
SDA
GND
VOUT
Pad
1
2
3
4
CHECKED
REVISION
Description
I²C serial clock
I²C serial data
Negative supply volage
Analog output
DATE (YYYY-MM-DD)
GENERAL TOLERANCE
I/O
Input
Input/Output
Supply
Output
PROJECTION
METHOD
NiM
DESCRIPTION
001.000
2019-08-13
DIN ISO 2768-1m
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
WSEN-PDUS Differential Pressure
Sensor
BUSINESS UNIT
ORDER CODE
2513130810101
STATUS
PAGE
eiSos
Valid
2/6
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
VDD
NC
RSVD
RSVD
5
6
7
8
Positive supply voltage
No Connection
Reserved
Reserved
Supply
Certification:
RoHS Approval
REACh Approval
Compliant [ 2011/65/EU&2015/863 ]
Conform or declared [ (EC)1907/2006 ]
CHECKED
REVISION
DATE (YYYY-MM-DD)
GENERAL TOLERANCE
PROJECTION
METHOD
NiM
DESCRIPTION
001.000
2019-08-13
DIN ISO 2768-1m
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
WSEN-PDUS Differential Pressure
Sensor
BUSINESS UNIT
ORDER CODE
2513130810101
STATUS
PAGE
eiSos
Valid
3/6
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.

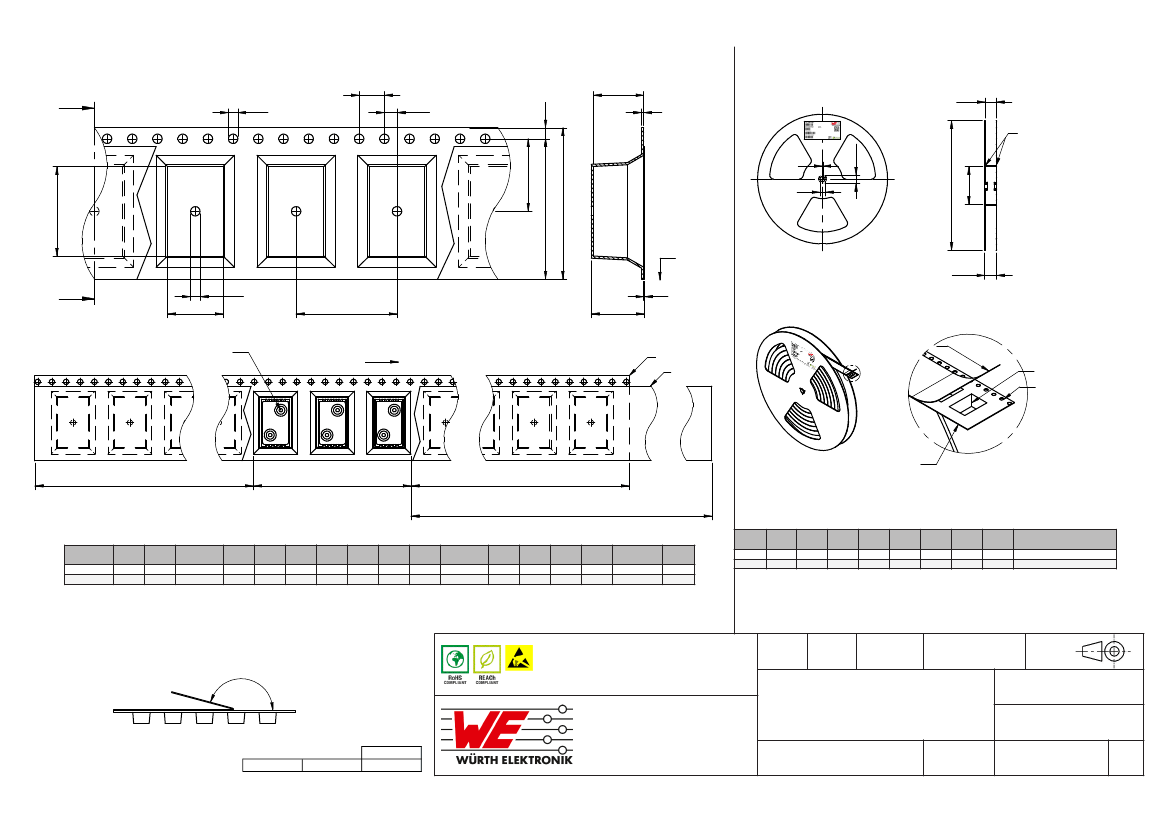

Packaging Specification - Tape and Reel: [mm]
P0
E1
K0
P2
T
A
D0
W3
W1
close to center
B
F
D
C
B0
E2
W
Top Cover
Tape
W2
A
D1
A0
P1
T2
T1
detail B
Carrier Tape
Cover Tape
End
High Pressure
Port
Feeding direction
Start
B
Cover Tape
Chip Cavity
Sprocket Hole
Embossment
No Component
min. 160mm
Components
No Component
min. 100mm
Cover Tape
min. 400mm
Tape Type
2a
A0
(mm)
typ.
8,80
B0
(mm)
typ.
14,20
W
(mm)
+0,3/ -0,1
24,00
T
(mm)
ref.
0,35
T1
(mm)
ref.
0,10
T2
(mm)
typ.
8,22
K0
(mm)
typ.
8,00
P0
(mm)
±0,1
4,00
P1
(mm)
±0,1
16,00
P2
(mm)
±0,1
2,00
D0
(mm)
+0,1/ -0,0
1,50
D1
(mm)
min.
1,50
E1
(mm)
±0,1
1,75
E2
(mm)
min.
22,25
F
(mm)
±0,1
11,50
Material
Polystyrene
Qty.
(pcs.)
500
A
(mm)
± 2,0
330,00
B
(mm)
min.
1,50
C
(mm)
min.
12,80
D
(mm)
min.
20,20
N
(mm)
± 2,0
60,00
W1
(mm)
+ 2,0
24,40
W2
(mm)
max.
30,40
W3
(mm)
min.
23,90
N
W3
(mm)
max.
27,40
A
Material
Polystyrene/ Polyurethane
CHECKED
REVISION
DATE (YYYY-MM-DD)
GENERAL TOLERANCE
PROJECTION
METHOD
NiM
001.000
2019-08-13
DIN ISO 2768-1m
165° - 180°
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
DESCRIPTION
WSEN-PDUS Differential Pressure
Sensor
BUSINESS UNIT
ORDER CODE
2513130810101
STATUS
PAGE
Pull-of force
Tape width
24 mm
0,1 N - 1,3 N
eiSos
Valid
4/6
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
Cautions and Warnings:
The following conditions apply to all goods within the product series of sensor
components of Würth Elektronik eiSos GmbH & Co. KG:
General:
• This electronic component is designed and manufactured for use in general electronic equipment.
• Würth Elektronik must be asked for written approval (following the PPAP procedure) before incorporating the components into any
equipment in fields such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control,
ship control), transportation signal, disaster prevention, medical, public information network, etc. where higher safety and reliability are
especially required and/or if there is the possibility of direct damage or human injury.
• Electronic components that will be used in safety-critical or high-reliability applications, shall be pre-evaluated by the customer.
• The component is designed and manufactured to be used within the datasheet specified values. If the usage and operation conditions
specified in the datasheet are not met, the wire insulation may be damaged or dissolved.
• Do not drop or impact the components, the component may be damaged.
• Würth Elektronik products are qualified according to international standards, which are listed in each product reliability report. Würth
Elektronik does not warrant any customer qualified product characteristics beyond Würth Elektroniks’ specifications, for its validity and
sustainability over time.
• The responsibility for the applicability of the customer specific products and use in a particular customer design is always within the
authority of the customer. All technical specifications for standard products also apply to customer specific products.
• Conformal coating may affect the product performance. We do not recommend coating the components.
Storage Conditions:
• A storage of Würth Elektronik products for longer than 12 months is not recommended. Within other effects, the terminals may suffer
degradation, resulting in bad solderability. Therefore, all products shall be used within the period of 12 months based on the day of
shipment.
• Do not expose the components to direct sunlight.
• The storage conditions in the original packaging are defined according to DIN EN 61760-2.
• For a moisture sensitive component, the storage condition in the original packaging is defined according to IPC/JEDEC-J-STD-033. It is
also recommended to return the component to the original moisture proof bag and reseal the moisture proof bag again.
Handling:
• Violation of the technical product specifications such as exceeding the nominal rated supply voltage, will void the warranty.
• Violation of the technical product specifications such as but not limited to exceeding the absolute maximum ratings will void the
conformance to regulatory requirements.
• ESD prevention methods need to be followed for manual handling and processing by machinery.
• The edge castellation is designed and made for prototyping, i.e. hand soldering purposes only.
• The applicable country regulations and specific environmental regulations must be observed.
• Do not disassemble the product. Evidence of tampering will void the warranty.
These cautions and warnings comply with the state of the scientific and technical knowledge and are believed to be accurate and reliable.
However, no responsibility is assumed for inaccuracies or incompleteness.
All topics are described in a more detailed manner in the user manual for each product.
Product specific:
Soldering:
• The solder profile must comply with the technical product specifications. All other profiles will void the warranty.
• All other soldering methods are at the customers’ own risk.
Cleaning and Washing:
• Washing agents used during the production to clean the customer application might damage or change the characteristics of the
component. Washing agents may have a negative effect on the long-term functionality of the product.
• Using a brush during the cleaning process may damage the component. Therefore, we do not recommend using a brush during the PCB
cleaning process.
Potting and Coating:
• Potting material might shrink or expand during and after hardening. This might apply mechanical stress on the components, which can
influence the characteristics of the transfer function. In addition, potting material can close existing openings in the housing. This can
lead to a malfunction of the component. Thus, potting is not recommended.
CHECKED
REVISION
DATE (YYYY-MM-DD)
GENERAL TOLERANCE
PROJECTION
METHOD
NiM
DESCRIPTION
001.000
2019-08-13
DIN ISO 2768-1m
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
WSEN-PDUS Differential Pressure
Sensor
BUSINESS UNIT
ORDER CODE
2513130810101
STATUS
PAGE
eiSos
Valid
5/6
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
