418217270907: DescriptionSlide Dip Switch, 7 Switches, 7PST, Latched, 0.025A, 24VDC, 14 PCB Hole Cnt, Solder Terminal, Through Hole-right Angle, ROHS AND REACH COMPLIANT; CategoryMechanical and electronic products switch; File Size67KB，1 Pages; ManufacturerWurth Elektronik; Environmental Compliance

Download Datasheet Parametric Compare View All

418217270907 Overview

Slide Dip Switch, 7 Switches, 7PST, Latched, 0.025A, 24VDC, 14 PCB Hole Cnt, Solder Terminal, Through Hole-right Angle, ROHS AND REACH COMPLIANT

418217270907 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Wurth Elektronik
package instruction	ROHS AND REACH COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator color	WHITE
Actuator length	0.043 inch
Actuator material	POLYAMIDE
Actuator type	SLIDE
body width	5.2 mm
Body color	BLACK
body height	9.6 mm
Body length or diameter	18.78 mm
center contact material	COPPER ALLOY
Center contact plating	GOLD
Maximum contact current (DC)	0.025 A
Contact (DC) maximum rated R load	.025A@24VDC
Contact resistance	0.1 mΩ
Maximum contact voltage (DC)	24 V
Dielectric withstand voltage	500VAC V
Electrical life	2000 Cycle(s)
End contact material	COPPER ALLOY
End contact plating	GOLD
Shell material	POLYBUTYLENE TEREPHTHALATE
Insulation resistance	100000000 Ω
insulator material	POLYAMIDE
JESD-609 code	e3
Installation features	THROUGH HOLE-RIGHT ANGLE
Number of positions	7
Number of switching segments	7
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB hole count	14
method of packing	TUBE
Solderability	WAVE
surface mount	NO
Switch action	LATCHED
switch function	7PST
Switch type	SLIDE DIP SWITCH
Terminal surface	Tin (Sn)
Terminal length	0.11 inch
Termination type	SOLDER

Preview

Download Datasheet

View All

2,54 ±0,05

TECHNICAL CHARACTERISTICS

SPECIFICATION

>Contact Rating:

Switching:

25mA, 24VDC

Non-Switching:

100mA, 50VDC

>Contact Resistance:

Initial:

50mOHM max.

After Life Test:

100mOHM max.

>Insulation Resistance:

min. 100MOHM at 500VDC

>Dielectric Strength:

500VAC for 1 minute

>Operating Force:

1000g max.

>Mechanical Life:

min. 5000 cycles

>Electrical Life:

2000 cycles / 25mA, 24VDC

>Raise Actuator Type

MATERIAL

>Cover:

PBT UL 94V-0, color Red

>Base:

PA 66 UL 94V-0, color Black

>Actuator

: PA 66 UL 94V-0, color White

>Support:

PA 66 UL 94V-0, color Black

>Contact:

Gold Plated

>Terminal:

Tin Plated

SOLDERING INFORMATION

>Terminal in THT version

>Wave soldering 260° 10sec. max

>Hand soldering with 30W or under at 350° for 3 sec. max or at

270° for 5 sec max

>Keep in "off" position during soldering

>Ultrasonic cleaning not re-commended

>Any inflow of Flux into the switch may influence the contact function

ENVIRONMENTAL

>Storage condition: -40° ~ +85°

>Operation condition: -40° ~ +85°

>Compliance: Lead Free, ROHS, Reach

PACKAGING INFORMATION

>Tube packaging only

>On delivery in "off" position

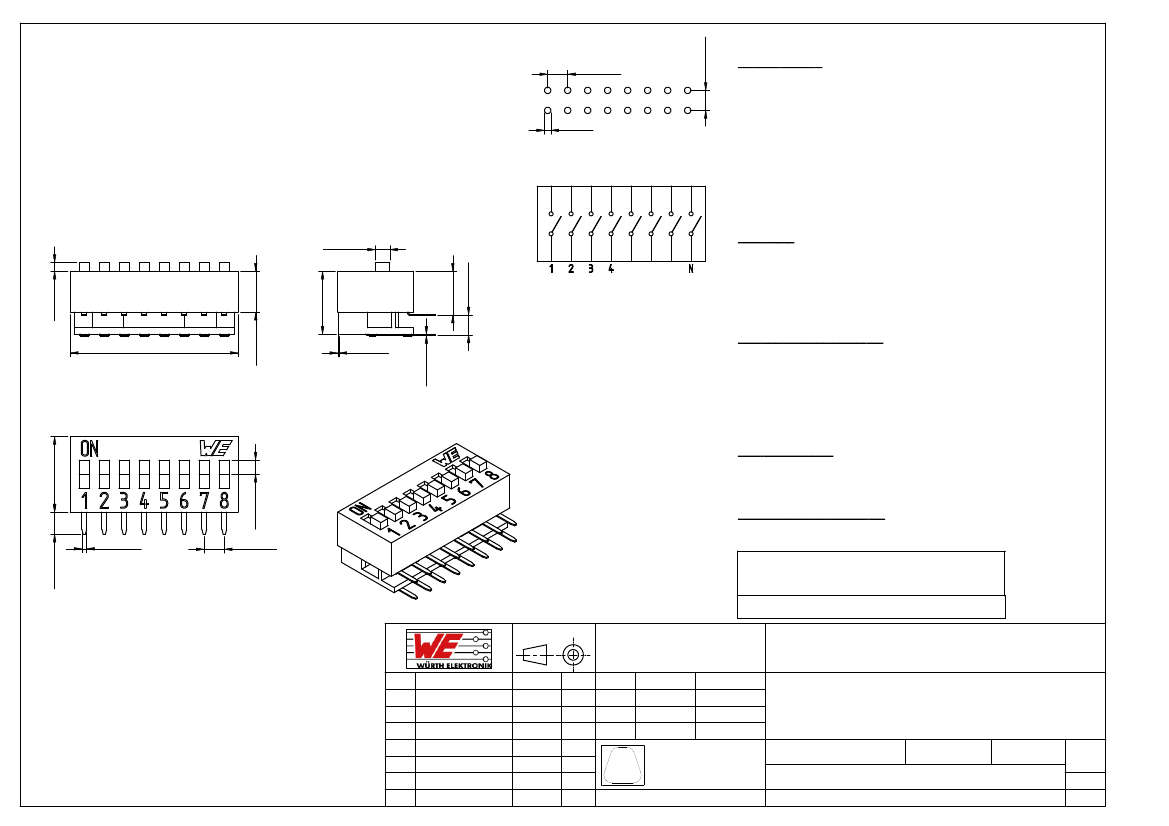

DIMENSION

No.Of Pole

Dim. A (mm) 6,08 8,62 11,16 13,70 16,24

No.Of Pole

Dim. A (mm) 21,32

23,86

26,40

31,48

18,78

2,54 ±0,05

0,80

1,80 ±0,05

5,55 ±0,20

2,54 ±0,20

1,10 ±0,05

7,99 ±0,20

Wiring Diagram

9,60 ±0,20

2,80 ±0,20

0,60 ±0,05

2,54 ±0,05

1,80 Travel

0,15 ±0,03

0,2

5,20 ±0,20

0,13 ±0,05

Projection

GENERAL TOLERANCE

.x = +/- 0,2

.xx = +/- 0,15

Date

Drawn

Checked

Basic material

Name

Jelisarow

DESCRIPTION

09-02-23

WE-SWITCH_BOX_Type, right angle, THT version

raise Actuator without top tape sealed

2:1

4182172709xx

RDX

CAD

Würth Elektronik

RDX

4182172709xx.dft

Scale

Drawing.- No.

Position

SIZE

System :Solid Edge V20

REV

FILE

DATE

EDV NO

418217270907 Related Products

	418217270907	418217270903	418217270905	418217270906	418217270909	418217270910	418217270912
Description	Slide Dip Switch, 7 Switches, 7PST, Latched, 0.025A, 24VDC, 14 PCB Hole Cnt, Solder Terminal, Through Hole-right Angle, ROHS AND REACH COMPLIANT	Slide Dip Switch, 3 Switches, 3PST, Latched, 0.025A, 24VDC, 6 PCB Hole Cnt, Solder Terminal, Through Hole-right Angle, ROHS AND REACH COMPLIANT	Slide Dip Switch, 5 Switches, 5PST, Latched, 0.025A, 24VDC, 10 PCB Hole Cnt, Solder Terminal, Through Hole-right Angle, ROHS AND REACH COMPLIANT	Slide Dip Switch, 6 Switches, 6PST, Latched, 0.025A, 24VDC, 12 PCB Hole Cnt, Solder Terminal, Through Hole-right Angle, ROHS AND REACH COMPLIANT	Slide Dip Switch, 9 Switches, 9PST, Latched, 0.025A, 24VDC, 18 PCB Hole Cnt, Solder Terminal, Through Hole-right Angle, ROHS AND REACH COMPLIANT	Slide Dip Switch, 10 Switches, 10PST, Latched, 0.025A, 24VDC, 20 PCB Hole Cnt, Solder Terminal, Through Hole-right Angle, ROHS AND REACH COMPLIANT	Slide Dip Switch, 12 Switches, 12PST, Latched, 0.025A, 24VDC, 24 PCB Hole Cnt, Solder Terminal, Through Hole-right Angle, ROHS AND REACH COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Wurth Elektronik	Wurth Elektronik	Wurth Elektronik	Wurth Elektronik	Wurth Elektronik	Wurth Elektronik	Wurth Elektronik
package instruction	ROHS AND REACH COMPLIANT	ROHS AND REACH COMPLIANT	ROHS AND REACH COMPLIANT	ROHS AND REACH COMPLIANT	ROHS AND REACH COMPLIANT	ROHS AND REACH COMPLIANT	ROHS AND REACH COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Actuator color	WHITE	WHITE	WHITE	WHITE	WHITE	WHITE	WHITE
Actuator length	0.043 inch	0.043 inch	0.043 inch	0.043 inch	0.043 inch	0.043 inch	0.043 inch
Actuator material	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE
Actuator type	SLIDE	SLIDE	SLIDE	SLIDE	SLIDE	SLIDE	SLIDE
body width	5.2 mm	5.2 mm	5.2 mm	5.2 mm	5.2 mm	5.2 mm	5.2 mm
Body color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
body height	9.6 mm	9.6 mm	9.6 mm	9.6 mm	9.6 mm	9.6 mm	9.6 mm
Body length or diameter	18.78 mm	8.62 mm	13.7 mm	16.24 mm	23.86 mm	26.4 mm	31.48 mm
center contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
Center contact plating	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Maximum contact current (DC)	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A
Contact (DC) maximum rated R load	.025A@24VDC	.025A@24VDC	.025A@24VDC	.025A@24VDC	.025A@24VDC	.025A@24VDC	.025A@24VDC
Contact resistance	0.1 mΩ	0.1 mΩ	0.1 mΩ	0.1 mΩ	0.1 mΩ	0.1 mΩ	0.1 mΩ
Maximum contact voltage (DC)	24 V	24 V	24 V	24 V	24 V	24 V	24 V
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Electrical life	2000 Cycle(s)	2000 Cycle(s)	2000 Cycle(s)	2000 Cycle(s)	2000 Cycle(s)	2000 Cycle(s)	2000 Cycle(s)
End contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
End contact plating	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Shell material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
insulator material	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE
JESD-609 code	e3	e3	e3	e3	e3	e3	e3
Installation features	THROUGH HOLE-RIGHT ANGLE	THROUGH HOLE-RIGHT ANGLE	THROUGH HOLE-RIGHT ANGLE	THROUGH HOLE-RIGHT ANGLE	THROUGH HOLE-RIGHT ANGLE	THROUGH HOLE-RIGHT ANGLE	THROUGH HOLE-RIGHT ANGLE
Number of positions	7	3	5	6	9	10	12
Number of switching segments	7	3	5	6	9	10	12
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PCB hole count	14	6	10	12	18	20	24
method of packing	TUBE	TUBE	TUBE	TUBE	TUBE	TUBE	TUBE
Solderability	WAVE	WAVE	WAVE	WAVE	WAVE	WAVE	WAVE
surface mount	NO	NO	NO	NO	NO	NO	NO
Switch action	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED
switch function	7PST	3PST	5PST	6PST	9PST	10PST	12PST
Switch type	SLIDE DIP SWITCH	SLIDE DIP SWITCH	SLIDE DIP SWITCH	SLIDE DIP SWITCH	SLIDE DIP SWITCH	SLIDE DIP SWITCH	SLIDE DIP SWITCH
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Terminal length	0.11 inch	0.11 inch	0.11 inch	0.11 inch	0.11 inch	0.11 inch	0.11 inch
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
