61305225721_TPK datasheet, PDF

Datasheet> All Categories > The connector> The connector> 61305225721_TPK

61305225721_TPK: DescriptionBoard Connector, 52 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle; CategoryThe connector The connector; File Size868KB，2 Pages; ManufacturerWurth Elektronik; Environmental Compliance

Download Datasheet Parametric View All

61305225721_TPK Overview

Board Connector, 52 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle

61305225721_TPK Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Wurth Elektronik
Reach Compliance Code	compliant
body width	0.2 inch
subject depth	0.196 inch
body length	2.624 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
JESD-609 code	e4
Manufacturer's serial number	6130
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
PCB contact pattern	MIXED
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.122 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	52

Preview

Download Datasheet

View All

TECHNICAL CHARACTERISTICS

MATERIAL

INSULATOR: NYLON 46

COLOR: BLACK

CONTACT MATERIAL: COPPER ALLOY

CONTACT TYPE: STAMPED

CONTACT PLATING: GOLD

QUALITY CLASS: 3 AS PER CECC 75 301-802

PITCH: 2.54MM

ENVIRONMENTAL

OPERATING TEMPERATURE: -40 UP TO 125°C

FLAMABILITY RATING: UL94-V0

COMPLIANCE: LEAD FREE AND ROHS

ELECTRICAL

CURRENT RATING: 3A

WORKING VOLTAGE: 250V AC

INSULATOR RESISTANCE: >1000 MOHM

DIELECTRIC WITHSTANDING VOLTAGE: 500V AC/MN

CONTACT RESISTANCE: 20 mOHM MAX

SOLDERING

JEDEC LEAD FREE WAVE SOLDERING PROCESS

PACKAGING

TRAY

DIMENSION

A = 2.54 x (NB. PIN / 2) - 1

B = 2.54 x (NB. PIN / 2)

RoHS Compliant

REV

19-FEB-14

31-AUG-10

23-AVR-09

23-NOV-07

23-NOV-06

30-MAR-04

26-JAN-99

DATE

SOLDERING

PACKING UNIT MOD

PACKAGING

MODIFICATIONS

DRAW

LEAD FREE

PDF

FILE

APPROVAL: RJ

SCALE:

SHEET: 1/2

DRAW: PEARL

WERI PART NO: 6130 xx 25721

PROJECTION:

GENERAL TOLERANCE

.X = +/- 0.2

.XX = +/- 0.15

UNIT: MM

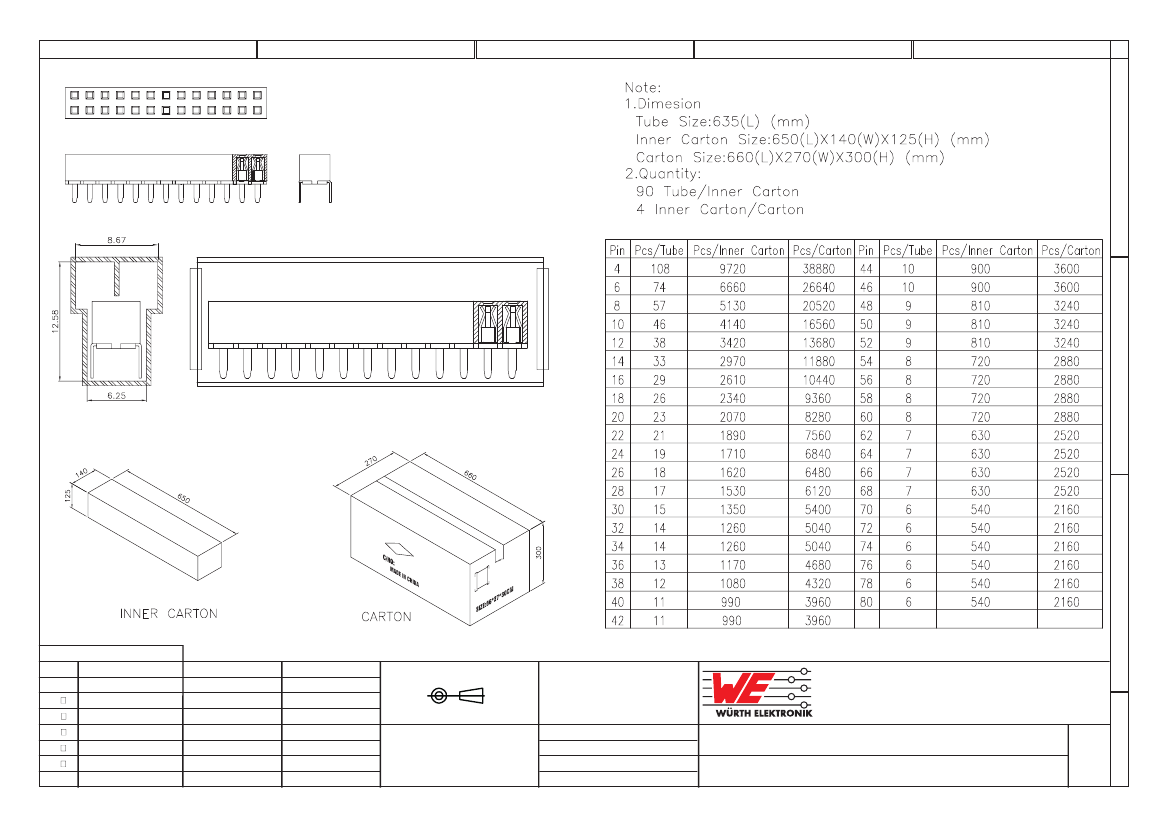

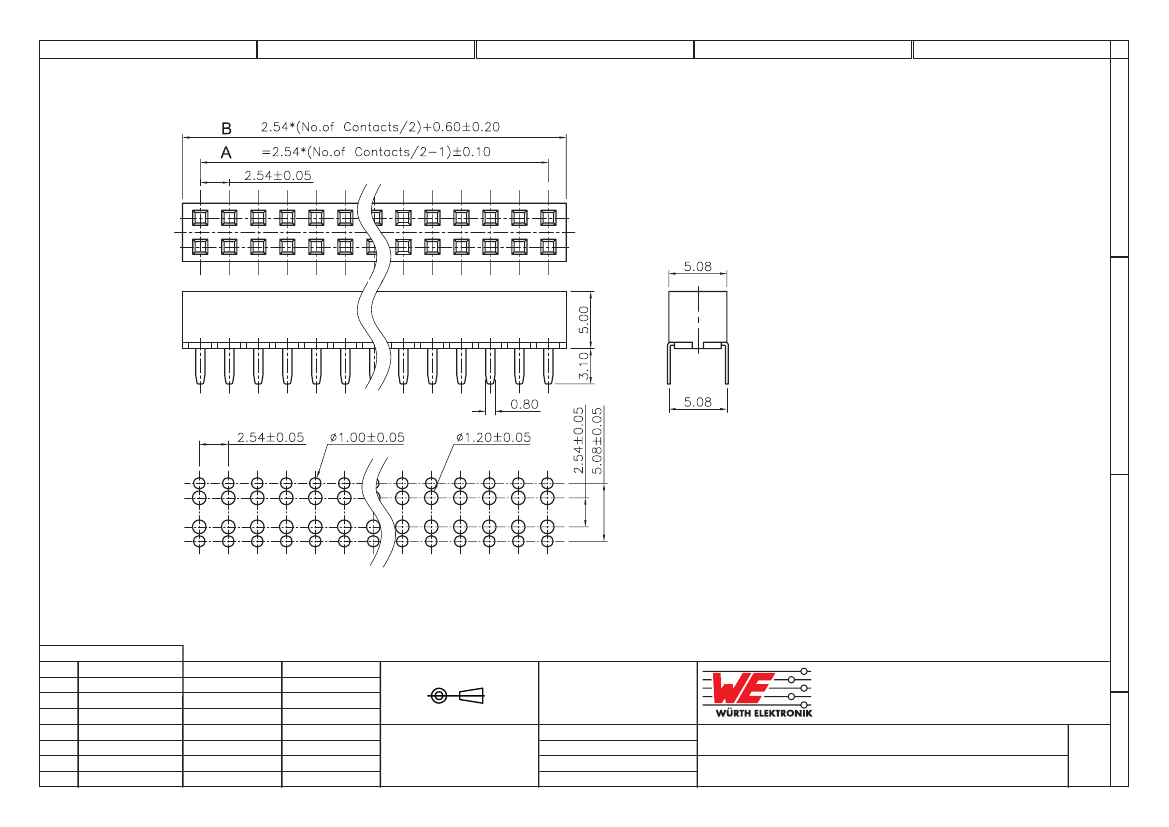

DESCRIPTION: 2.54MM DUAL SOCKET HEADER BOTTOM ENTRY

SIZE
