620309124022 Overview

2.00mm SMT Male Vertical Shrouded Header WR-WTB

620309124022 Parametric

Parameter Name	Attribute value
Brand Name	Wurth Electronik
Maker	Wurth Elektronik
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.197 inch
subject depth	0.263 inch
body length	0.862 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	800VAC V
Durability	25 Cycles
Insulation resistance	1000000000 Ω
Insulator color	BEIGE
insulator material	NYLON
Manufacturer's serial number	6203
Plug contact pitch	0.079 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	9

Preview

Download Datasheet

View All

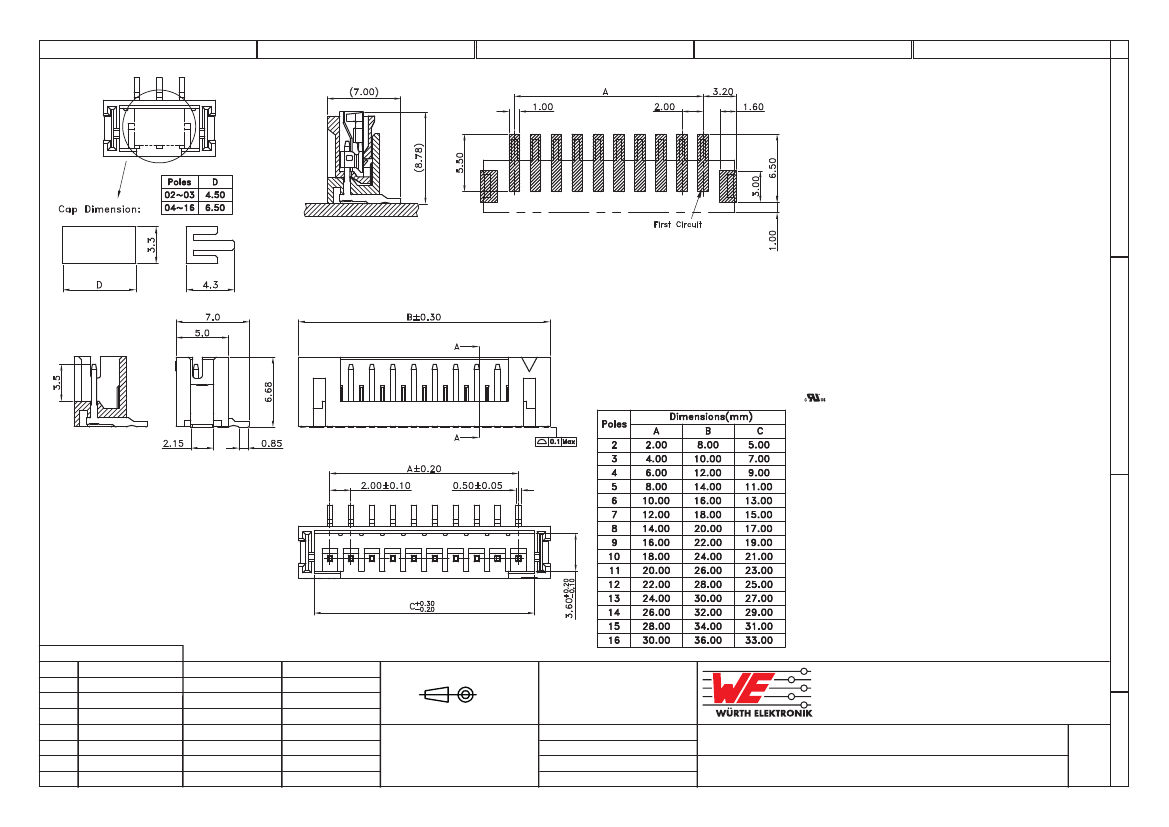

TECHNICAL CHARACTERISTICS

MATERIAL

INSULATOR: NYLON 9T

FLAMMABILITY RATING: UL94-V0

COLOR: BEIGE

CONTACT MATERIAL: COPPER ALLOY

CONTACT TYPE: STAMPED

CONTACT PLATING: TIN

QUALITY CLASS: 25 MATING CYCLES

PITCH: 2.00 MM

PCB LAYOUT - COMPONENT VIEW

ENVIRONMENTAL

OPERATING TEMPERATURE: -25 UP TO 85°C

COMPLIANCE: LEAD FREE AND ROHS

ELECTRICAL

CURRENT RATING: 2 A

WORKING VOLTAGE: 100 VAC

INSULATOR RESISTANCE: >1000 MOHM

DIELECTRIC WITHSTANDING VOLTAGE: 800 VAC/MN

CONTACT RESISTANCE: 20 mOHM MAX

STANDARD

CERTIFIED: E323964

SOLDERING

JEDEC LEAD FREE REFLOW SOLDERING PROCESS

SECTION A-A

RECOMMENDED ASSEMBLY DIMENSION

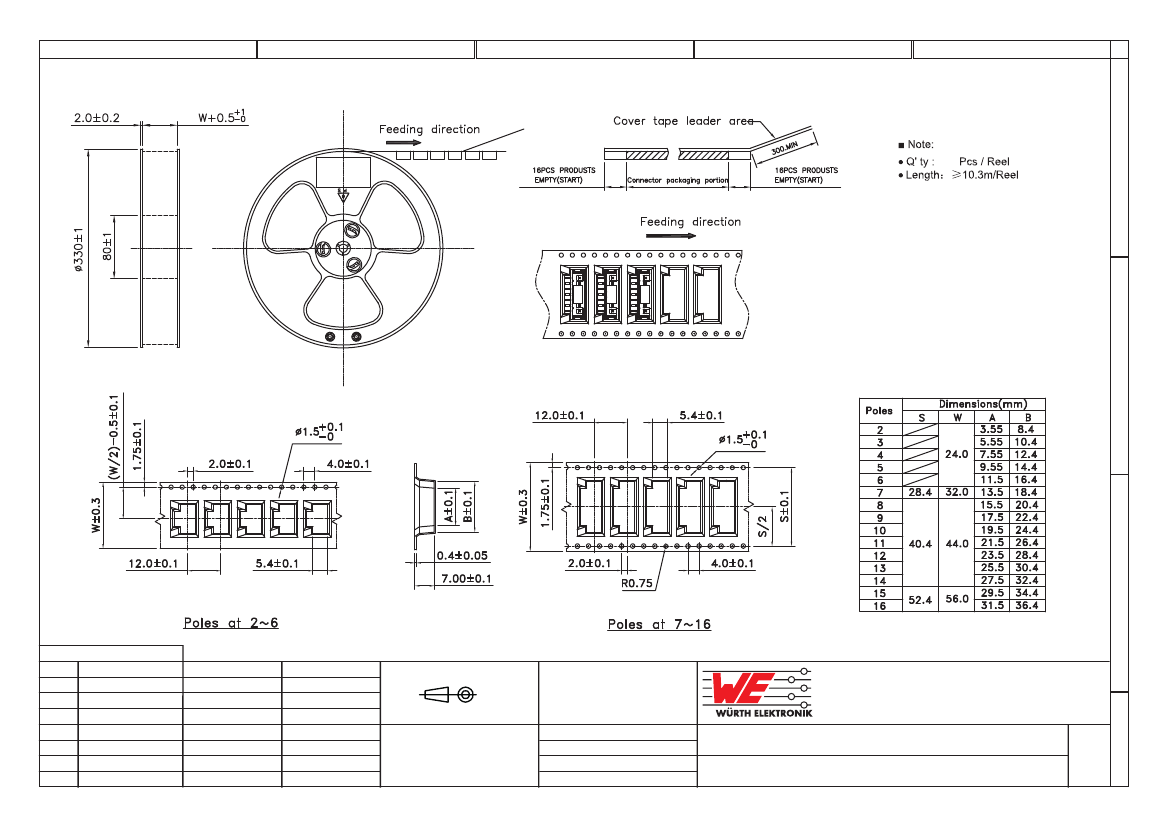

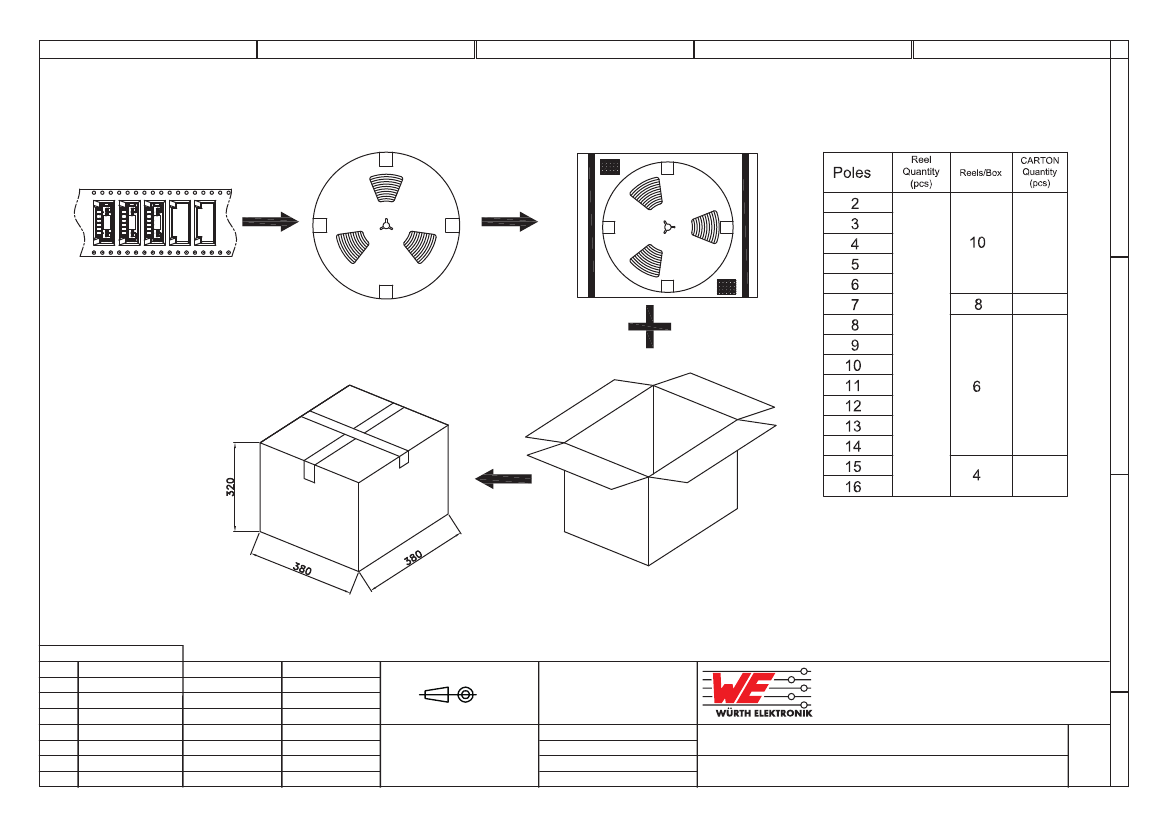

PACKAGING

TAPE AND REEL WITH CAP

PROJECTION:

GENERAL TOLERANCE

.X = +/- 0.2

.XX = +/- 0.15

REV

01-FEV-18

22-DEC-17

30-AUG-16

DATE

CORRECTION PCN

PCN

TPK

FILE

APPROVAL: BBu

UNIT: MM

SCALE:

SHEET: 1/4

DRAW:

DESCRIPTION: 2.00 MM SMT MALE VERTICAL SHROUDED HEADER

WERI PART NO: 620 3xx 124 022

SIZE

620309124022 Related Products

	620309124022	620308124022	620306124022	ABSM32A-05.000MHZ-10-B-7	620307124022
Description	2.00mm SMT Male Vertical Shrouded Header WR-WTB	2.00mm SMT Male Vertical Shrouded Header WR-WTB	2.00mm SMT Male Vertical Shrouded Header WR-WTB	Parallel - Fundamental Quartz Crystal	2.00mm SMT Male Vertical Shrouded Header WR-WTB
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
Maximum operating temperature	85 °C	85 °C	85 °C	70 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-20 °C	-25 °C
Brand Name	Wurth Electronik	Wurth Electronik	Wurth Electronik	-	Wurth Electronik
Maker	Wurth Elektronik	Wurth Elektronik	Wurth Elektronik	-	Wurth Elektronik
ECCN code	EAR99	EAR99	EAR99	-	-
body width	0.197 inch	0.197 inch	0.197 inch	-	0.197 inch
subject depth	0.263 inch	0.263 inch	0.263 inch	-	0.263 inch
body length	0.862 inch	0.783 inch	0.626 inch	-	0.705 inch
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	-	BOARD CONNECTOR
Contact to complete cooperation	SN	TIN	TIN	-	SN
Contact point gender	MALE	MALE	MALE	-	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	-	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	-	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	-	SQ PIN-SKT
Dielectric withstand voltage	800VAC V	800VAC V	800VAC V	-	800VAC V
Durability	25 Cycles	25 Cycles	25 Cycles	-	25 Cycles
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	-	1000000000 Ω
Insulator color	BEIGE	BEIGE	BEIGE	-	BEIGE
insulator material	NYLON	NYLON	NYLON	-	NYLON
Manufacturer's serial number	6203	6203	6203	-	6203
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	-	0.079 inch
Installation option 1	LOCKING	LOCKING	LOCKING	-	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	-	STRAIGHT
Installation type	BOARD	BOARD	BOARD	-	BOARD
Number of connectors	ONE	ONE	ONE	-	ONE
PCB row number	1	1	1	-	1
Number of rows loaded	1	1	1	-	1
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	-	POLARIZED HOUSING
Rated current (signal)	2 A	2 A	2 A	-	2 A
Guideline	UL	UL	UL	-	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	COMMERCIAL
Terminal pitch	2.0066 mm	2.0066 mm	2.0066 mm	-	2.0066 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	-	SURFACE MOUNT
Total number of contacts	9	8	6	-	7
Is it Rohs certified?	-	conform to	conform to	conform to	-
Contact completed and terminated	-	Tin (Sn)	Tin (Sn)	-	TIN
